Add B&M Easy Mount Kit #80278 to complete your installation. Dimensions 10 in. x 7-1/2 in. x 4 in. with 7 in. diameter fan. 6 Amp capacity

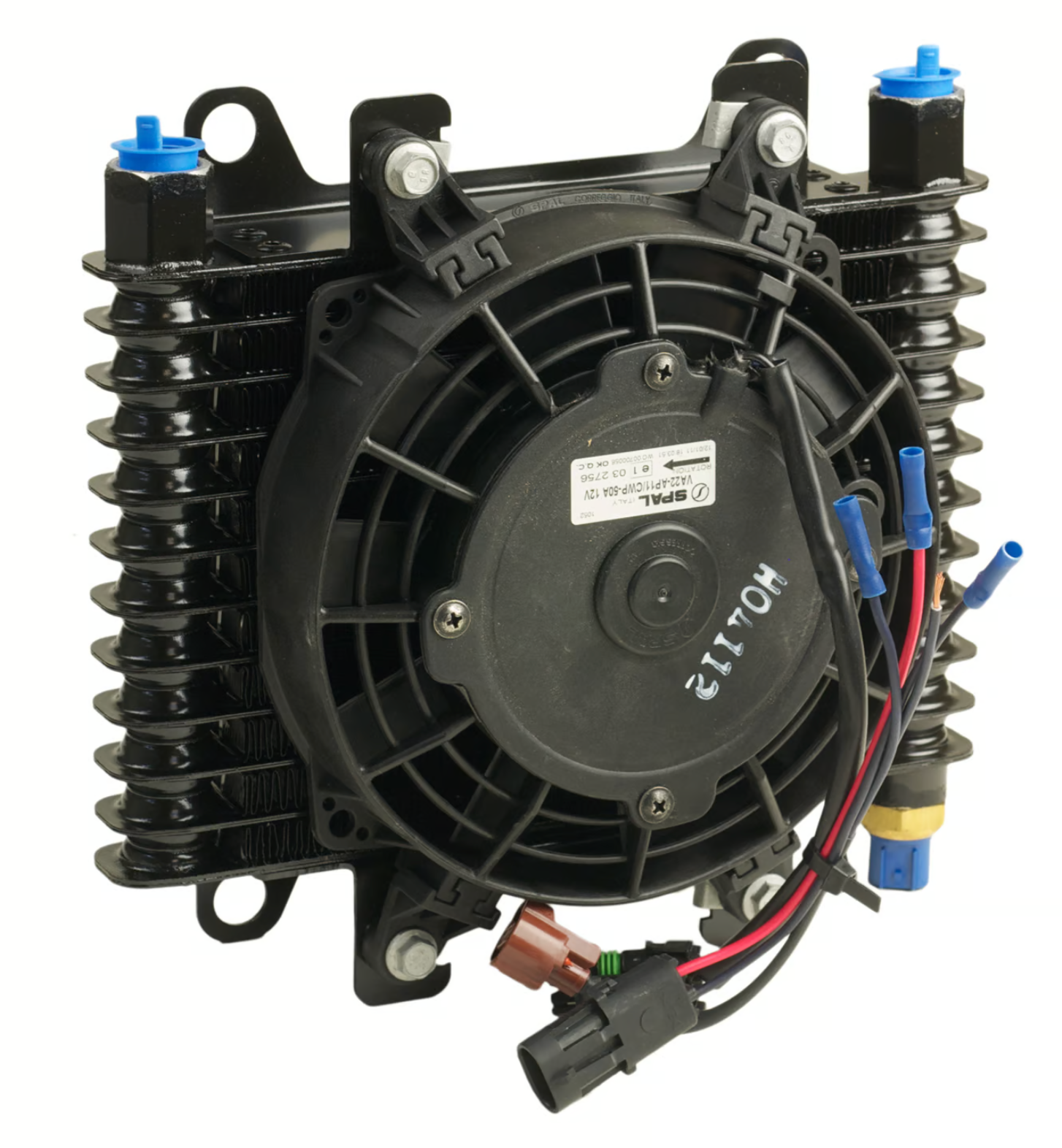

This B&M Hi-Tek SuperCooler features a fin and plate design, is fitted with a high quality 12-volt electric fan for maximum cooling efficiency and can be mounted in tight spaces. The cooler features built-in attachment points, making mounting the fan a breeze and the cooler is suitable for many fluids including transmission fluids, engine oils, differential oil, and power steering fluid. The 12-volt high capacity 6-amp suction fan cranks out 350cfm and includes a replaceable thermal fan switch set to turn the fan once the temp hits 175 degrees. SuperCoolers are pressure tested to 200 PSI. 1/2-inch NPT inlet and outlet. 10-inches x 7.5-inches x 4-inches with a 7-inch diameter fan.

• Includes 12-volt High Flow 350cfm Fan

• Fin And Plate Cooler Construction

• Pressure Tested To 200 PSI

• Includes Thermal Switch

• High Efficiency Cooler

RUN COOLER, LAST LONGER

B&M Cooling Systems for Automatic Transmissions

Power generates heat. This fundamental truth is important to keep in mind when increasing the capabilities of your

vehicle. Proper oil temperature is the key to both reliability and performance in several key automotive systems, whether

it’s the engine, transmission, differential, or even power steering. To prevent contamination left from worn parts from being

circulated in your new components and causing premature wear, we strongly recommend protecting your investment by

adding a new SuperCooler transmission cooler with all new transmission installations.

With a B&M SuperCooler properly set up in your vehicle, you have 60 years of automotive engineering and knowledge

looking after whatever component it’s attached to. These coolers will serve as protection against failure, whether you’re

simply traveling to your next destination or racing to the finish line. Here are some of the highlights of B&M coolers:

LIGHTWEIGHT, ALL ALUMINUM CONSTRUCTION

Being an excellent conductor, aluminum naturally fills the role of a heat exchanger extremely well. Through the exclusive

use of aluminum in all B&M cooler products, the size of the cooling systems can be kept at a minimum, thus reducing

weight while retaining high strength and durability.

STACKED PLATE DESIGN

Most B&M cooling systems are of the compact and highly durable stacked plate design. A stacked plate design offers

an extremely rigid structure to prevent vibration induced cracks in even the most demanding racing applications. The

internal geometry of the plates has been arranged to maximize cooling surface area while offering minimum resistance

to fluid flow – a true recipe for ultimate efficiency. The inherent resilience of these coolers makes them ideal for external

installations where the cooler may be exposed to the elements, such as dirt, rocks, or debris that could strike the cooler

at speed. The compact nature of the design also allows for installation in small and less accessible areas of the vehicle.

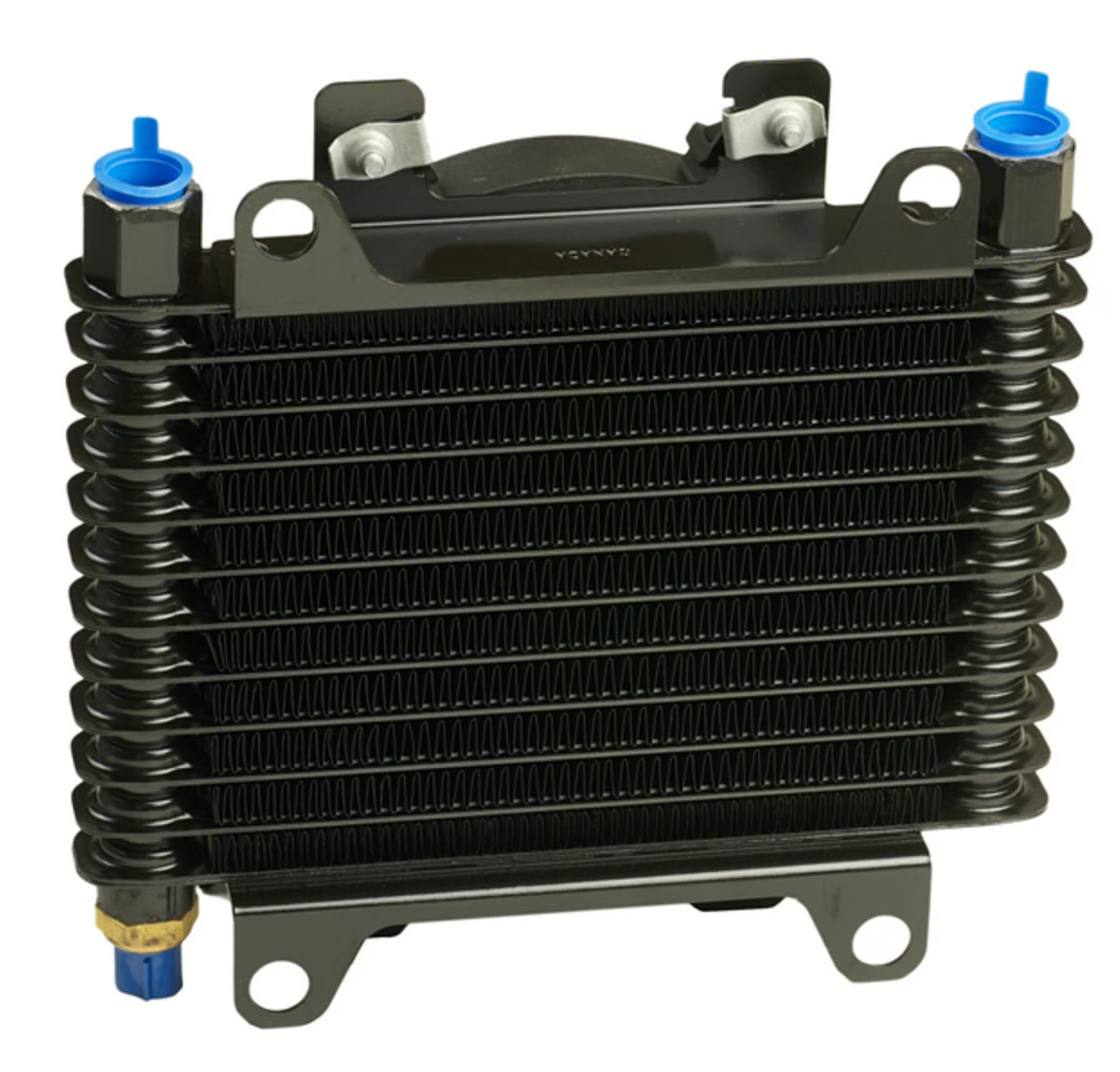

FIN AND PLATE DESIGN

Fin and plate cooler design draws from the durability of the stacked plate cooler and combines it with the heat exchanging

efficiency of a fin and tube design. This combination yields the ultimate in cooling efficiency and reliability. Fin and plate

coolers can typically offer a 25%-30% improvement in cooling capacity over similarly sized fin and tube coolers, and are

incredibly tough. B&M’s “Hi-Tek” line of coolers offers this technology.

PRESSURE TESTED FOR REAL-WORLD APPLICATIONS

All B&M cooling systems are pressure tested up to 200 PSI to ensure high quality for real world applications. The ability

of the entire line up of B&M’s coolers to withstand these rigorous tests comes from their oven-brazed construction. A

SuperCooler does not leave the factory unless it meets some of the highest standards in the industry.

MOUNTING BRACKETS BUILT RIGHT INTO THE COOLER

B&M SuperCoolers have mounting brackets built in to the external structure of the assembly, allowing for ease of

installation and versatile mounting options. While other coolers may require you to build a convoluted bracket to fit, the

built in mounting points of B&M’s coolers integrate the strength of the entire assembly into the mounts, saving you time

and making easy work of installation.

ABOUT B&M

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.
