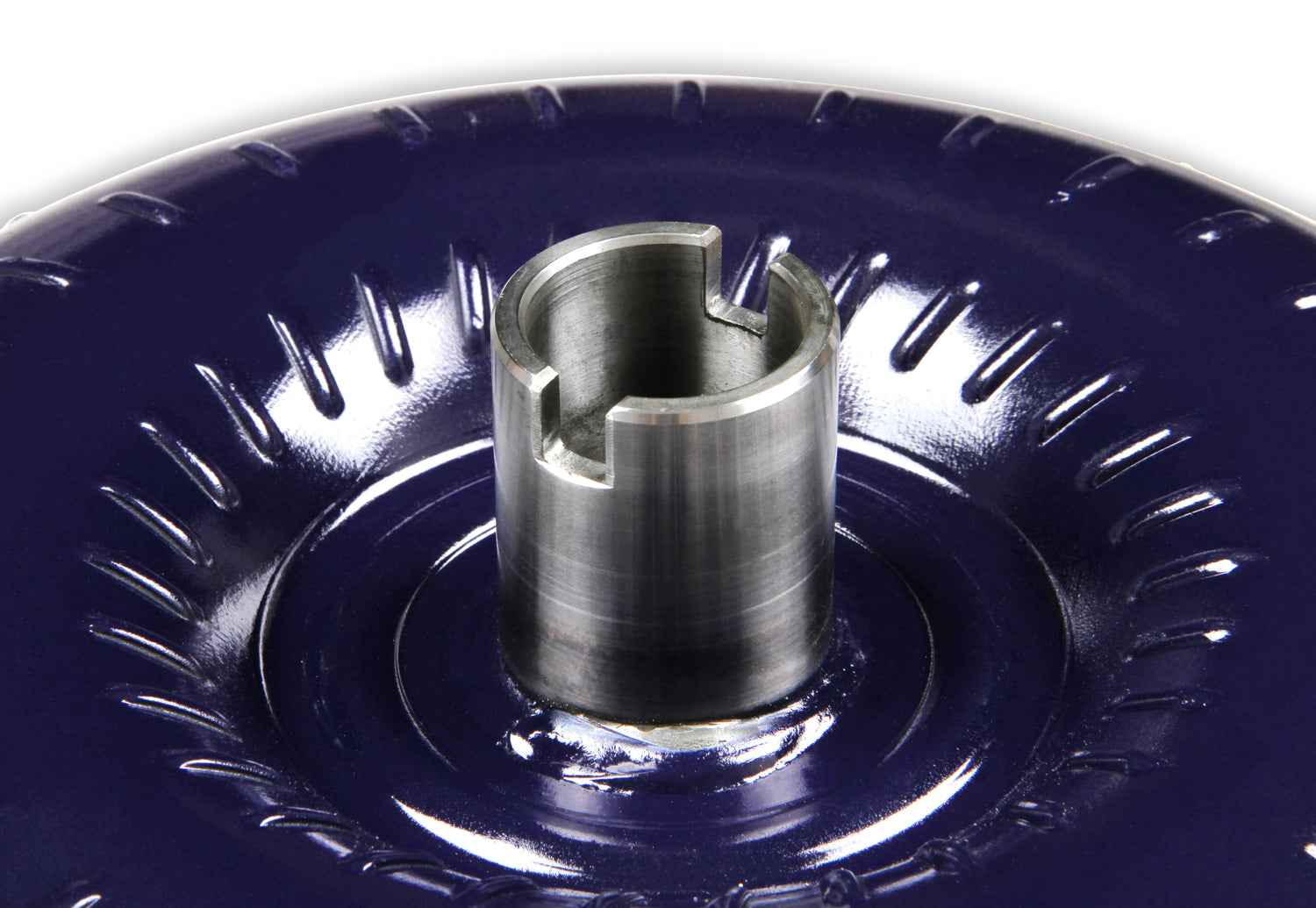

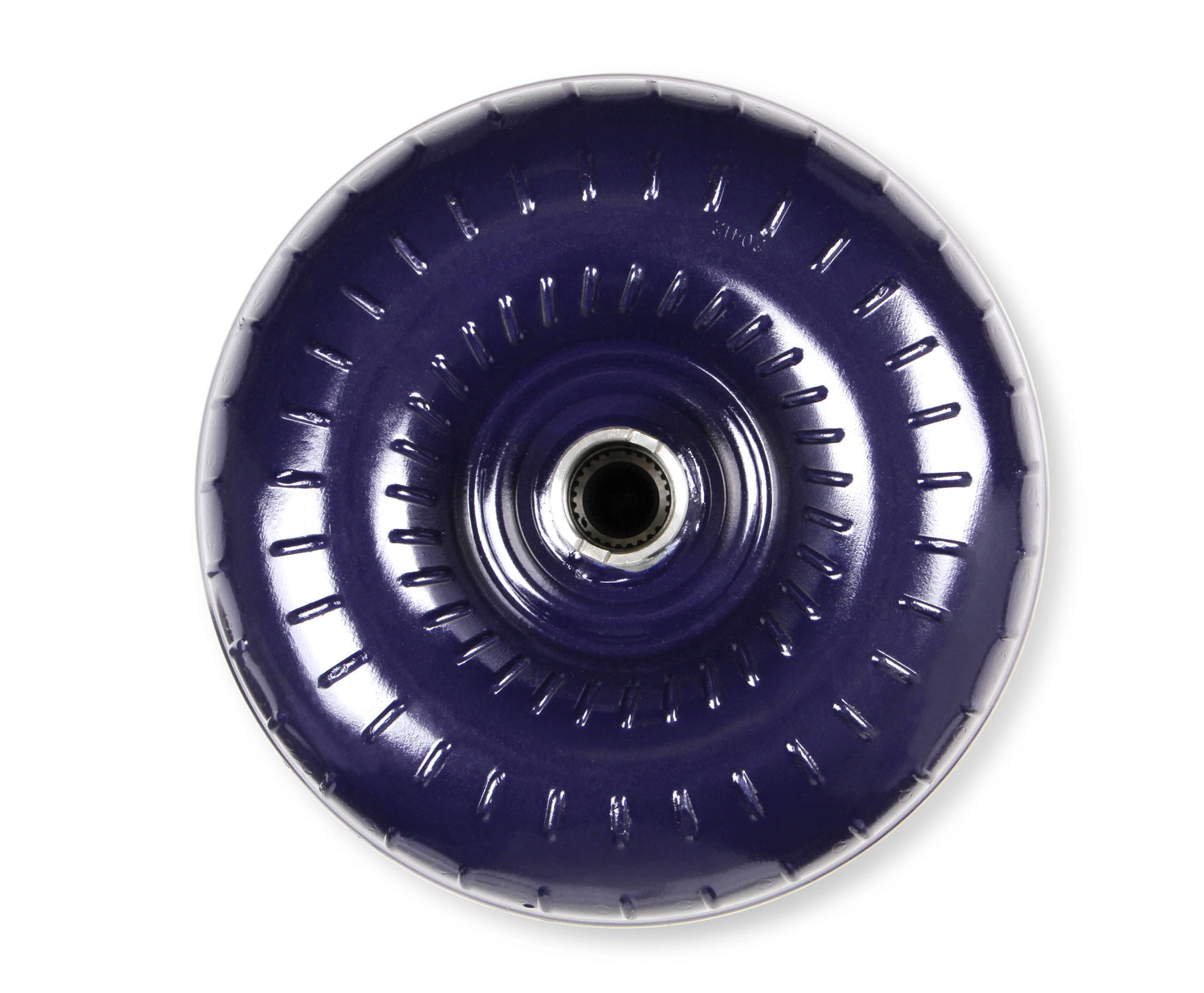

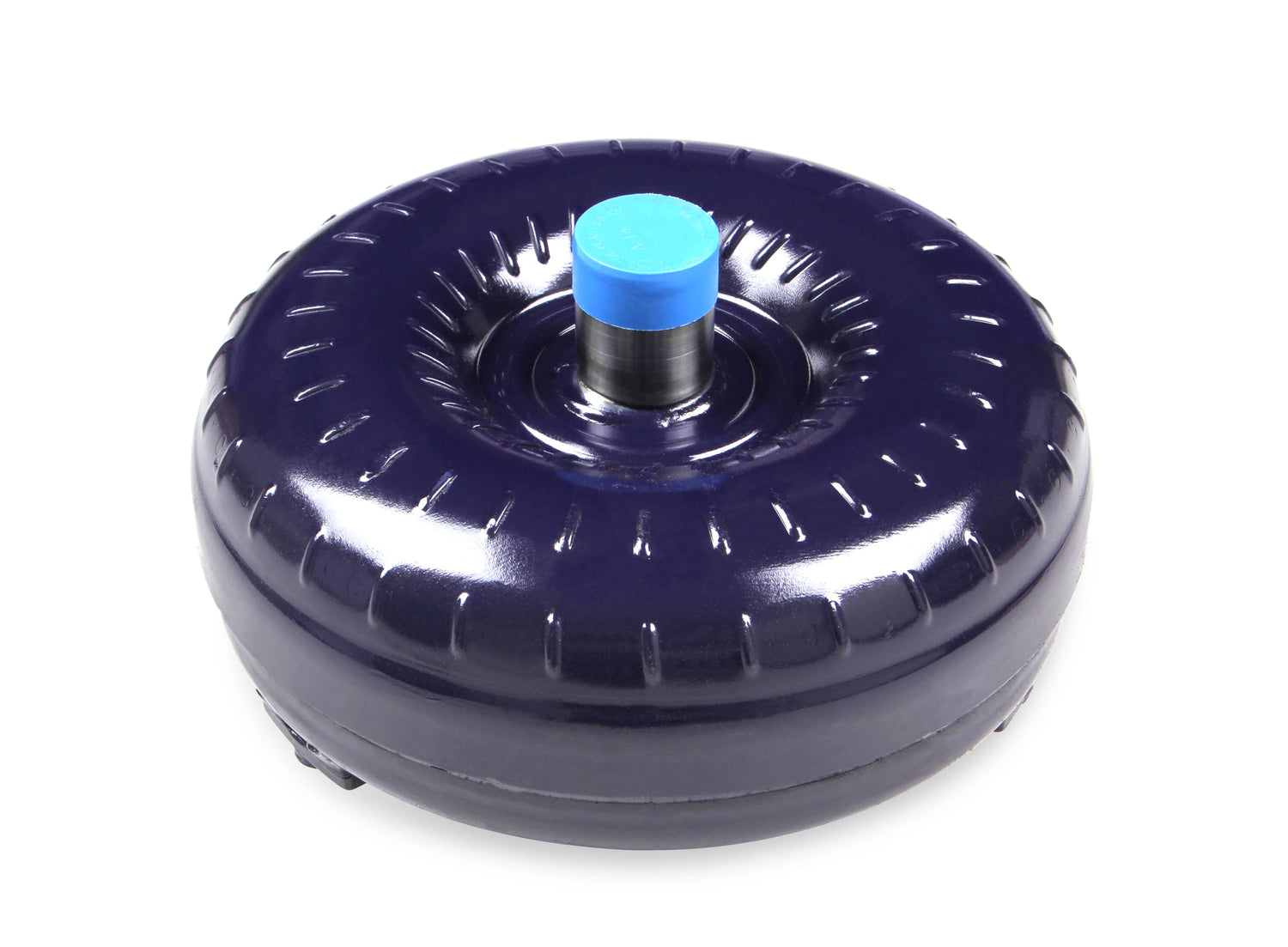

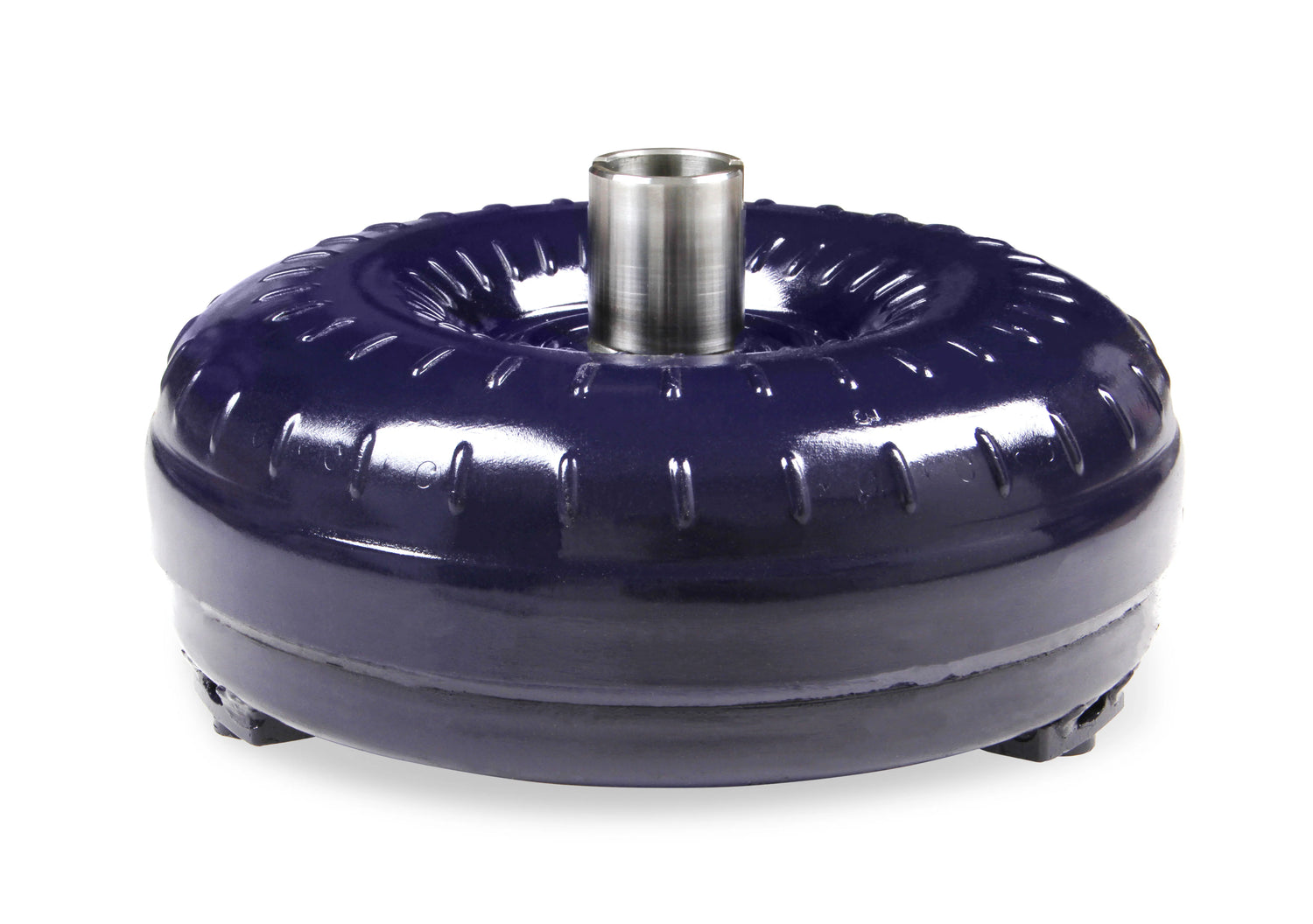

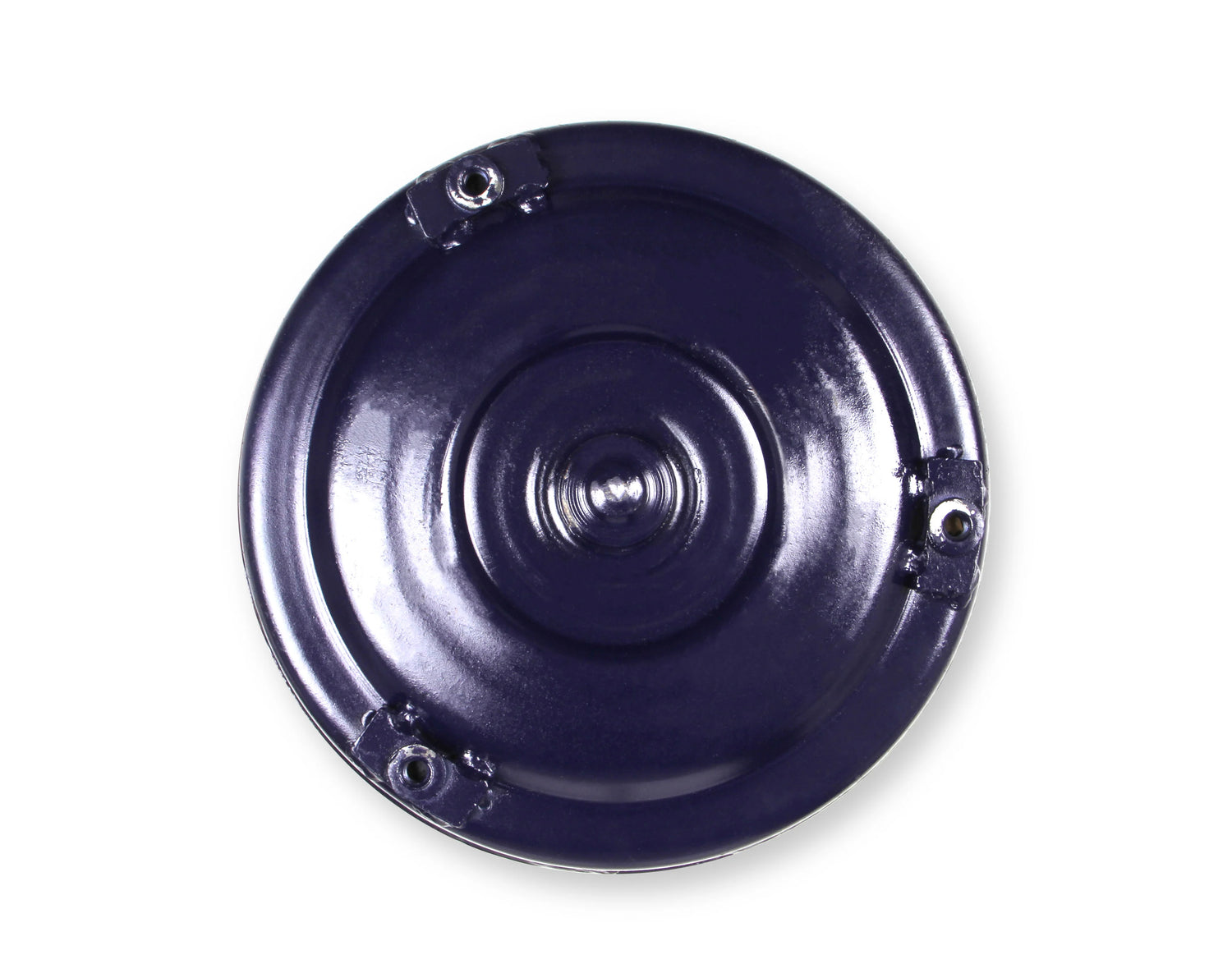

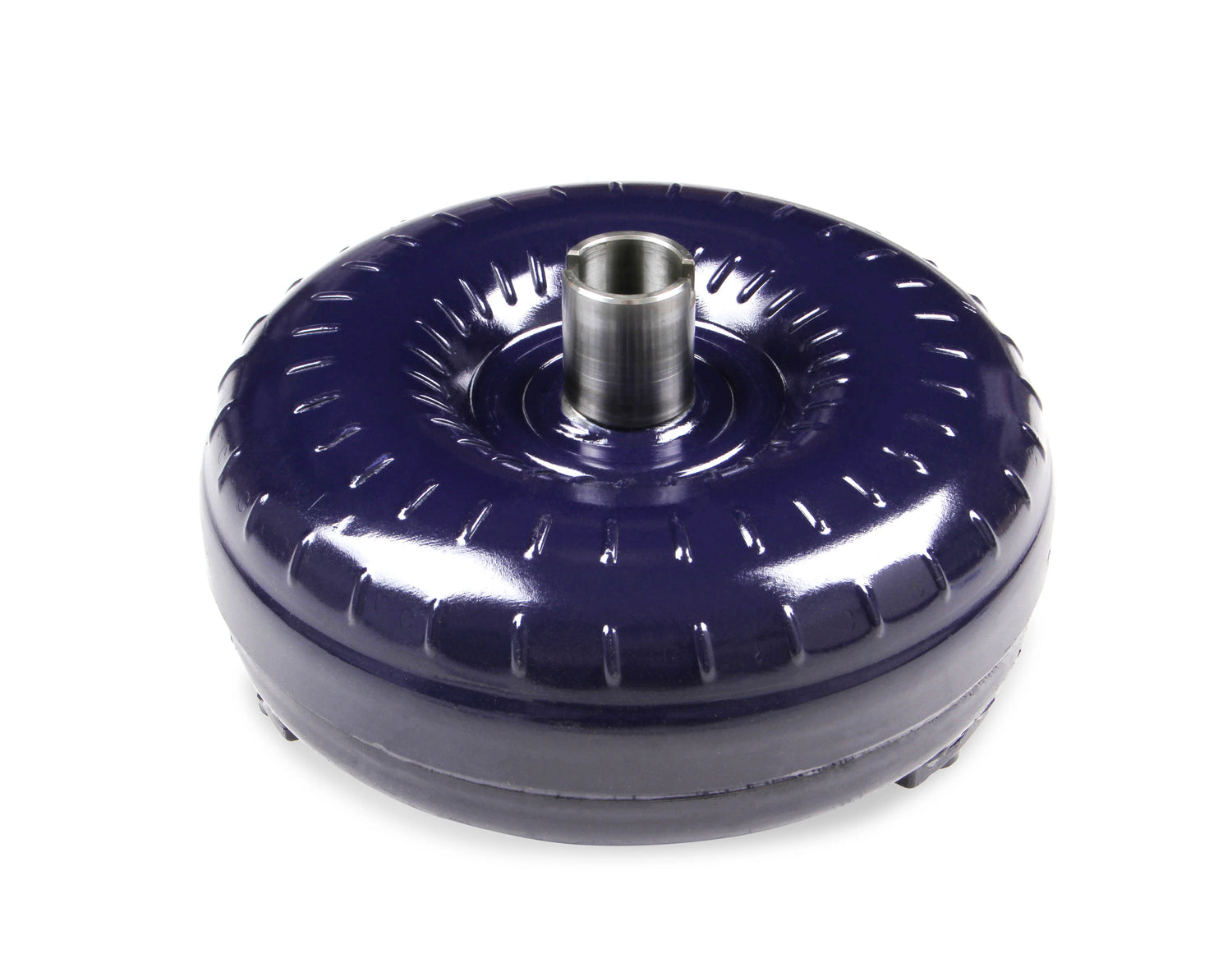

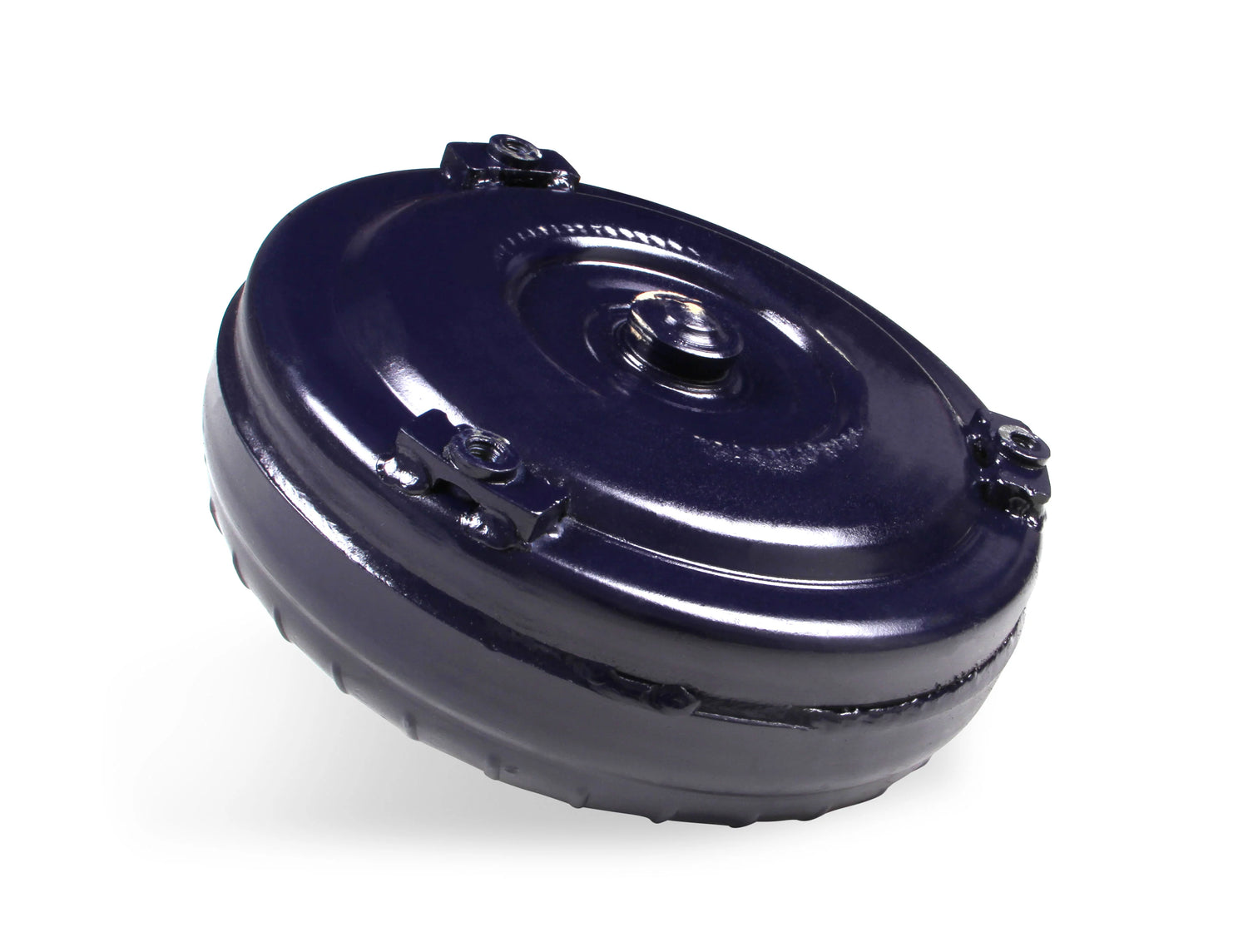

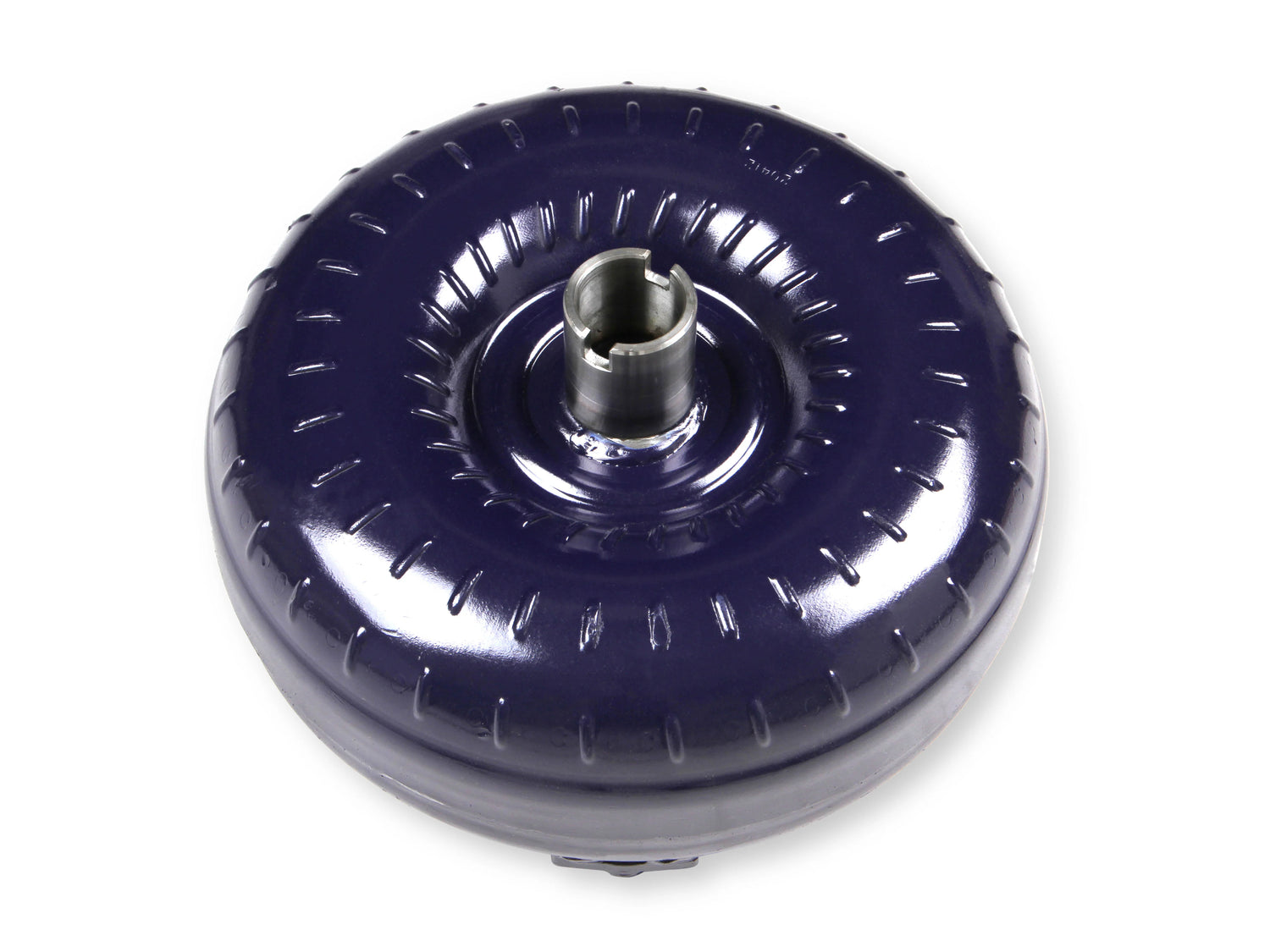

BM® #20412 (65-91) GM TH350/TH400 Holeshot 2400 Torque Converter

Regular price$549.95
/
Shipping calculated at checkout.
  • Question? Call us at (888) 257-1077 🏁
  • info@10SecondRacing.com
  • Free Shipping to Lower 48 US States ($100+)
  • Worldwide Shipping via UPS (Check Rates at Checkout)
  • This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

    Fits GM 1965-91 TH400, 425, 375 and 1968-81 TH350, 375B (not 350C) automatic transmissions. Requires small 10.75-inch bolt circle flexplate

    10.75-inch bolt circle, 2300-2500 RPM stall

    HoleShot 2400 for GM 1965 to 1991 TH400, 425, 375 and 1968 to 1981 TH350, 375B (not 350C) are for serious-minded performance enthusiasts and offer additional strength and durability features not found in our Tork Master or Traveler series of converters. The Holeshot converter is an excellent choice for vehicles with some performance engine modifications, particularly big cams that tend to reduce low-end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Holeshot converters feature furnace brazed impeller fins and turbine, new precision alloy impeller hub and new heavy duty needle bearings. Other features include fully balanced and pressure tested by expert technicians. If your vehicle is equipped with a plate type nitrous system or supercharger, please refer to the Nitrous Holeshot line of converters. Notes: Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Higher stall converters can generate more heat, so we highly recommend adding a transmission cooler. This converter is Not recommended for supercharged, plate-type nitrous oxide or trans-brake applications. The product images shown are for illustration purposes only and may not be an exact representation of the product. 10.75-inch bolt circle.

    • Precision Balanced on Certified Balance Equipment

    • Copper Furnace Brazed Impeller and Turbine

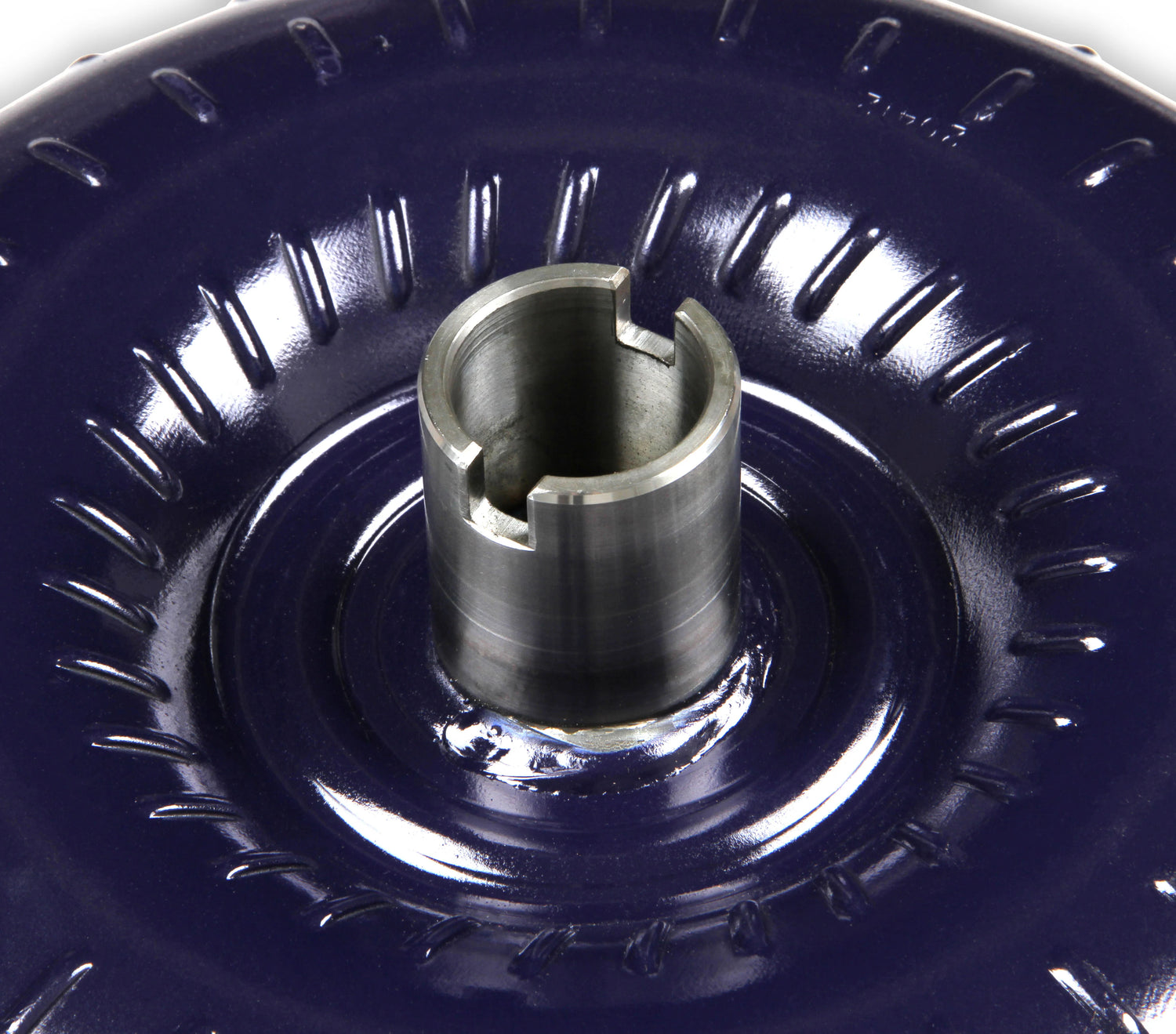

    • New Precision Alloy Steel Impeller Hub

    • Race Proven Technology & Quality

    • Heavy Duty Needle Bearings

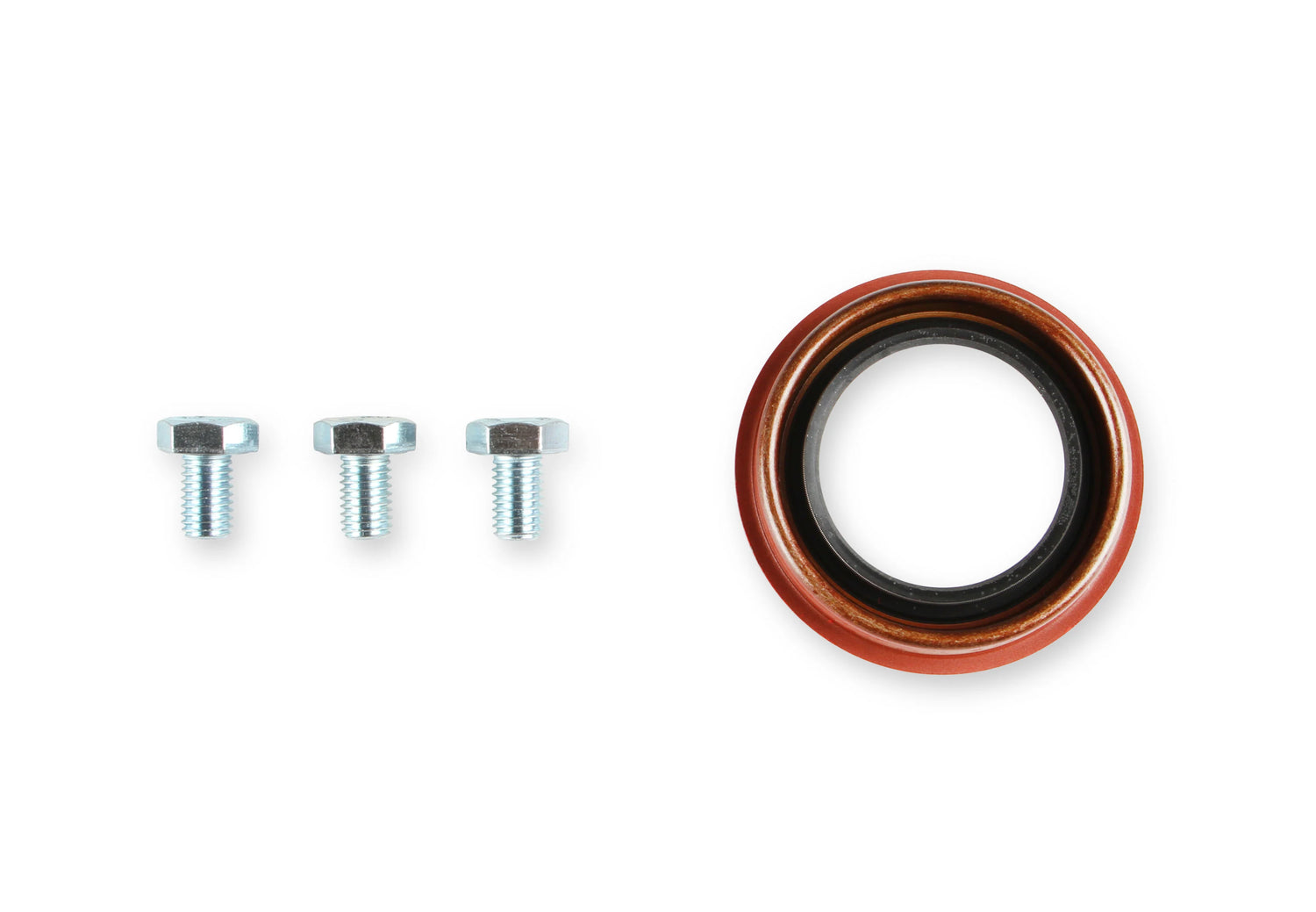

    Additional Contents

    New needle bearings

    Automotive Item Grade

    High Performance

    Bolt Circle Diameter (in)

    10.75

    Brand

    B&M

    Emission Code

    5

    Flexplate Change Needed

    Yes

    Furnace Brazed

    Yes

    Input Spline

    30

    Material

    Steel

    Product Type

    Automatic Transmission Torque Converter

    Sale Category

    Transmission and Drivetrain

    Stall

    2300-2500

    Stall Speed

    2,300-2,500

    Stall Torque Ratio

    2300 to 2500 RPM stall

    Transmission

    TH350

    TH375

    TH375B

    TH400

    TH425

    UPC

    792899202411

    California Proposition 65 Required

    No

    Part Number

    20412



    ABOUT B&M

    B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.
