BM®  |  SKU: 117309

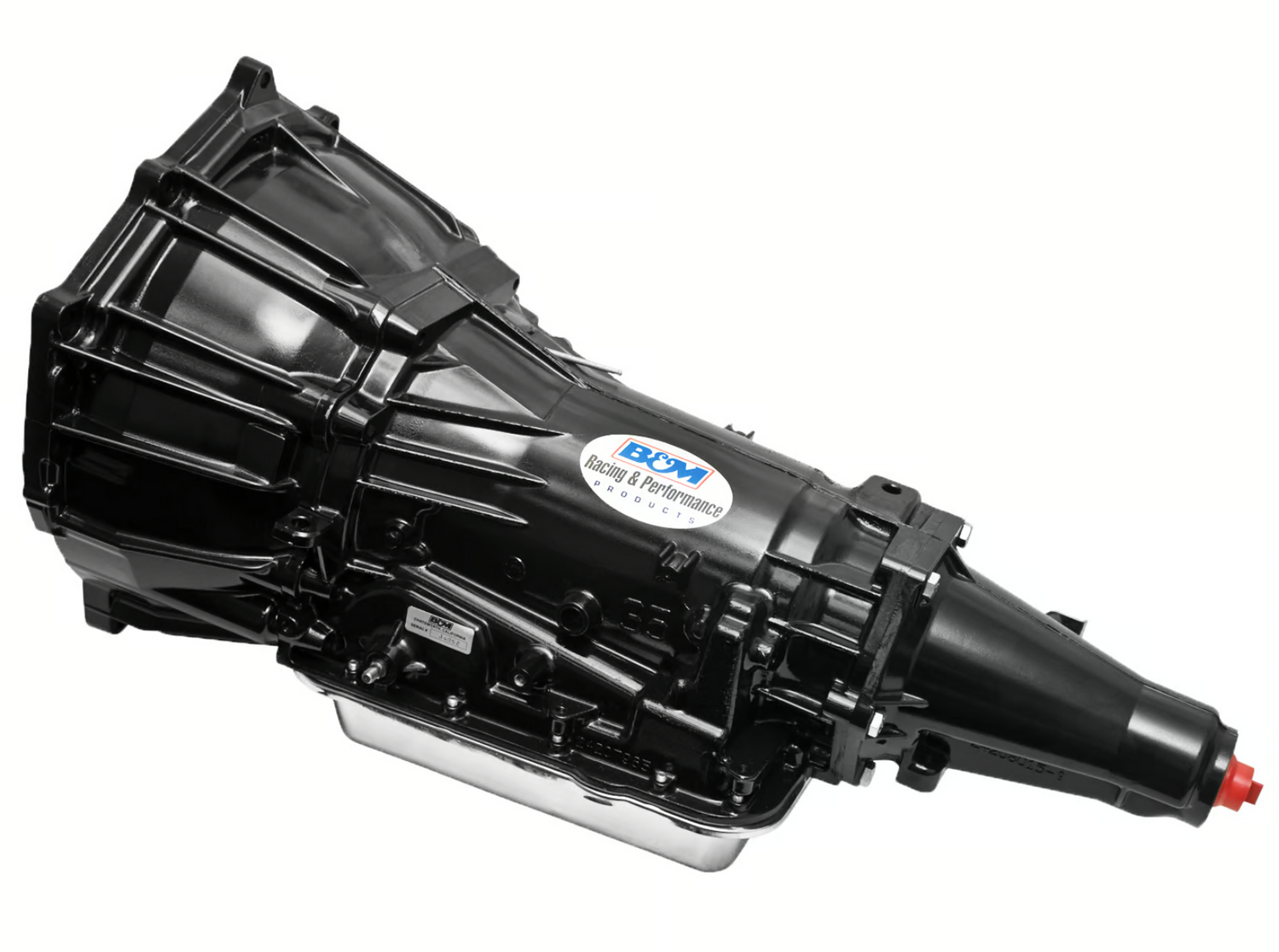

BM® #117309 (98-06) GM LS 4L60E Automatic Transmission Assembly with Manual Shift Valve Body

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

$4,999.95
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

For use on LS engines. Does not replace 4L60 (manual shift model). Transmission shipped without speedometer driven gear or housing.

The B&M GM 4L60E PreRunner/Trail automatic transmission is for use with Chevrolet LS based engines. This transmission features a manual/forward valve body and includes a deep, cast aluminum pan. Internal components include a beast sunshell, reinforced input drum, "Billet" Corvette 4th gear servo, all new solenoids & wiring harness, 29 element dual cage sprag, all new high performance friction plates, and 8 Count 3-4 Friction Pack with Koleen steels. Max 550 HP / 450 Ft/Lbs. Intended for off road/trail use.

  • Rated to 550HP and 450 FT/LBS

  • Includes Deep Aluminum Pan

  • Manual/Forward Valve Body

  • Intended for Off-Road Use

2WD/4WD 2WD
Automotive Item Grade High Performance
Brand B&M
Built-In Transmission Shield No
Case Material Cast Aluminum
Color Black
Control Type Electronic
Cooler included No
Core Change Applicable No
Dipstick included No
Drive Type RWD
Emission Code 5
Friction Plates New
Gear Ratio-First 3.06
Gear Ratio-Fourth 0.7
Gear Ratio-Second 1.63
Gear Ratio-Third 1
Horsepower Rating (HP) 550
Part Type High Performance
Product Type Transmission
Reverse Gear Ratio 2.29
Torque Converter Included No
Torque Rating (Ft/Lbs) 450
Transbrake No
Transmission Model 4L60E
Transmission Pan Finish Natural
Transmission Pan Material Aluminum
Transmission Pan Type Deep, Cast
Transmission Series Full Race
Transmission Speeds 4
Transmission Type Automatic
Valve Body Pattern Forward
Valve Body Type Manual
UPC 019695954086
California Proposition 65 Chemical Name Benzene
Chromium (hexavalent compounds)
Lead
Part Number 117309

QUALITY SHIFTS EVERYTIME

Who would you trust with your car’s performance? The fly-by-night transmission business or the company with 65 years of experience in building and racing automatic transmissions? B&M may not be building the mighty Hydrostick anymore, but the experience and skills gained at the race track ensure B&M is still delivering the best performance automatic transmissions on the market. B&M offers two transmission choices based on your specific application.

STREET/STRIP TRANSMISSIONS

B&M’s Street/Strip Transmission is a complete ready to run unit (less converter) for high performance street and mild strip use. These transmissions provide firm shifts, upgraded components and rebuilding tricks that only comes with years of experience. They all retain a standard shift pattern and are the best transmissions available today for Street/Strip use.

TRAVELER TRANSMISSIONS

B&M’s Traveler Transmission is a rugged model and has a medium/firm shift compared to the hard shift of the Street/Strip model. The Traveler is recommended for light trucks and RV/towing applications. The Traveler transmissions also feature increased oil flow which provides for cooler operation under extreme conditions.
