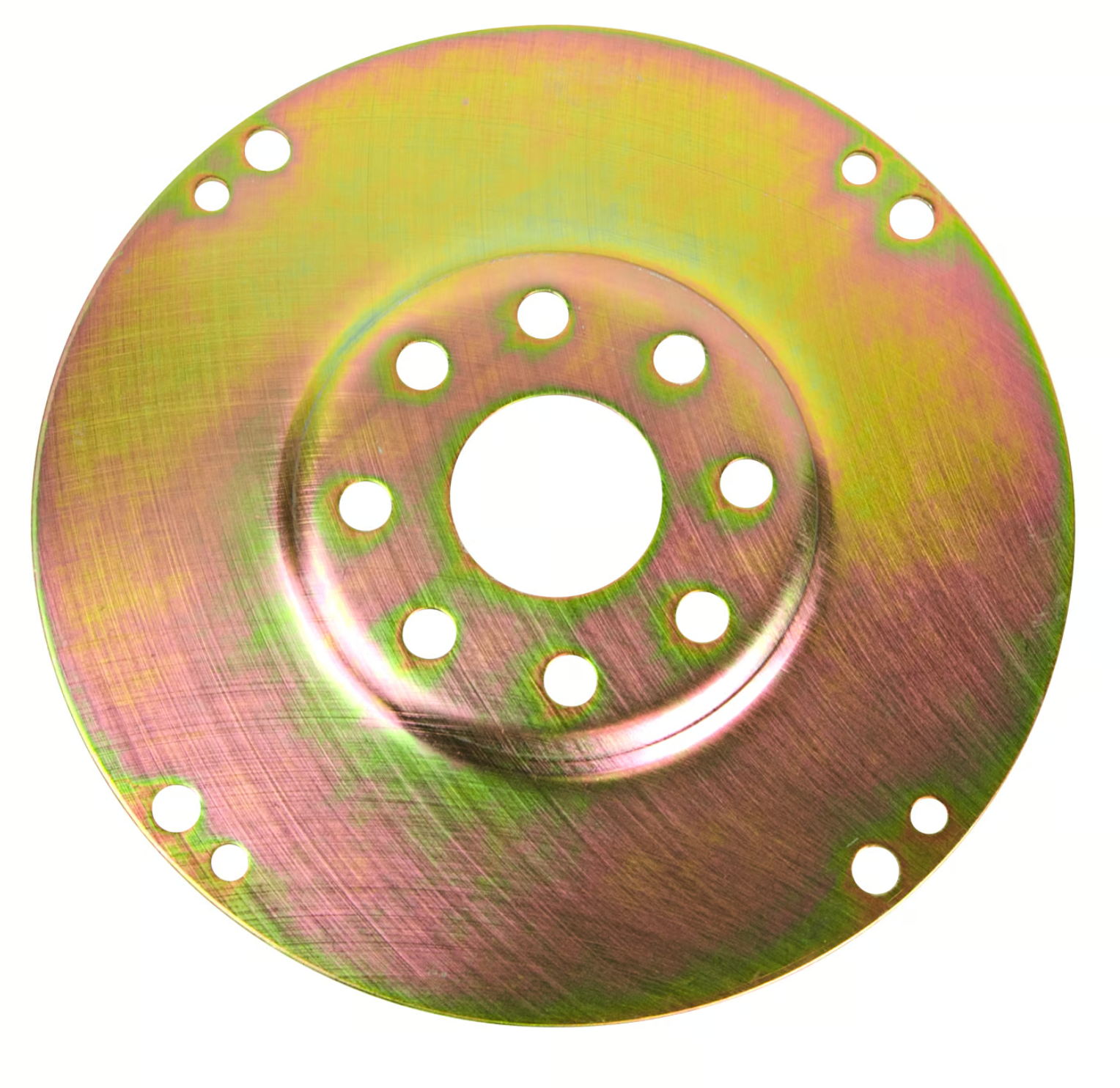

Fits 1962 and newer Chrysler, Dodge, Plymouth Torqueflite A727 and A904 automatic transmissions. Bolts onto 8-bolt internally balanced crankshaft with a 10-inch bolt pattern.
As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high-performance flexplate designed for 1962-up A727, A904 transmissions, and all internally balanced Chrysler, Dodge, and Plymouth V8 engines with 8-bolt crankshaft flange. Features include high tensile strength steel construction to resist elongation and cracking, a 10.00-inch bolt pattern, and SFI 29.1 safety certification ensuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI-approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles, or other vehicles needing the added protection and toughness that B&M has been delivering since 1953.
NHRA and IHRA Legal For All Classes
10.00-inch Converter Bolt Pattern

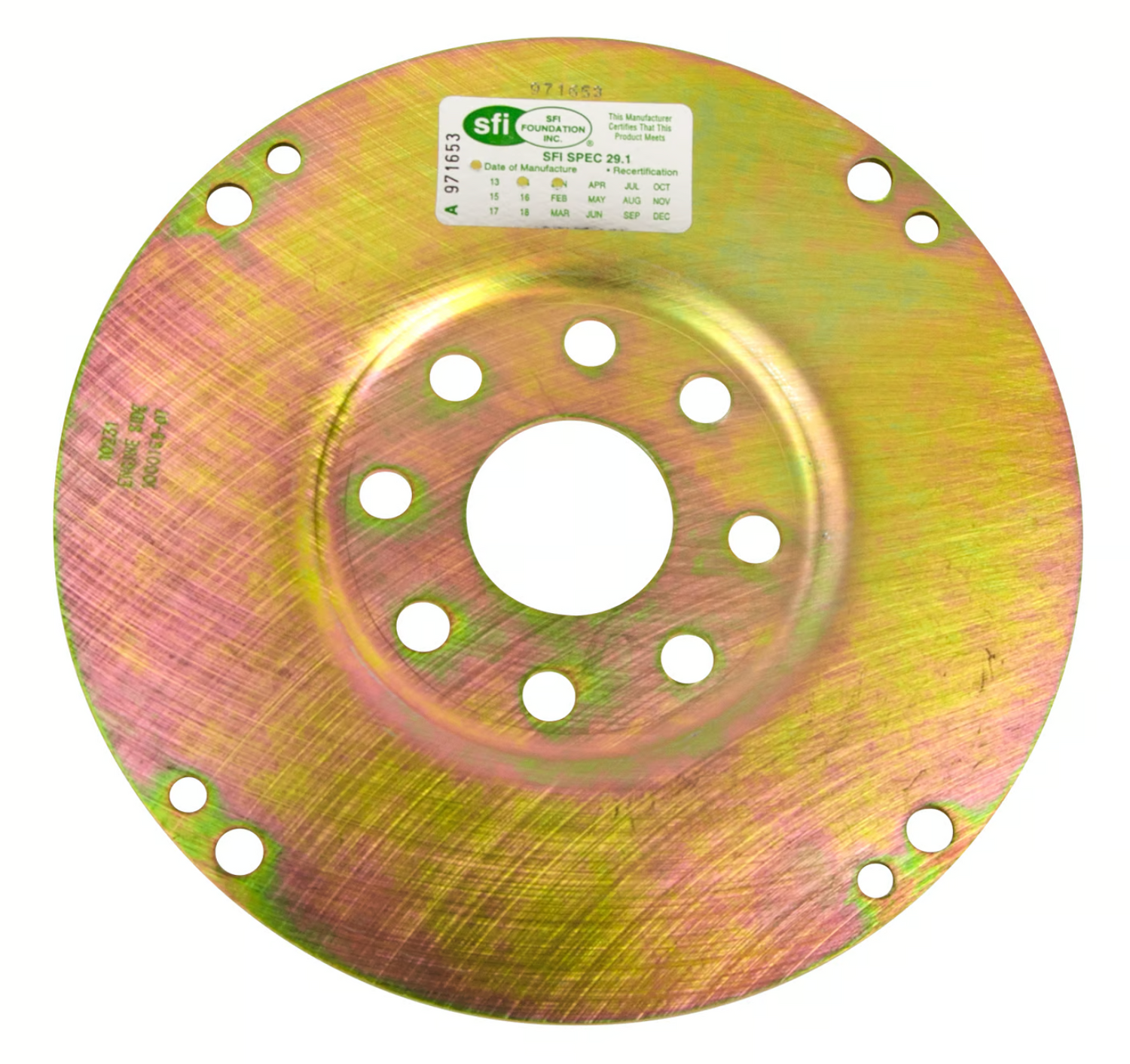

Includes SFI Certification Sticker
Ideal For Street Applications
Zinc Plated Chromate Finish
To Extreme Duty Racing
Proven B&M Quality
Application
Mopar
Balance
Internal
Brand
B&M
Crankshaft Bolt Hole Count
8
Dual Pattern
No
Emission Code
5
IHRA Legal
Yes
NHRA Legal
Yes
Outside Diameter (in)
10.84
Product Type
Flexplates
Ring Gear
No
SFI Approved
Yes
SFI Certification
29.1
SFI Certification Sticker
Included
Weight (lb)
3.5
UPC
019695102319
California Proposition 65 Chemical Name
Cadmium and cadmium compounds
California Proposition 65 Required
Yes
Part Number
10231
ABOUT B&M
B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.
