COMPATIBLE: (2.0L)

2015 - 2020 AUDI A3 8V

2015 - 2020 AUDI S3 8V

2013 - 2021 VOLKSWAGEN GOLF

2015 - 2019 VOLKSWAGEN GOLF R

2019 - 2025 VOLKSWAGEN JETTA GLI

• Avoid Oil Starvation

• Solid One-Piece Construction for Durability

PROFILE

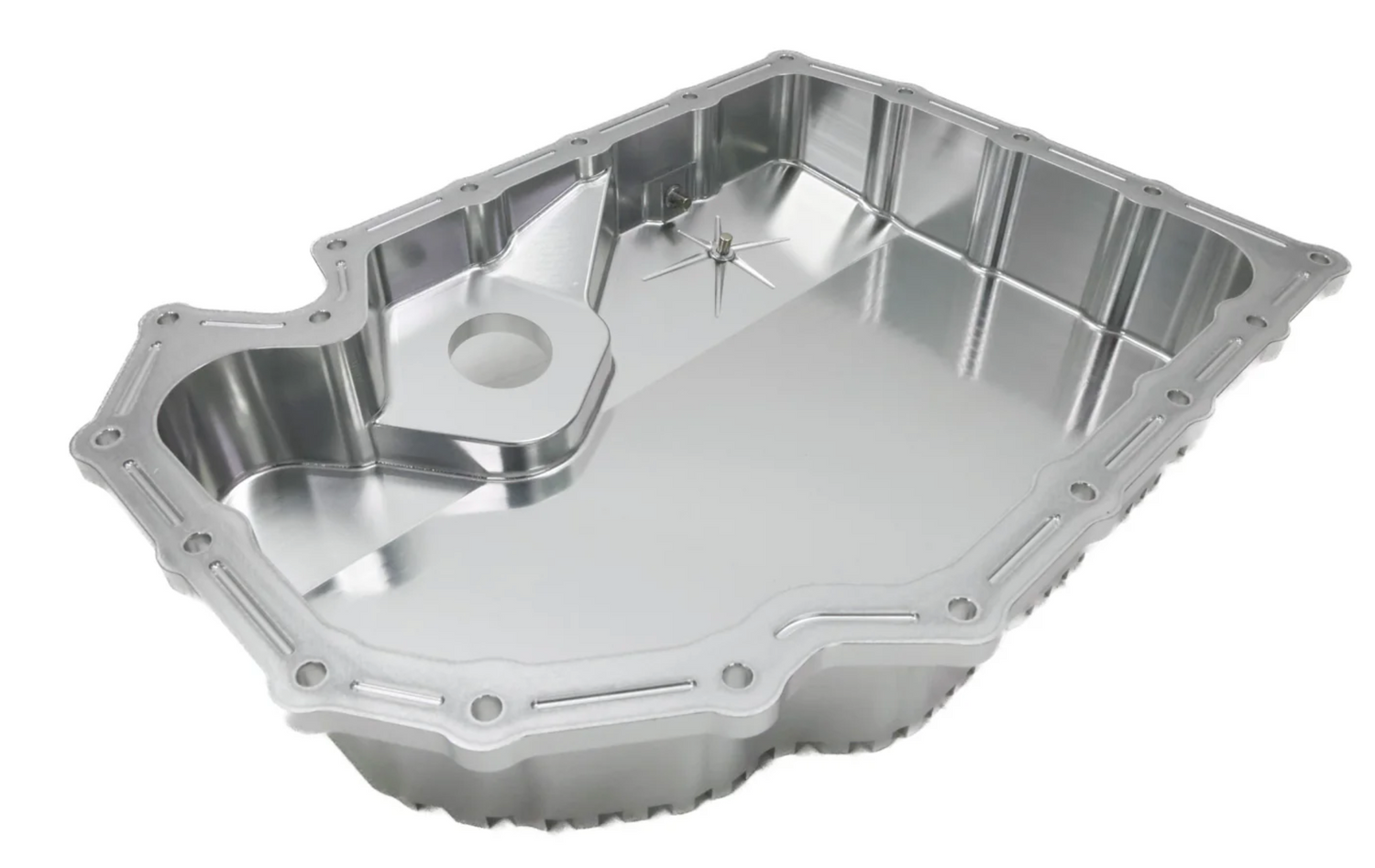

The ARM MQB Billet Oil Pan replaces the fragile plastic OEM MQB oil pan with a durable, aluminum design which delivers adequate oil supply and cooling during aggressive driving.



Under normal driving conditions, your factory MQB oil pan does its job adequately. However, when you're pushing your 2.0T's limits, the factory version reveals its shortcomings. Long sweeping turns and acceleration can cause oil starvation as the oil is pulled away from the oil pickup.  The factory MQB oil pan, present in EA888 and EA888.3 engines, has no baffling around the oil pickup. Spirited drives can cause oil to drift away from this pickup, risking oil starvation.  The ARM MQB Billet Oil pan ensures the oil pickup remains submerged. THIS OIL PAN REQUIRES AN ADDITIONAL QUART OF OIL OVER THE OEM OIL PAN.



CONSTRUCTION

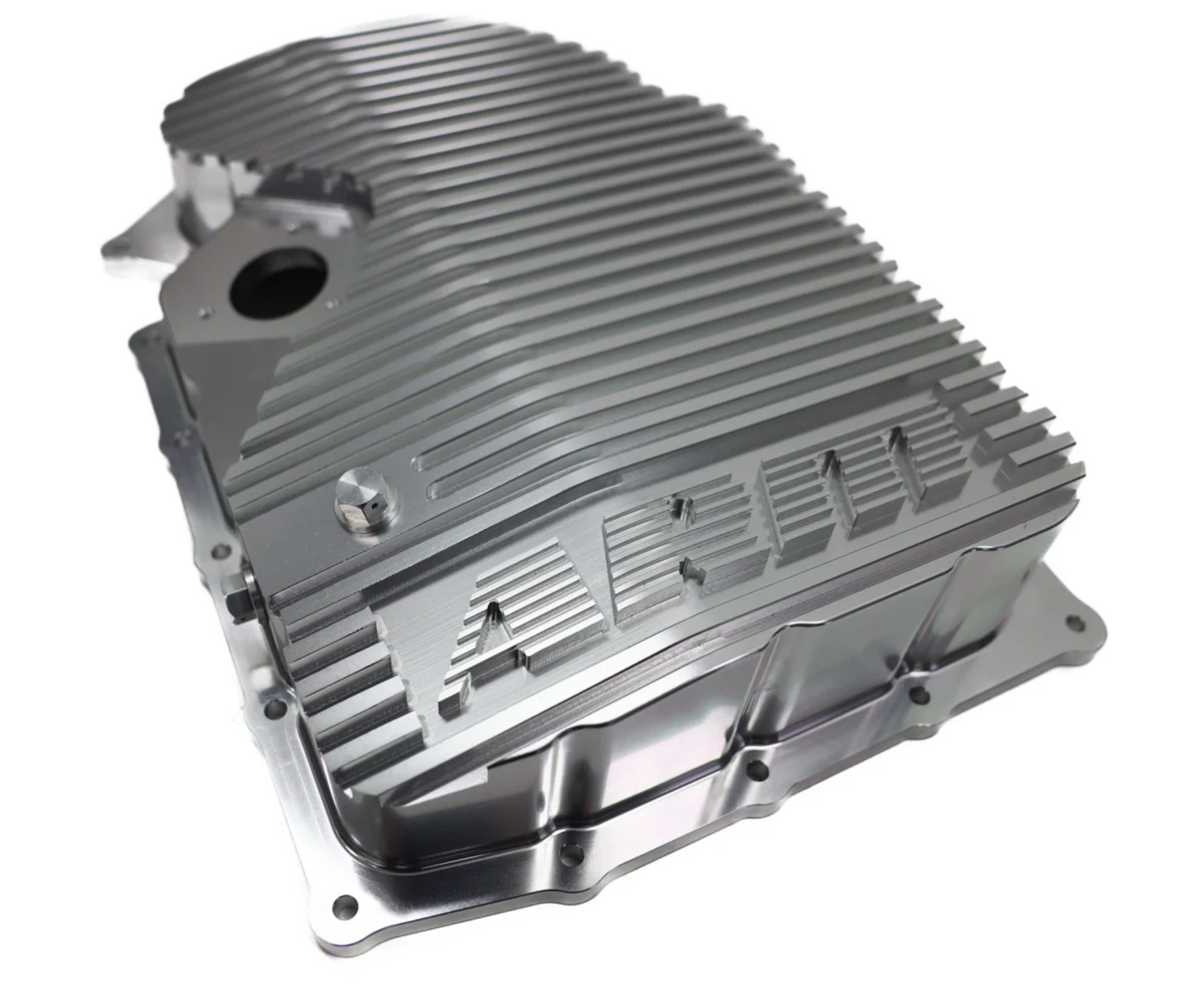

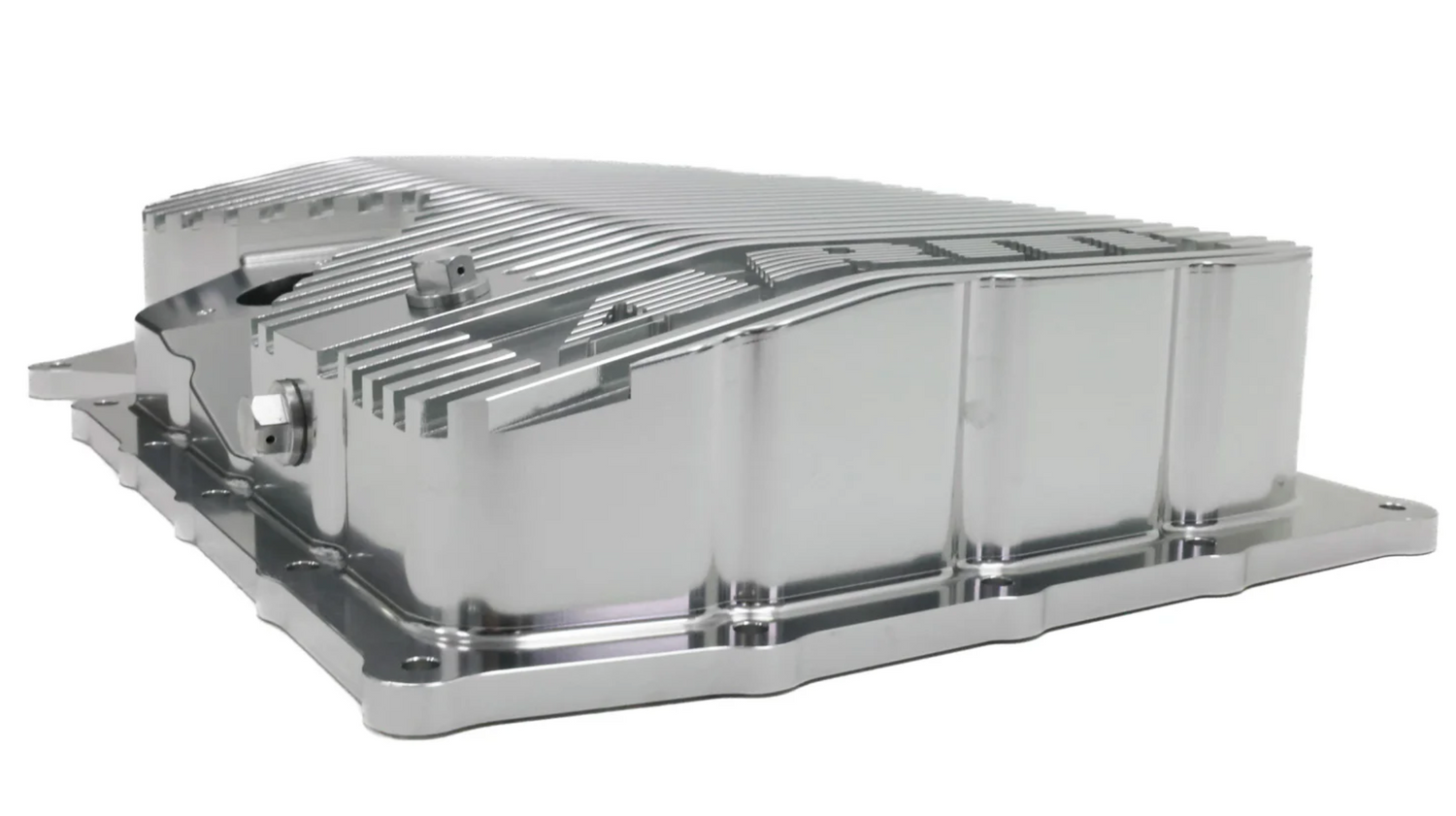

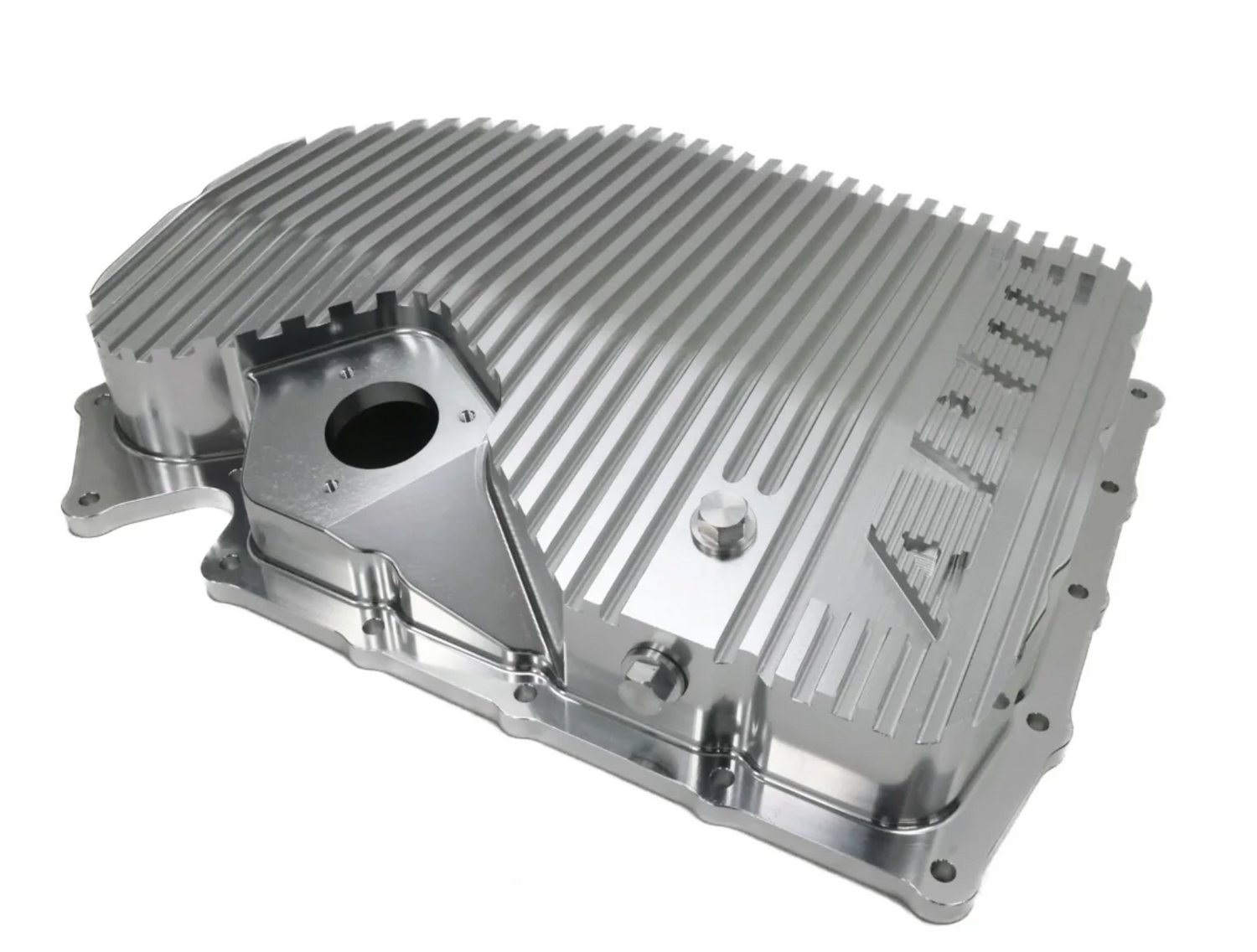

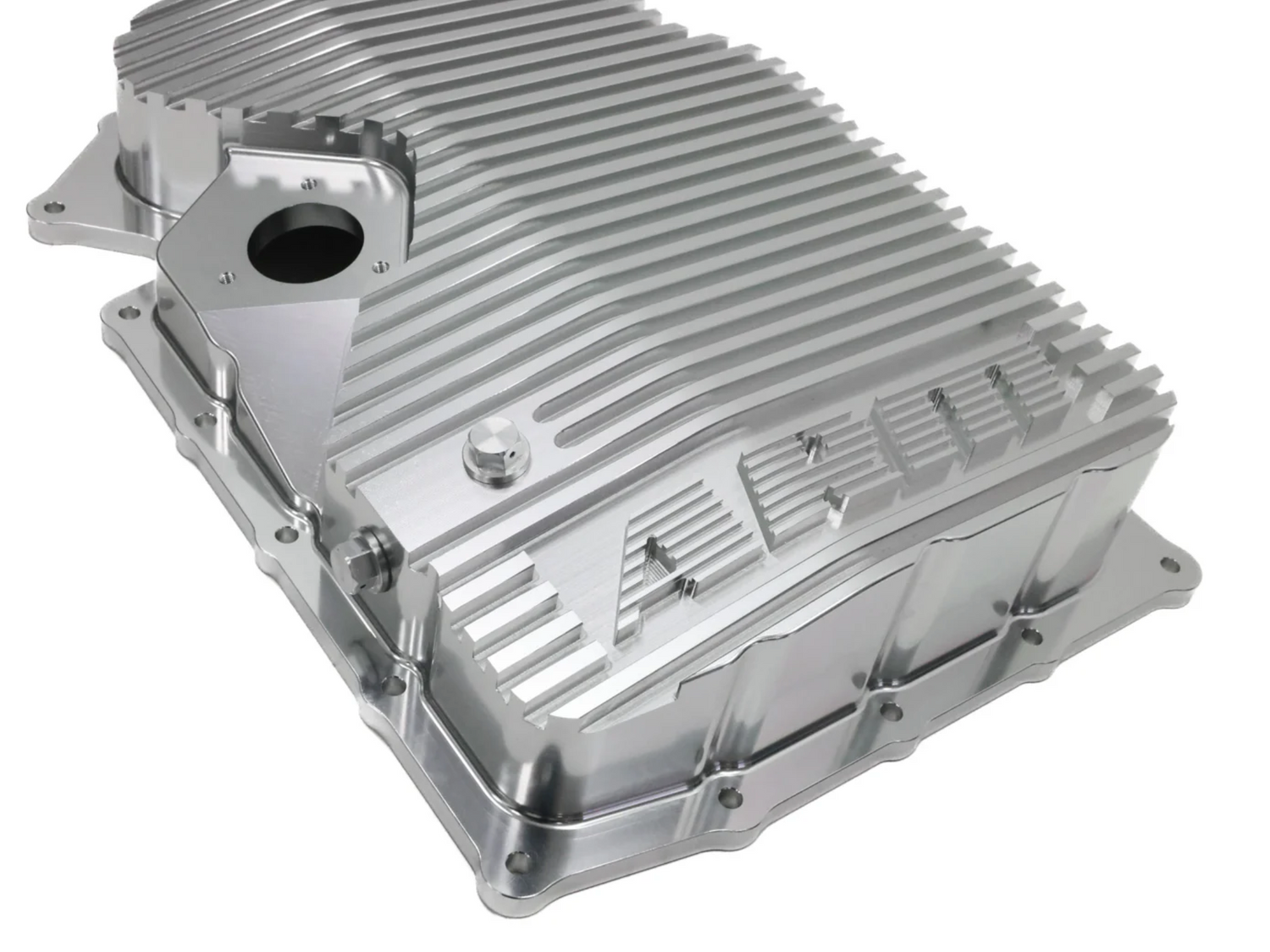

Unlike the plastic OEM MQB oil pan found in EA888 engines, the ARM MQB Billet Oil Pan is built from one solid piece of T6061 aluminum. This not only adds to its durability but also allows for the addition of cooling fins. The ARM design promotes rapid heat dissipation, ensuring your 2.0T's engine oil remains cool.

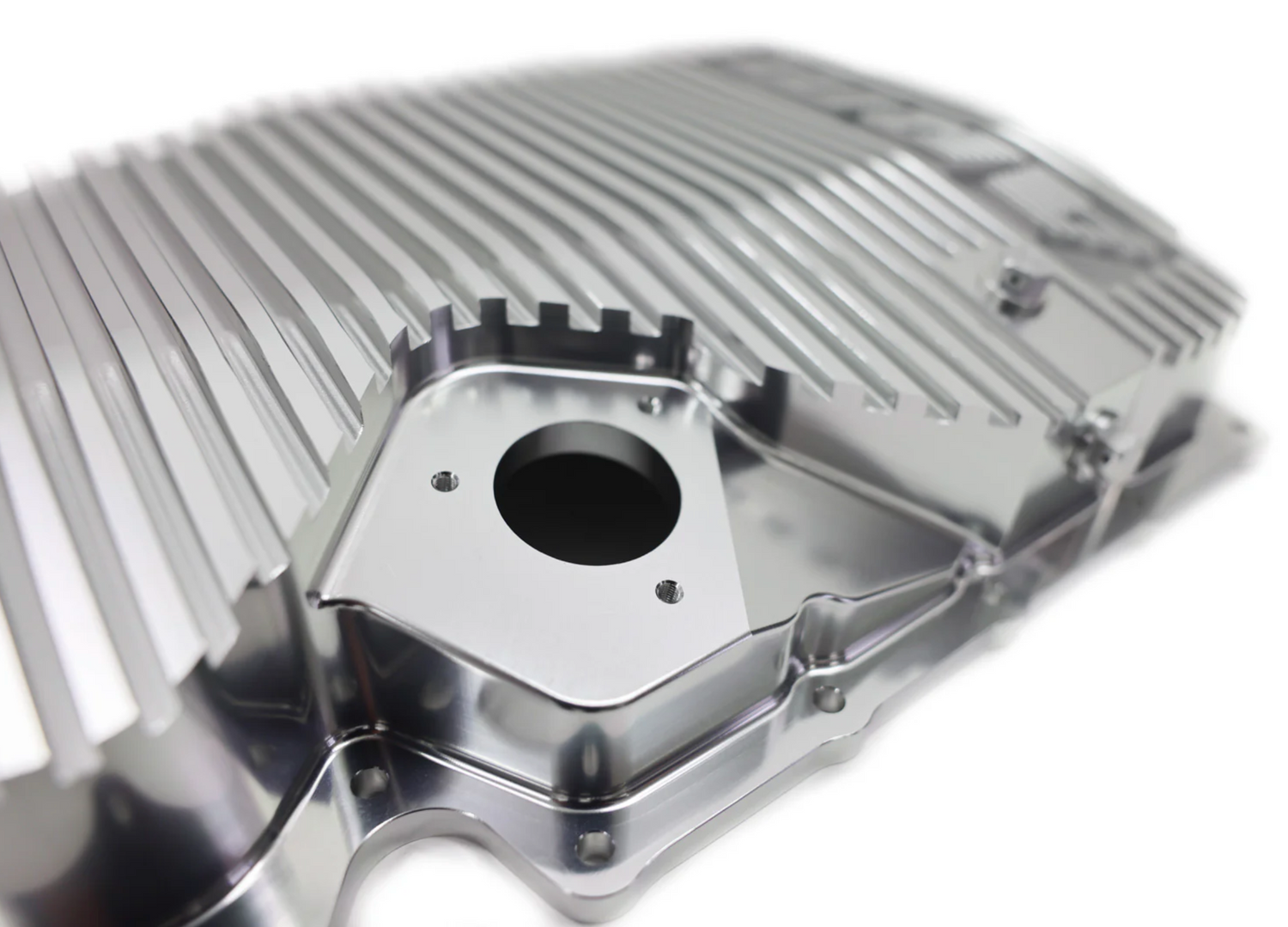

The ARM MQB Billet Oil Pan uses three threaded studs and nuts to allow the reinstallation of the OEM oil level sensor.

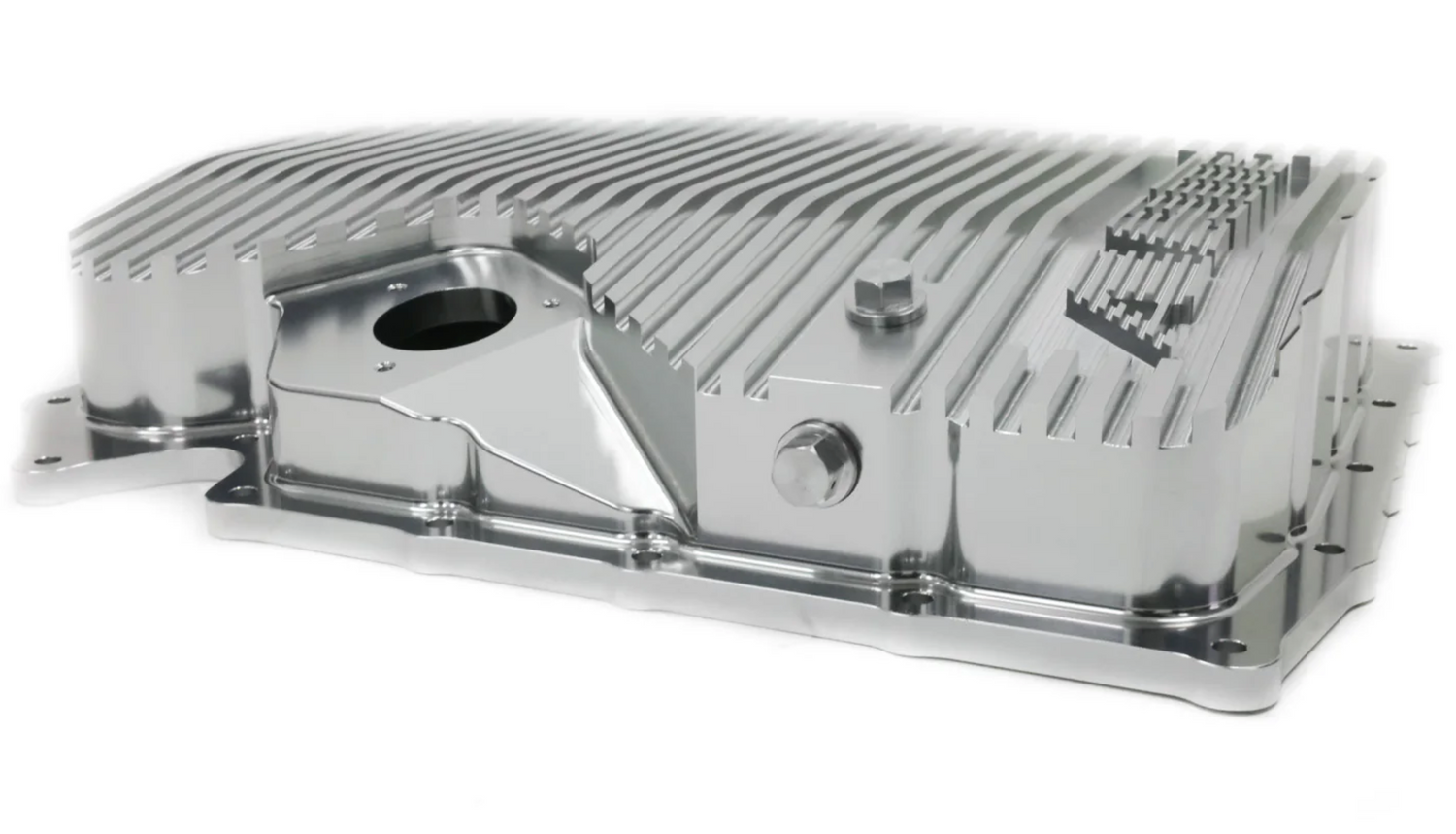

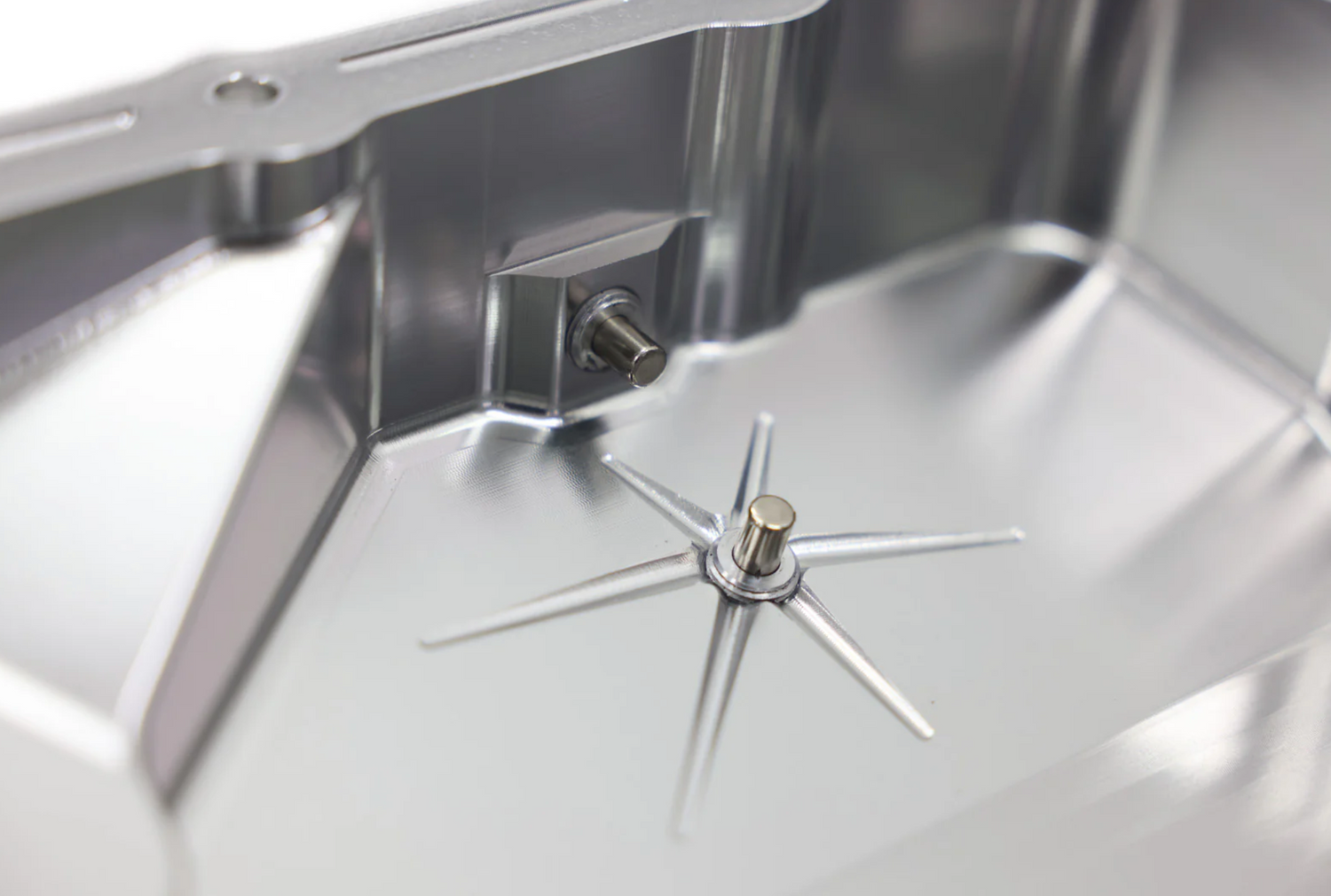

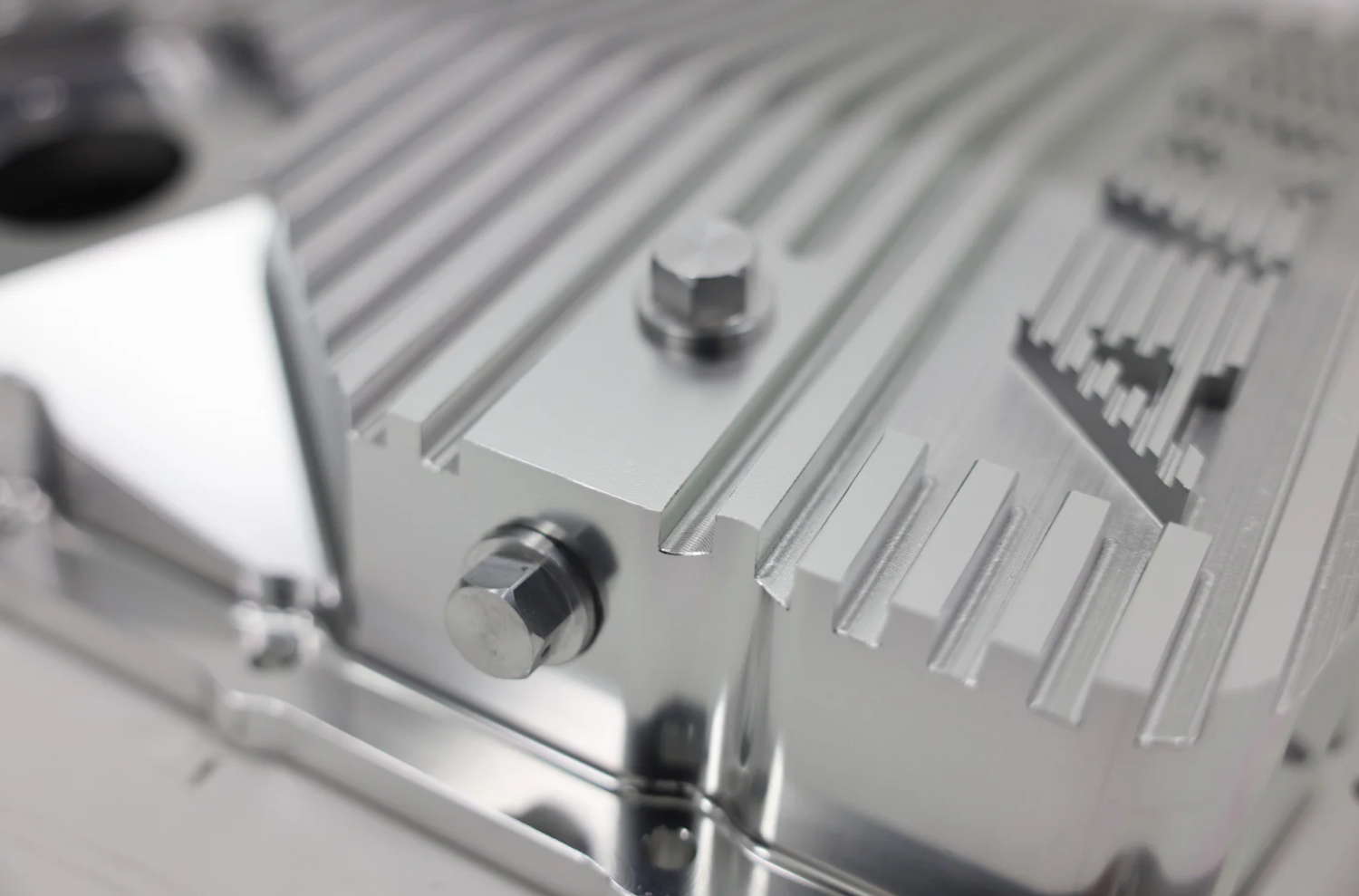

The oil drain port on the ARM MQB Billet Oil Pan is designed with 6 drain channels which allow for the most amount of oil to be drained from the pan, ensuring the fresh oil is not contaminated with a larger amount of spent oil.  The ARM MQB Billet Oil Pan includes a magnetic drain plug to capture unwanted metal debris from entering the engine.

IN THE BOX

•ARM MQB Billet Oil Pan

• Magnetic Oil Drain Plugs

•Oil Level Sensor Hardware
•Gasket Maker
