COMPATIBLE: (3.0L - S58B30)
2023 - 2025 BMW M2 G87
2020 - 2025 BMW M3 G80
2021 - 2025 BMW M4 G82
HIGHLIGHTS
• Exotic Exhaust Sound
• X-Pipe or H-Pipe Design
• Fits OEM Underbody Brace
• 3" Design
• SS304 Stainless Steel
• Saves 15lbs Over OEM
PROFILE
The ARM S58 Midpipe upgrade is designed to unleash the incredible exhaust sounds from your G80 M3/M4. By removing the secondary catalysts and two middle resonators, the ARM S58 Midpipes substantially improve the sound of your S58 powered BMW. Also, by retaining the OEM muffler, you still have the ability to control the exhaust flaps, allowing you to close them for a more subtle tone for when you want to be quiet, or open the valves for maximum sound.

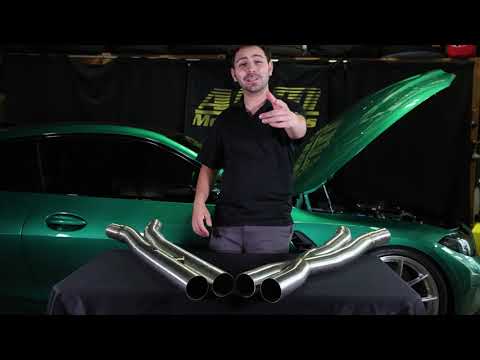

Watch the video below to find out more about the differences between the X-Pipe and the H-Pipe.
ENHANCE THE SOUND OF YOUR S58
The ARM S58 Midpipes will not only increase the overall volume of your exhaust but also transform the sound into something truly unique from an ordinary G80 M3. It will also make the exhaust burbles more audible even with OEM tuning. The G82 M4 in the video below is equipped with both the ARM S58 Midpipes and Down Pipes. Pairing the ARM S58 Midpipes with the Down Pipes will increase the overall volume of your S58 even more than the S58 Midpipes alone.
CONSTRUCTION

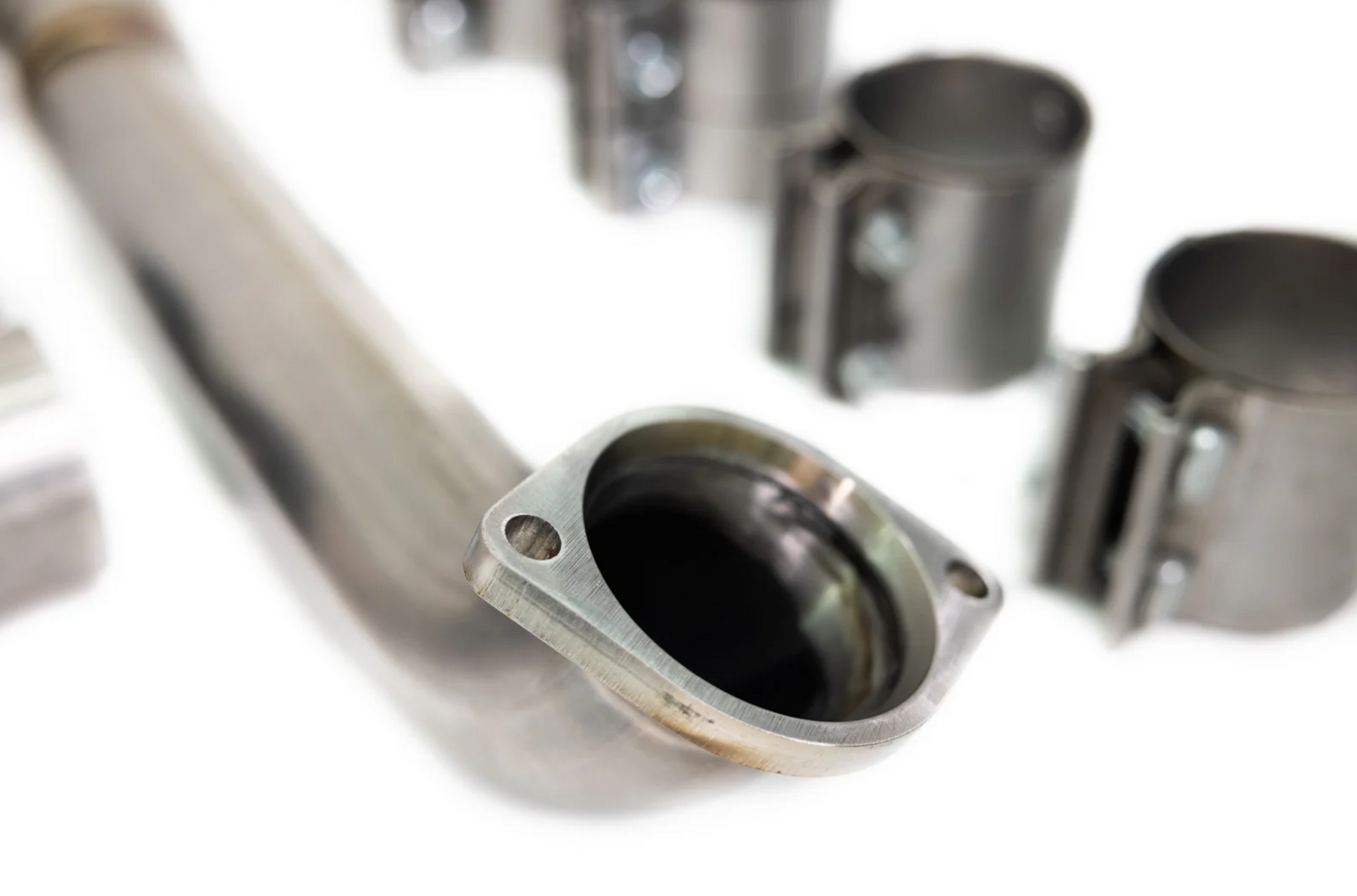

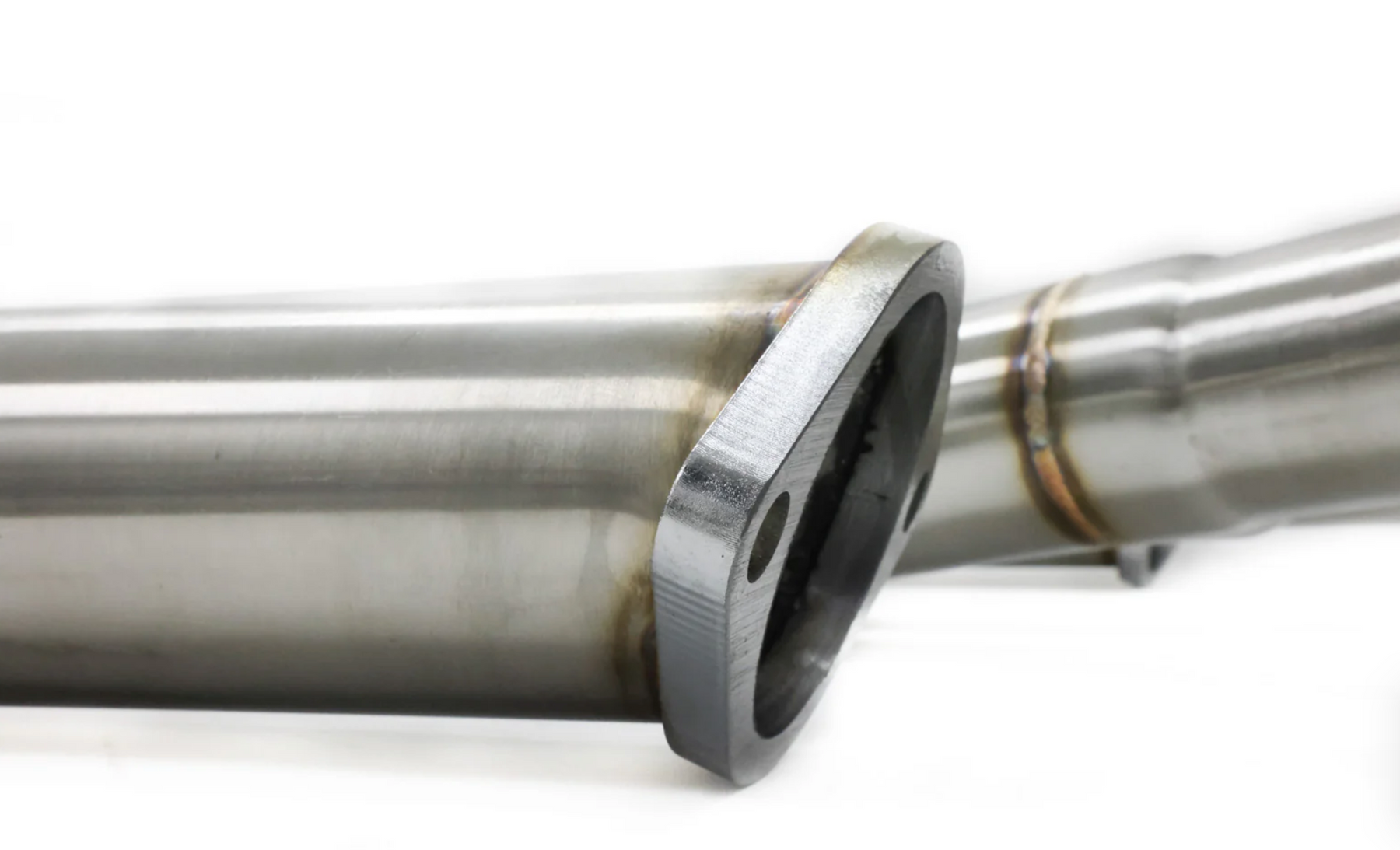

The ARM S58 Midpipes are a 3" designfrom the downpipe connection all the way to the rear section where it will reduce to 2.75" to perfectly connect to the OEM muffler section. The ARM S58 Midpipes start with a OEM-style 2-Bolt flange which can mate up to either the OEM downpipes, or upgraded down pipes that fit the OEM exhaust. These flanges will accommodate the OEM midpipe gasket perfectly. Alternatively, you can choose to upgrade your S58's crossover pipe with the ARM S58 Crossover Pipe. The optional ARM S58 Crossover Pipe replaces the heavy OEM pipe to open up more sound and saves an additional 4lbs.

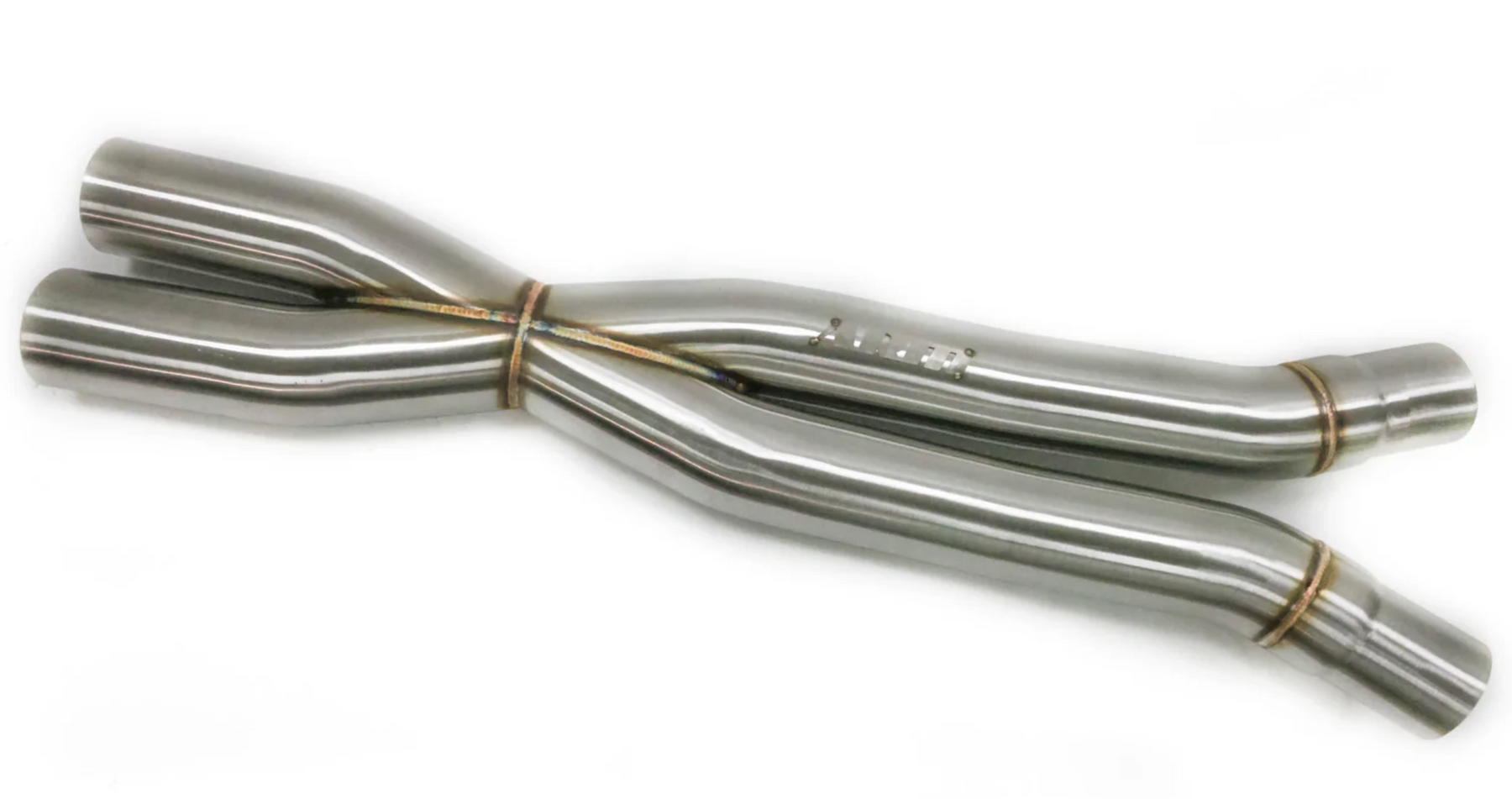

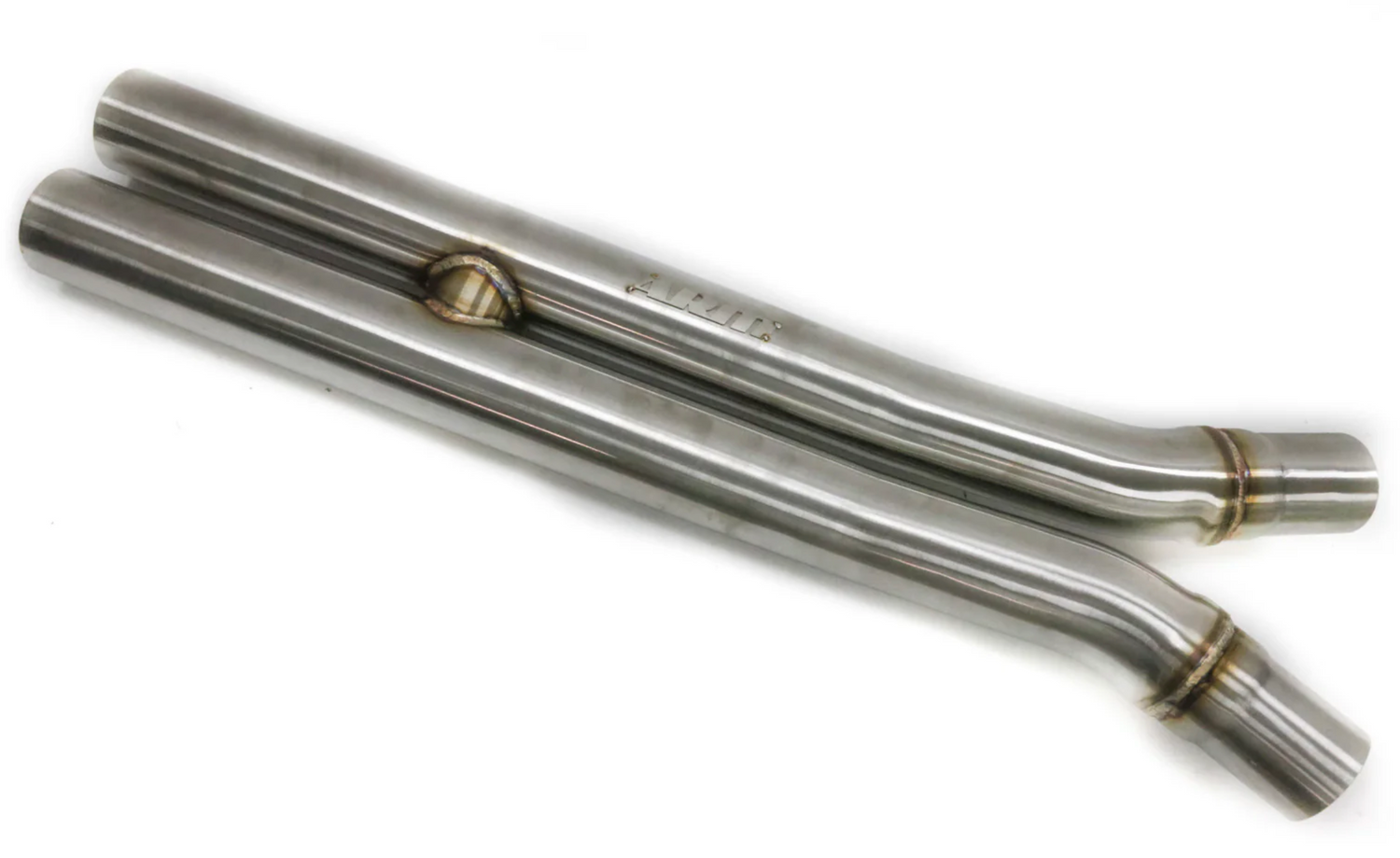

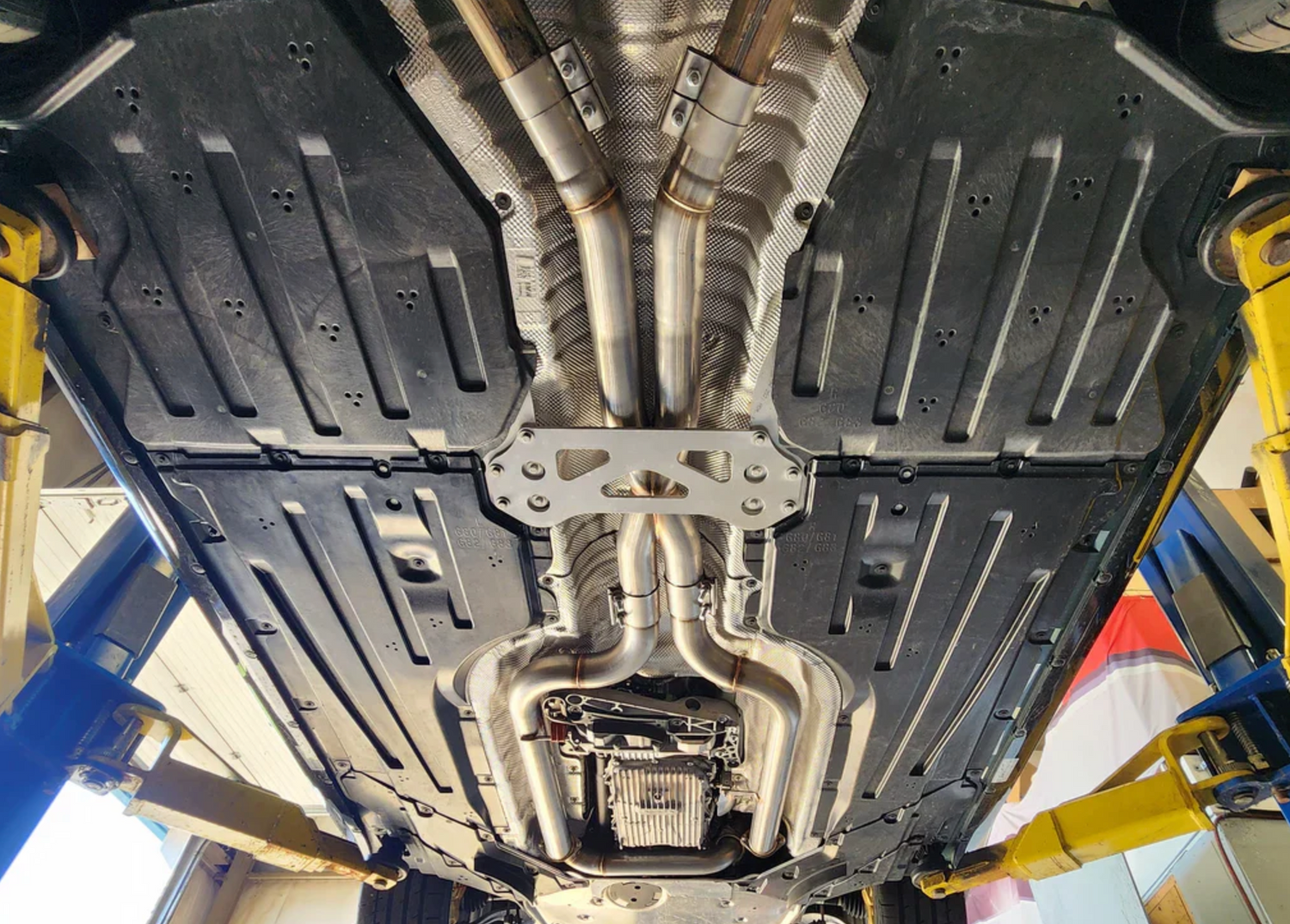

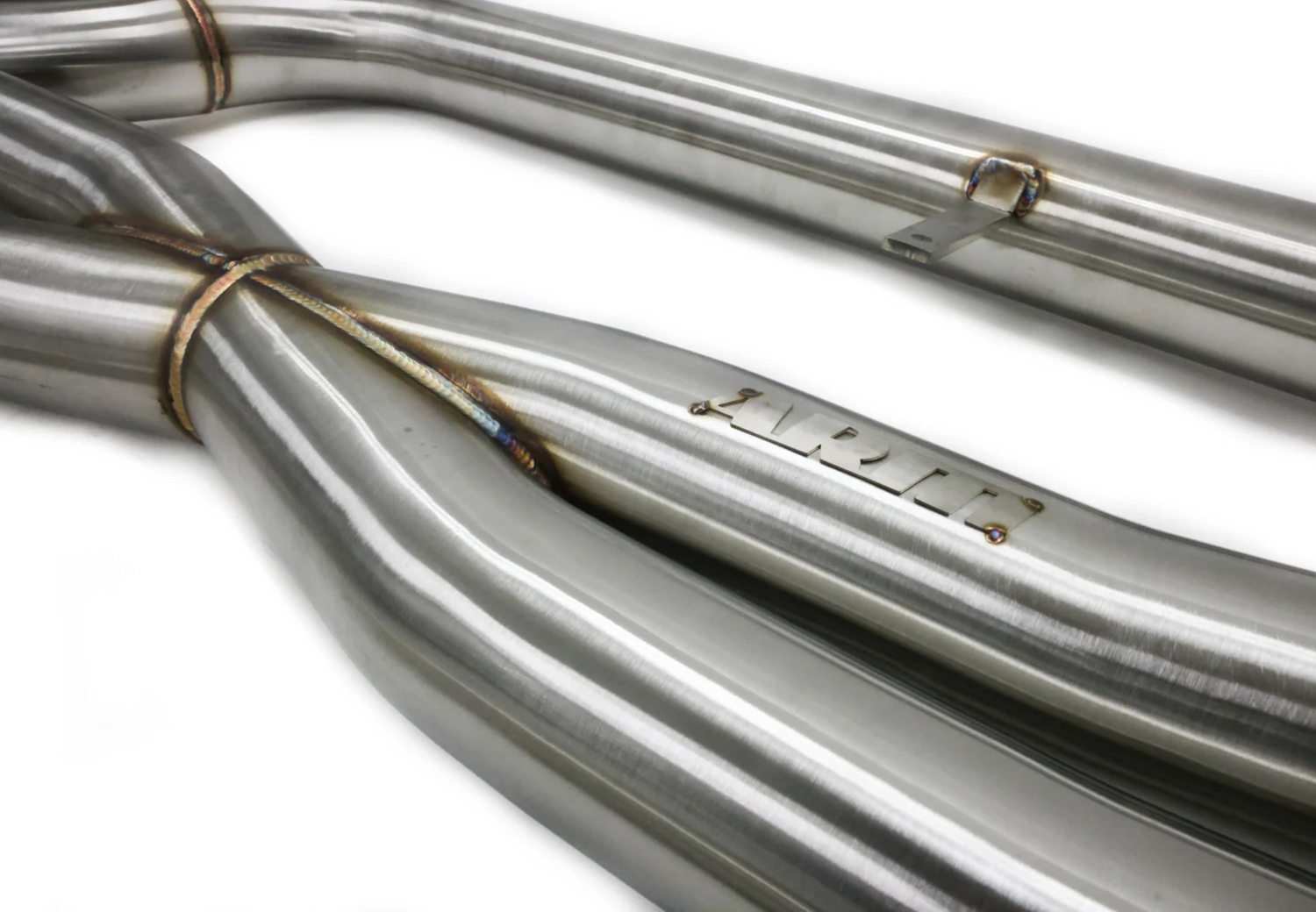

The ARM S58 Midpipes then transition to the X-Pipe or H-Pipe section of the exhaust via the slip-fit connections on either side. Where the exhaust merges is the heart of the ARM S58 Midpipes where you have the choice between X-Pipe or H-Pipe and is where the magic happens. The sound waves of each bank of your S58 engine are combined to produce a much more exotic and richer exhaust note. The X-Pipe or H-Pipe section lives above the OEM brace with ample clearance, there is no need to install a larger brace.

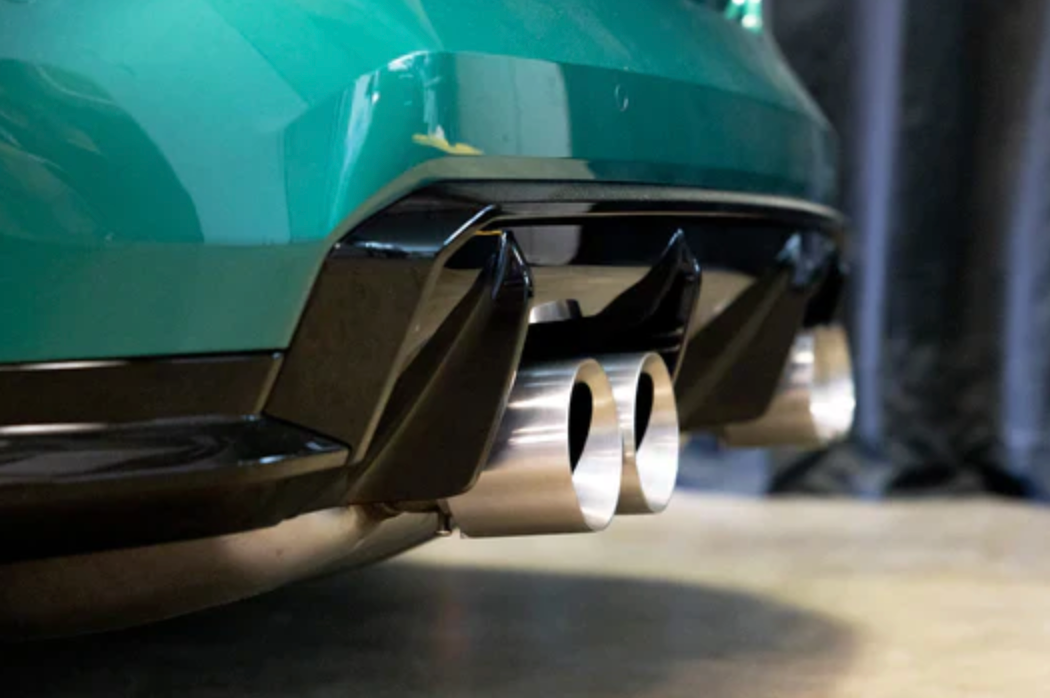

From the X-Pipe section the ARM S58 Midpipes transition back to the OEM muffler, which allows full use of the OEM exhaust valves. This gives you the freedom to choose between open and closed exhaust flaps, controlling the volume your G80 M3/M4 produces. Upgrade the look of your G8X to match the sound of your ARM S58 Midpipe by completing the kit with a set of exhaust tips

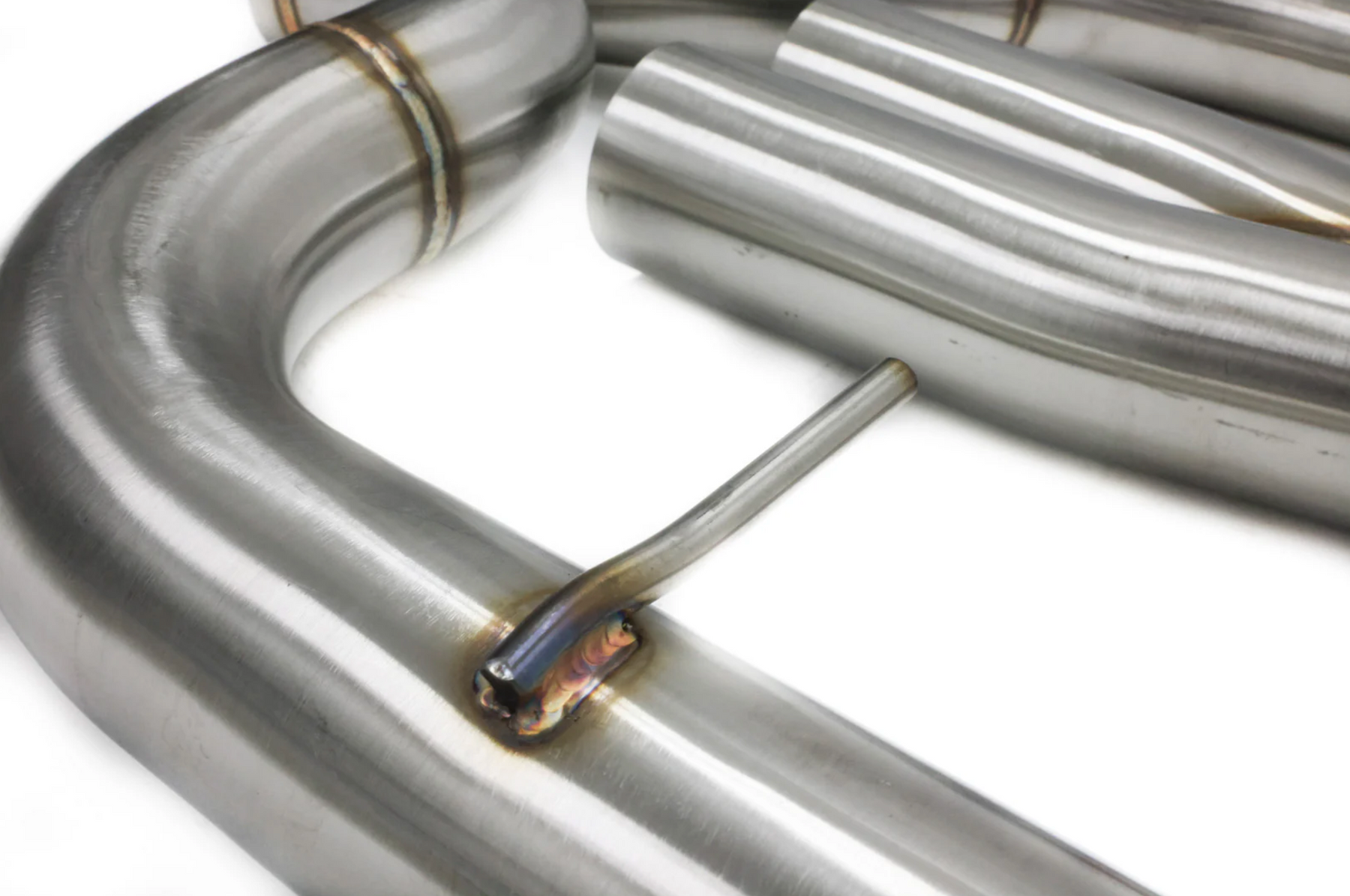

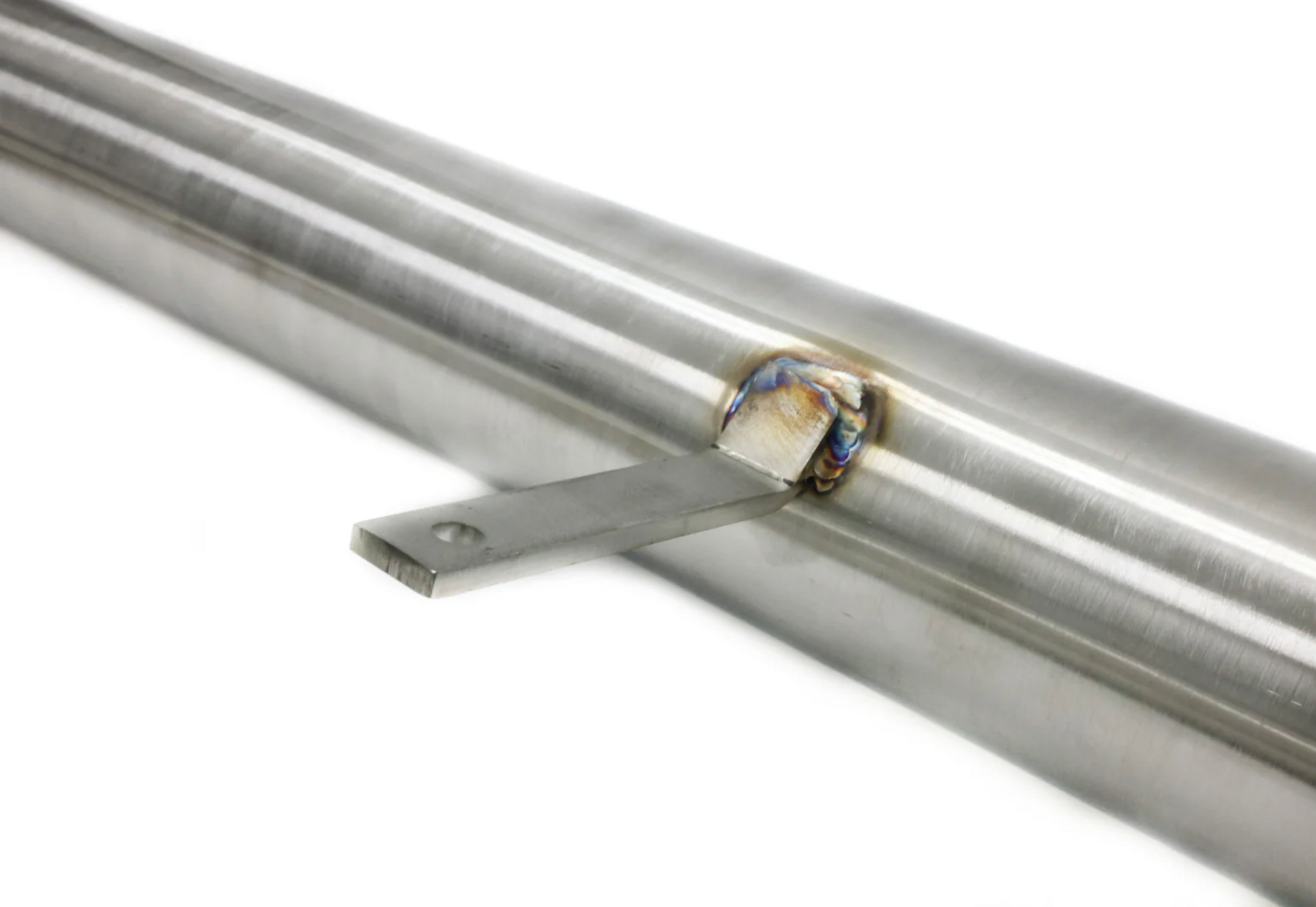

The ARM S58 Midpipes will secure to the exhaust hanger on the driver's side using a standard exhaust hanger prong. It is secured to the passenger's side using the OEM style mounting bracket. These help the exhaust from jostling around during aggressive driving.
ARM S58 CROSSOVER PIPE
The ARM S58 Crossover Pipe removes the extra casting material and sound deadening of the OEM S58 crossover pipe, allowing an increase in sound your S58 produces. The G82 M4 in the video below is equipped with the ARM S58 Midpipe, S58 Crossover Pipe, and ARM S58 Downpipes, providing an increase in volume over the OEM setup. Pairing the ARM S58 Midpipes with the ARM S58 Downpipes will increase the overall volume of your S58 significantly more than the ARM S58 Crossover Pipe alone.
AXLE BACK ADAPTERS
The ARM S58 Axle Back Adapters are designed to reduce down at the end of the midpipe to fit most aftermarket axle back systems. Most aftermarket axle back systems reduce down from 3" (76mm) to 2.75" (70mm) and that's where the ARM S58 Axle Back Adapters come in.

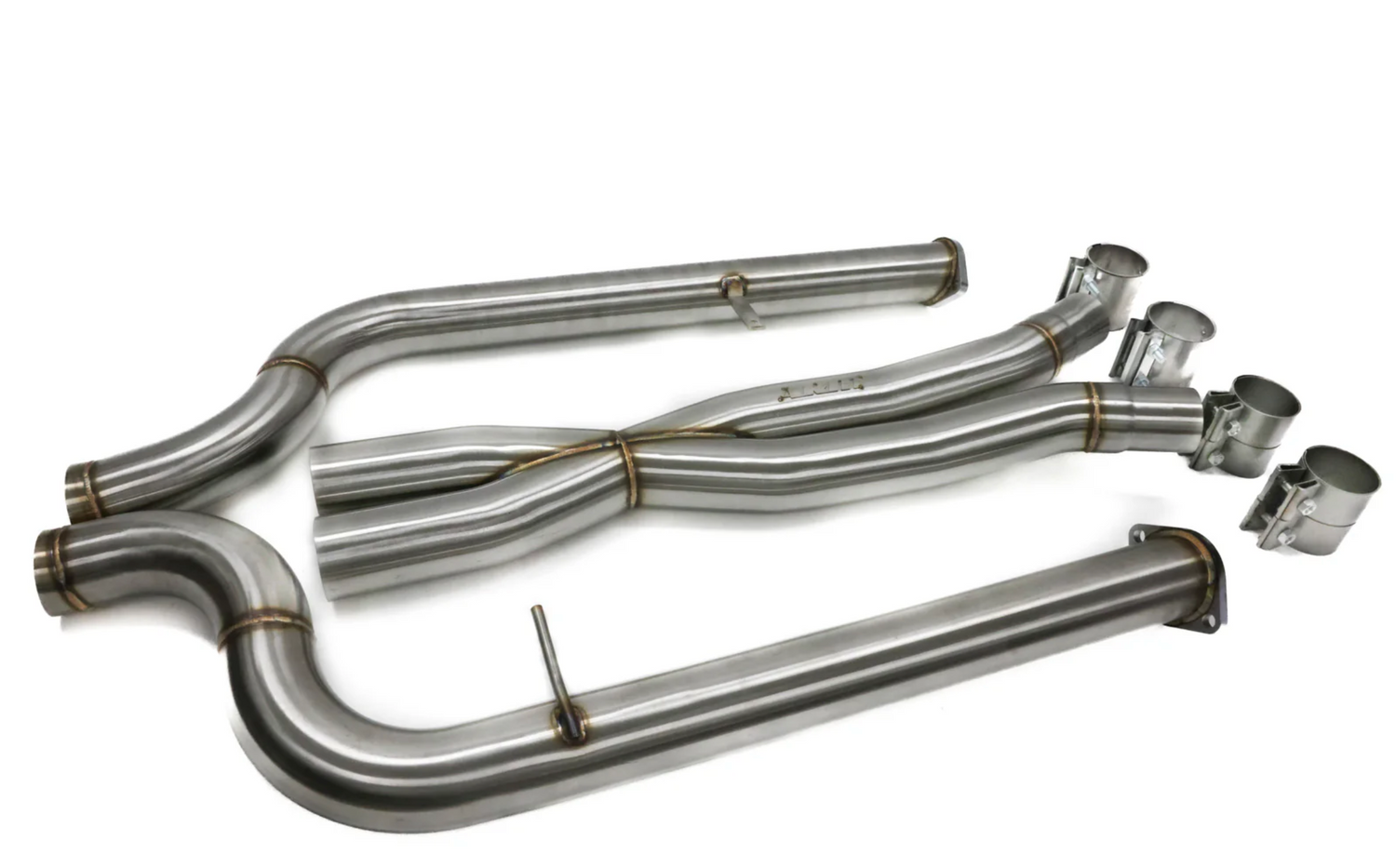

IN THE BOX
• 1x ARM S58 Crossover Pipe (Optional)
• 2x Front Midpipe Sections
• 1x X-Pipe/H-Pipe

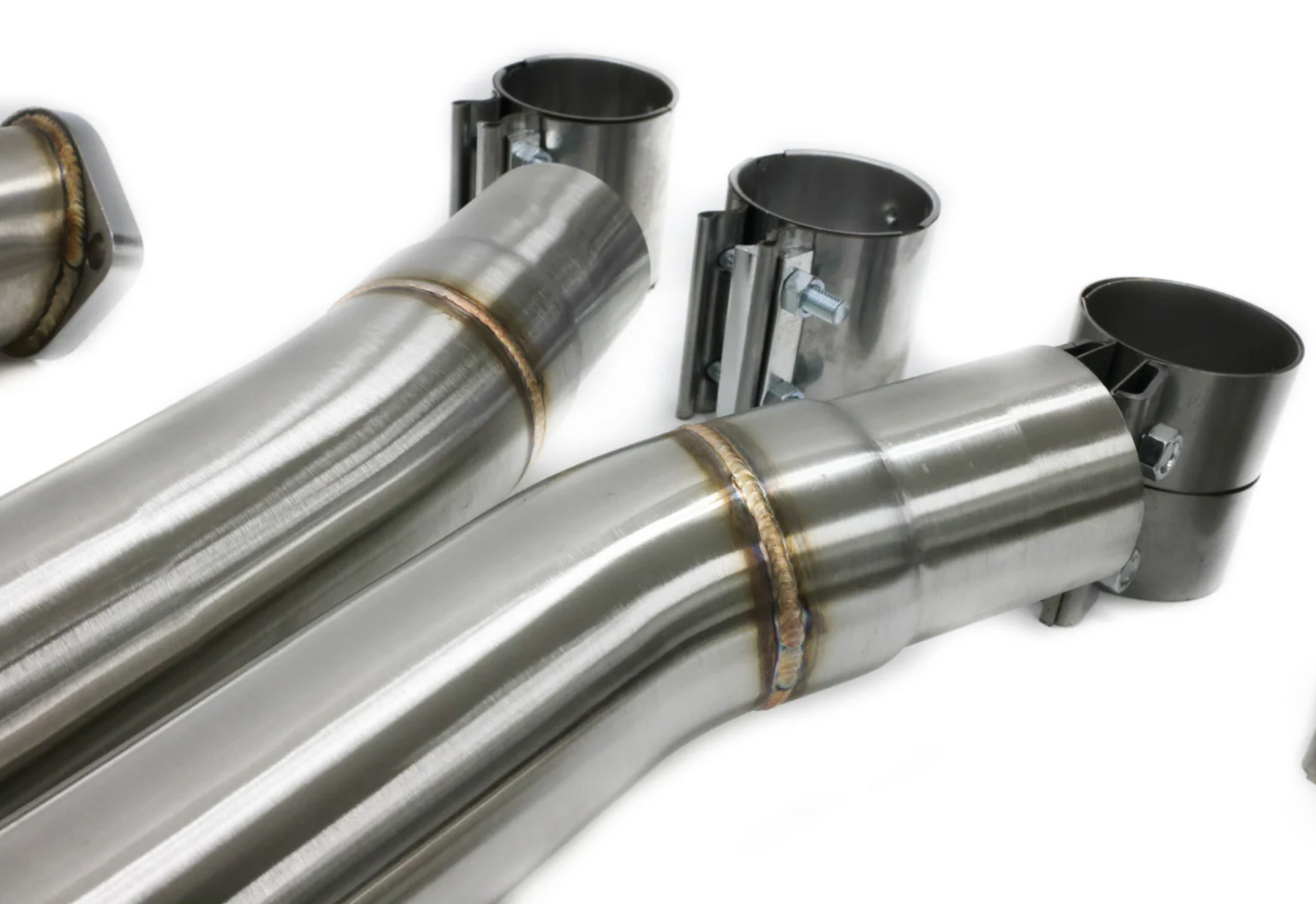

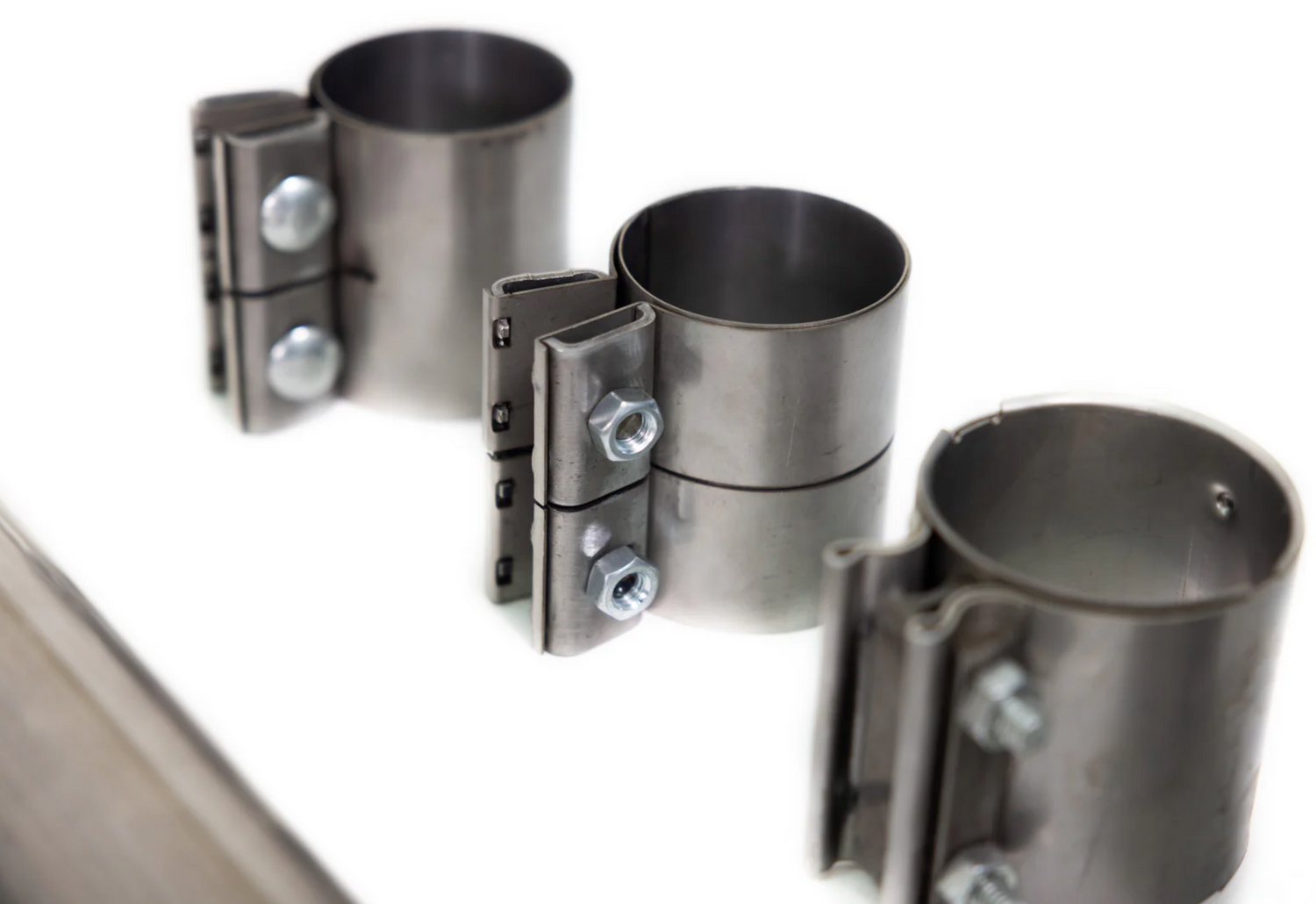

• 4x Sleeve Clamps
FITMENT GUIDE
The ARM S58 H-Pipe and X-Pipe Midpipes fit the OEM center exit exhaust.
