Compatible: (2.5L)
2017 - 2020 Audi RS3
THIS PRODUCT CANNOT BE SHIPPED TO CALIFORNIA

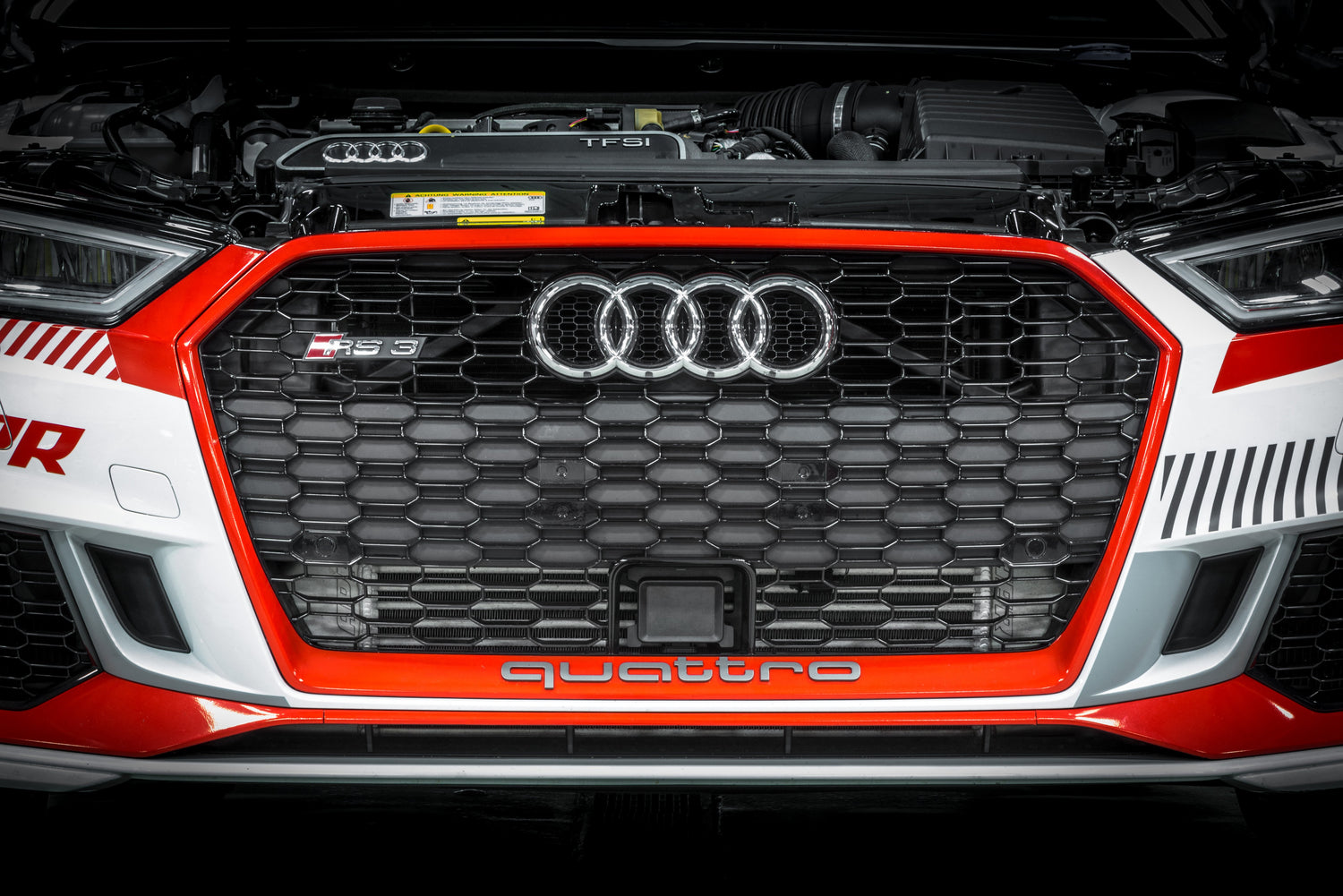

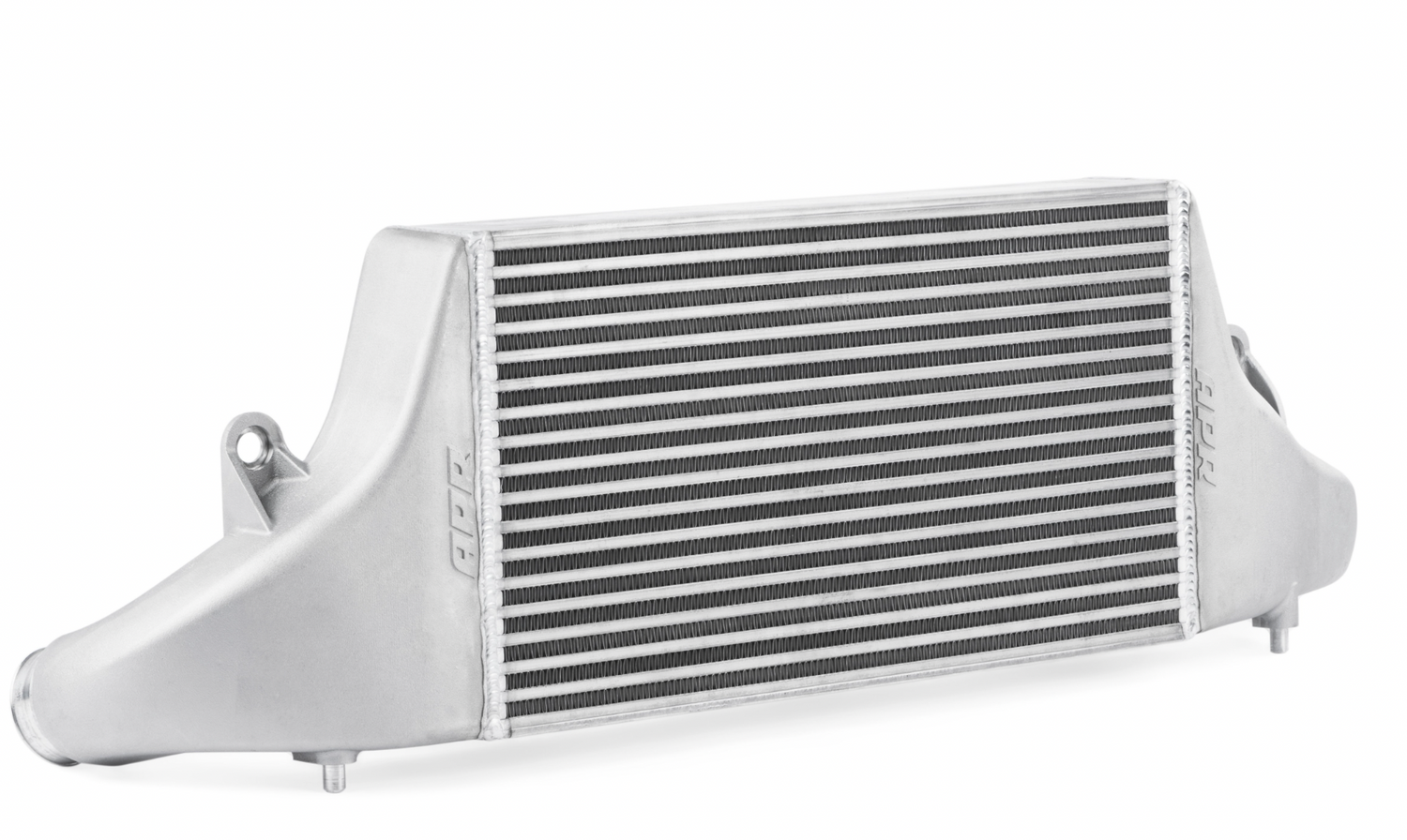

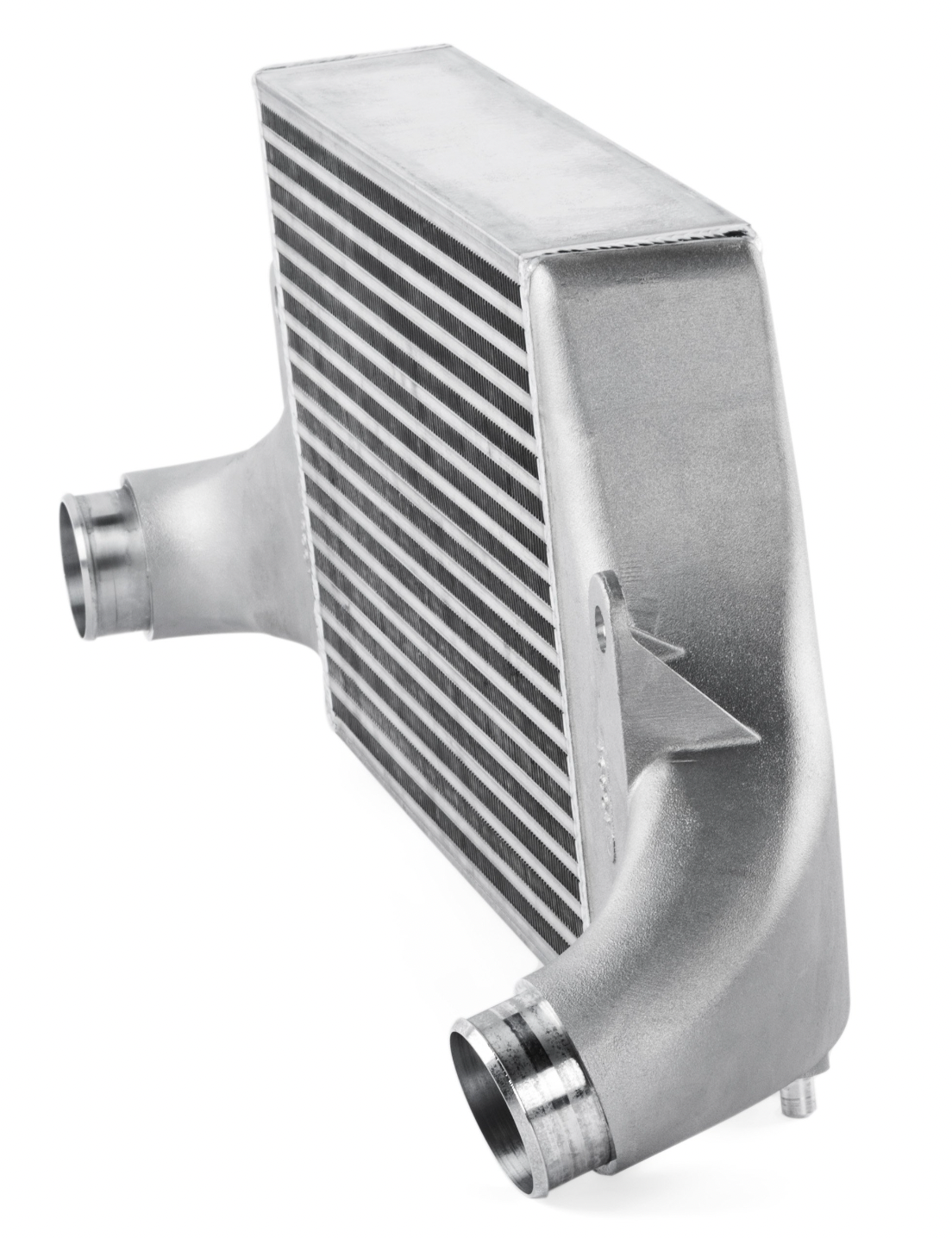

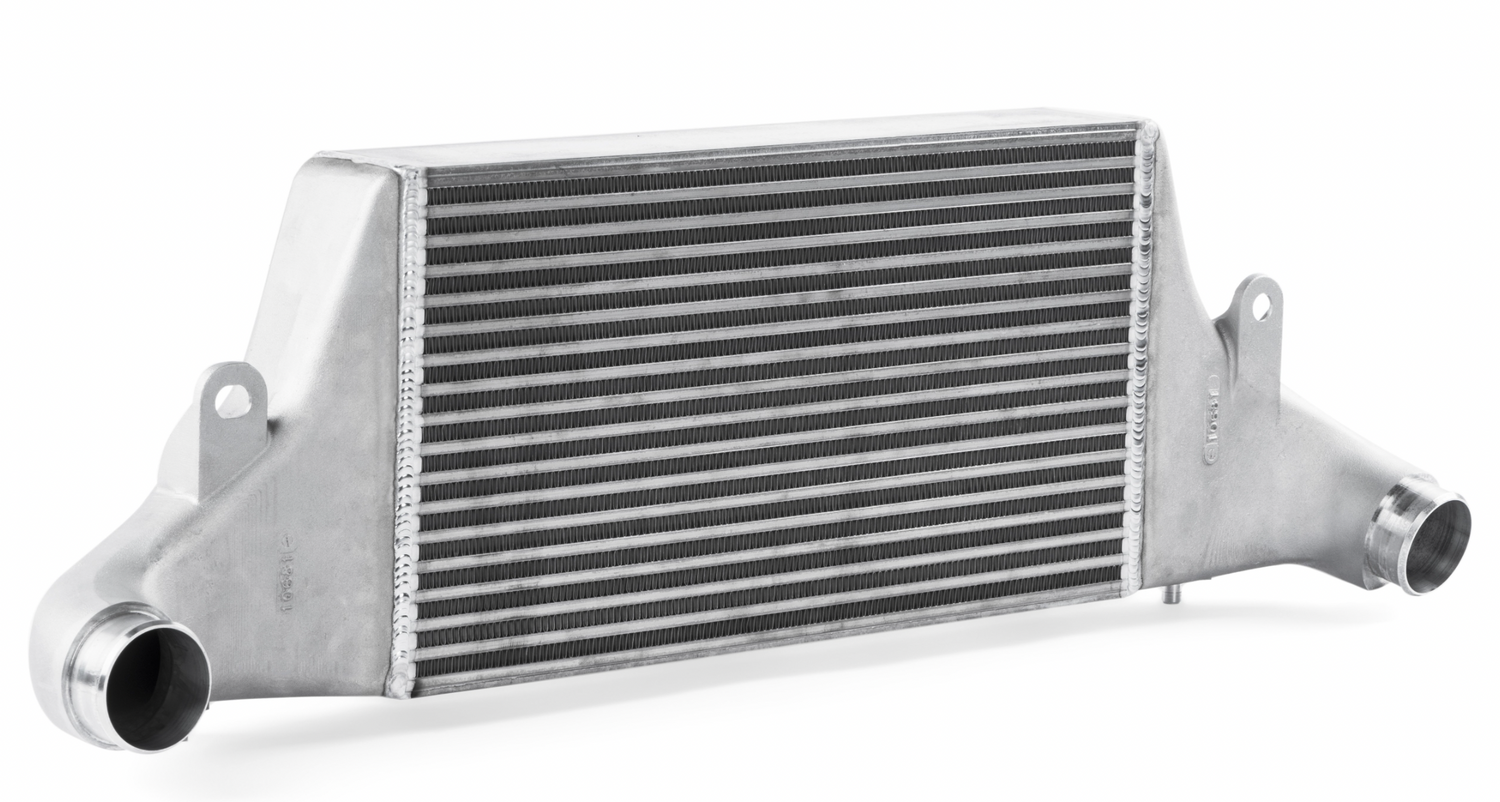

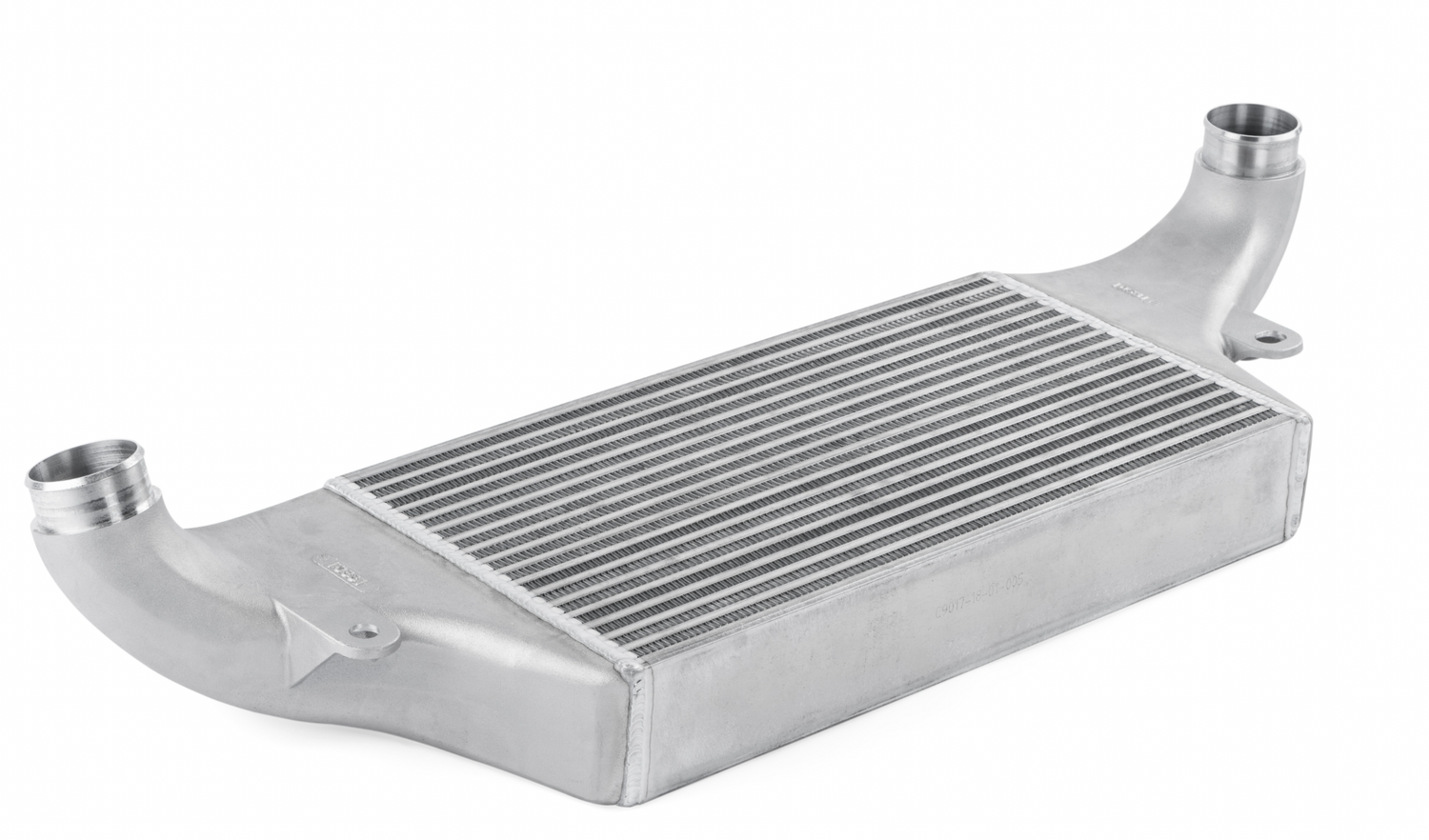

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
- Dramatically lowers intake air temp (IAT)
- Increases HP while minimizing power-robbing heat soak!
- Dynoed 26 AWHP over to the factory system (STG 1 93)!
- Effective cooling for more than double factory horsepower levels!
- Massive frontal surface area and core volume
- 6.38" x 25.33" x 3.16" - 161.6 in² front. & 510.67 in³ volume - OEM
- 11.7" x 22.00" x 3.50" - 257.4 in² front. & 900.90 in³ volume - APR
- Highly effective core design
- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size.
- Low pressure drop + highly effective cooling = high performance!

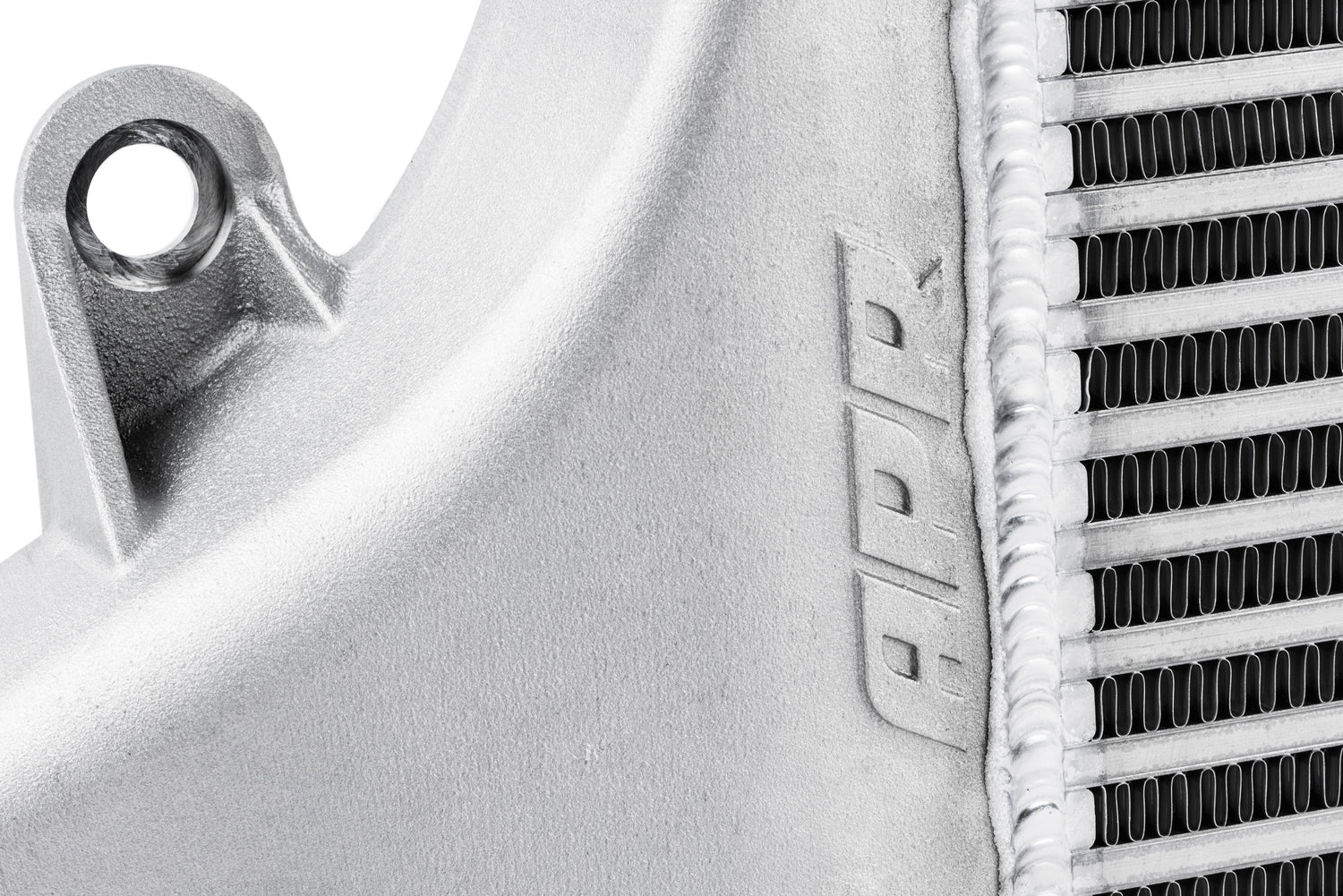

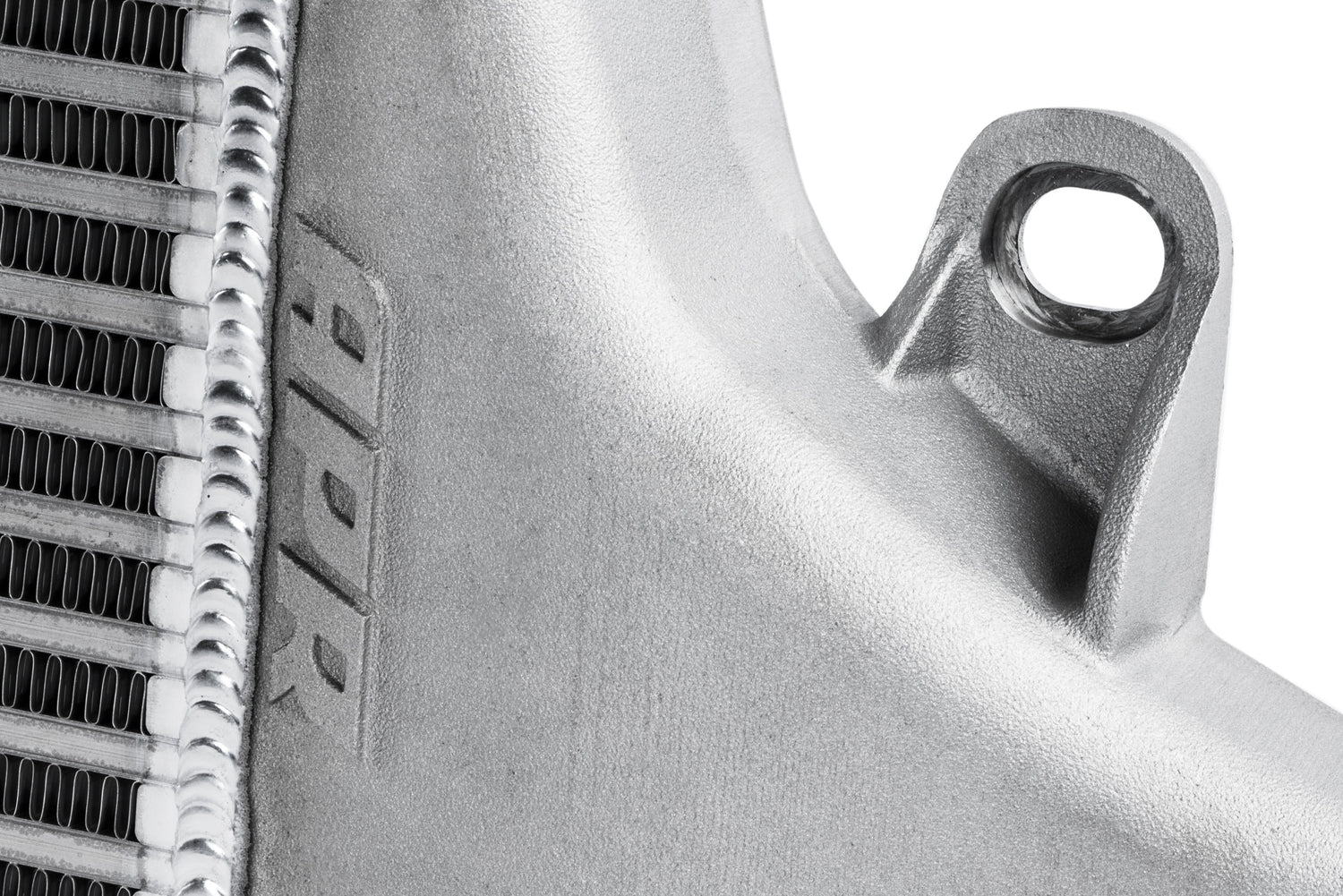

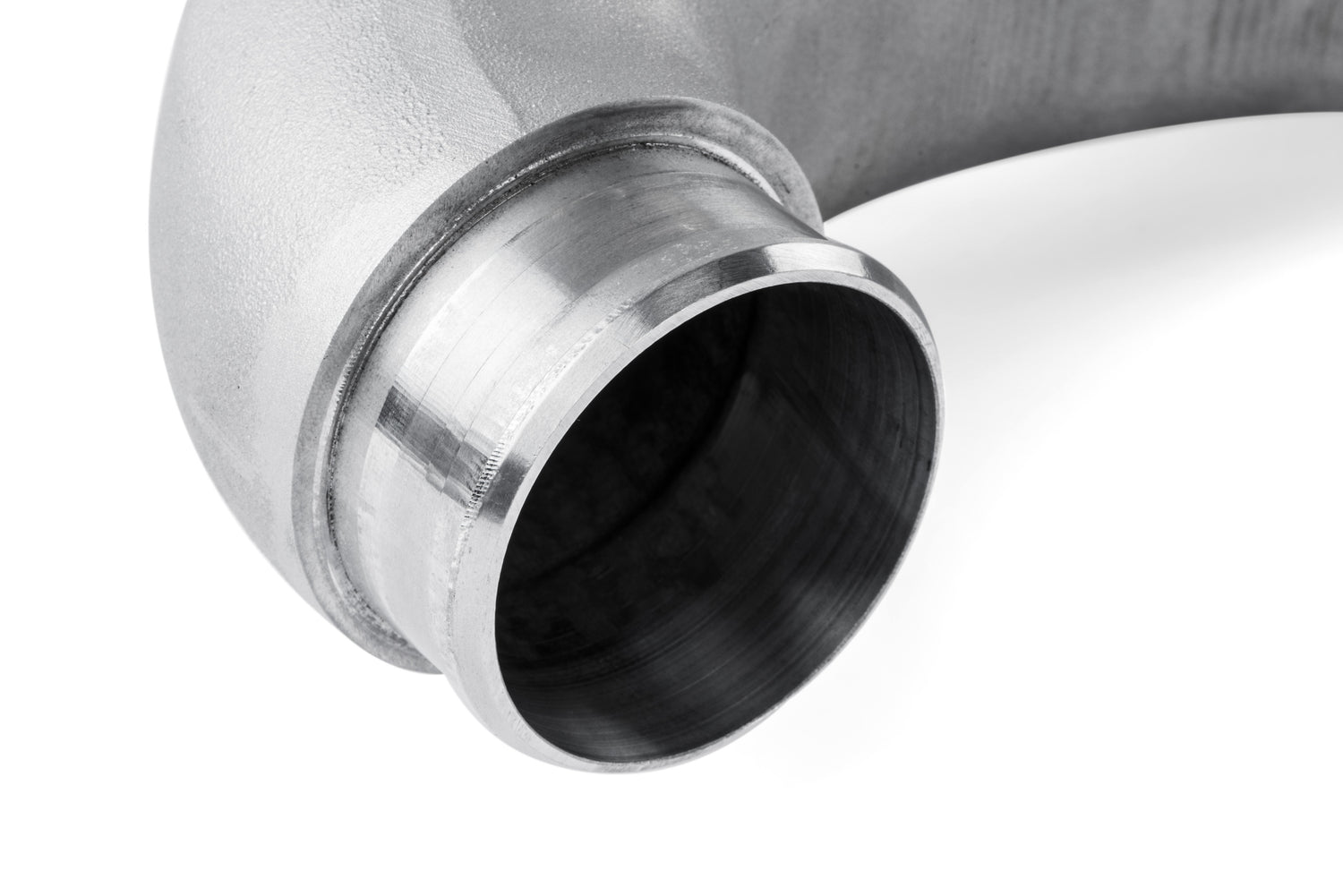

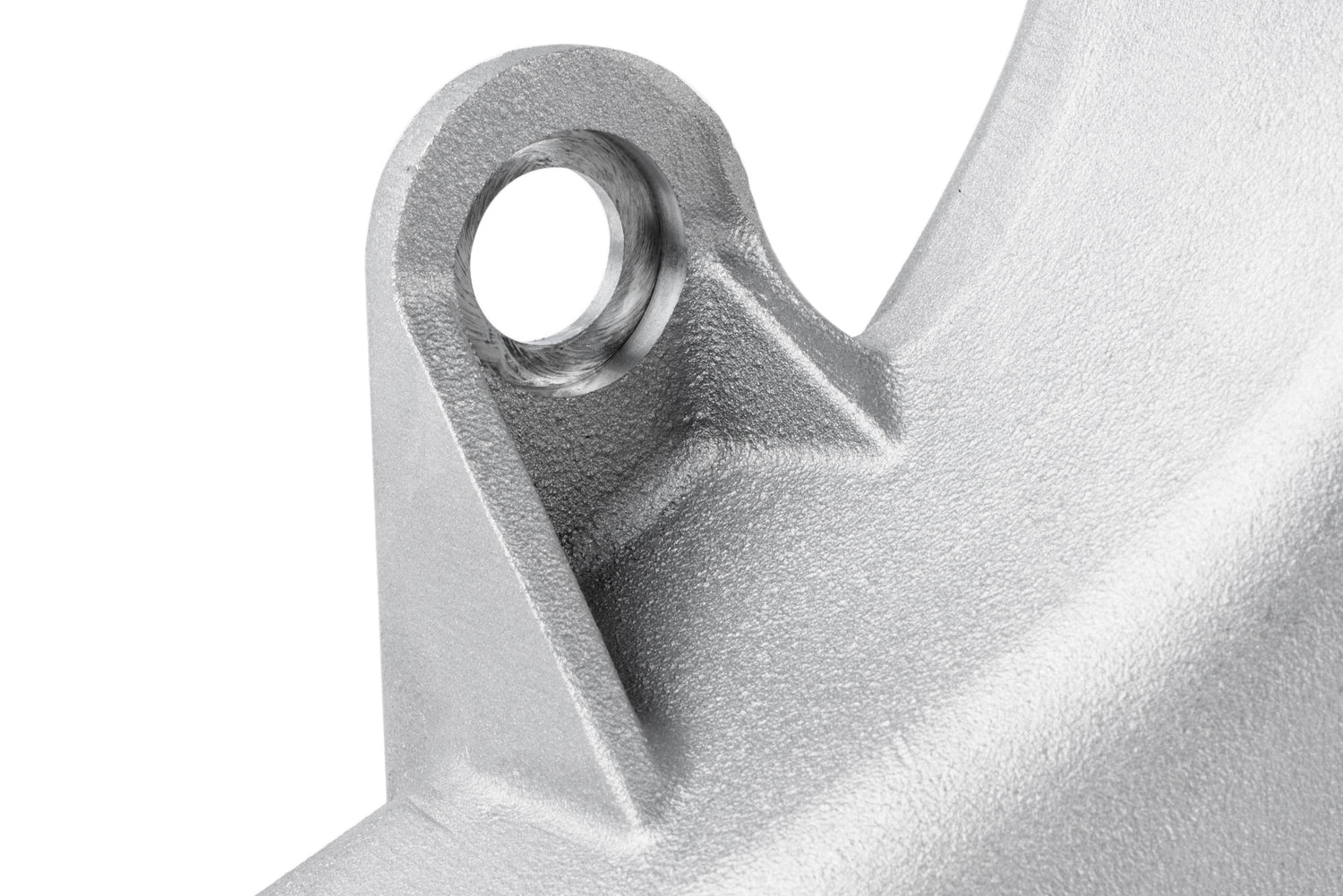

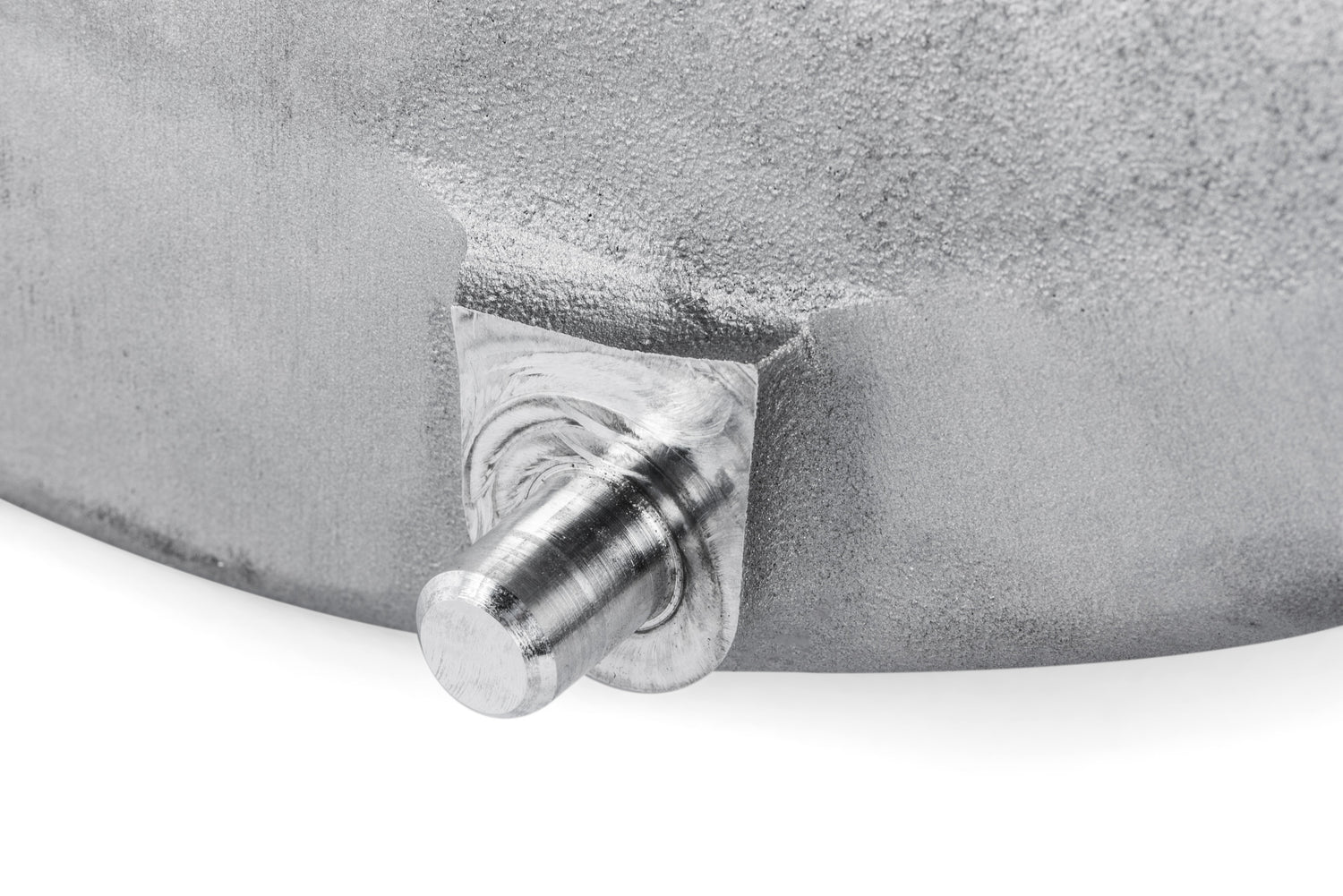

- Smooth cast end tanks
- Engineered for low turbulence/restriction and maximum flow.
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.

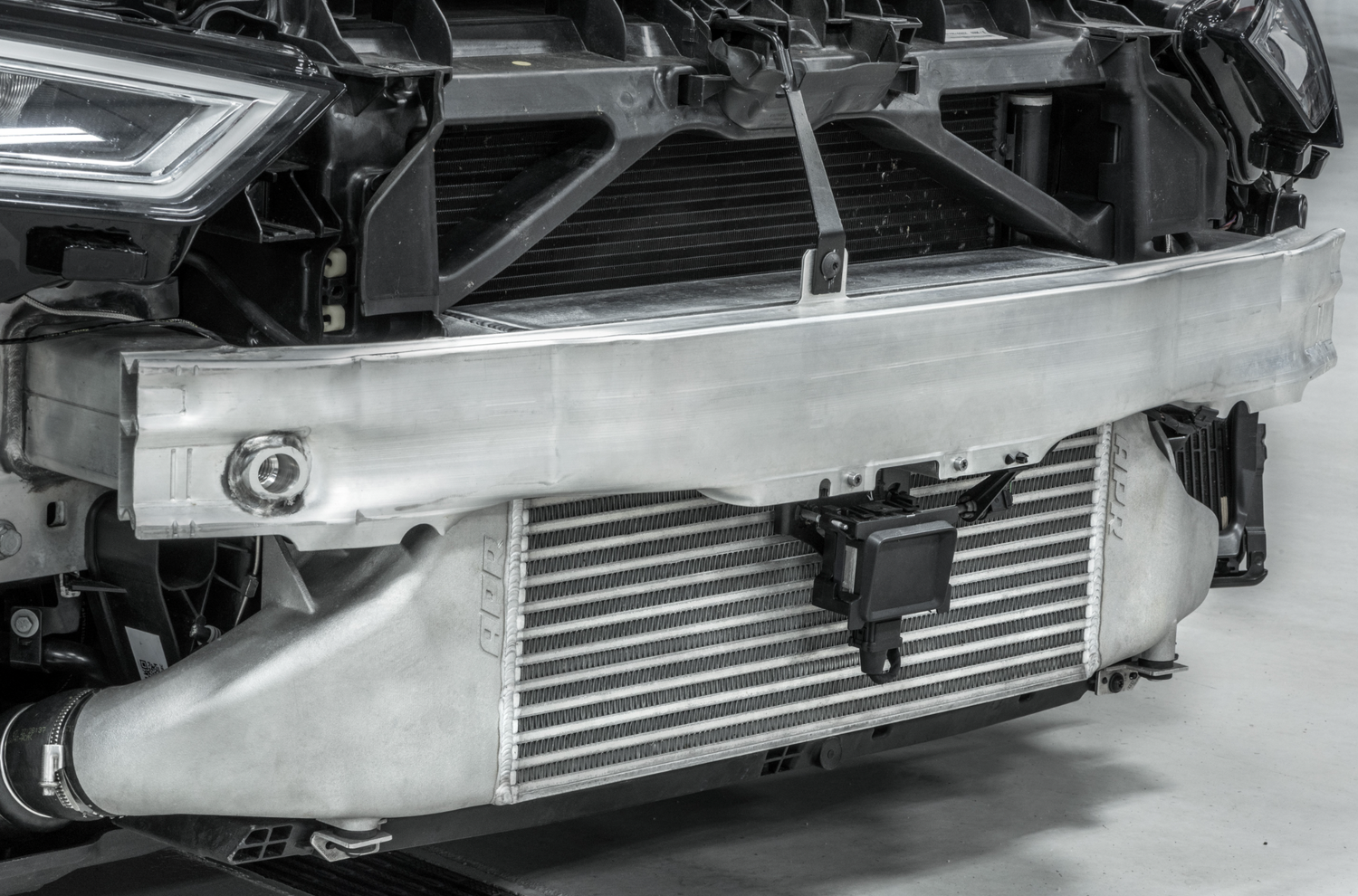

- Easy to install
- Simple plug-and-play design with no trimming or drilling necessary!
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
| Brand | APR |
|---|---|
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area (in^2) | 257.40 |
| Core Height (in) | 11.7 |
| Core Type | Bar and Plate |
| Core Volume (in^3) | 900.90 |
| Core Width (in) | 22 |
| 3.5 | |
| Direct Fit | Yes |
| Emission Code | 4 |
| End tank Construction | Cast |
| End tank Material | 356-F Aluminum |
| Product Type | Charge Air Cooler |
| Welding Type | TIG |
| UPC | 810009930969 |
| Part Number | IC100024 |
