APR® (09-18) Audi A6/A7/A8/Q5/Q7/S4/S7/SQ5 'Bolt On' Drive/Crank Pulley Kit

Regular price$529.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • THIS PRODUCT IS NOT CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (3.0L)

    2009 - 2018 Audi A6 Quattro

    2012 - 2018 Audi A7 Quattro

    2013 - 2018 Audi A8 Quattro

    2013 - 2017 Audi Q5

    2011 - 2015 Audi Q7

    2010 - 2016 Audi S4

    2014 - 2017 Audi SQ5


    THIS PRODUCT CAN BE SHIPPED TO CALIFORNIA

    Please note, specific software is required to maximize output with this product. Use part number MS100025 to remove the factory supercharger drive pulley.



    APR's Supercharger Drive Pulley Upgrade decreases the diameter of the factory pulley from ~63.25mm to 57.75mm, which in turn spins the supercharger ~9.5% faster. This results in a healthy bump in horsepower and torque across the entire RPM range with the supercharger operating at a higher rate of speed. The pulley is CNC machined from billet stainless steel, e-coated black for an OEM appearance and is bolted to the factory supercharger unit. APR's Supercharger Crank Pulley Upgrade increases the diameter of the factory pulley from ~162mm to ~187mm, which in turn spins the supercharger ~15.4% faster. This results in a larger bump in horsepower and torque across the entire RPM range, as the supercharger is spinning at an even higher rate of speed. The pulley retains the factory harmonically balanced crank pulley and bolts on top of the existing unit. It is CNC machined from light weight billet aluminum with weight saving pockets throughout. It has an anodized black finish and includes new crank pulley bolts. Upgrading both the supercharger drive and crank pulleys results in the factory supercharger spinning ~26.4% faster than stock. This speed was chosen after extensive engine and chassis dyno testing with various pulley sizes and supercharger speeds. The result is an even higher horsepower and torque gain across the entire RPM range. However, at the airflow levels achieved with a dual pulley setup, maximum power is severely restricted by the factory throttle body unit. The APR Ultracharger Throttle Body Upgrade is necessary to take full advantage of the dual pulley configuration, and is available in platform specific variations for the B8/B8.5 A4/A4/S4/S5, Q5/SQ5 and C7 A6/A7. Belt Included Software sold separately

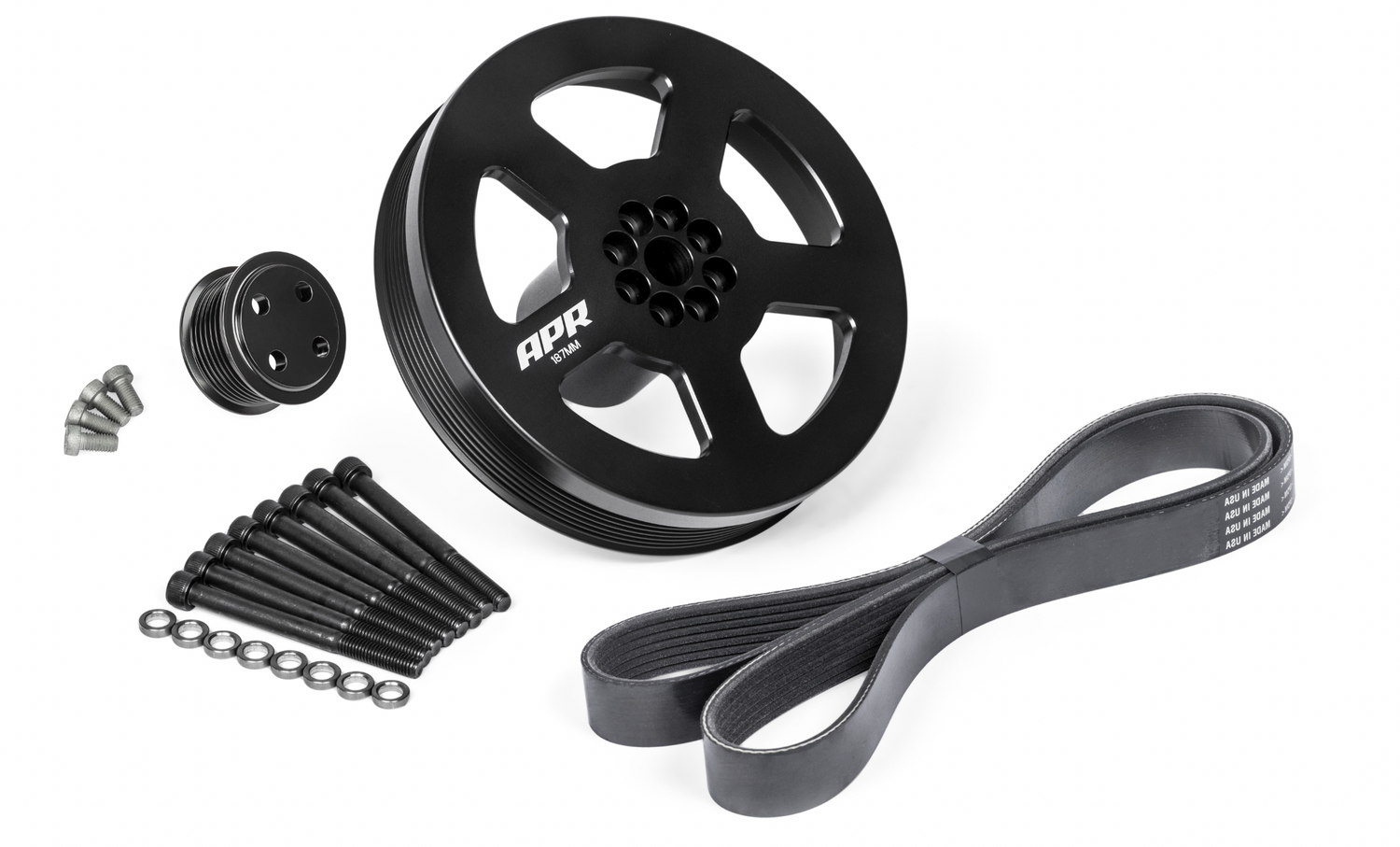

    • Full dual pulley kit

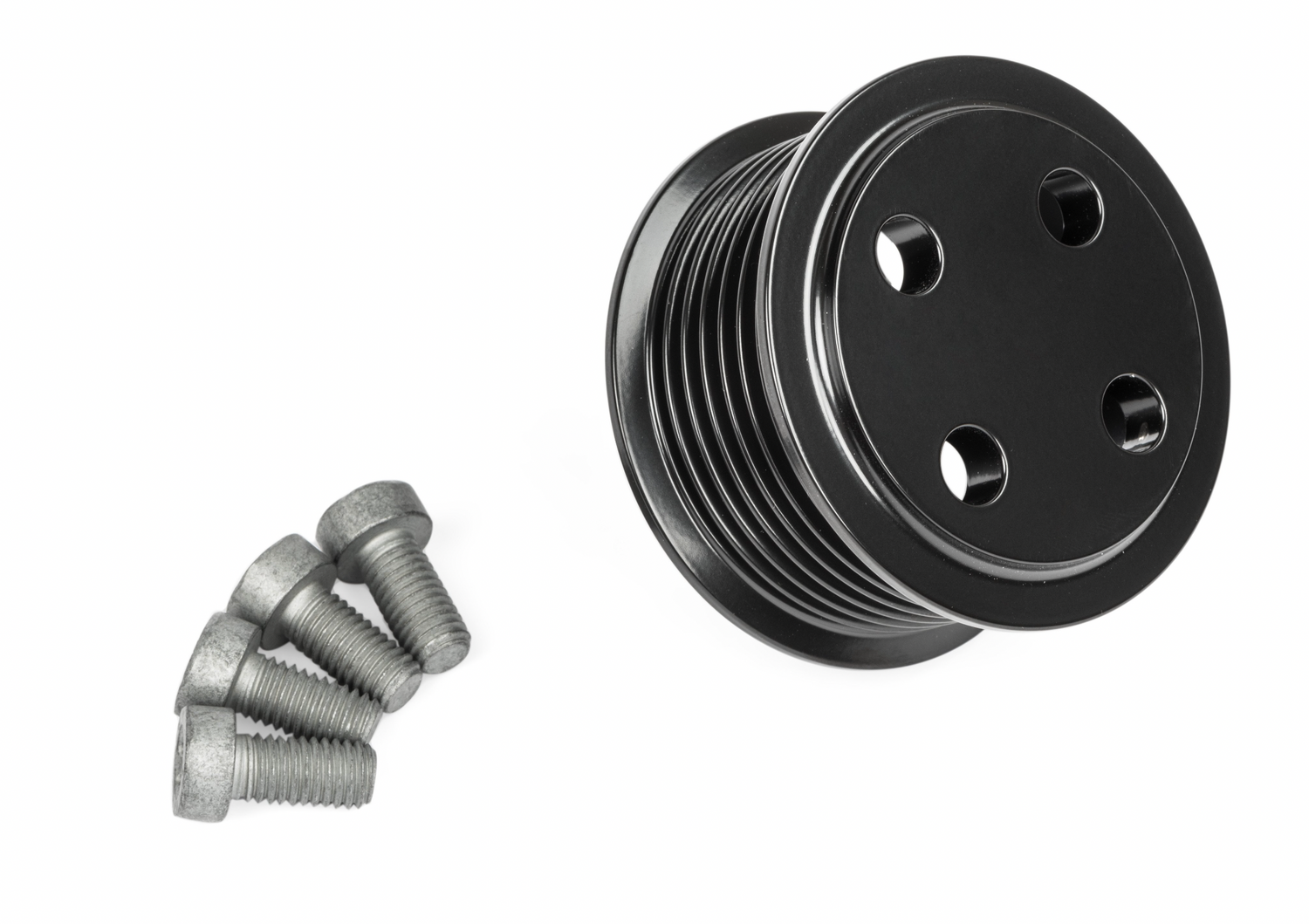

    • Bolt on 57.75mm supercharger drive pulley

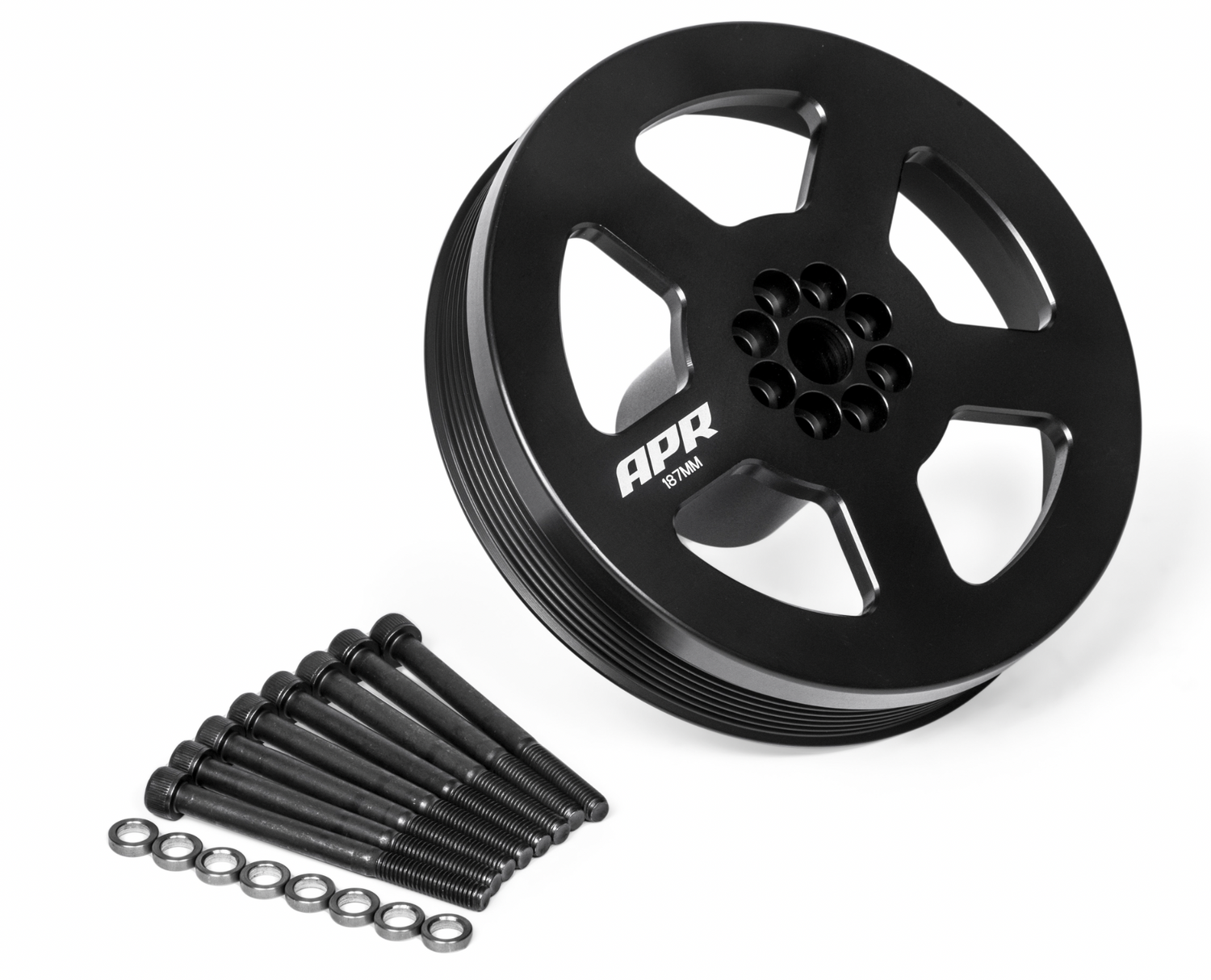

    • Bolt on 187mm crank pulley
    • Spins the charger 26.4% faster for massive torque and HP gains with tuning
    • Anodized and E-coated factory black

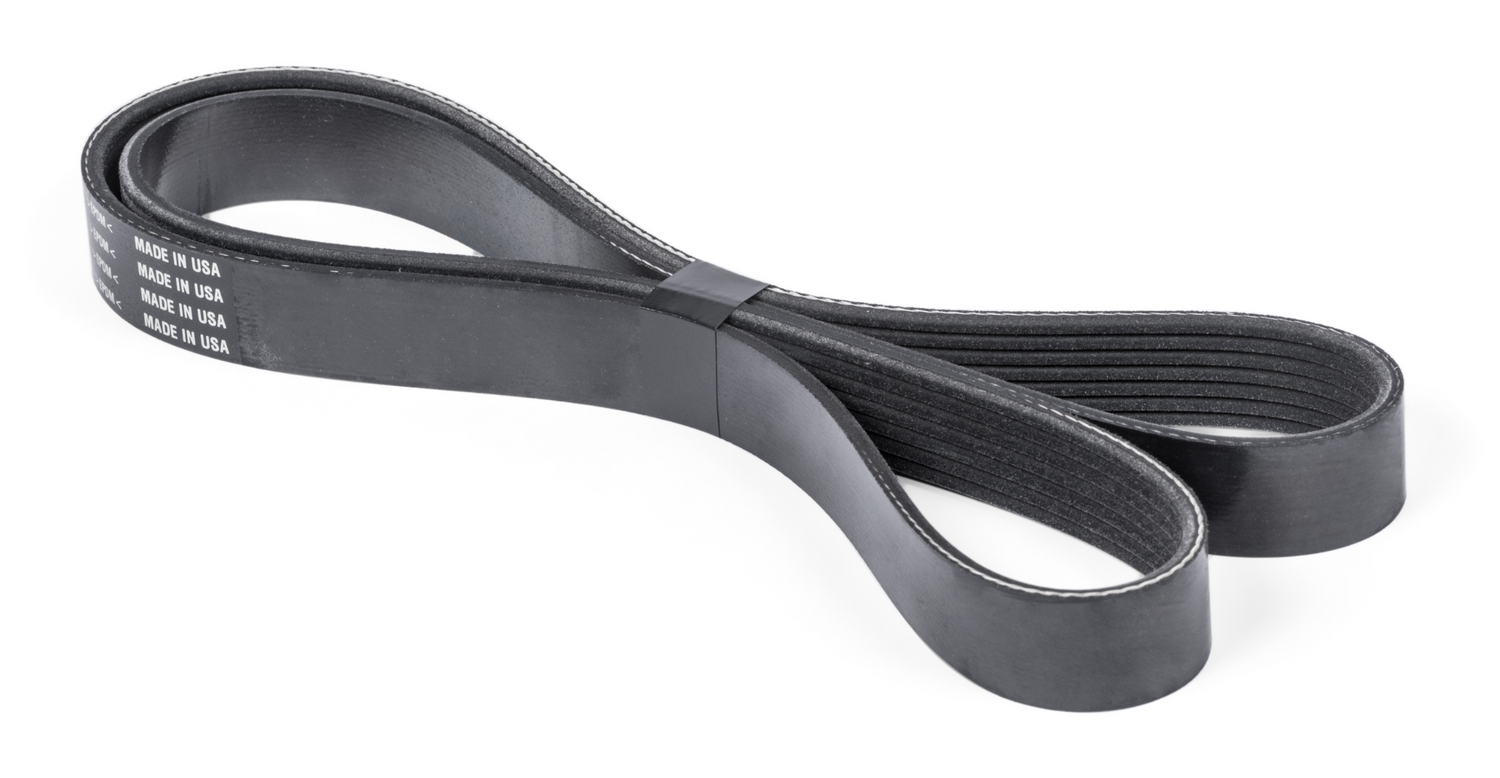

    • Appropriate belt included
    • Retains factory harmonic balancer
    Brand APR
    Color Black
    Construction Billet
    Diameter (mm) 57.75, 187
    Emission Code 6
    Material 6061 Aluminum, T304 Stainless Steel
    Product Type Pulley
    UPC 810009931430
    Part Number MS100185
