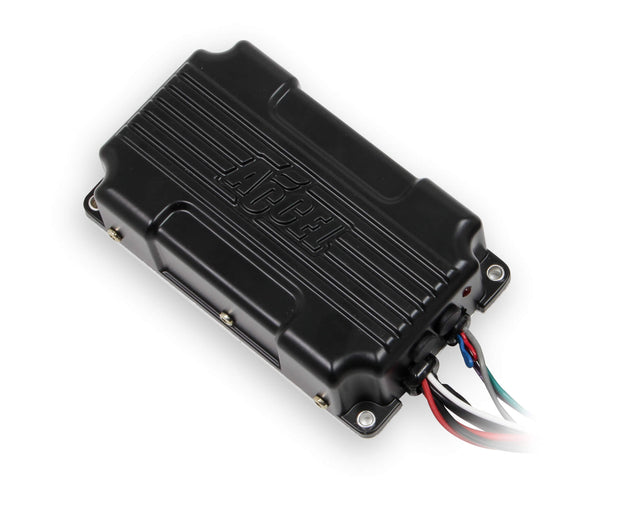

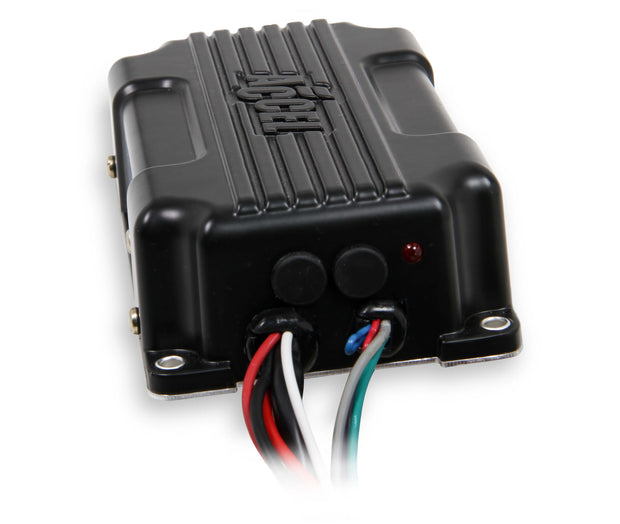

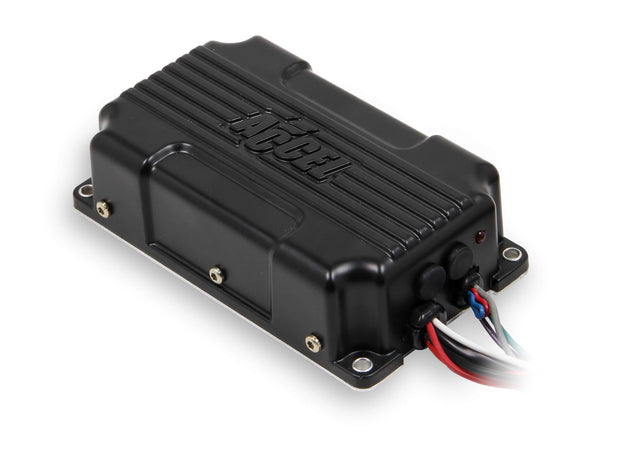

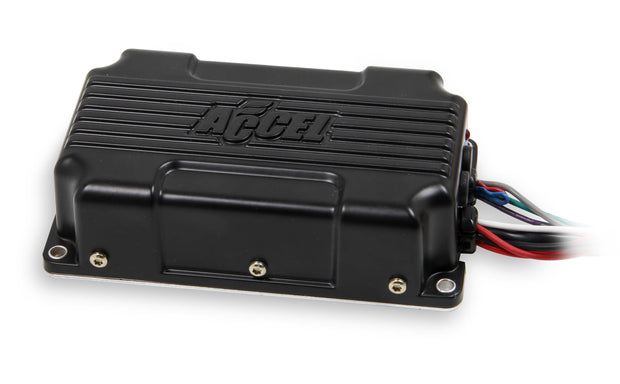

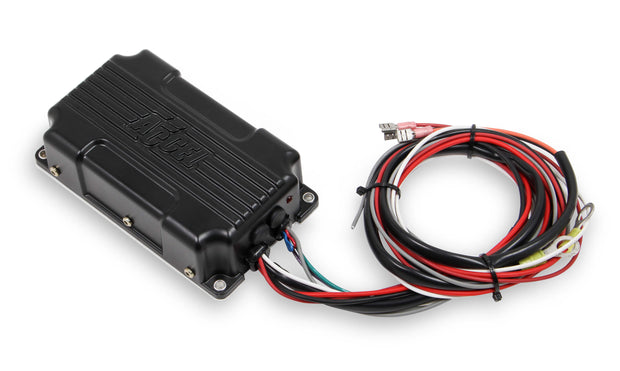

Accel® Superbox Adjustable Rev-Limit CD Ignition System

Regular price$219.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • THIS PRODUCT IS CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Capacitive discharge ignition system for 4, 6 or 8 cylinder motors; provides multiple spark for improved ignition and includes an adjustable rev-limiter for maximum protection. Perfect for street/strip vehicles

    This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

    The following vehicles are considered Emissions Controlled Vehicles:

    • 1966 and newer U.S. manufactured California Certified vehicles
    • 1968 and newer U.S. manufactured Federally Certified vehicles
    • 1968 and newer Foreign manufactured vehicle

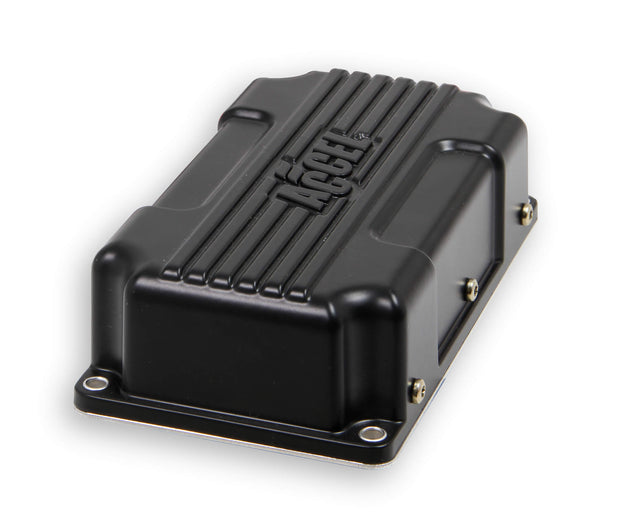

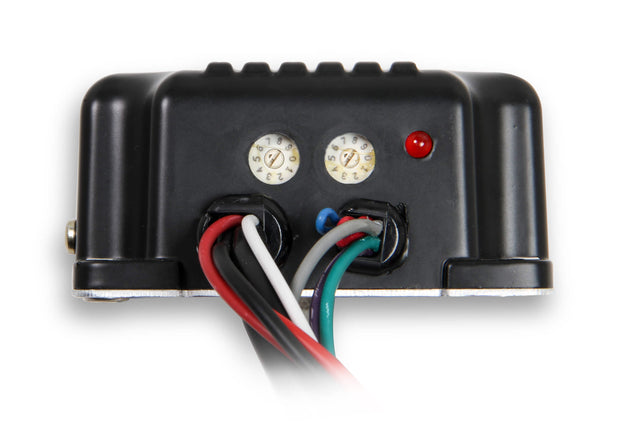

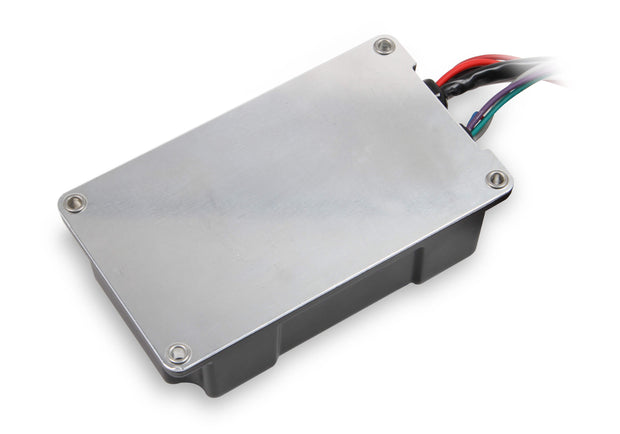

    The ACCEL SuperBox is one of the best ignition values on the market, a perfect blend of value and performance. the ACCEL SuperBox Capacitive Discharge Ignition System is the perfect upgrade. When the engine is running at low rpm, this modern capacitive-discharge ignition fires a series of multiple sparks that last for 20 degrees of crankshaft rotation, ensuring better combustion of the air/fuel mixture and creating instant throttle response and a smoother idle. The ACCEL SuperBox is built around a durable cast-aluminum housing, can be set for 4-, 6- or 8-cylinder applications, and easily connects to points, amplifiers, and magnetic-pickup distributors. An adjustable rev-limiter protects the engine in the event of driveline failure or the occasional missed shift, and it's fully adjustable with rotary dials in 100-rpm increments.
    • Multiple sparks for improved starting, idle and throttle response
    • Full power output at high rpm
    • Easily connects to points, amplifiers, and magnetic-pickup distributors
    • Adjustable rev-limiter for over-rev protection
    • 4-, 6-, and 8-cylinder applications
    • Accessory harness available for plug & play on most applications
    • EO # D-115-23



    Brand ACCEL
    Current Draw .7 Amp per 1,000 RPM
    Emission Code 1
    EO Number D-115-23
    Primary Voltage 435 Volts
    Product Type Choke Components
    RPM Range 15,000 RPM with 14.4 Volts
    Secondary Voltage 43,000 Volts
    Spark Energy 95 mJ per spark
    Spark Series Duration 20 Degree Crankshaft Rotation
    Voltage Required 10-18 Volts, Negative Ground
    Part Number 61212
