This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
The following vehicles are considered Emissions Controlled Vehicles:
1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle

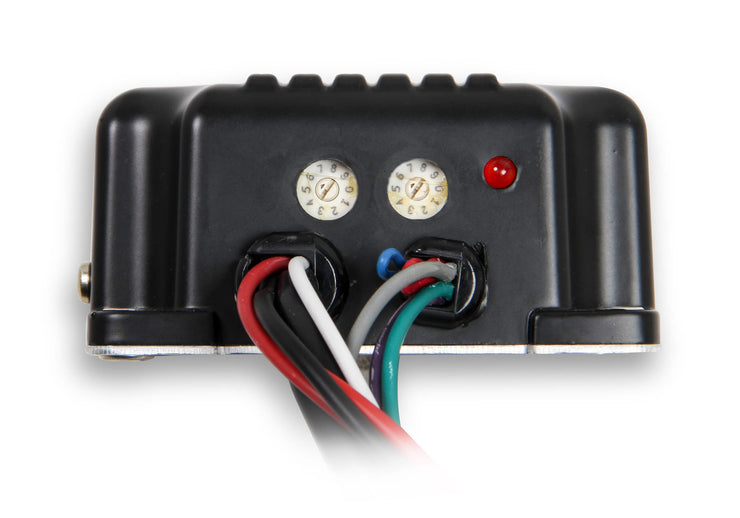

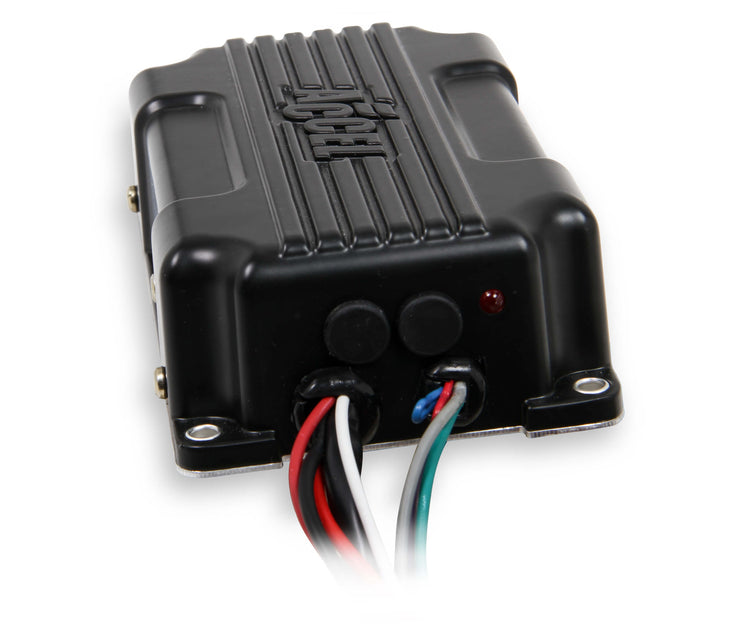

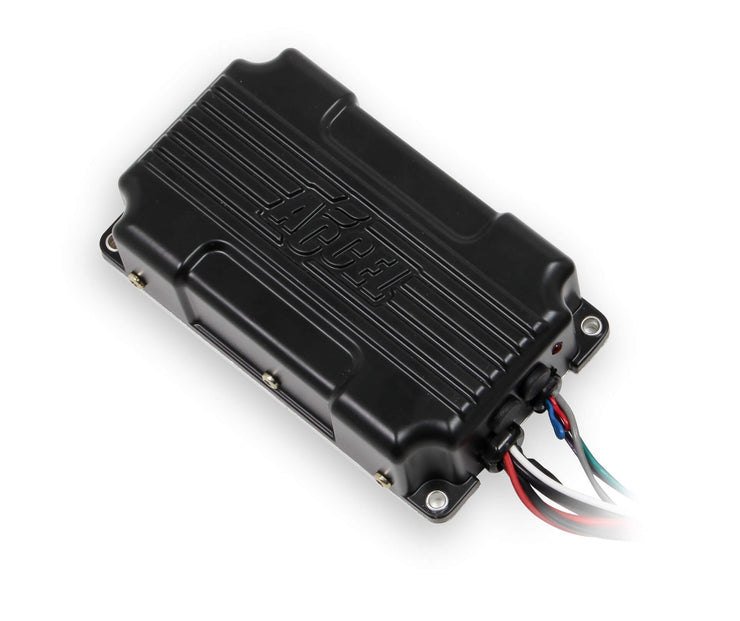

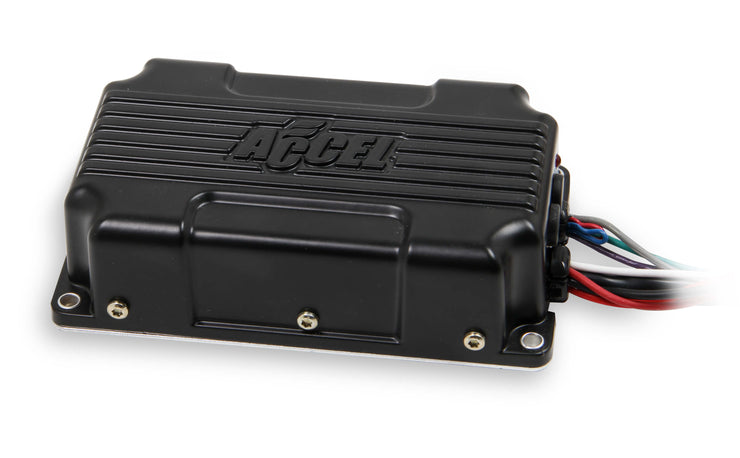

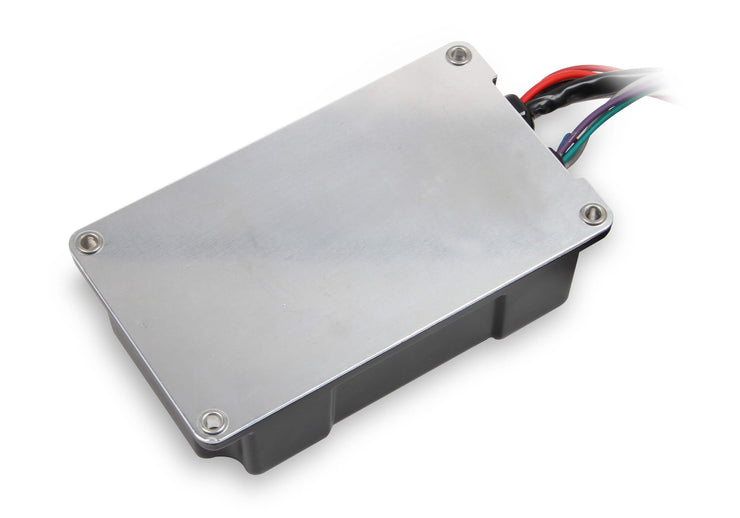

The ACCEL SuperBox is one of the best ignition values on the market, a perfect blend of value and performance. the ACCEL SuperBox Capacitive Discharge Ignition System is the perfect upgrade. When the engine is running at low rpm, this modern capacitive-discharge ignition fires a series of multiple sparks that last for 20 degrees of crankshaft rotation, ensuring better combustion of the air/fuel mixture and creating instant throttle response and a smoother idle. The ACCEL SuperBox is built around a durable cast-aluminum housing, can be set for 4-, 6- or 8-cylinder applications, and easily connects to points, amplifiers, and magnetic-pickup distributors. An adjustable rev-limiter protects the engine in the event of driveline failure or the occasional missed shift, and it's fully adjustable with rotary dials in 100-rpm increments.
Features:
Multiple sparks for improved starting, idle and throttle response
Full power output at high rpm
Easily connects to points, amplifiers, and magnetic-pickup distributors
Adjustable rev-limiter for over-rev protection
4-, 6-, and 8-cylinder applications
Accessory harness available for plug & play on most applications
EO # D-115-23
Brand
ACCEL
Current Draw
.7 Amp per 1,000 RPM
Emission Code
1
EO Number
D-115-23
Primary Voltage
435 Volts
Product Type
Choke Components
RPM Range
15,000 RPM with 14.4 Volts
Secondary Voltage
43,000 Volts
Spark Energy
95 mJ per spark
Spark Series Duration
20 Degree Crankshaft Rotation
Voltage Required
10-18 Volts, Negative Ground
Part Number
61212

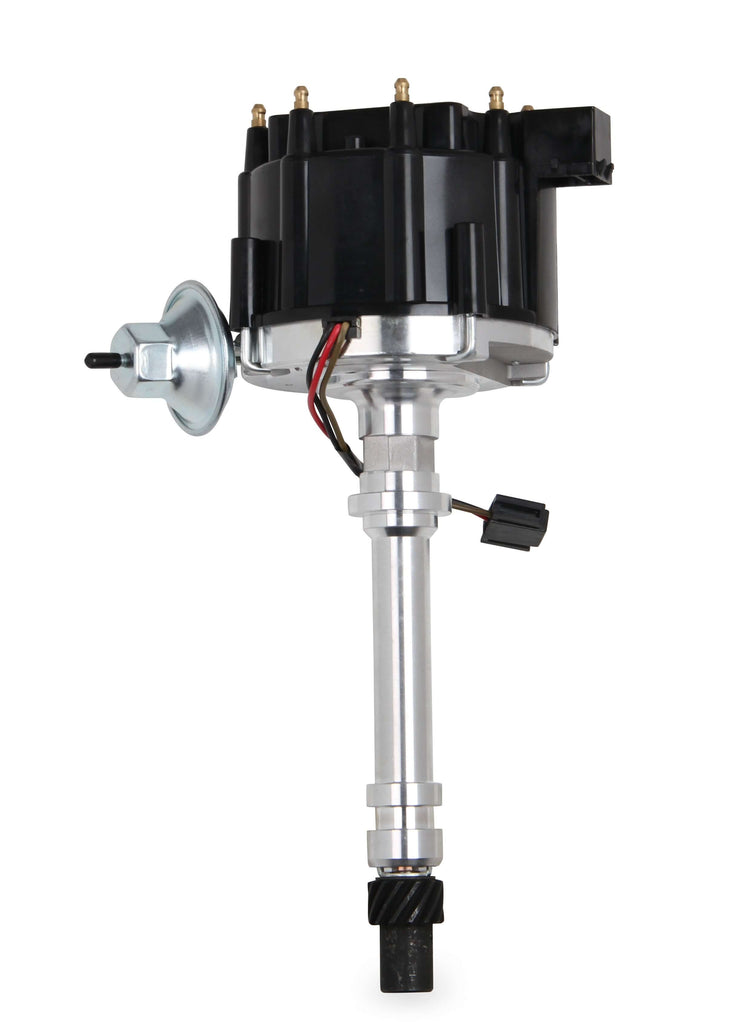

ACCEL Performance Distributors are the perfect choice for your daily driver or street machine, We know the importance of a good quality distributor that doesn't break the bank. These distributors feature a cast aluminum housing with a sintered bronze bushings for long life. An OEM style module is included along with a high-quality gear and cap with brass terminals for many miles of trouble-free service. ACCEL
Performance Distributors are built to deliver performance at a value-based price.
Features:
Direct Plug In Factory Replacement Plug And Play
All New Cast Aluminum Housings for durability
OEM Style Ignition Modules for Trouble-Free Service
High-Quality Distributor Gears
Long Sintered Bushings for Long Life
Distributor Cap w/Brass Terminals
Includes Performance Coil
Fit non computerized vehicles
The traditional ACCEL combination of yellow wire and red spark plug boots has been added to these SuperStock Spiral Core 5000 Series wire sets, which feature color-matched wire and spark plug boots in blue, black, and red. With only 500 ohms/ft. of resistance, more ignition energy can reach the spark plug, producing a longer-lasting, hotter spark flame kernel. The results is higher performance through improved efficiency, quicker throttle response, and reduced emissions. This 8mm wire's double silicone construction is rated to 550 degrees F. The high-gloss wire jacket resists moisture, chemicals, and heat extremes for longer life and great looks. The fiberglass braid adds greater pull strength and terminal retention, while the stainless steel spark plug terminals provide excellent long life, electrical conductivity, and corrosion resistance. Both universal and custom-fit applications are available for early and late model cars and trucks.
