COMPATIBLE: (5.7L/6.1L/6.4L-HEMI)
2005 - 2023 CHRYSLER 300
2008 - 2023 DODGE CHALLENGER
2006 - 2023 DODGE CHARGER
2006 - 2023 DODGE DURANGO
2005 - 2008 DODGE MAGNUM
2005 - 2021 JEEP GRAND CHEROKEE
2003 - 2023 RAM 1500
2014 - 2018 RAM 2500
2014 - 2018 RAM 3500

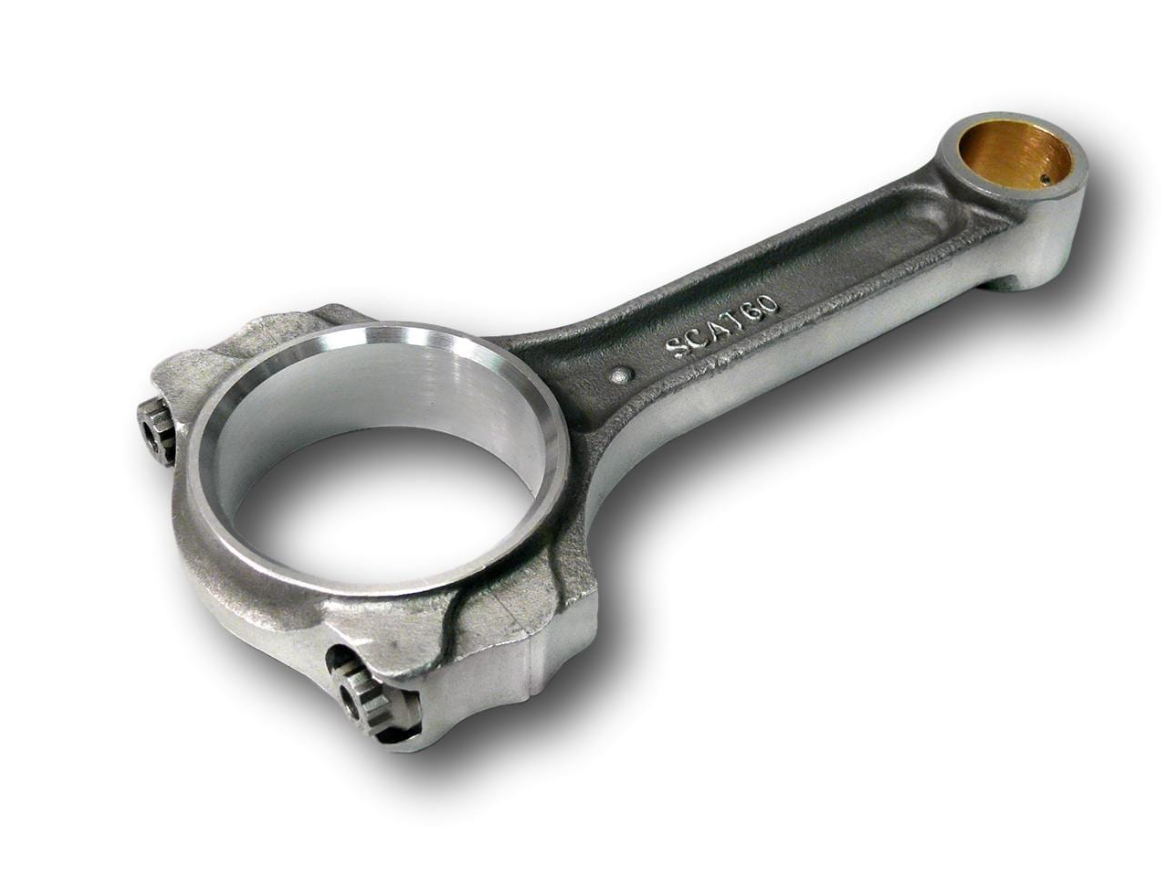

Chrysler Modern HEMI Pro Series 4340 Forged I-Beam Connecting Rods with ARP 7/16" Cap Screw Bolts are the strongest I-Beam rods available. They're cut for cam clearance on longer stroke. The single rib cap design ensures added strength and bearing support, and the polished and shot-peened beams eliminate stress risers. The special hollow doweled cap offers accurate cap-to-rod beam alignment.
SPECS
Weight |
12 lbs |
|---|---|
Dimensions |
4 × 10 × 12 in |
Make |
Chrysler |
Application |
Pro Series |
Style |
I-Beam |
Material |
Forged 4340 Steel |
Finish |
Polish/Shot-peen |
Wrist Pin |
Pressed |
Stroker Clearance |
Yes |
Bolt Brand |
ARP |
Bolt Size |
7/16" |
Bolt Cap |
Cap Screw |
Bolt Head |
12-Point |
Bolt Material |
ARP 8740, ARP 2000 |
Cylinders |
8 |
Rod Length |
6.24 |
Rod Journal |
2.126 |
Wrist Pin Size |
0.943 |
Big End Width |
0.93 |
