COMPATIBLE: (4.6L - 2V/3V/4V)
1997 - 2010 FORD F-150
1992 - 2012 FORD CROWN VICTORIA
1994 - 1997 FORD THUNDERBIRD
2002 - 2005 FORD EXPLORER
1997 - 2004 FORD EXPEDITION
1996 - 2010 FORD MUSTANG
1994 - 1997 MERCURY COUGAR
1991 - 2000 LINCOLN TOWN CAR
1993 - 1998 LINCOLN MARK VIII
1992 - 2012 MERCURY GRAND MARQUIS
2002 - 2005 MERCURY MOUNTAINEER

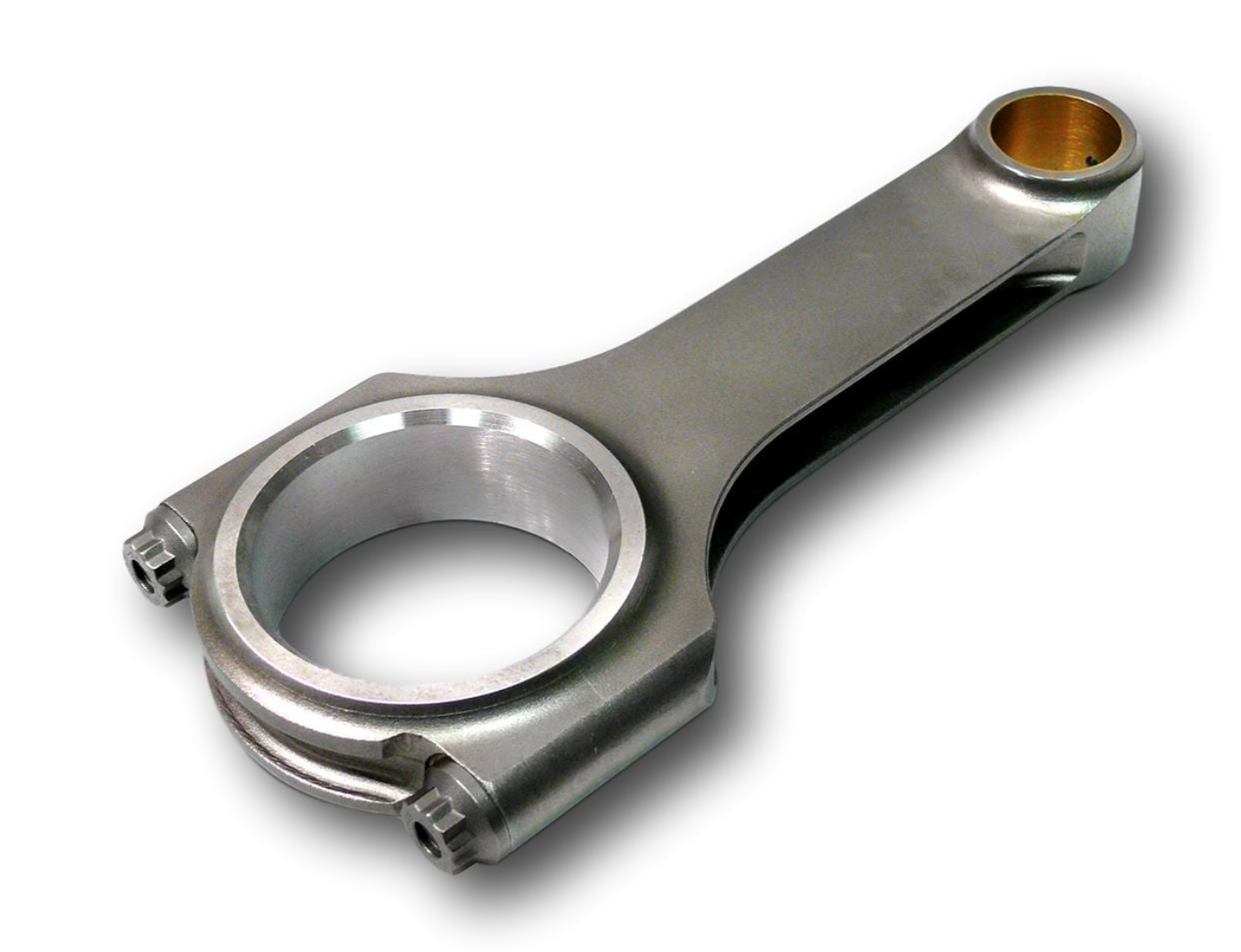

Ford Modular Stroker 4.6L Premium Pro Sport 4340 Forged H-Beam Connecting Rods With 7/16” Cap Screws are perfect for high-horsepower applications. The double rib cap design adds strength and bearing support. The polished and shot peened beams eliminate stress risers.
Weight |
12 lbs |
|---|---|
Dimensions |
4 × 10 × 12 in |
Make |
Ford |
Application |
Pro Sport |
Style |
H-Beam |
Material |
Forged 4340 Steel |
Finish |
Polish/Shot-peen |
Wrist Pin |
Floating |
Stroke Clearance |
No |
Bolt Brand |
ARP |
Bolt Size |
7/16" |
Bolt Cap |
Cap Screw |
Bolt Head |
12-Point |
Bolt Material |
ARP 8740, ARP 2000 |
Cylinders |
8 |
Rod Length |
5.850 |
Rod Journal |
2.000 |
Wrist Pin Size |
0.866 |
Big End Width |
0.940 |
WARRANTY:
