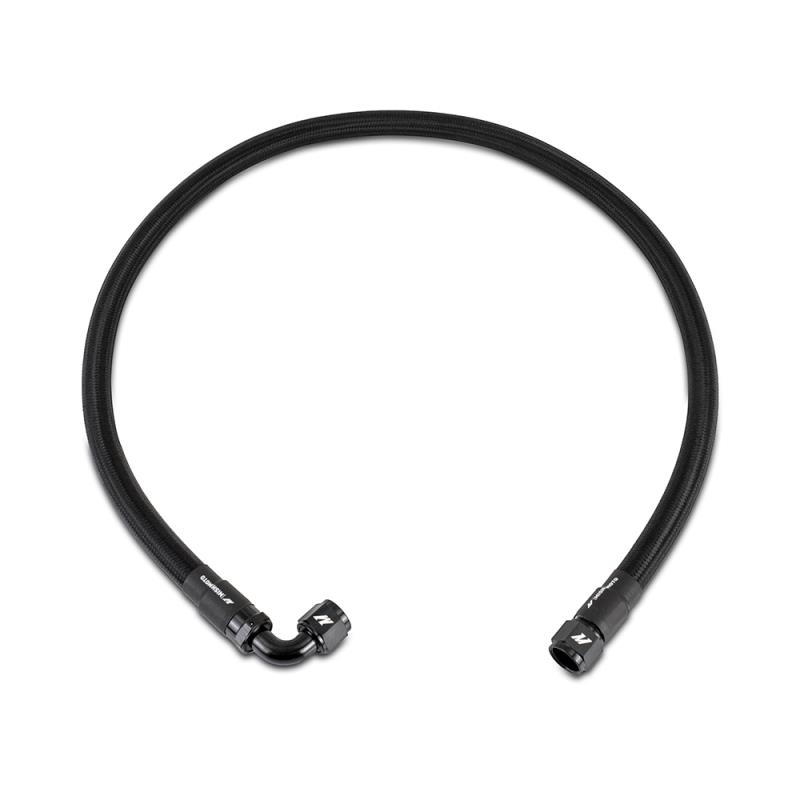

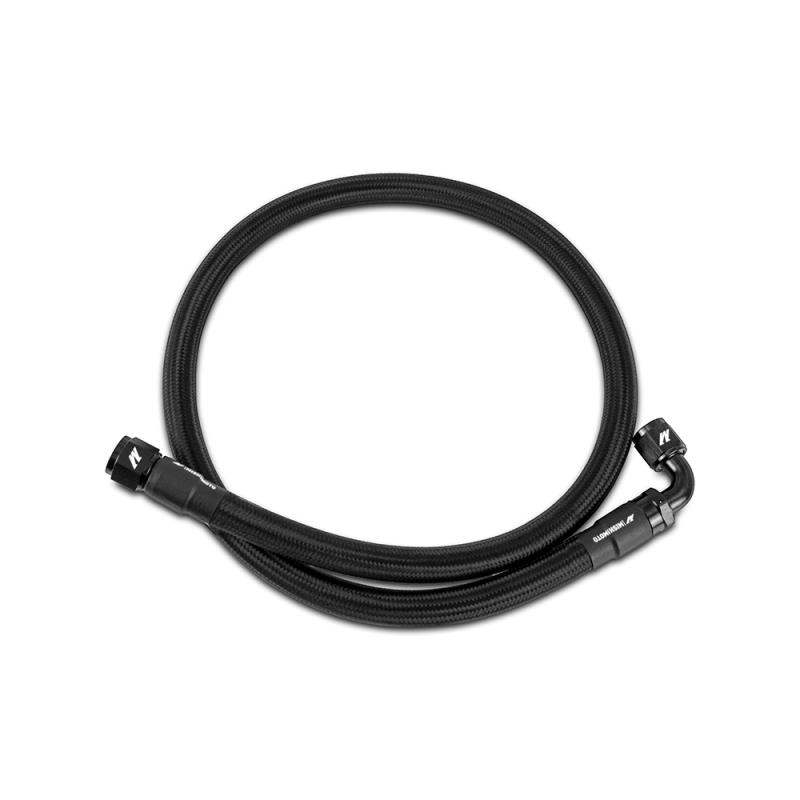

Mishimoto® Universal -10AN Nylon Wrapped Oil Cooler Stainless Steel Braided Hose

Extremely durable and flexible, this Mishimoto Braided Hose is an ideal addition to your vehicle. Whether you’re installing a turbocharger oil drain hose or adding an oil cooling system, these nylon-wrapped stainless-steel braided fluid hoses are available in multiple lengths to suit any application. In addition, each line includes pre-installed pneumatically crimped 90° and straight -10AN fittings for leak-free operation.

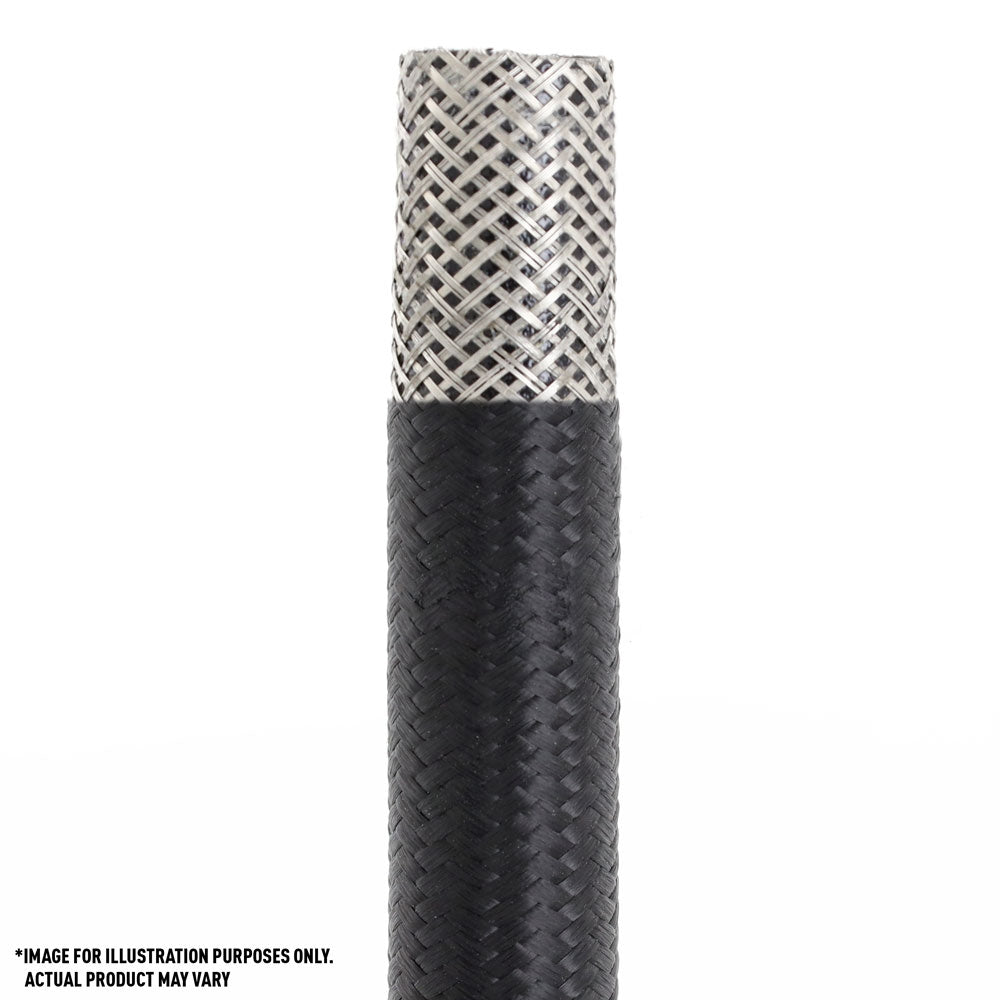

These Mishimoto -10AN lines feature a CPE rubber inner layer which provides a durable passageway for most fuels, oils, and engine coolants, while a woven stainless-steel inner jacket increases the pressure tolerance and durability. The nylon outer braid will not abrade soft materials such as plastic or aluminum in confined spaces. In addition, the combination of anodized black hose ends and outer nylon braid provides a very subtle, factory-like appearance.

Our braided -10AN lines feature an operating temperature range from -40°F to 300°F and pressure rating of up to 1,000 PSI, making them applicable for most fluids or air passage systems on your vehicle. As with all our products, this Mishimoto Stainless-Steel Braided Line is covered by our Lifetime Warranty.

• Chemical resistant CPE rubber core is compatible with petroleum-based fuel, diesel, oil, and coolant
• Woven stainless steel inner jacket for increased strength and pressure tolerance
• Nylon outer braid prevents abrasion to soft materials such as plastic or aluminum

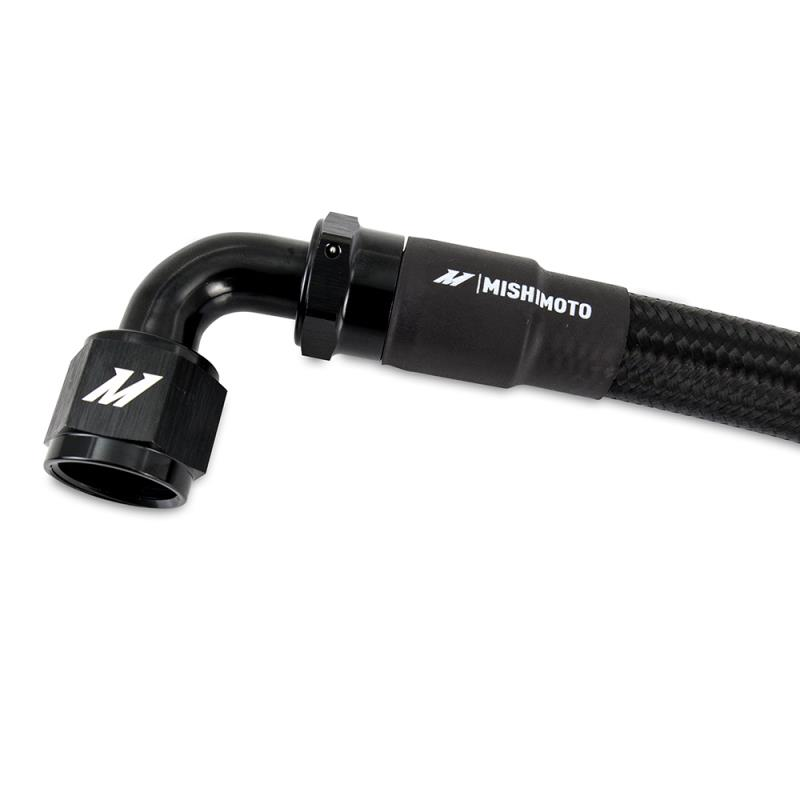

• Includes pre-installed pneumatically crimped 90° and straight -10AN fittings for leak-free operation
• Nylon outer braid and anodized black hose ends provide a refined, factory-like appearance
• Available in lengths from 3 to 6 feet
• Operating temperature range from -40°F to 300°F
• Maximum pressure rating of up to 1,000 PSI
• Mishimoto Lifetime Warranty

PRODUCT SPECS
