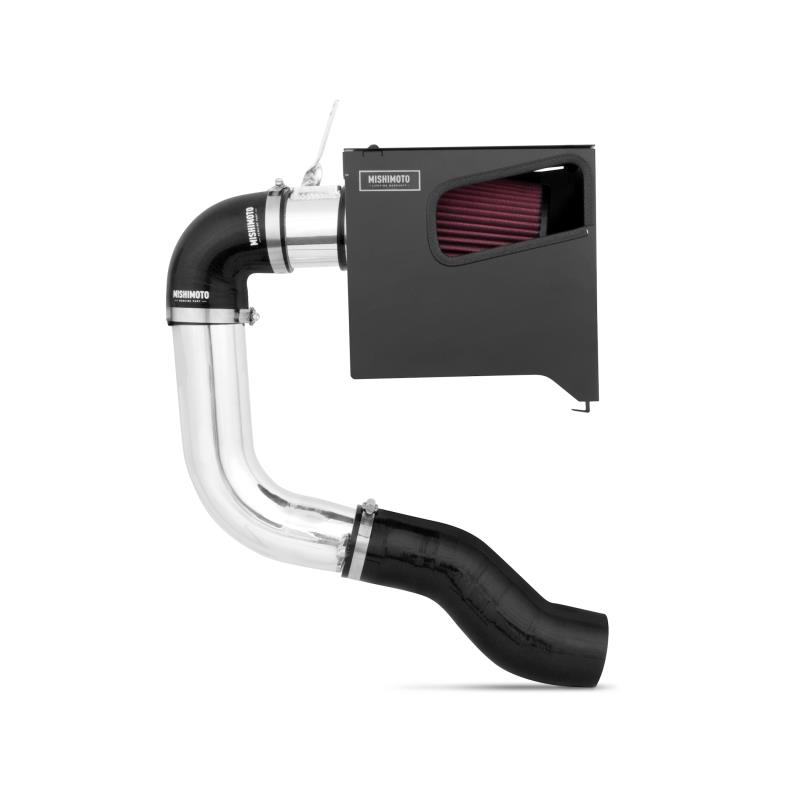

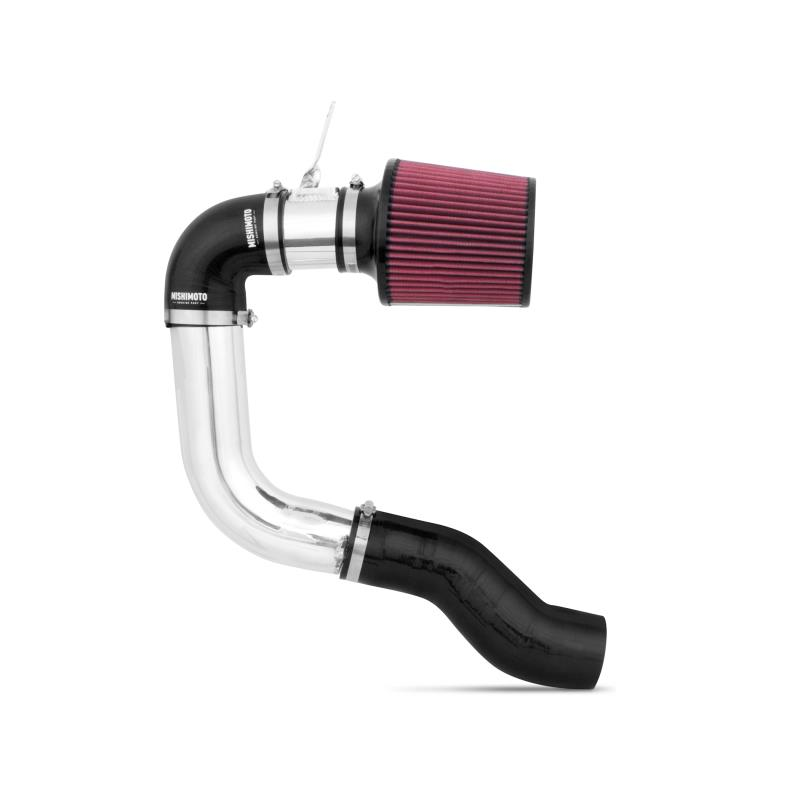

Mishimoto® (15-21) WRX Aluminum Cold Air Intake System with Steel Airbox - Polished
is backordered and will ship as soon as it is back in stock.
Description
Compatible: (2.0L)
2015 - 2021 Subaru WRX
The airbox retains a stock-like appearance and is designed to work with the stock air inlet duct
Here at Mishimoto we've decided to expand our line of 2015 WRX parts. Mishimoto has developed a performance air intake engineered specifically for the 2015+ Subaru WRX. The 2015 WRX intake features numerous innovative components, including a wire-reinforced lower induction hose that will not collapse under suction and boost.

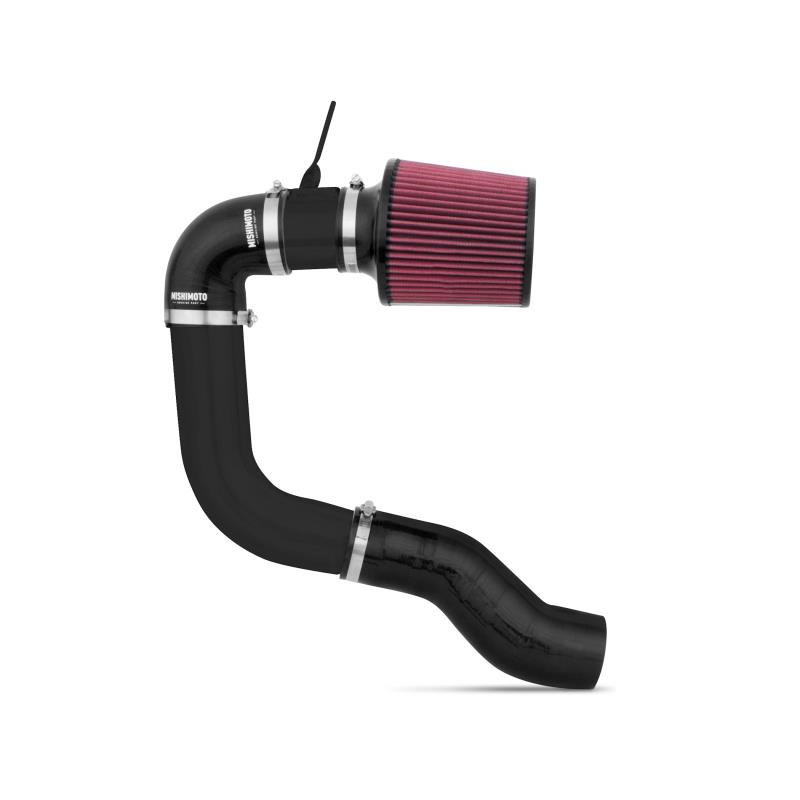

Dyno testing showed maximum gains of up to 33 whp and 30 wtq and peak gains of up to 28 whp and 21 wtq while maintaining safe AFRs. Dyno testing also yielded results of up to 70 whp with a tune and 2015 WRX intake with 93 octane fuel while maintaining safe AFRs. This 2015 WRX intake has a unique and aggressive tone under acceleration and boost, and the free-flowing design amplifies turbocharger spool and BPV sounds.
The stock 2015 WRX intake duct is utilized to provide cool airflow to the high-flow Mishimoto oiled air filter, which features increased filtration surface area compared to the stock paper filter. This filter can be cleaned and reused, providing a lifetime of service. The 2015 WRX intake is available with an enclosed airbox for protection against engine bay heat-soak, and it provides a stock-like engine bay appearance as well. This unit is a complete bolt-on to your 2015 WRX and can be installed in one hour using common hand tools. Made in the USA and available with either polished, wrinkle black, or wrinkle red aluminum intake piping and, like our entire line of 2015 WRX parts, includes the signature Mishimoto Lifetime Warranty.
Direct fit for the 2015+ Subaru WRX
Dyno-proven maximum gains of up to 33 whp and 30 wtq and peak gains of up to 28 whp and 21 wtq while maintaining safe AFRs
Dyno-proven gains of up to 70 whp and 70 wtq with a tune and intake using 93 octane fuel while maintaining safe AFRs on 6 speed WRX (see additional images for dyno chart)
Extremely aggressive intake toneunder acceleration and boost

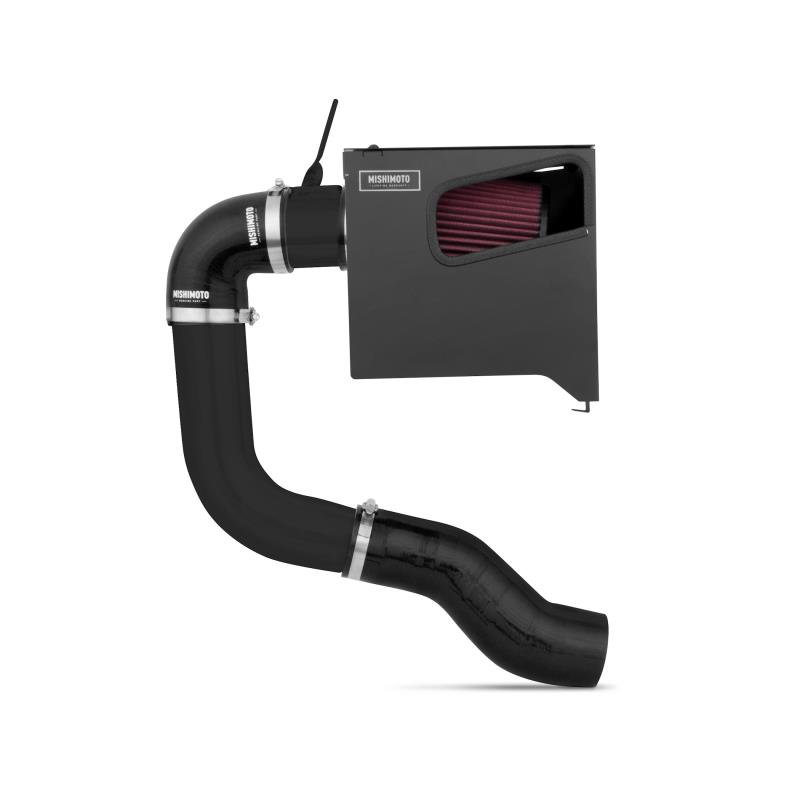

Mishimoto Airbox retains stock-like engine bay appearance
Functions with the stock intake duct which supplies cold air to intake filter
High-flow oiled air filter, sku: 3006, provides increased filtration surface area
Wire-reinforced silicone hose prevents collapse
Easy installation can be completed in one hour
Designed in Delaware, USA and filter made in USA
Available with a polished, wrinkle black, or wrinkle red pipe finish
Mishimoto does not recommend using the intake with 91 octane fuel and no tune. Using the intake with 91 octane and no tune may damage your engine.
MAX GAIN
33 whp and 30 wtq on stock tune using 93 octane fuel
AIR FILTER PART NUMBER
MMAF-3006
DYNO TESTING AND RESULTS – WRX RACE INTAKE, PART 2
It has been a while since we have updated this project, but we now have something for our WRX community!
The brief data report below shows our gains with this race intake project and our baseline was a fully stock 2015 WRX with no upgrade or aftermarket tune. The numbers are quite high due to the upgrades already installed on the WRX during testing. These upgrades included our Mishimoto:
Downpipe
Cat-Back Exhaust
Front-Mount Intercooler
Custom Engine tune
WRX intake dyno testingWRX parts – dyno results
The graph above shows that the race intake coupled with the Mishimoto upgrades netted peak gains of about 77hp with 88ft-lb of torque, and max gains of about 86hp and 98ft-lb of torque against a fully stock WRX. Considering the vehicle’s bolt-on additions and custom tune, we were expecting big gains. Of course, such large gains are possible only with the installed upgrades, but our intake and a proper tune contributed as well.
Regardless of any bolt-on upgrades, it is important to note that this intake will need to be accompanied by a tune. The larger-diameter piping and MAF (mass airflow) housing will not work with the stock ECU tune. For those who may, for example, have some, or maybe all of the bolt on upgrades already installed on their car, they can expect larger gains over those who are fully stock. The exact power gains that you see with our Race Intake will ultimately depend on your specific modifications and tune.
FINAL PRODUCT DESIGN – WRX RACE INTAKE, PART 3
Our last update on this intake included dyno testing that yielded some interesting numbers. Now that we’re moving closer to the release, let’s take a look at the finished product!
Let’s start with the intake pipes.
New 2015 WRX parts
These intake pipes will be finished in either wrinkle black, wrinkle red or polished, as shown above. The decision is up to you! These production samples came out nicely and look really great in person. Remember we are using full three inch piping with no step downs, which will require a tune on any WRX that has this race intake installed.
Color options for the 2015 WRX Intake

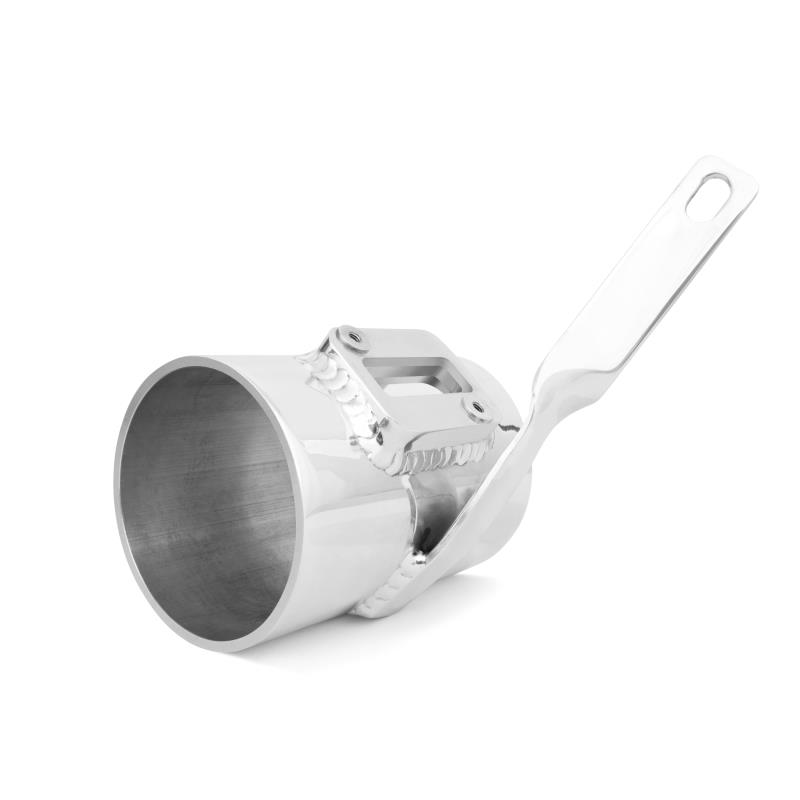

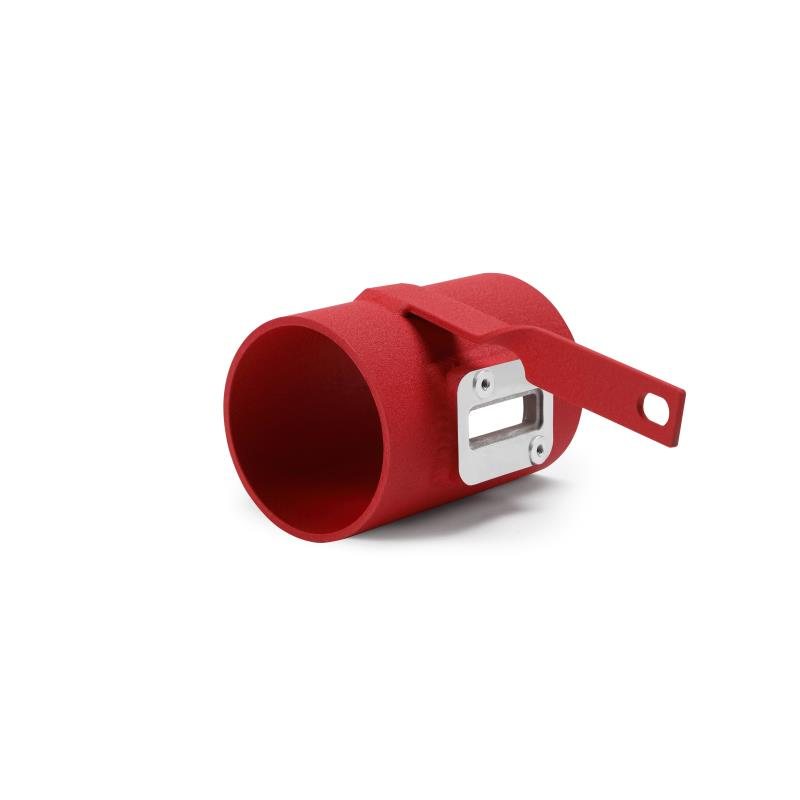

Each pipe will come with a built-in mass airflow (MAF) straightener to help with consistent airflow. Straighteners are very helpful in assisting the MAF sensor to record accurate readings and take turbulent airflow out of the equation. Let’s also not forget that the MAF housing adapter is CNC-machined onto the pipe!

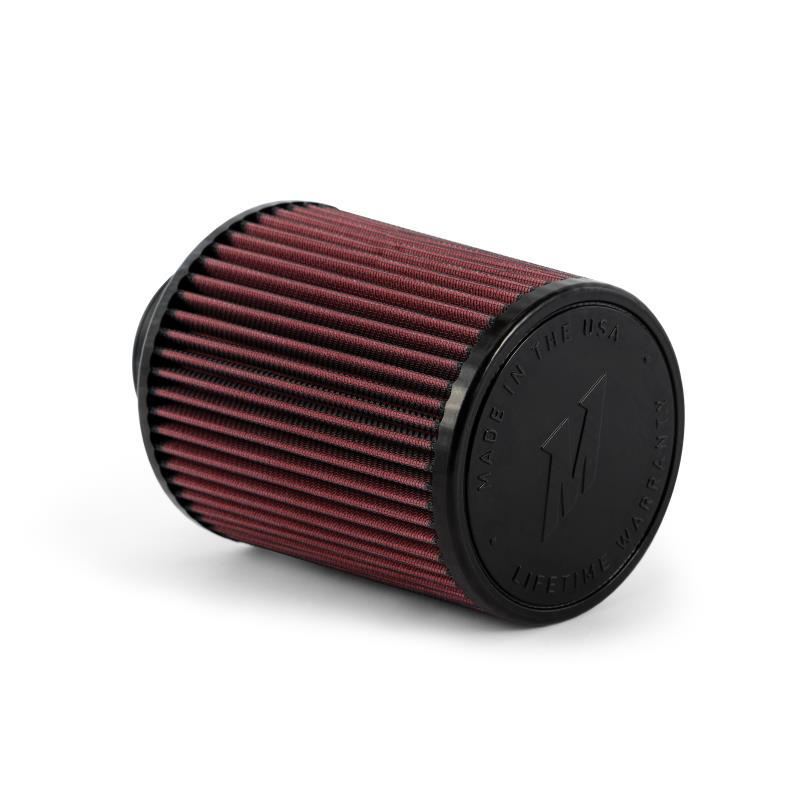

Filter for our 2015 WRX Intake
Pictured above is the filter we plan on using for this kit. It is larger and has more surface area than our Performance Intake version. Now let’s look at the box!

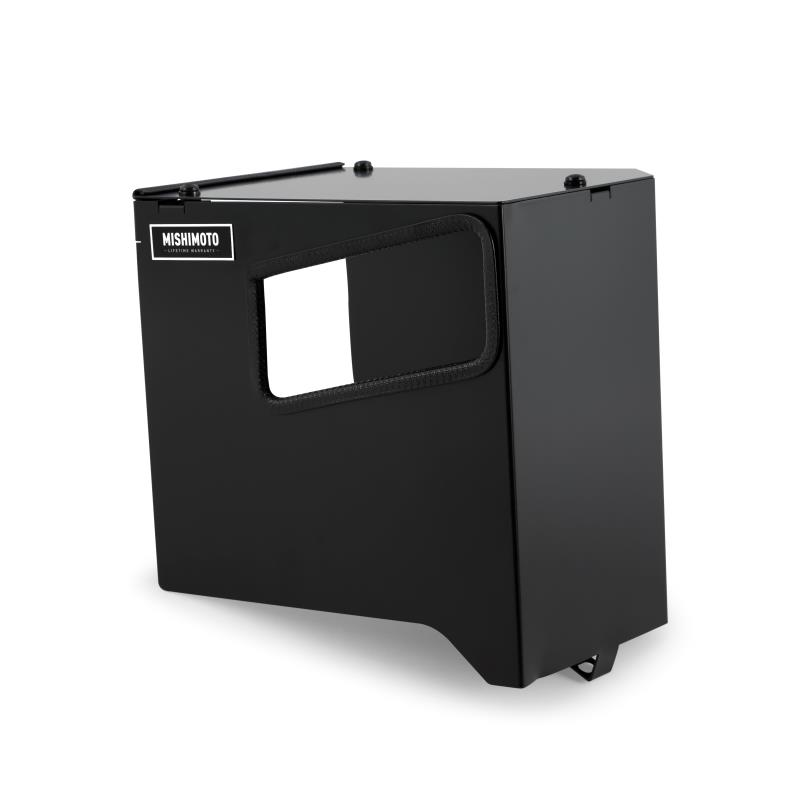

Airbox for 2015 WRX Intake
This box surrounds the air filter to help keep it shielded from the hot air the engine will radiate. The box is made entirely of steel and is powder coated black.

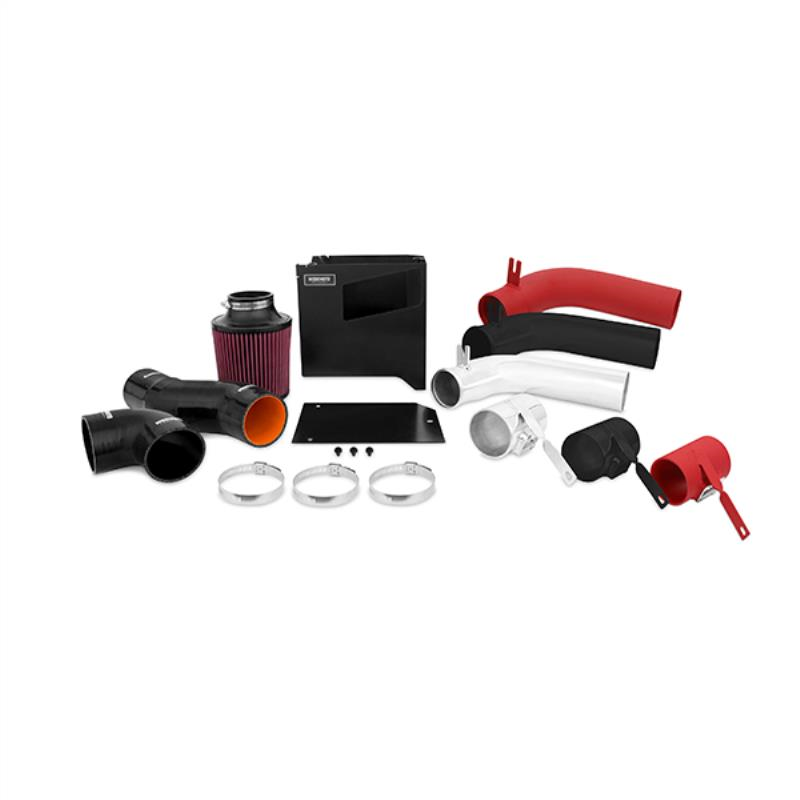

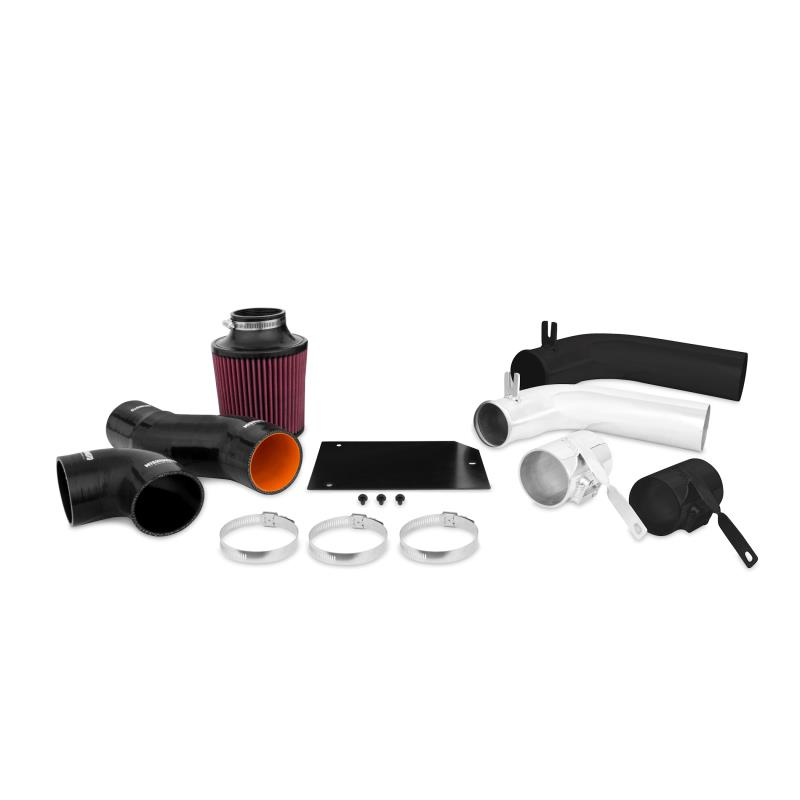

All 2015 WRX parts for the Race Intake
That does it for the components of our Race Intake kit! We will also include an extended wiring harness for the MAF sensor, pictured above behind the intake pipes.
