Mishimoto  |  SKU: MMRAD-FXT-04

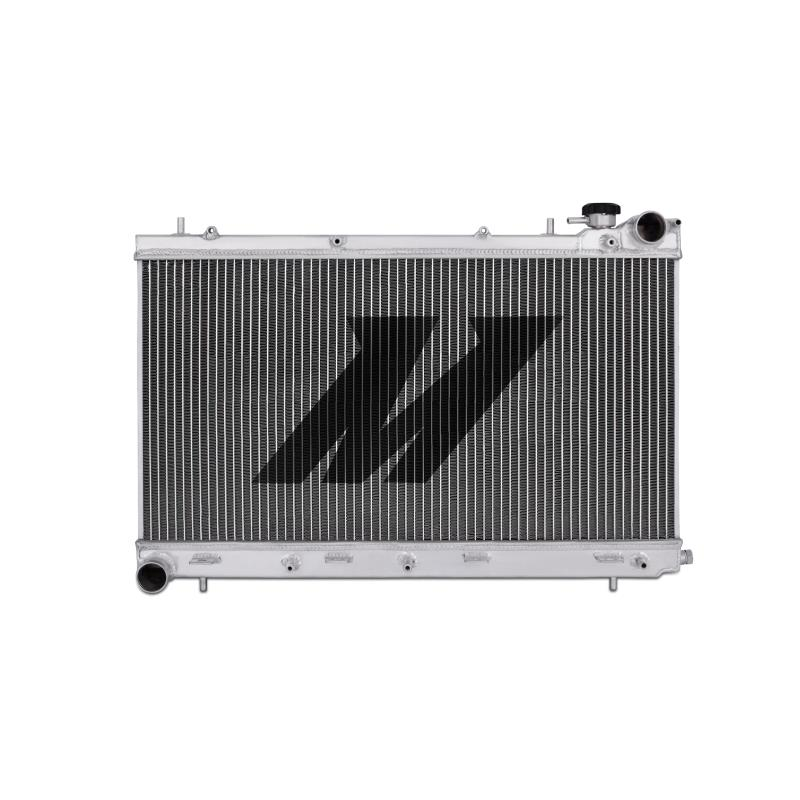

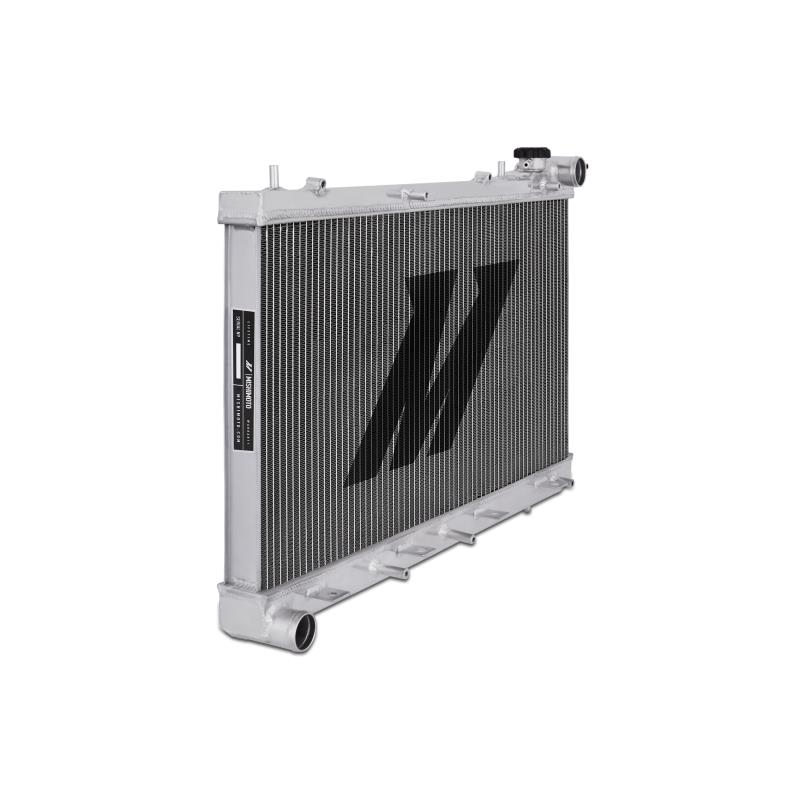

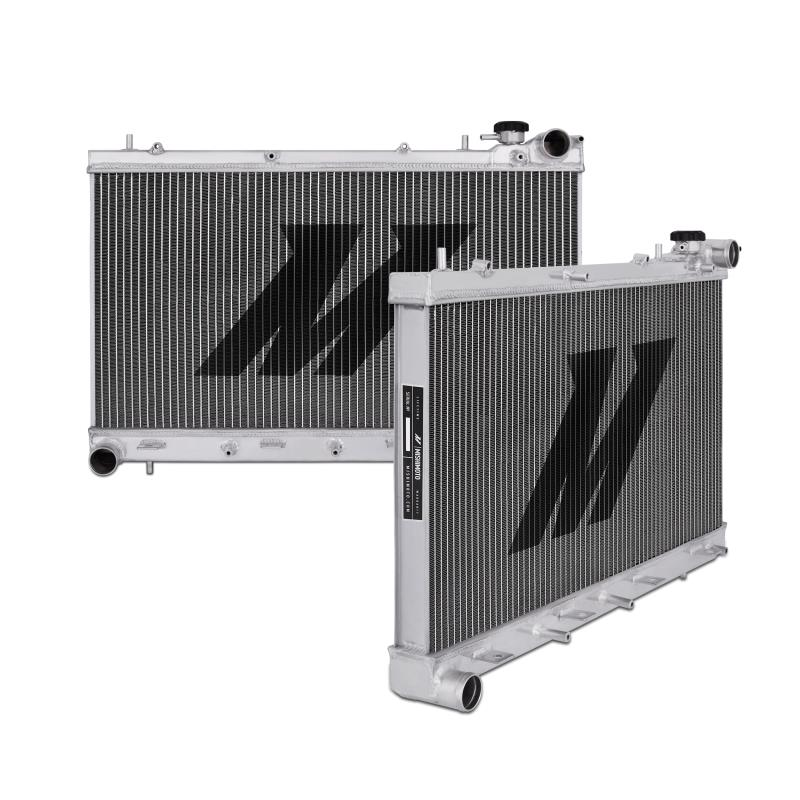

Mishimoto® (04-08) Forester XT 2-Row Performance Aluminum Radiator

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

$457.95
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

Compatible: (2.5L)

2004 - 2008 Subaru Forester XT Turbo



Your vehicle requires 2 bottles of full strength coolant or 3 bottles of premixed coolant

INTENDED FOR USE WITH MANUAL TRANSMISSION MODELS

IF YOU HAVE AN AUTOMATIC TRANSMISSION, PLEASE ADD THE MISHIMOTO UNIVERSAL TRANSMISSION & POWER STEERING COOLER TO COMPLETE INSTALL

Caution The following applies to Subarus. Not all vehicles will have this issue. The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.


By replacing your current Forester XT radiator with a Mishimoto performance aluminum radiator, you will notice a cooler more efficient running engine. The Mishimoto radiator for the Subaru Forester XT Turbo is made with a lightweight two row core made of 100% brazed aluminum and polished aluminum tank end tanks. Installing a direct OEM fit Mishimoto radiator is effortless with no cutting or additional modifications required. Like all our aluminum radiators, this product comes with the unparalleled Mishimoto Lifetime Warranty.

  • Direct fit for the 2004–2008 Subaru Forester XT
  • Full aluminum construction with durable, TIG-welded end tanks
  • Features a two-row, 1.65" thick efficient brazed aluminum core, providing ideal fluid temperature reduction
  • Increased fluid capacity and superior heat dissipation
  • Perfect upgrade to the failure prone stock plastic end tank radiator
  • Ideal for use on the street, track, or rallycross course

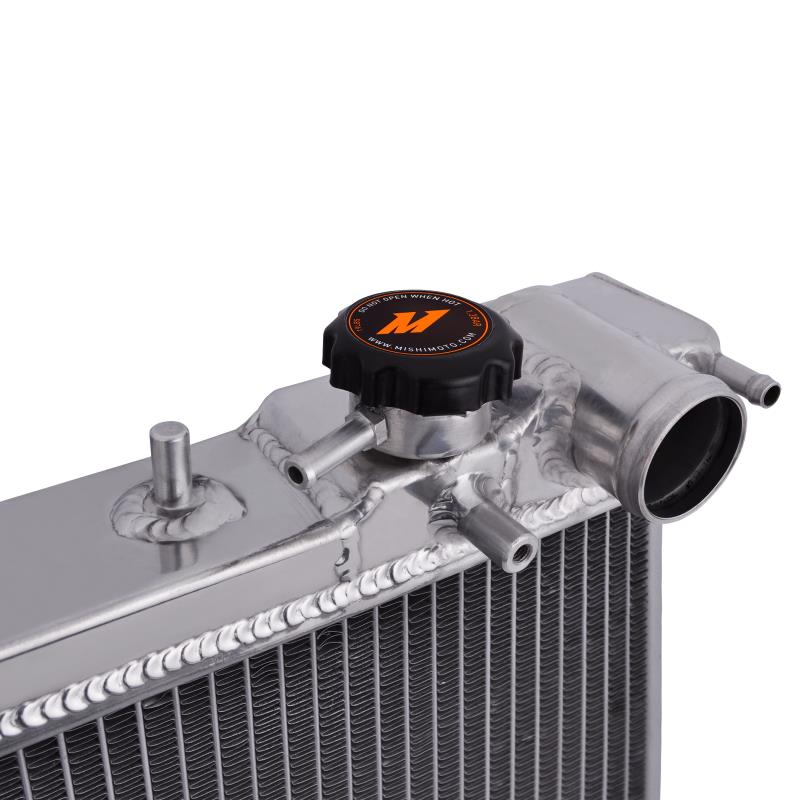

  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

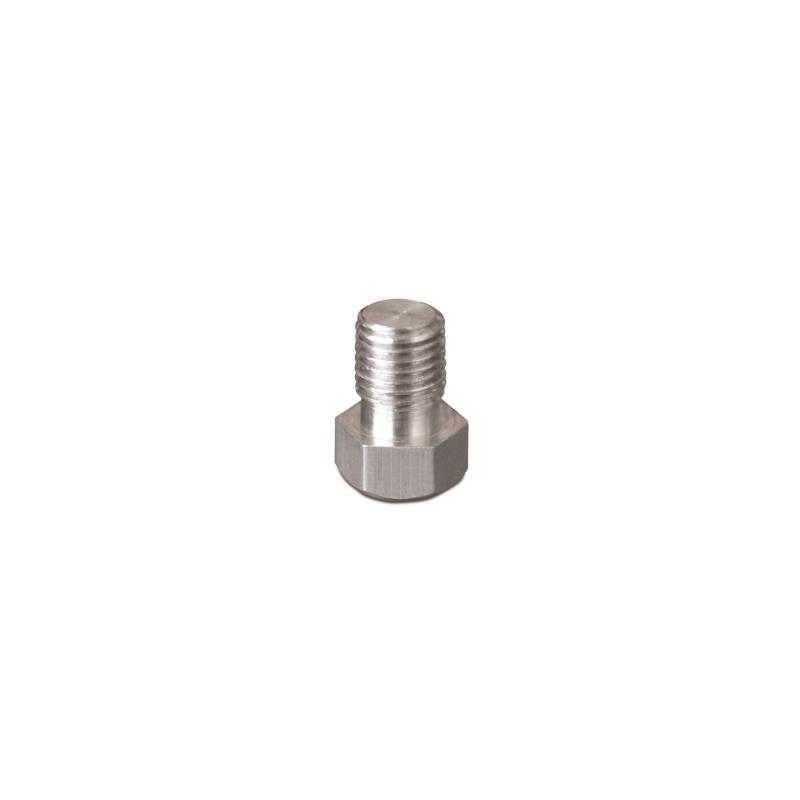

  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty



VEHICLE SPECS

ENGINE CODES EJ255
CHASSIS CODES SG5



PRODUCT SPECS

MATERIAL Aluminum
OVERALL HEIGHT 27.7"
DPI 2812
DRAIN PLUG LENGTH 0.47"
DRAIN PLUG THREAD SIZE (M12) x 1.5
OVERALL LENGTH 17.4"
TANK WALL THICKNESS 0.08"
OUTLET 1.57"
ROWS 2
INLET 1.57"
COOLANT CAPACITY 2.21
DUAL PASS False
OVERALL WIDTH 2.2"
CORE LENGTH 14.1"
CORE HEIGHT 27"
CORE THICKNESS 1.65"
FILL NECK 1.22"
OVERALL LENGTH (IN) 17.40
OVERALL HEIGHT (IN) 27.70
OVERALL WIDTH (IN) 2.20
ROWS 2



PURCHASE INCLUDES

Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
1/16" NPT Overflow Plug
Mishimoto Lifetime Warranty
