Compatible: (1.6L/1.8L)
1990 - 1997 Mazda Miata

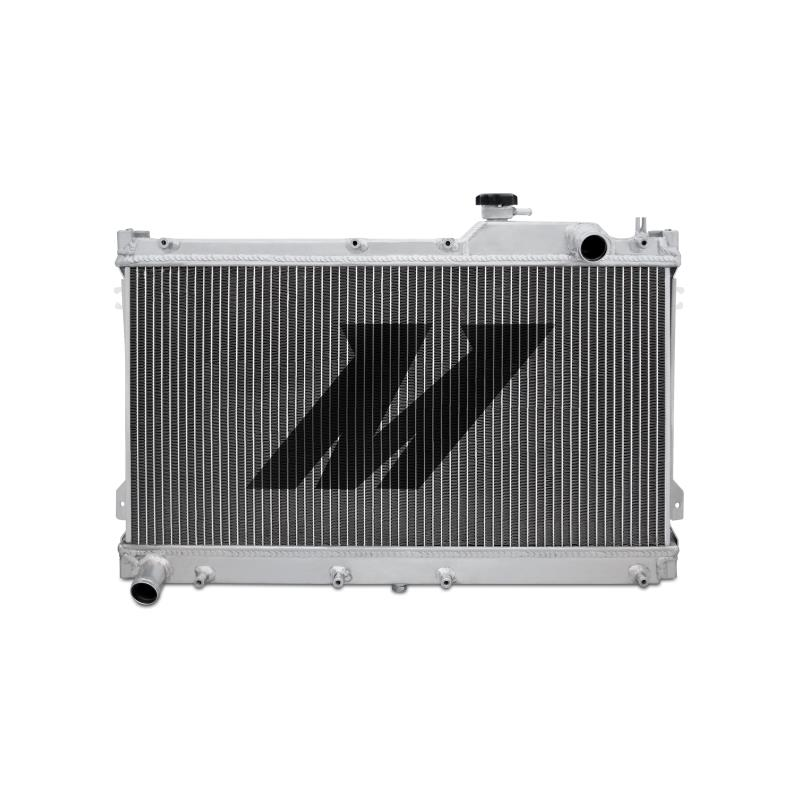

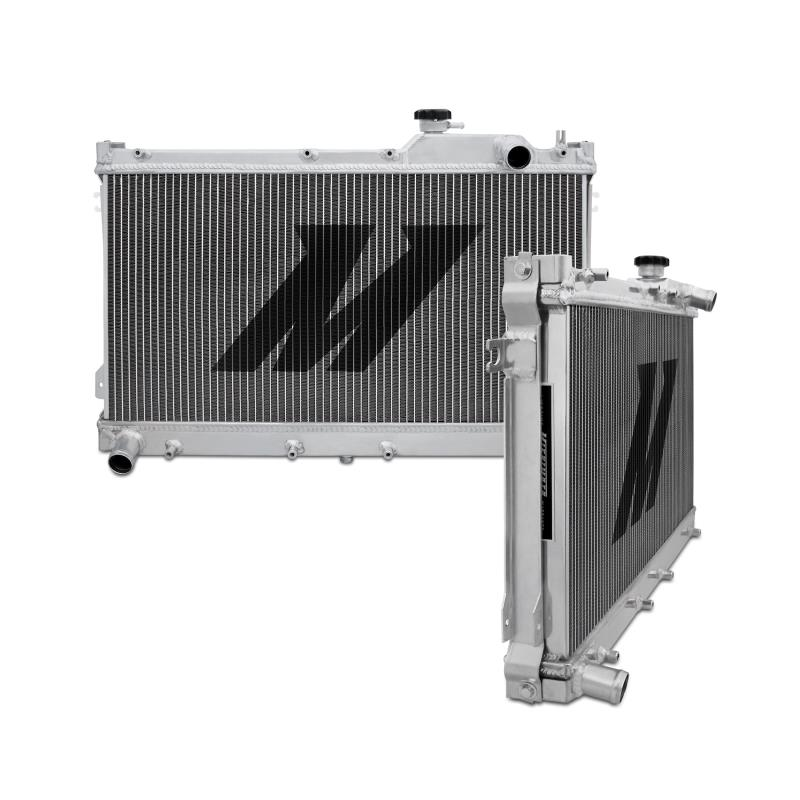

By replacing your current Miata radiator with a Mishimoto performance aluminum radiator, you will undoubtedly notice a more efficiently running engine. All Mishimoto Mazda Miata performance aluminum radiators are designed and engineered to maximize cooling efficiency, protect your car from the overheating, and boost overall engine functions. With its lightweight dual core, 100% brazed aluminum, and polished tank ends, installing a direct-fit Mishimoto radiator is effortless. No cutting or modification is required. All Mishimoto radiators come with a high-pressure 1.3 bar Mishimoto radiator cap and, as with every Mishimoto aluminum radiator, it includes the Mishimoto Lifetime Warranty. Check out the Mazda Miata hose kit, for even greater cooling efficiency.
- Direct fit for the 1990–1997 Mazda Miata 1.6L/1.8L
- Full aluminum construction including durable, TIG-welded end tanks
- Two-row, 1.97" thick brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Ideal replacement for the failure-prone stock radiator
- Perfect for use on the street, track, or autocross course

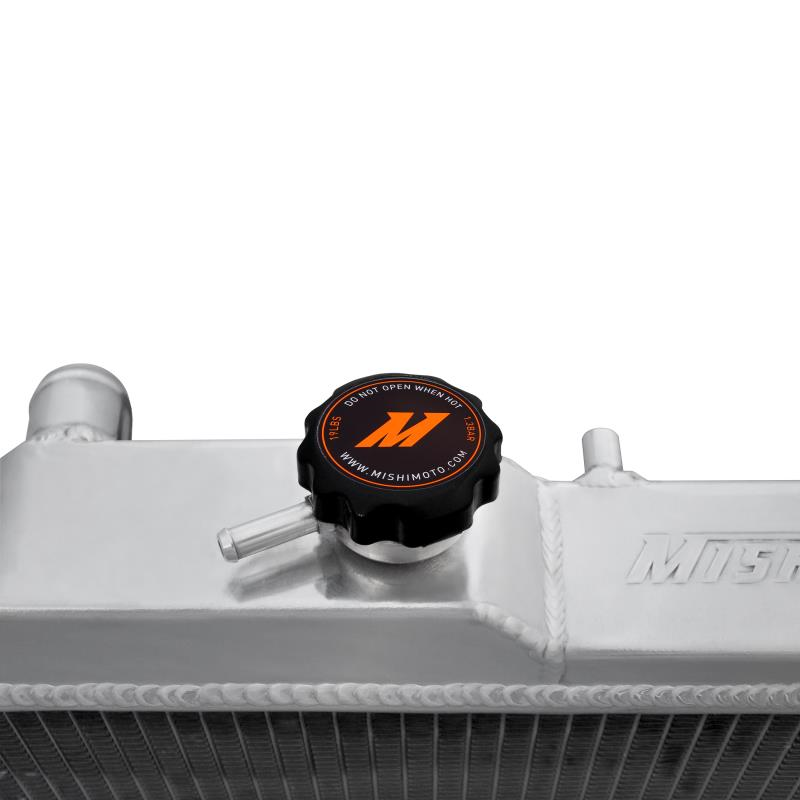

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
PURCHASE INCLUDES
Mishimoto Radiator
Magnetic Drain Plug
Mishimoto Radiator Cap
Mishimoto Lifetime Warranty
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 18" |
| DPI | 1140 |
| DRAIN PLUG LENGTH | 0.47" |
| DRAIN PLUG THREAD SIZE | (M16) .06 |
| OVERALL LENGTH | 27.8" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.25" |
| ROWS | 2 |
| INLET | 1.25" |
| COOLANT CAPACITY | 1.79 |
| DUAL PASS | False |
| OVERALL WIDTH | 2.55" |
| CORE LENGTH | 25.12" |
| CORE HEIGHT | 12.6" |
| CORE THICKNESS | 1.97" |
| FILL NECK | 1.25" |
| OVERALL LENGTH (IN) | 27.80 |
| OVERALL HEIGHT (IN) | 18.00 |
| OVERALL WIDTH (IN) | 2.55 |
| ROWS | 2 |
