Compatible: (2.0L)
1989 - 1994 Nissan 240SX SE
1991 - 1992 Nissan 240SX LE
INTENDED FOR USE WITH MANUAL TRANSMISSION MODELS
MUST PURCHASE UNIVERSAL POWER & STEERING COOLER KIT TO COMPLETE INSTALL ON AUTOMATIC TRANSMISSION MODELS
Your vehicle requires 2 bottles of full strength coolant or 3 bottles of premixed coolant

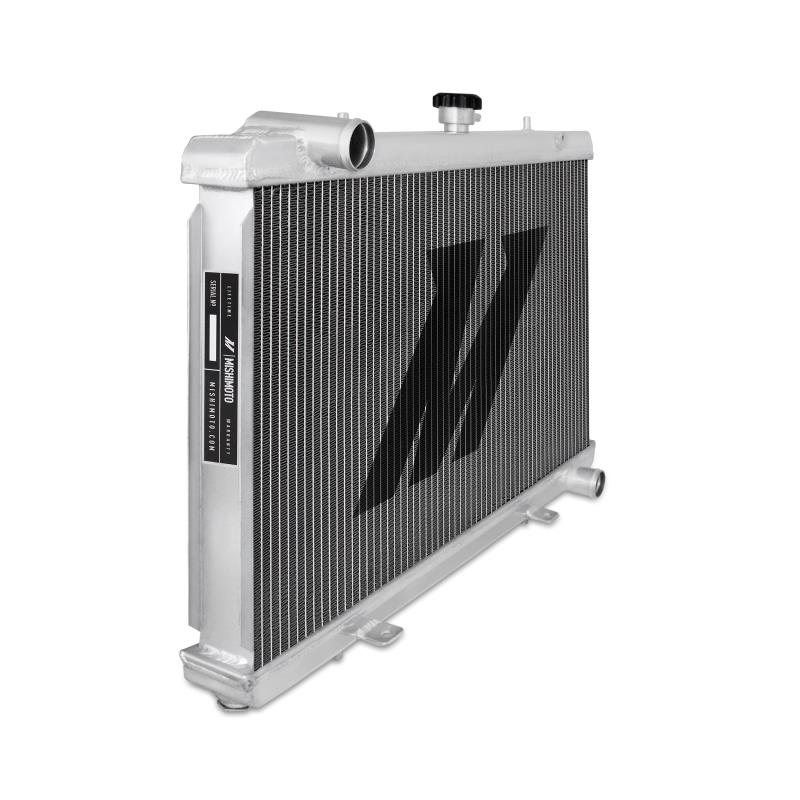

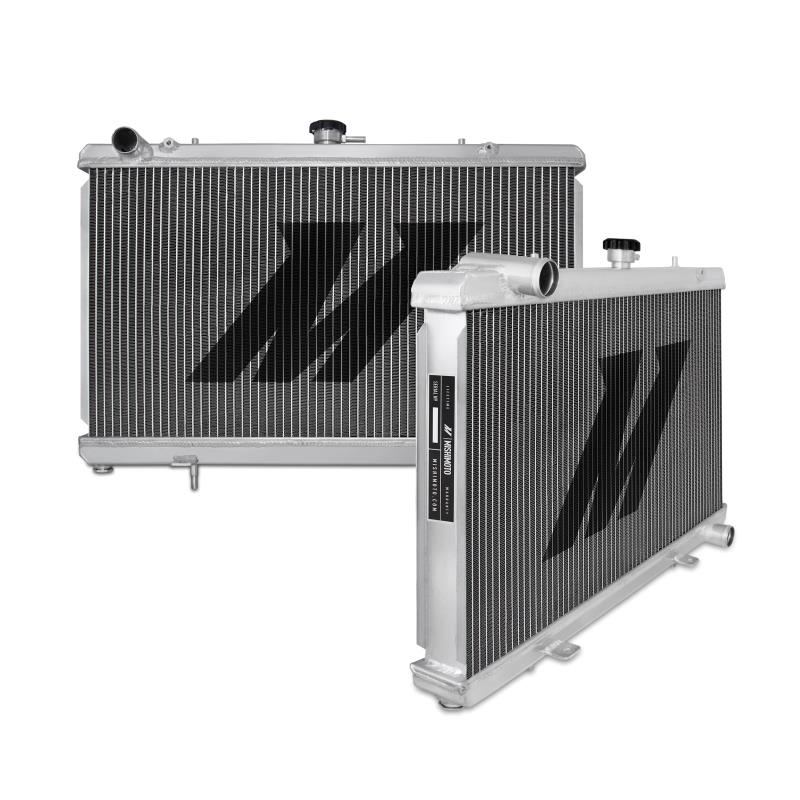

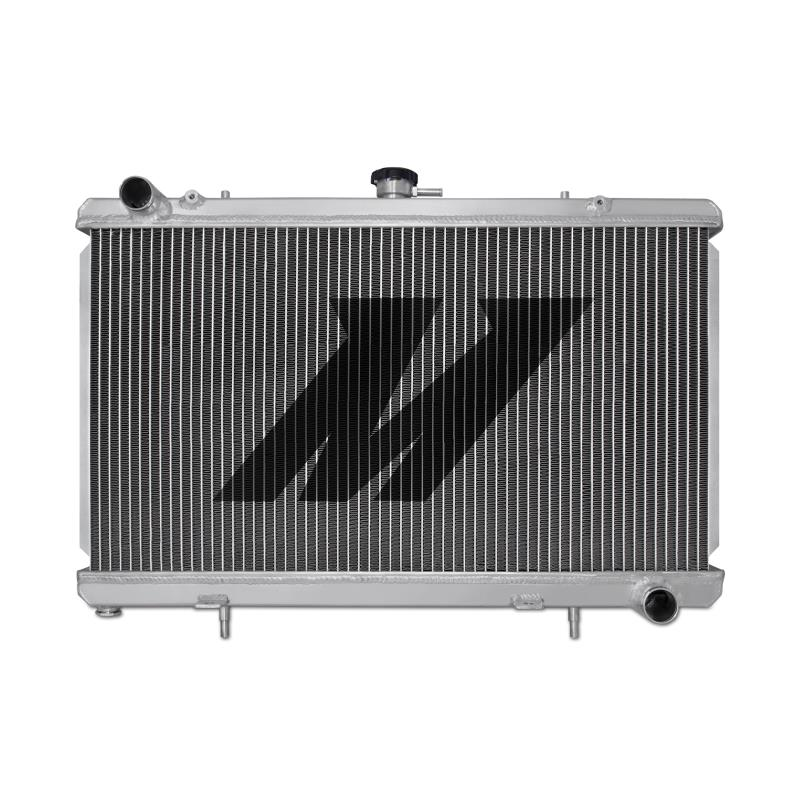

The Mishimoto performance aluminum radiator for the 1989–1994 Nissan 240SX with SR20 Engine is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs. The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required. This is the ideal upgrade to the stock Nissan 240SX radiator. This radiator comes with a high pressure 1.3 bar Mishimoto radiator cap and, as with every Mishimoto aluminum radiator, this radiator includes the Mishimoto Lifetime Warranty. For even more cooling efficiency check out the S13 fan shroud kit.
- Direct fit for the 1989–1994 Nissan 240SX S13 with SR20 engine swap
- Provides a bolt-in cooling solution which simplifies the engine-swap process
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.97" thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Provides efficient temperature reduction for street and/or track use

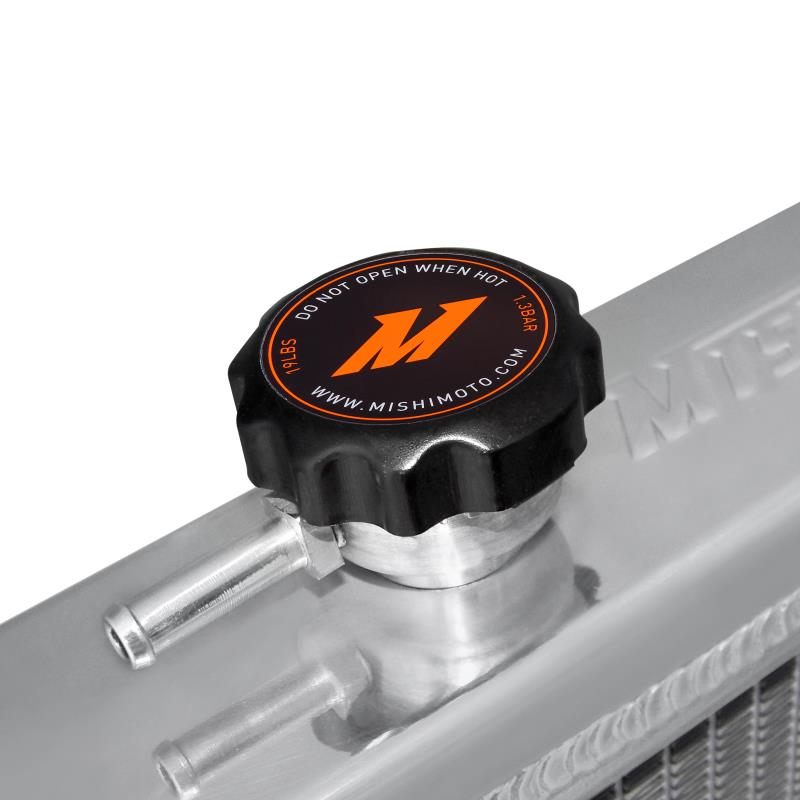

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | SR20DE SR20DET |
| CHASSIS CODES | S13 |
| FITS | 1991-1992 Nissan 240sx LE 1989-1994 Nissan 240sx SE |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 19.5" |
| DRAIN PLUG LENGTH | 0.047" |
| DRAIN PLUG THREAD SIZE | M10 x 1.25 |
| OVERALL LENGTH | 26.4" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.25" |
| ROWS | 2 |
| INLET | 1.25" |
| COOLANT CAPACITY | 2.09 |
| DUAL PASS | False |
| OVERALL WIDTH | 2.47" |
| CORE LENGTH | 25.12" |
| CORE HEIGHT | 14.13" |
| CORE THICKNESS | 1.97" |
| FILL NECK | 1.25" |
| OVERALL LENGTH (IN) | 26.40 |
| OVERALL HEIGHT (IN) | 19.50 |
| OVERALL WIDTH (IN) | 2.47 |
| ROWS | 2 |
PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty
