Compatible: (2.3L)
2016 - 2018 Ford Focus RS EcoBoost

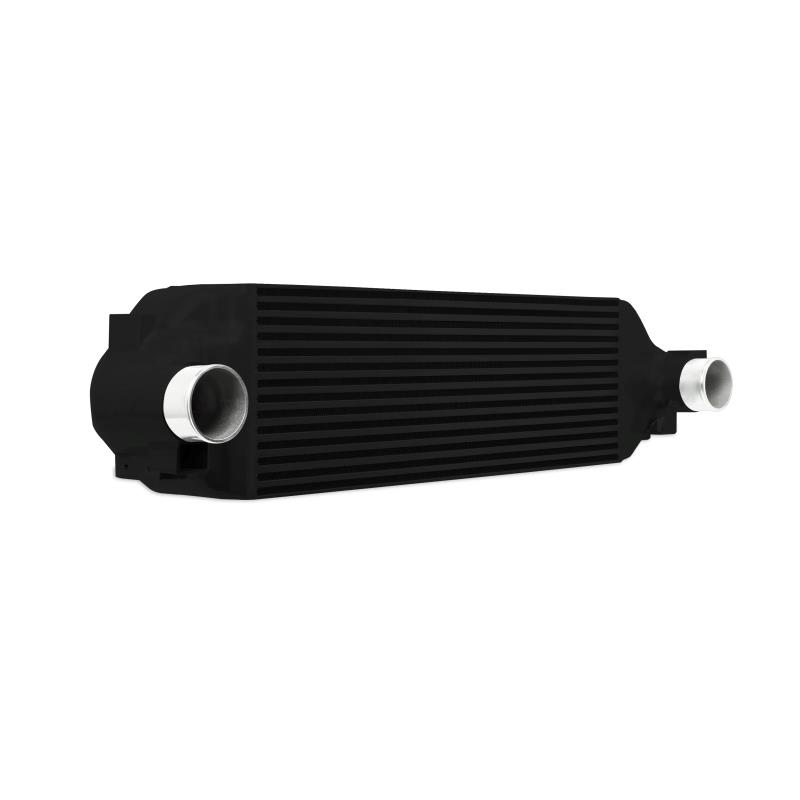

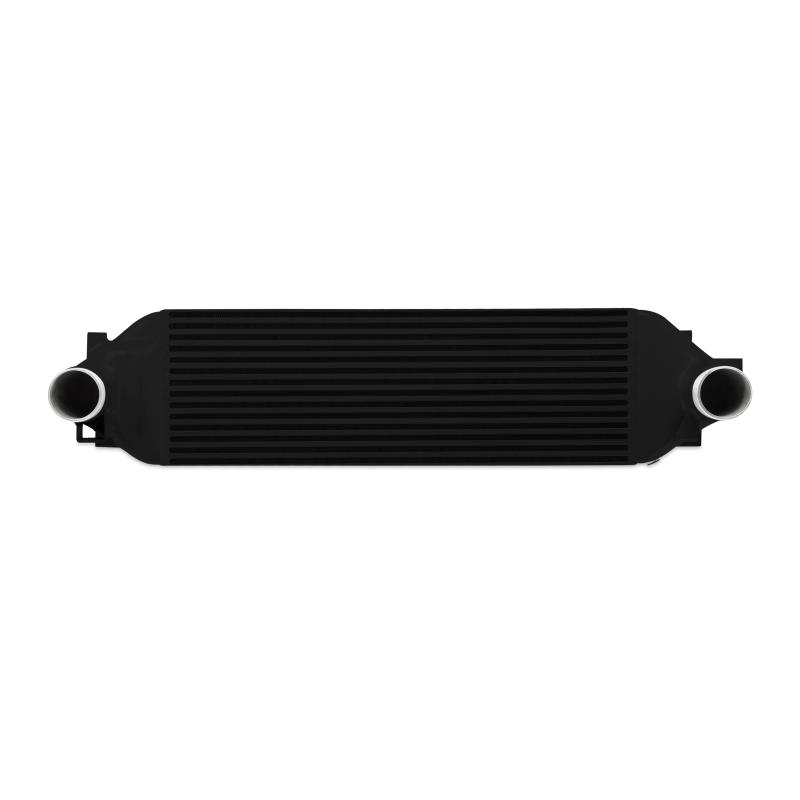

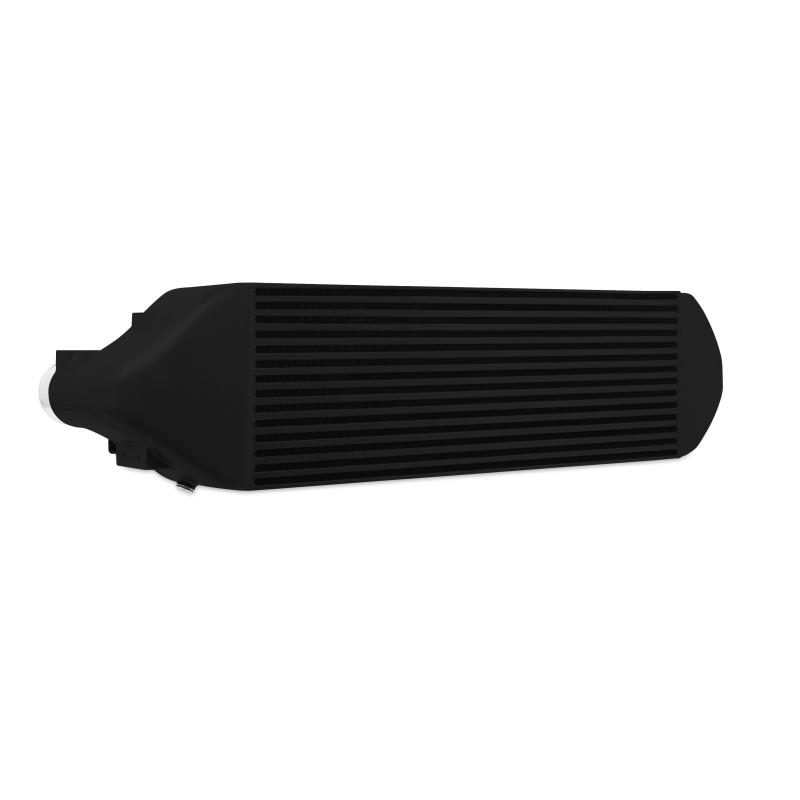

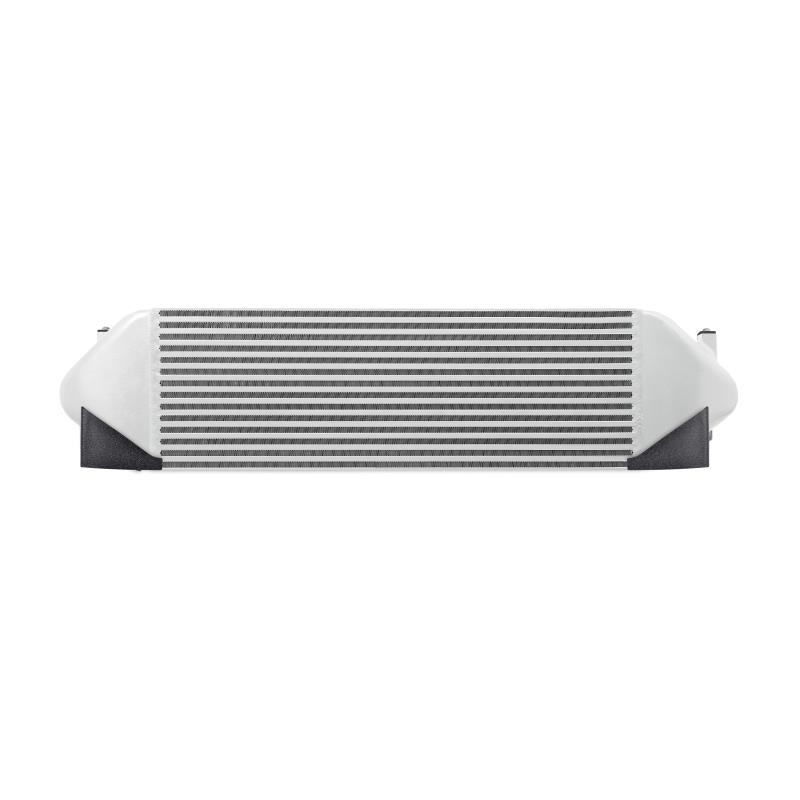

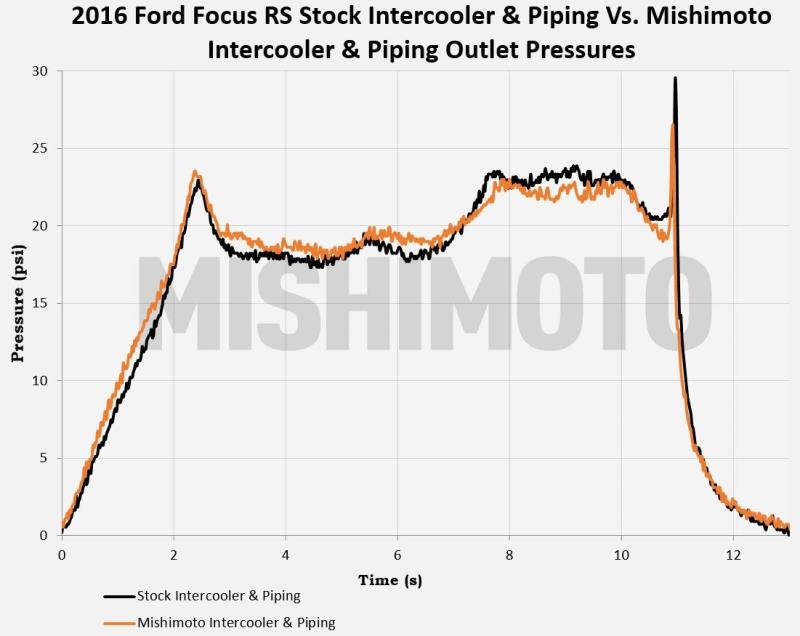

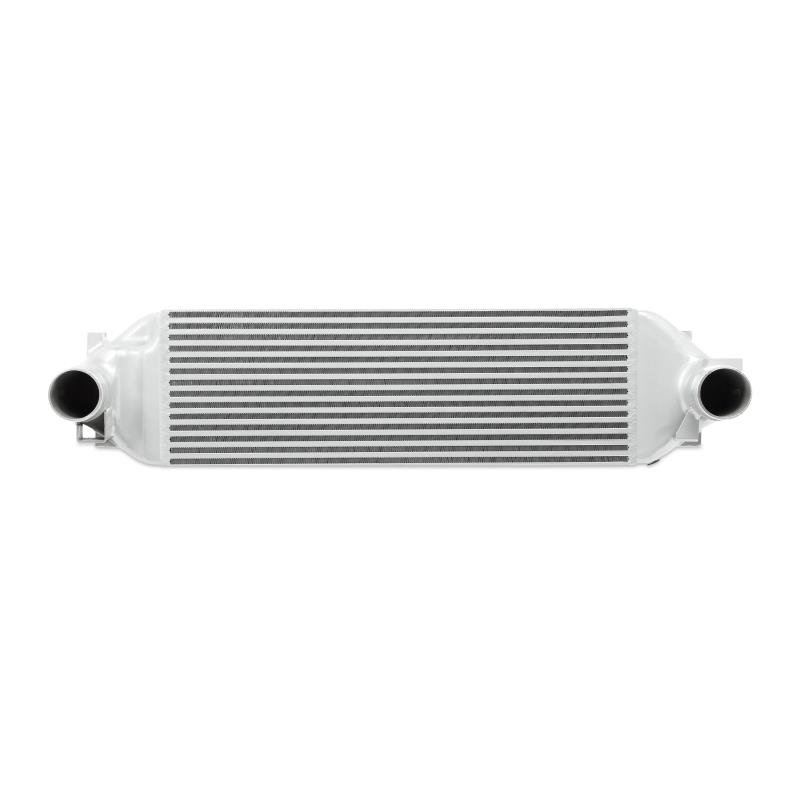

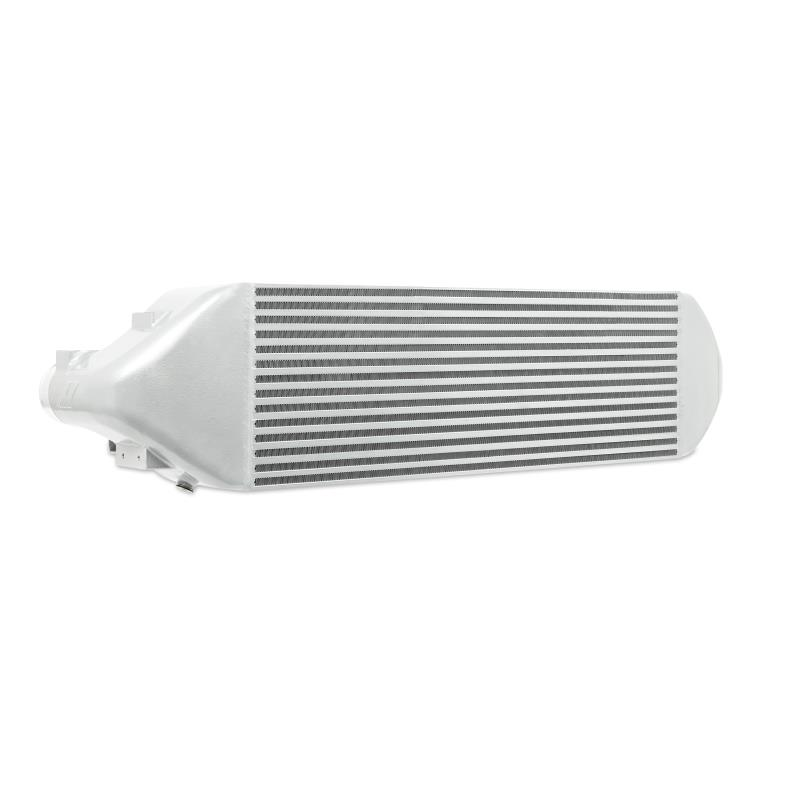

Say hello to our intercooler for the 2016–2018 Ford Focus RS! Whether you are a track junkie, occasionally taking your RS for some spirited driving, or making your RS a car to steal the show, this intercooler will suit your needs. Our intercooler has been beefed up with a 36% increase in core volume and a 214% increase in external fin surface area, which means increased air-cooling efficiency for your RS. Our core reduces air outlet temperature by almost 40% while minimizing the inlet/outlet pressure drop across the core, and provides gains of 7hp and 8ft-lbs! The hefty, direct-fit, bar-and-plate core is durable enough to withstand any type of abuse you throw at it, while improving the heat transfer process both at idle and cruising speeds.
This intercooler is designed to function with all factory equipment on the 2016–2018 Focus RS as well as our upgraded intercooler pipes. There is no modification necessary for installation, making it a true bolt-on performance part. As with all our parts, this intercooler comes with the Mishimoto Lifetime Warranty. Order yours today!
- Direct fit for the 2016–2018 Ford Focus RS

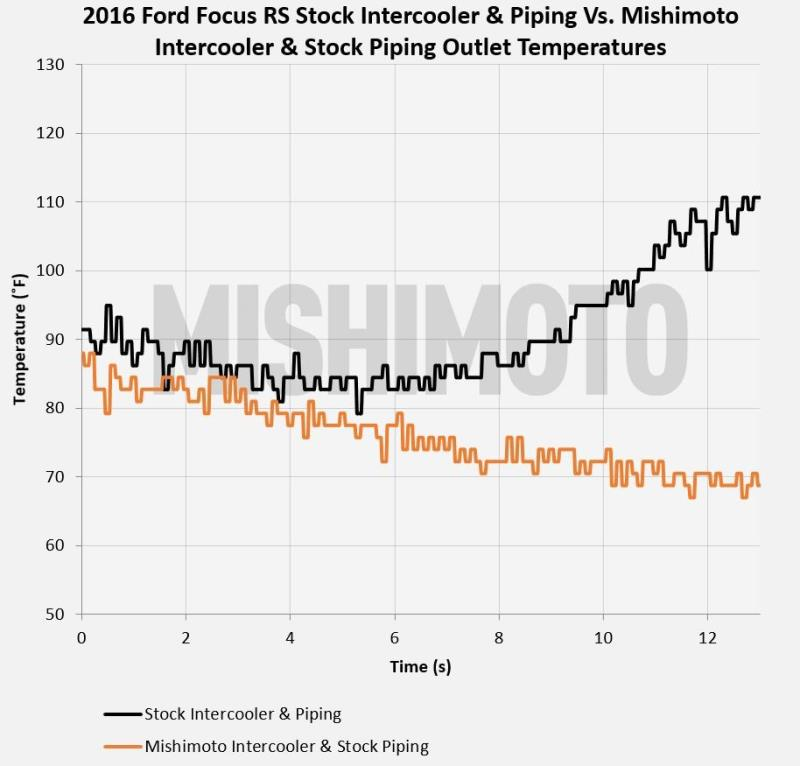

- 40% reduction in IAT

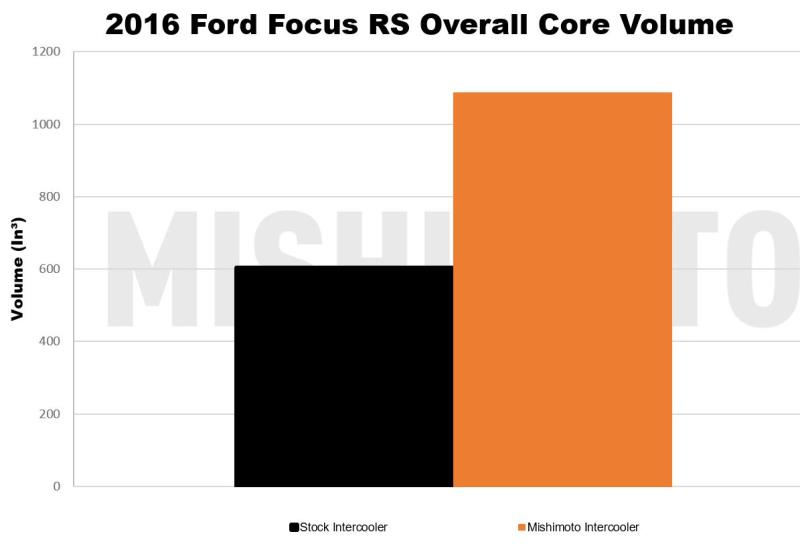

- 80% increase in core size

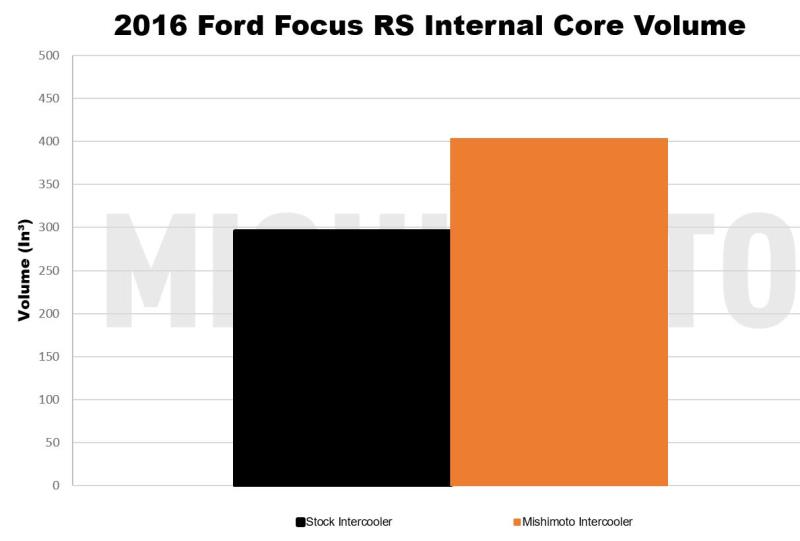

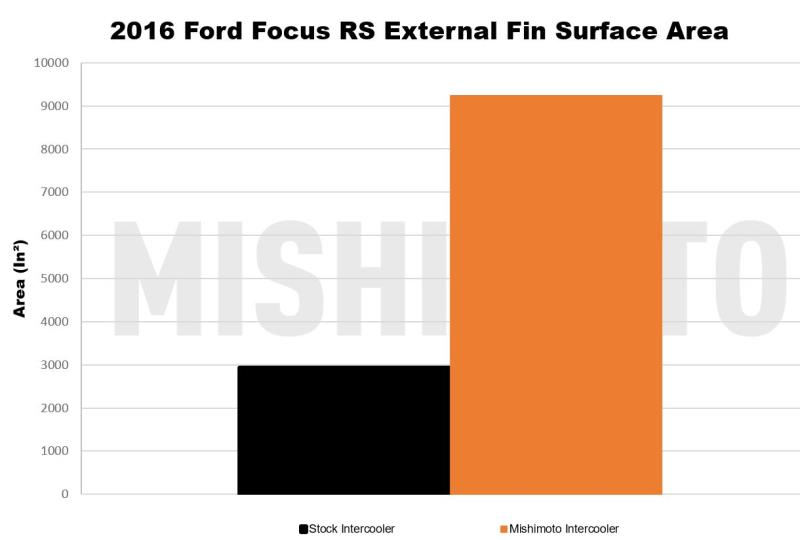

- 36% increase in internal core volume and 214% increase in external fin surface area
- Includes air diversion plates to direct air through the intercooler core for maximum efficiency

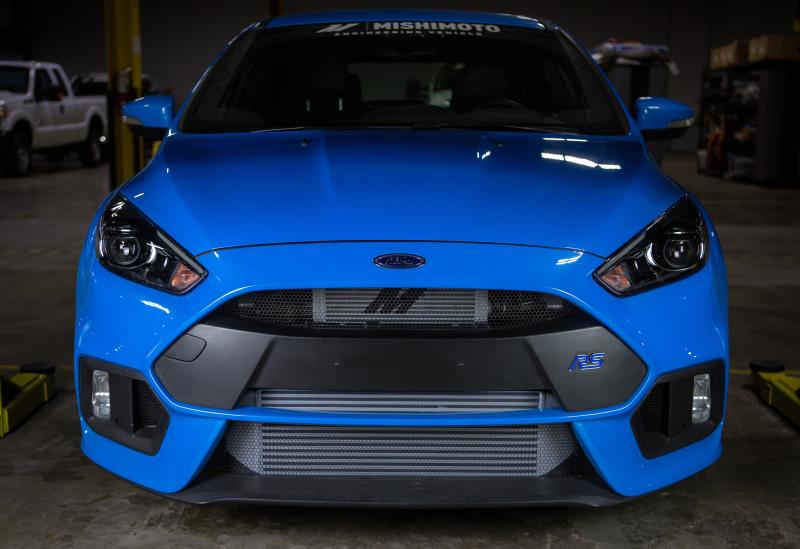

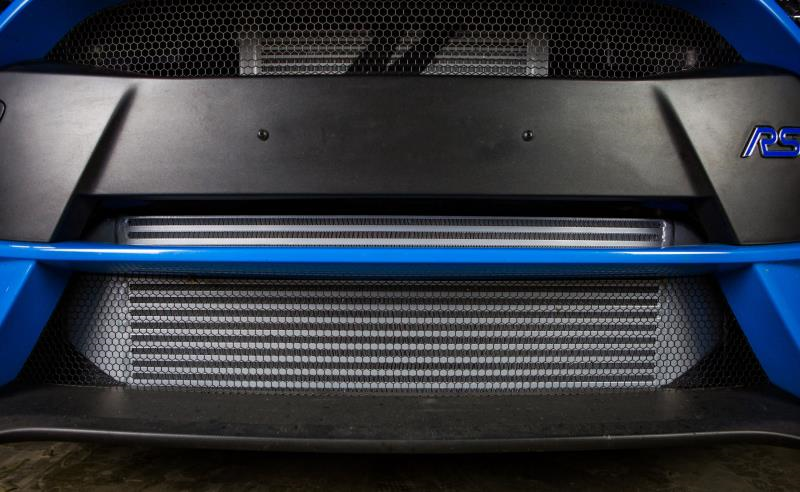

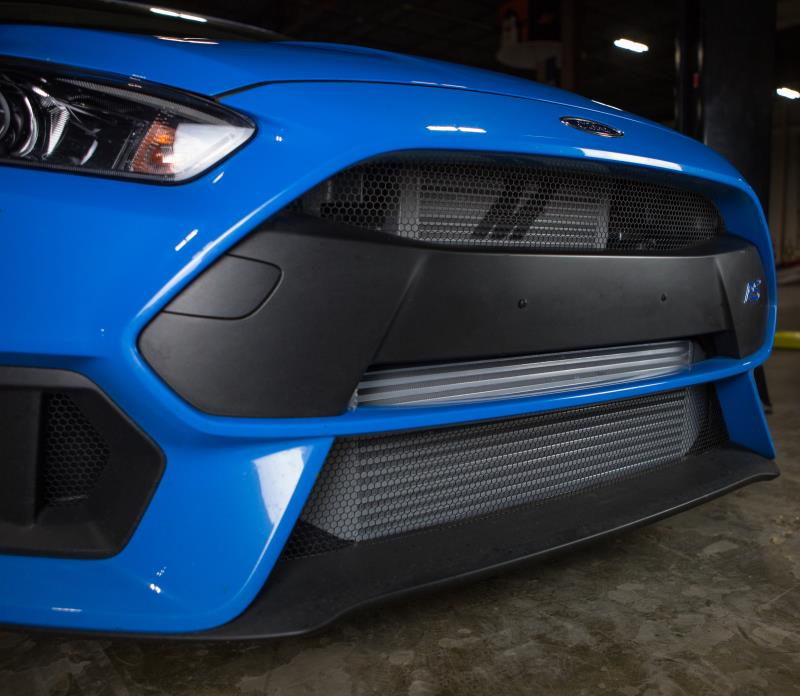

- Stock location prevents airflow blockage to radiator and AC condenser

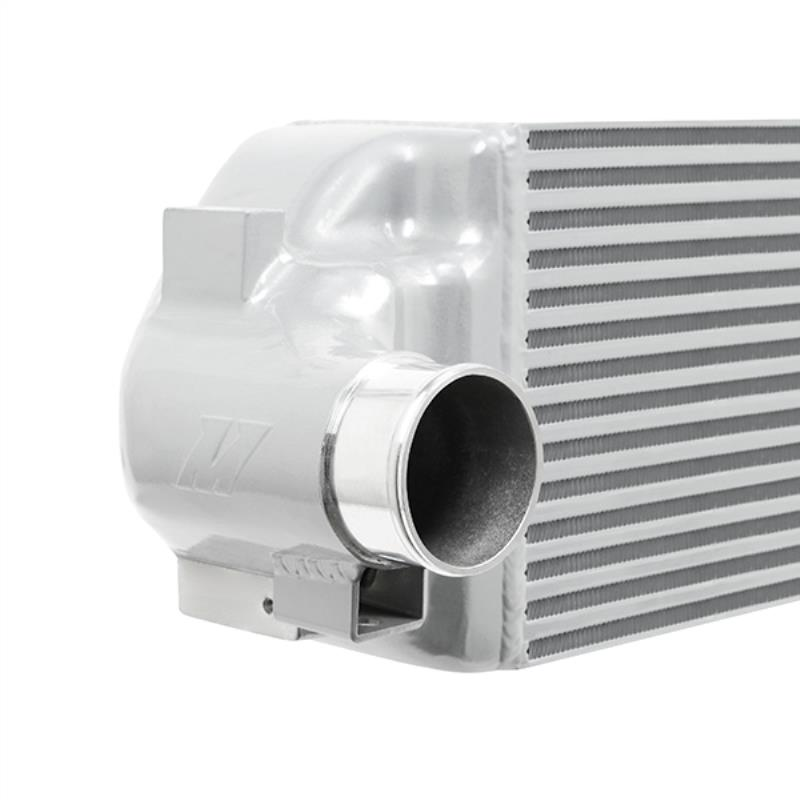

- All-aluminum, TIG-welded construction
- Fits with stock, Mishimoto, and most aftermarket intercooler pipe kits

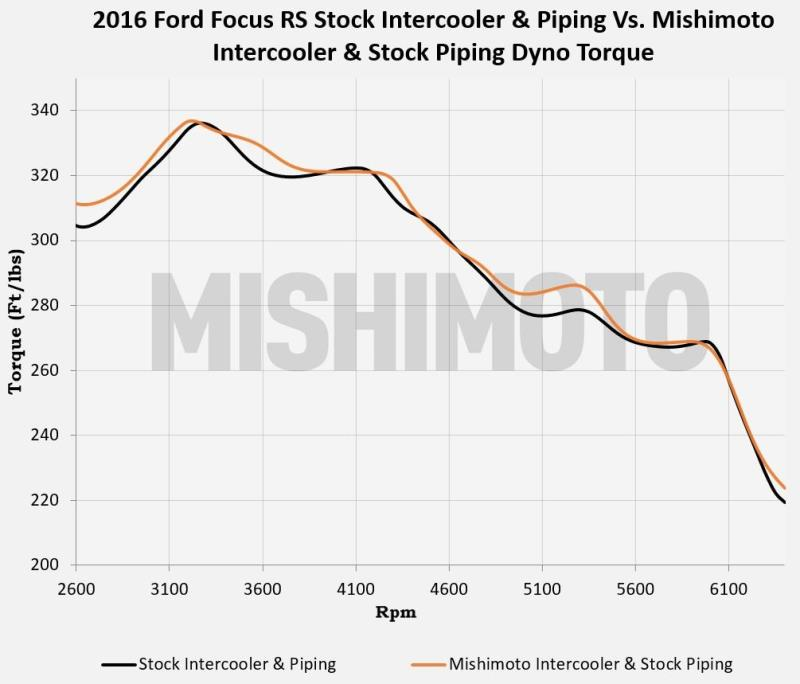

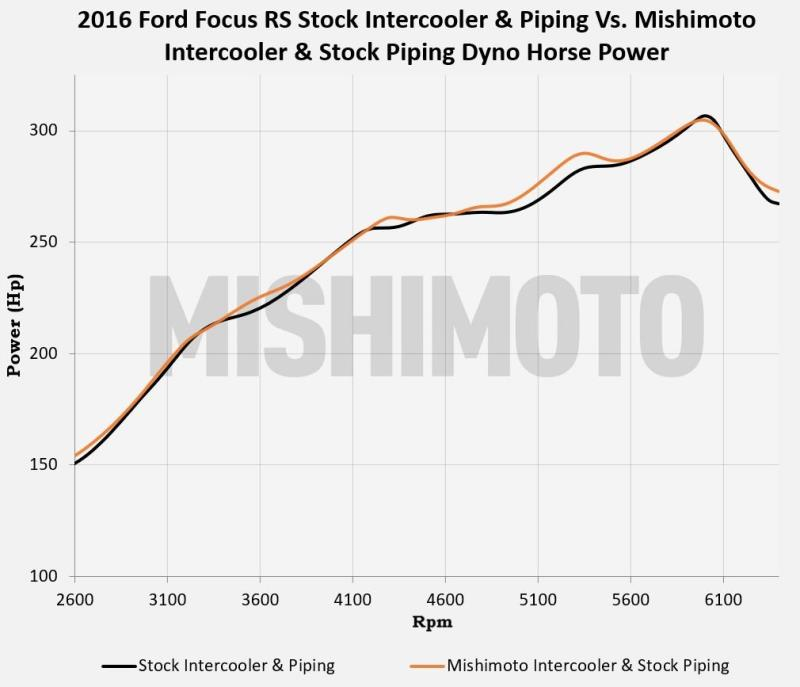

- 7 whp and 8 wtq bolt-on power increase with stock tune

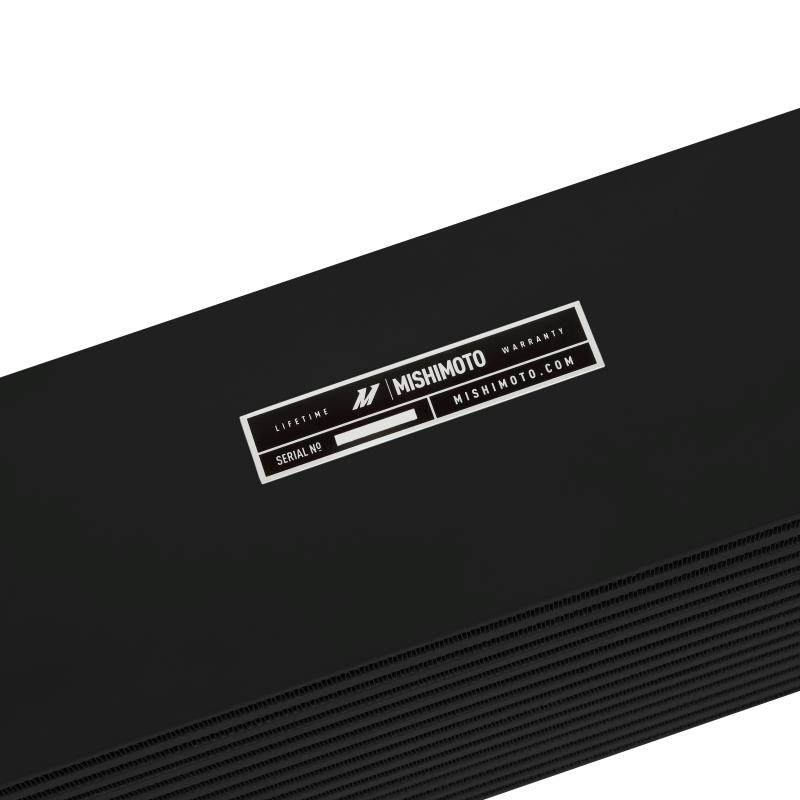

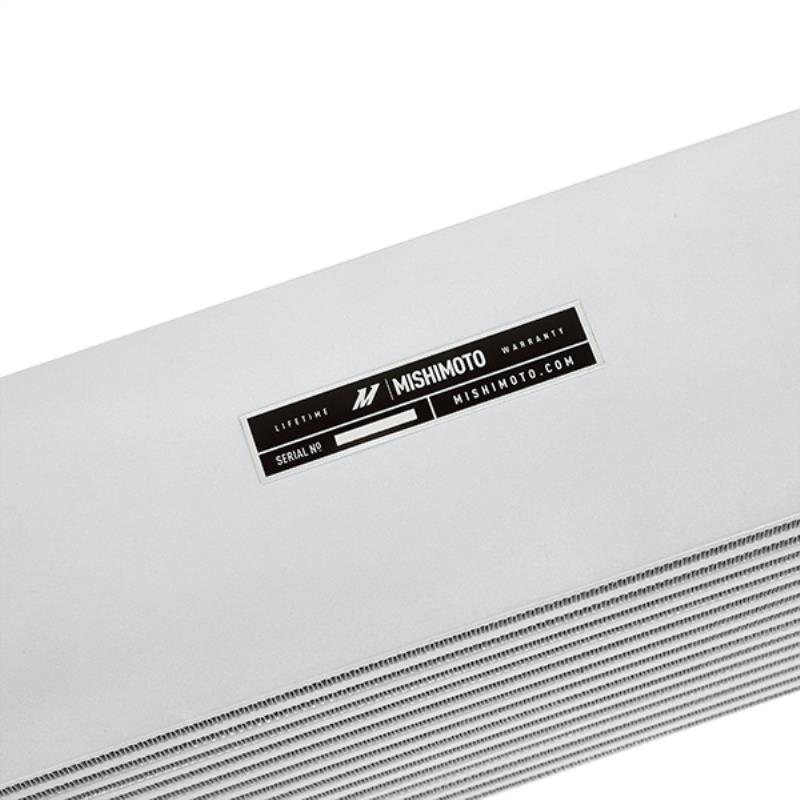

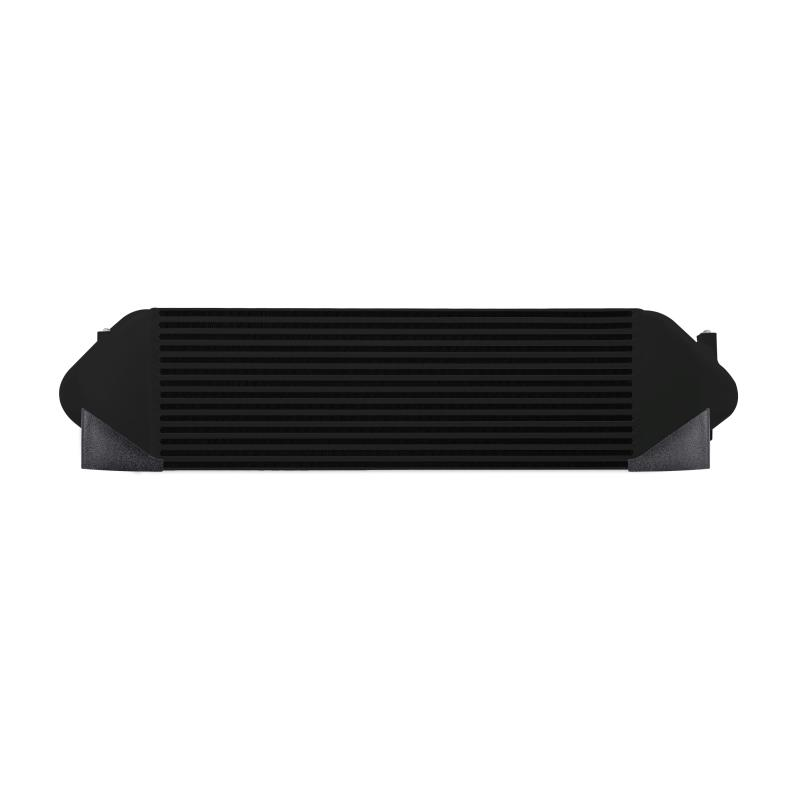

- Available in Sleek Silver or Stealth Black
- Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | 2.3L EcoBoost |
| FITS | 2016–2018 Ford Focus RS |
PRODUCT SPECS
| INSTALLATION TORQUE SPECS | 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M). |
| WEIGHT | 33 lbs |
| COATING | Powder Coated |
| TANK WALL THICKNESS | 4mm |
| FIN PITCH | 3 external |

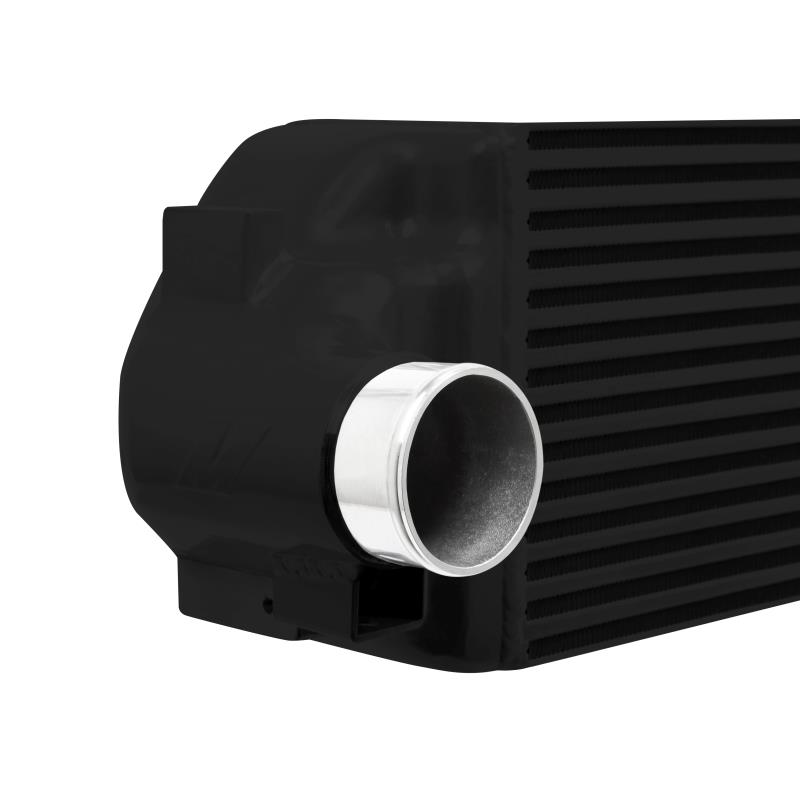

| OUTLET | 2.75" |
| CORE LENGTH | 25.6" |
| CORE HEIGHT | 8.3" |
| CORE WIDTH | 5.1" |
| INLET | 2.75" |
| CORE SIZE | 25.6" x 5.1" x 8.3" |
| OVERALL WIDTH | 8.2" |
| OVERALL HEIGHT | 8.3" |
| OVERALL LENGTH | 36.75" |
| CONSTRUCTION | Bar-and-Plate |

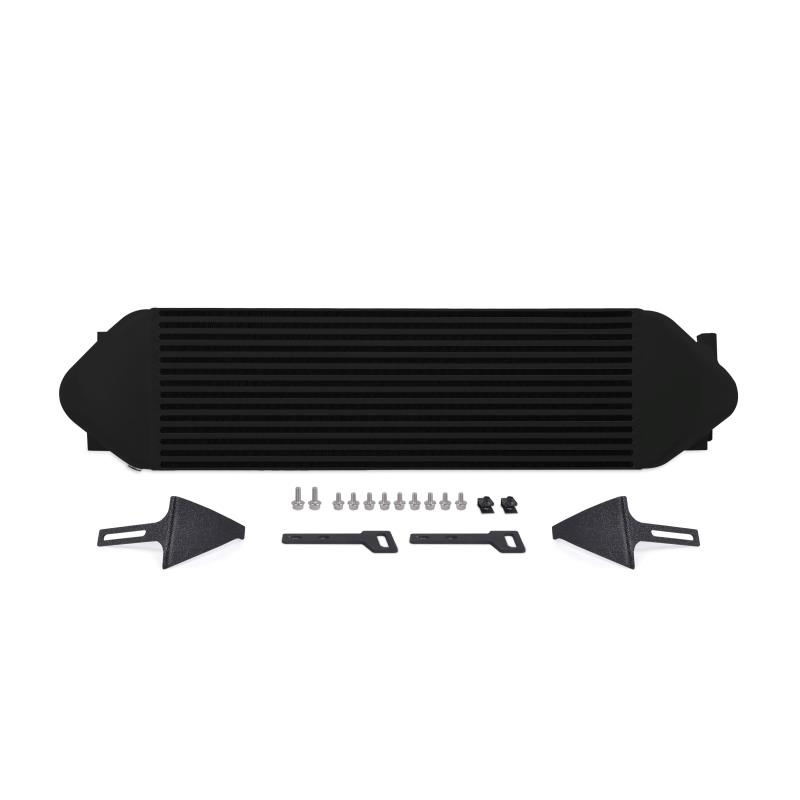

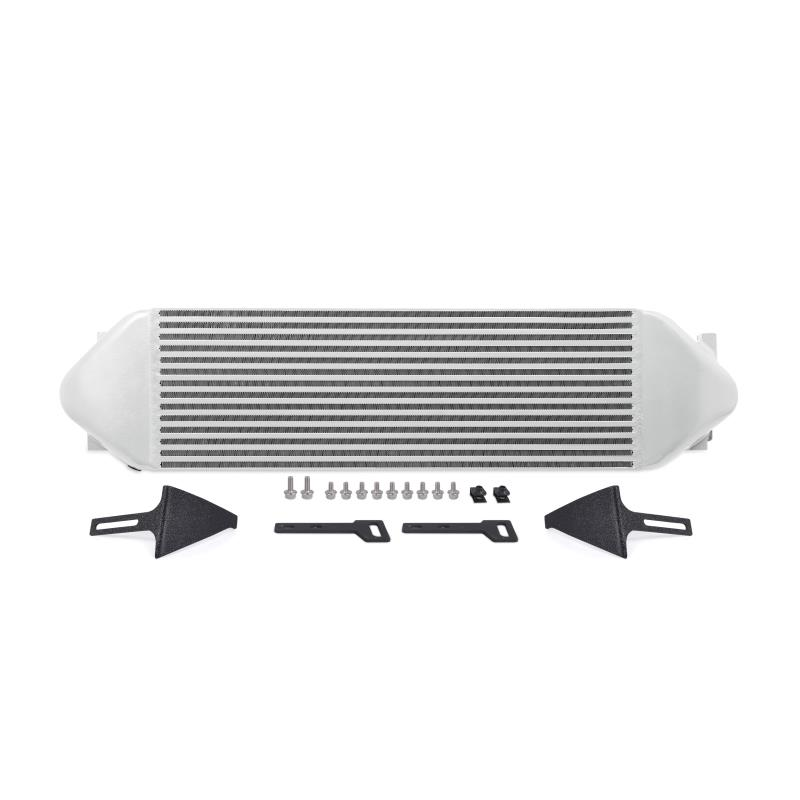

PURCHASE INCLUDES
(1) Mishimoto Intercooler
(1) Left & Right Diversion Plate
Mounting Hardware
Mishimoto Lifetime Warranty
