COMPATIBLE: (1.3L/1.5L/1.6L/1.8L)
1983 - 1987 TOYOTA COROLLA E80
The AE86 Toyota Corolla is already 20 years old, and yet to this day remains an reckoning force in motor-sports. Most predominantly used in drifting, the AE86 dominates the drift series against opponents with overwhelming power and advanced technology while sticking to the basics of performance with balance and agility.
The AE86 Corolla is well balanced and is most often powered by the race-proven 4A-GE motors that transfer energy through their FR-Drive train. Though this vehicle is an amazing vehicle in it s stock form, it always leaves something to be desired for the truth enthusiast who has the need to bring the most out of their performance machine.

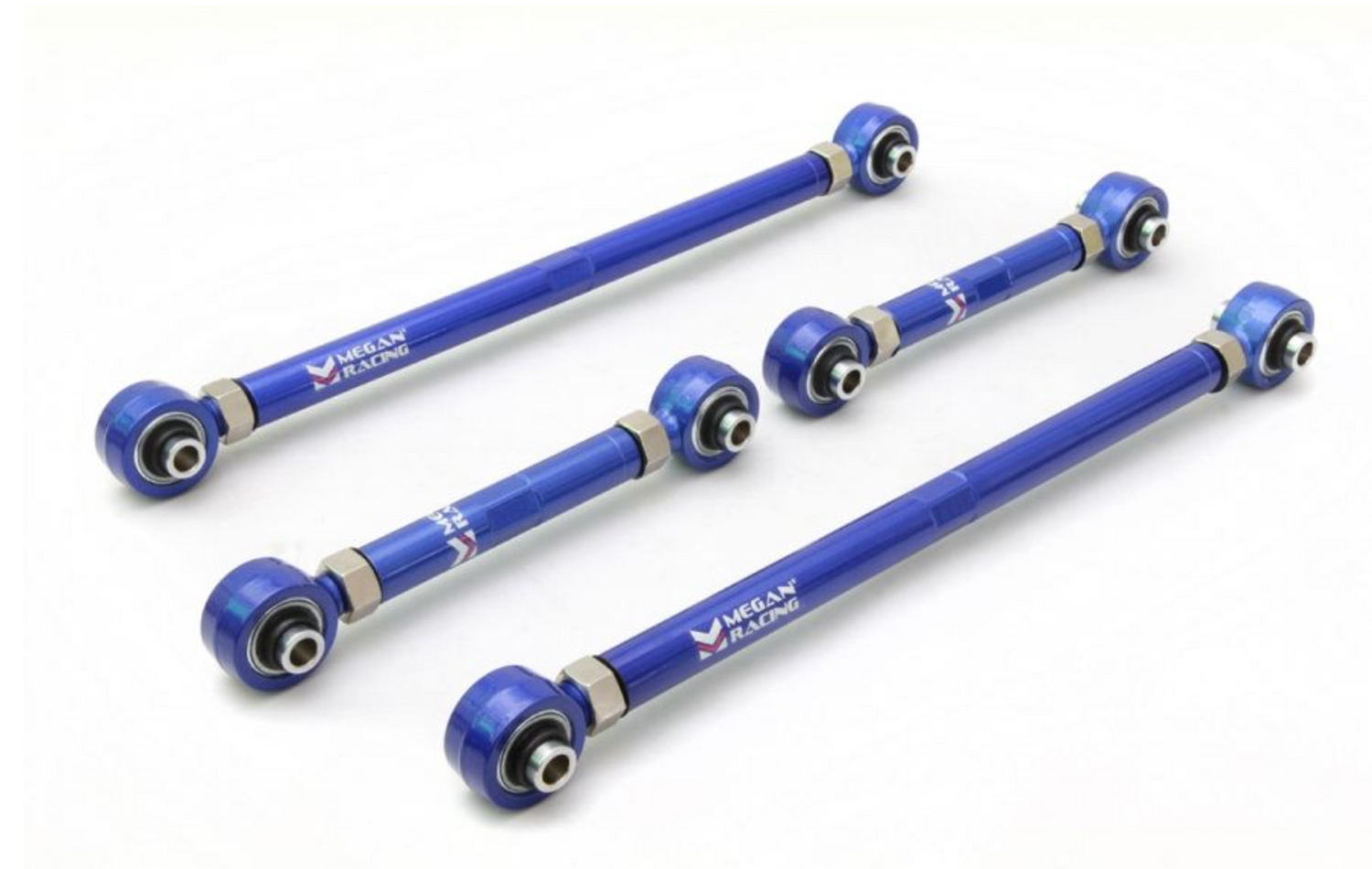

Megan Racing is now taking on the AE86 Corolla GT-S/SR5 by unveiling a series of performance parts. These 4-Link suspension arms are designed to replace the OEM bars and their soft rubber bushings which are now aged 20 years. All the pieces are constructed of a high-strength steel alloy which allows them to retain lightweight characteristics and are then powder-coated by a 3-Stage process to a brilliant metallic blue finish. The ends are constructed of Self-Lubricating ball joints which eliminate all play and binding normally associated with aftermarket 4-Link systems.
Adjustable lengths allow fine tuning for proper suspension geometry and allow you to enter in a corner and initiate with confidence. A more direct feel while cornering and added stability in a drift will allow you to drive and perform to your vehicle s full potential.
SPECIFICATIONS & FEATURES:
Measurements:
Shorter Arms:
- Minimum thread engagement: 5/8"
- Bolt-hole Diameter: 7/16" ID on both ends
- Width of bolt-hole: 2.0" on both sides
- Minimum Arm Length: 9.0"
- Maximum Arm Length: 10.5"
Longer Arms:
- Minimum thread engagement: 5/8"
- Bolt-hole Diameter: 7/16" ID on both ends
- Width of bolt-hole: 2.0"
- Minimum Arm Length: 18 1/16"
- Maximum Arm Length: 19 1/16"
- Designed for the 1985-1987 Toyota Corolla GT-S/SR5.
- High-Strength steel alloy retains durability with lightweight characteristics.
- 3-Stage powder-coating process gives a brilliant metallic blue finish.
- Self-Lubricating Ball Joints prevent any binding and play like OEM bushings.
- Increased stability during drifting and cornering.
- Adjustable lengths to fine-tune your suspension geometry.
4-Piece Kit
ABOUT MEGAN RACING
Megan Racing was founded on the belief that the goal of the automotive enthusiast should not be limited by the size of one’s wallet, but rather on their heart and passion for motor-sports. As a young automotive enthusiast, Calvin (CEO) spent all his income on rent and special modifications towards his prized 1988 Toyota Celica All-Trac Turbo. Building it from the ground up, he initially purchased performance parts from local wholesale businesses and resold them to local shops and their consumers. Having to patiently sift through a wide array of international sources who offered parts at competitive prices and great quality, he faced the challenge of finding one that shared mutual manufacturing goals. This eventually led Calvin to building his very own R&D factory here in California. Focusing on company growth, he eventually formed a team to help him run the business and build up the brand even further to better serve customers.
WARRANTY:
