Kingman Speed®  |  SKU: KING-HL2148S
New arrival

Kingman Speed® (99-07) GM LS1/LS6/LQ4/LQ9/L96/L76/L92/L99 Camshaft, Lifters, Springs Kit

$349.99
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

COMPATIBLE: (5.3L/5.7L/6.0L)

1998 - 2002 CHEVROLET CAMARO

1997 - 2007 CHEVROLET CORVETTE

1999 - 2007 CADILLAC ESCALADE

2001 - 2007 CHEVROLET AVALANCHE

1999 - 2007 CHEVROLET SILVERADO 1500

2003 - 2006 CHEVROLET SSR

1999 - 2007 GMC SIERRA 1500

2001 - 2013 CHEVROLET TRAILBLAZER

2003 - 2009 CHEVROLET EXPRESS

1999 - 2007 CHEVROLET SUBURBAN

1999 - 2007 CHEVROLET TAHOE

2003 - 2007 HUMMER H2

1999 - 2007 GMC YUKON

1999 - 2007 GMC YUKON XL

2005 - 2006 PONTIAC GTO

1998 - 2002 PONTIAC FIREBIRD

This Camshaft and Lifter Install Kit is an affordable, high-performance upgrade designed for GM/Chevy 1997–2007 Gen III and Gen IV LS-series V8 engines. It provides an aggressive, lopey idle and significant power gains without requiring expensive valvetrain modifications.

Camshaft Specifications

Camshaft Type: Hydraulic Roller
RPM Range: 2200 to 5400 RPM
Intake Duration (@ .050"): 228°
Exhaust Duration (@ .050"): 230°
Valve Lift (Intake/Exhaust): 0.585" / 0.585"
Lobe Separation / Centerline: 112° / 108°
Cam Gear Attachment: 3-Bolt

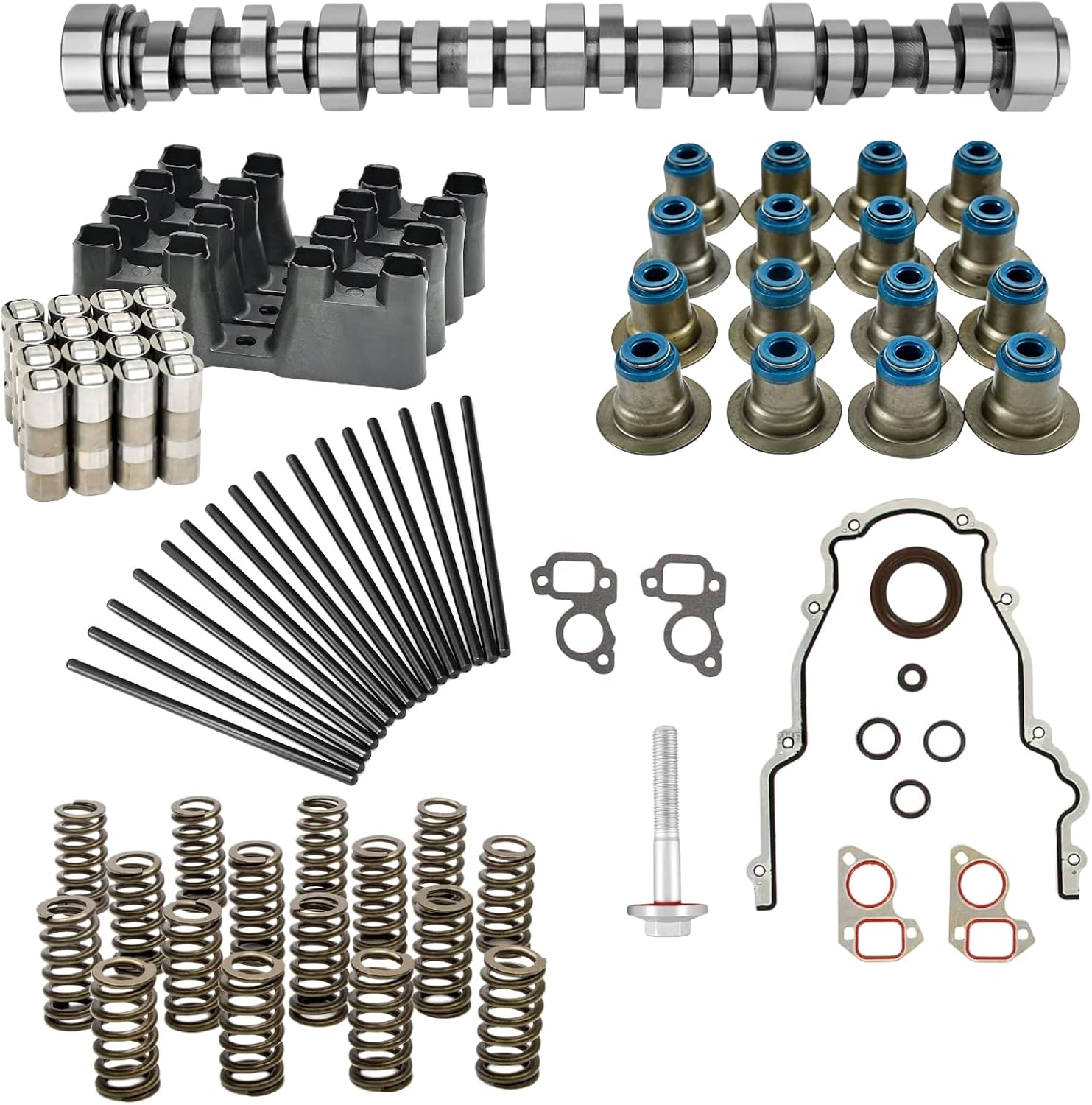

Kit Component Replacements
The kit replaces standard OEM parts with performance components to support the increased lift and duration of the Stage 2 cam:

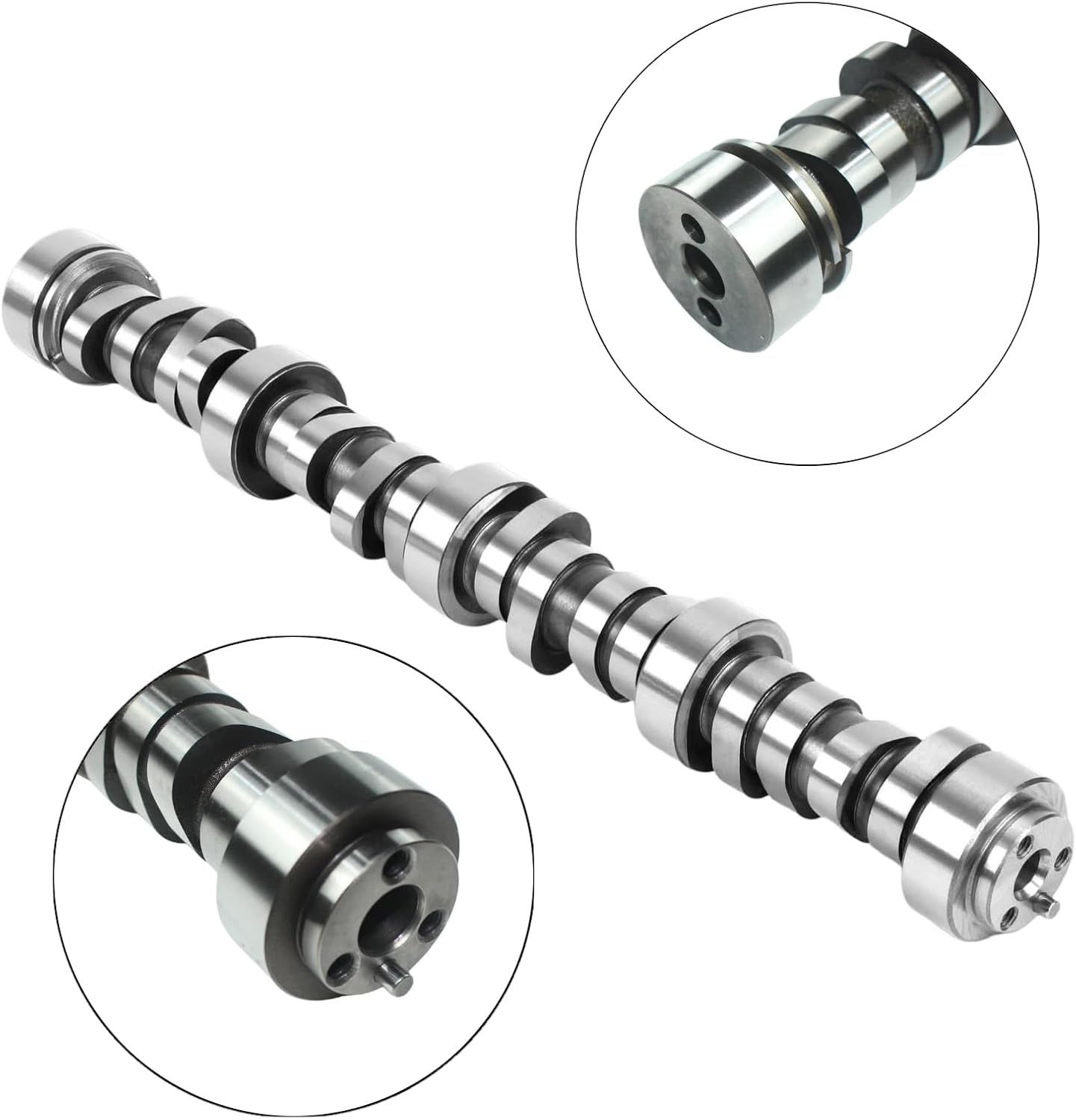

Camshaft: Replaces the factory cam with the Sloppy Stage 2 profile (often uses base blanks like the Elgin E-1840-P).

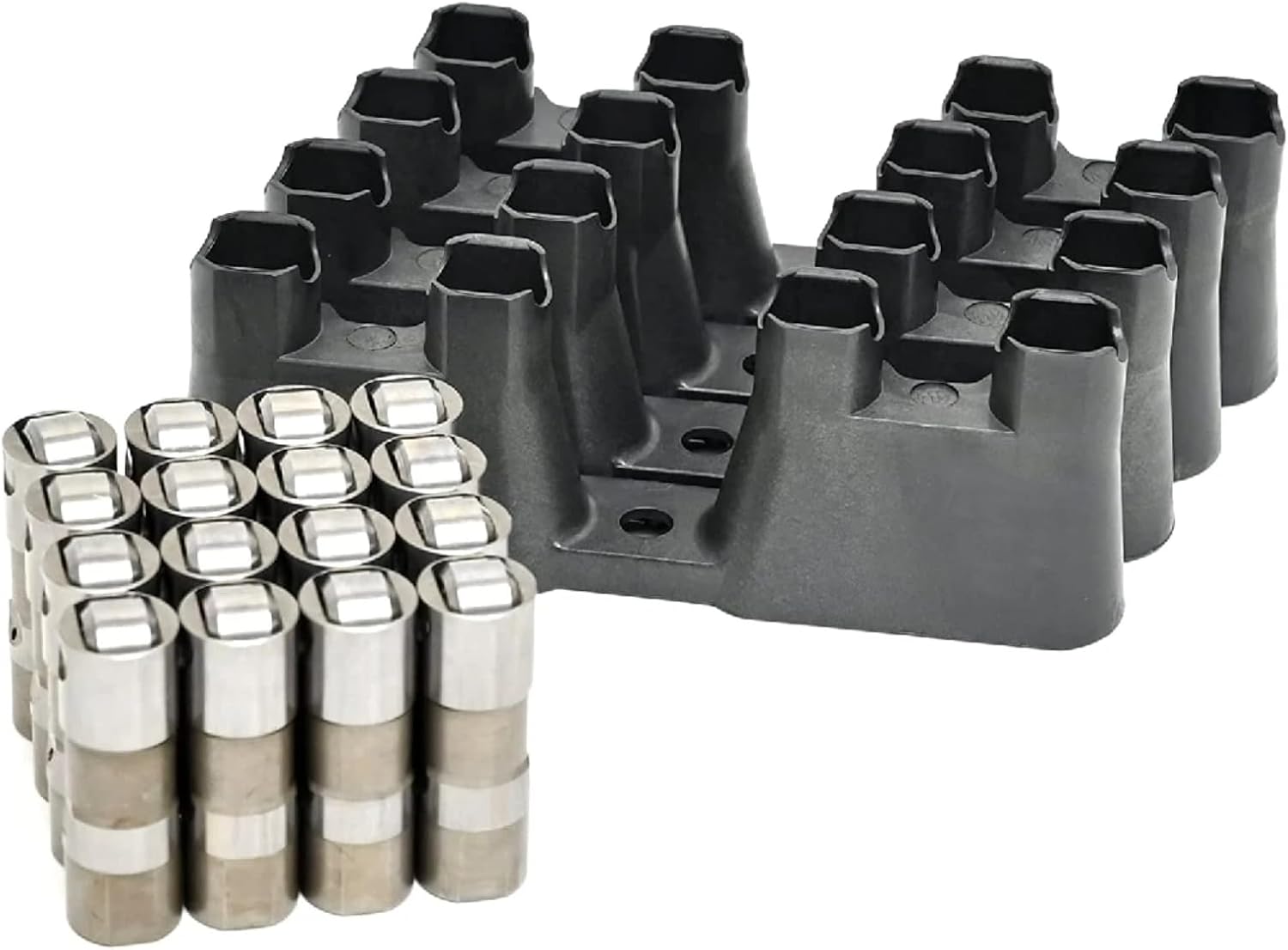

Lifters: Replaces stock lifters (often compatible with Delphi/Elgin HL2148S style) for standard hydraulic roller applications without Active Fuel Management (AFM/DOD).

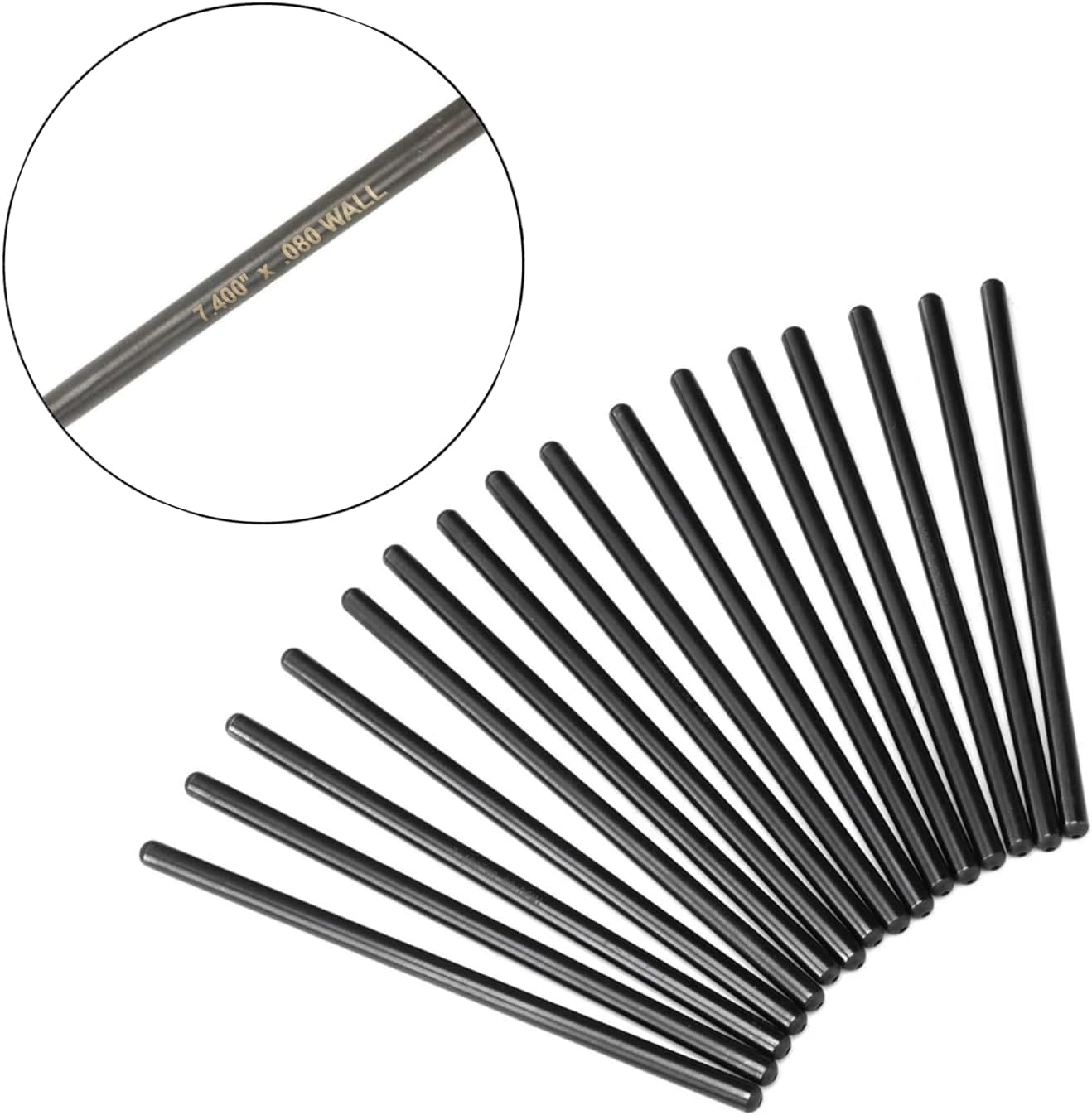

Pushrods: Includes upgraded, hardened pushrods (often 7.400" length, 5/16" diameter) to handle the increased lift.

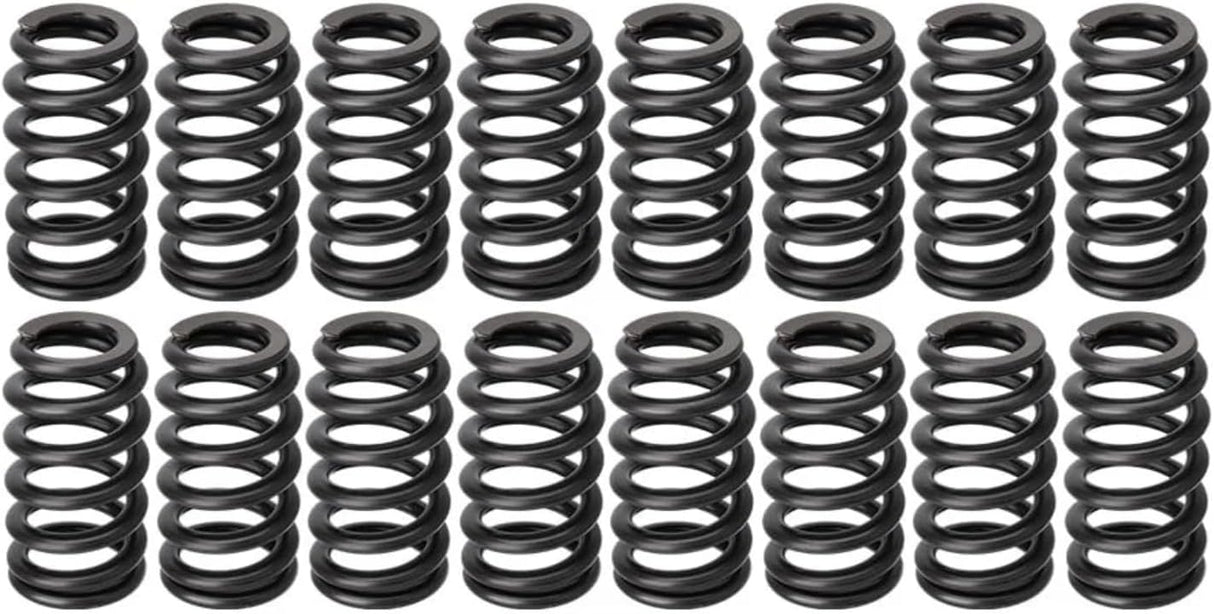

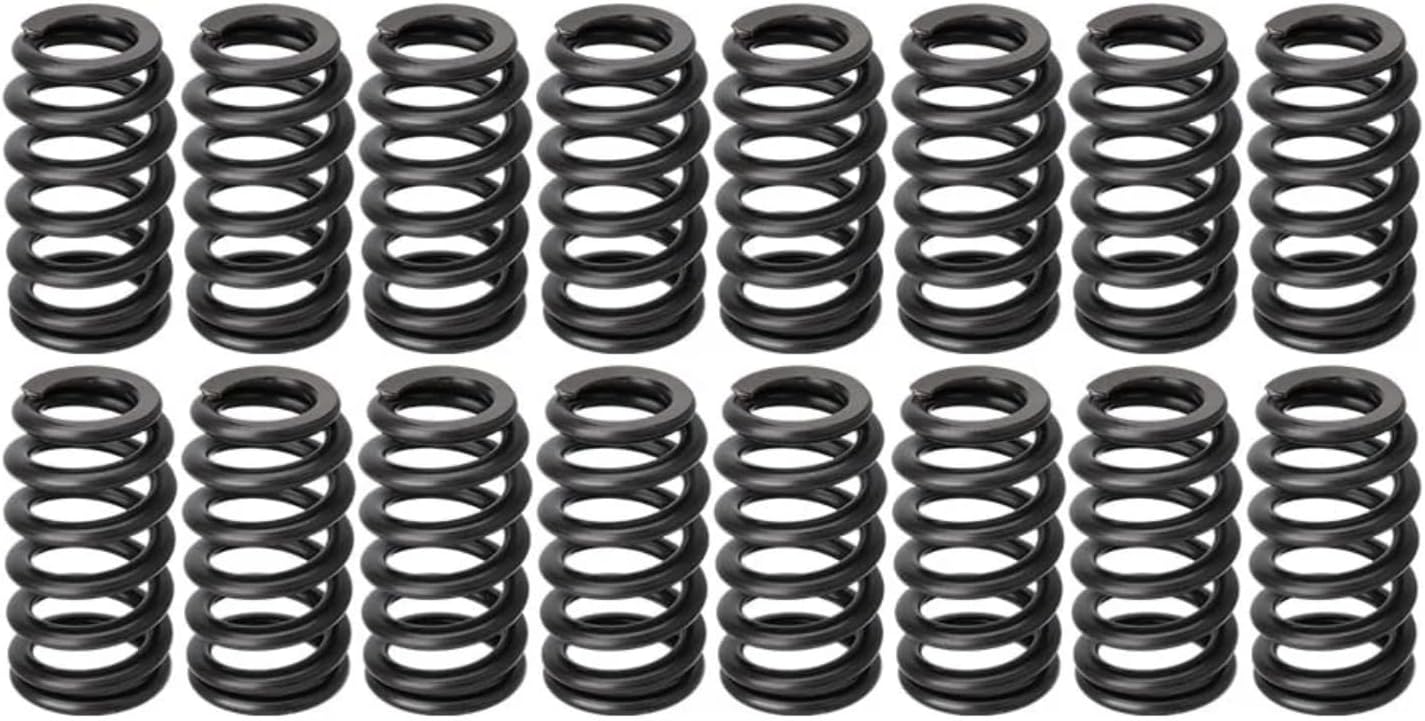

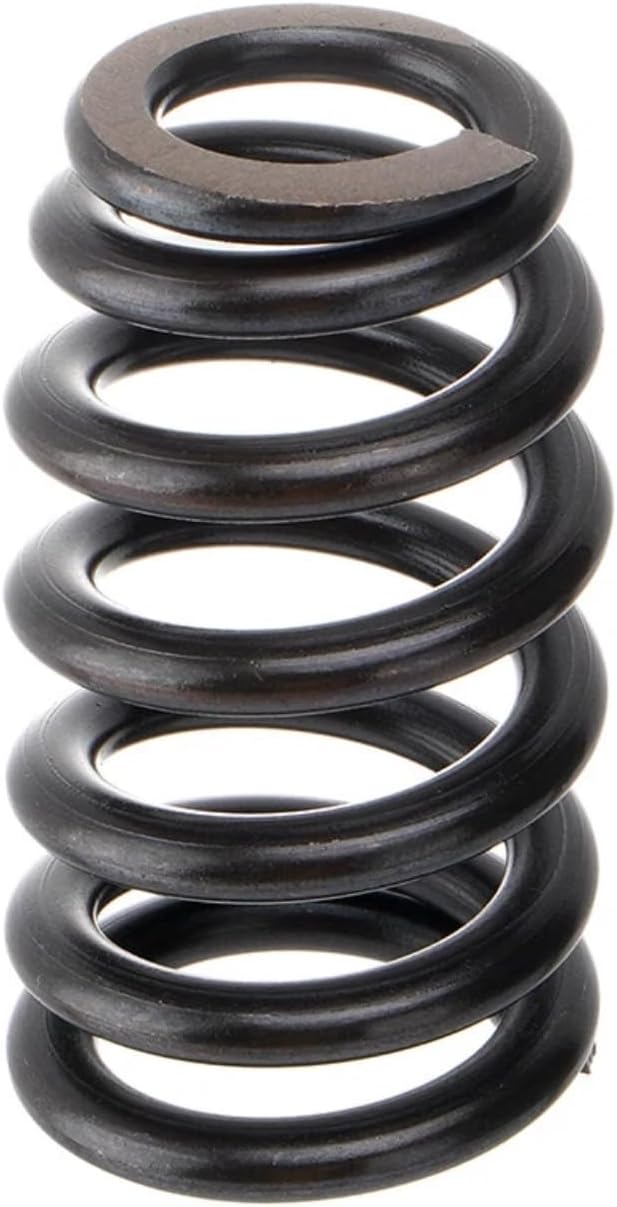

Valve Springs: Often comes with PAC-1218 or similar drop-in single beehive springs to prevent valve float at higher RPMs.
Important Compatibility Notes

Engine Models: Fits the 4.8L, 5.3L, 5.7L, 6.0L, and 6.2L blocks.
Displacement on Demand (DoD / AFM): Not for use with engines running factory Active Fuel Management. If your 1999-2007 truck has AFM, you must perform an AFM/DoD delete kit.
Torque Converter: While manual transmissions can use the stock setup, automatic transmissions perform best with a Sloppy Stage 2 cam when paired with an aftermarket 2,600–2,800 Stall Converter.
