Holley®  |  SKU: 835171

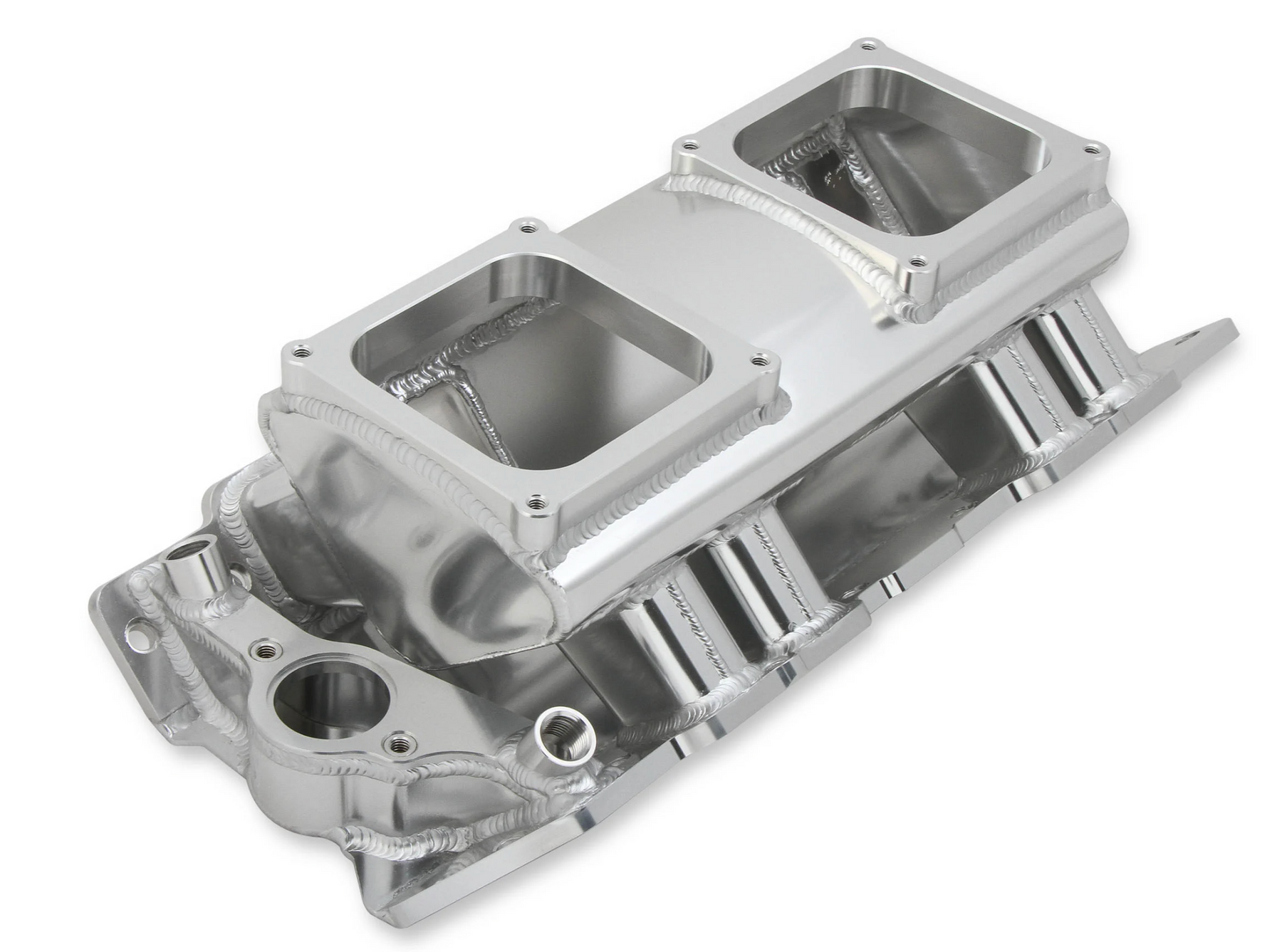

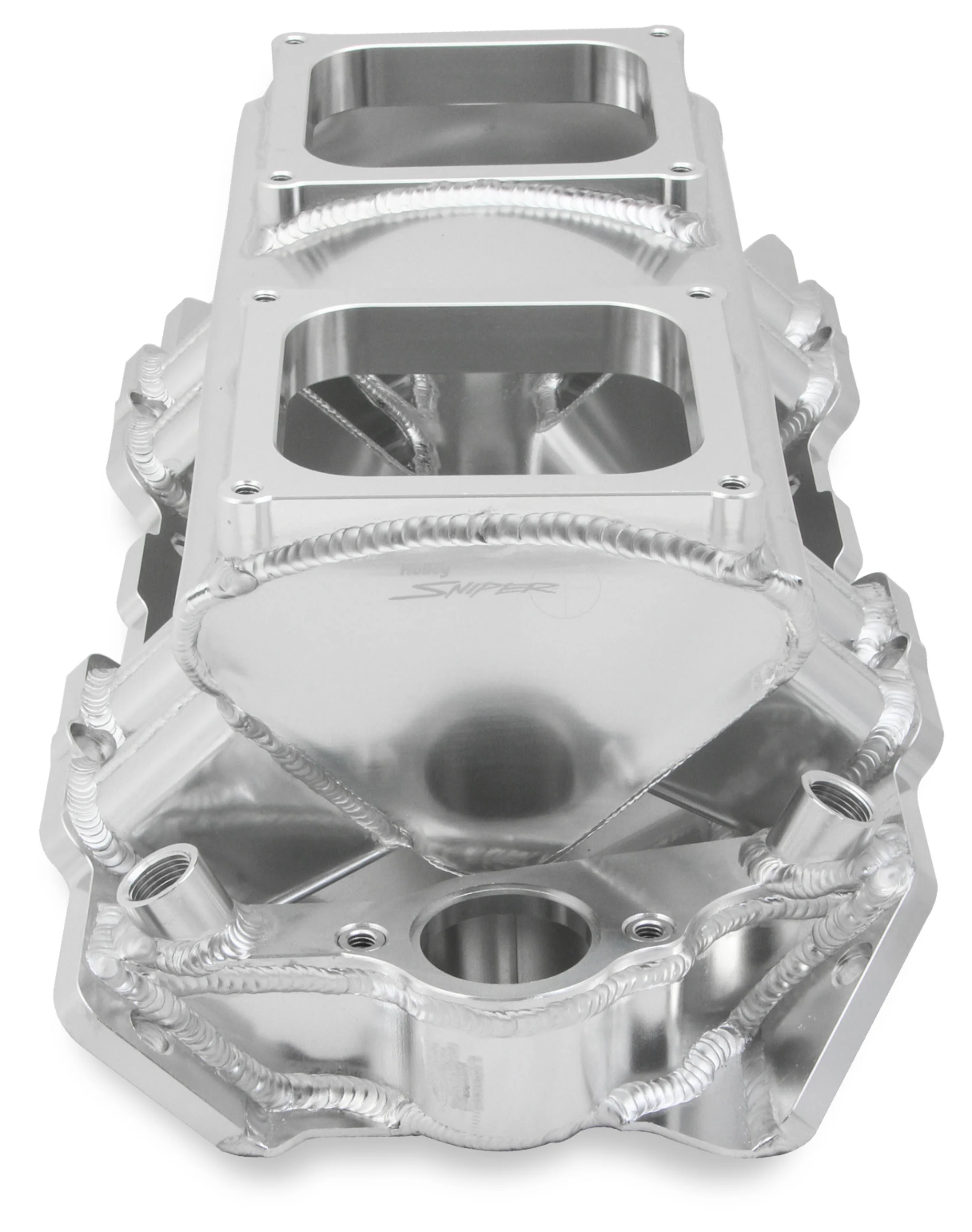

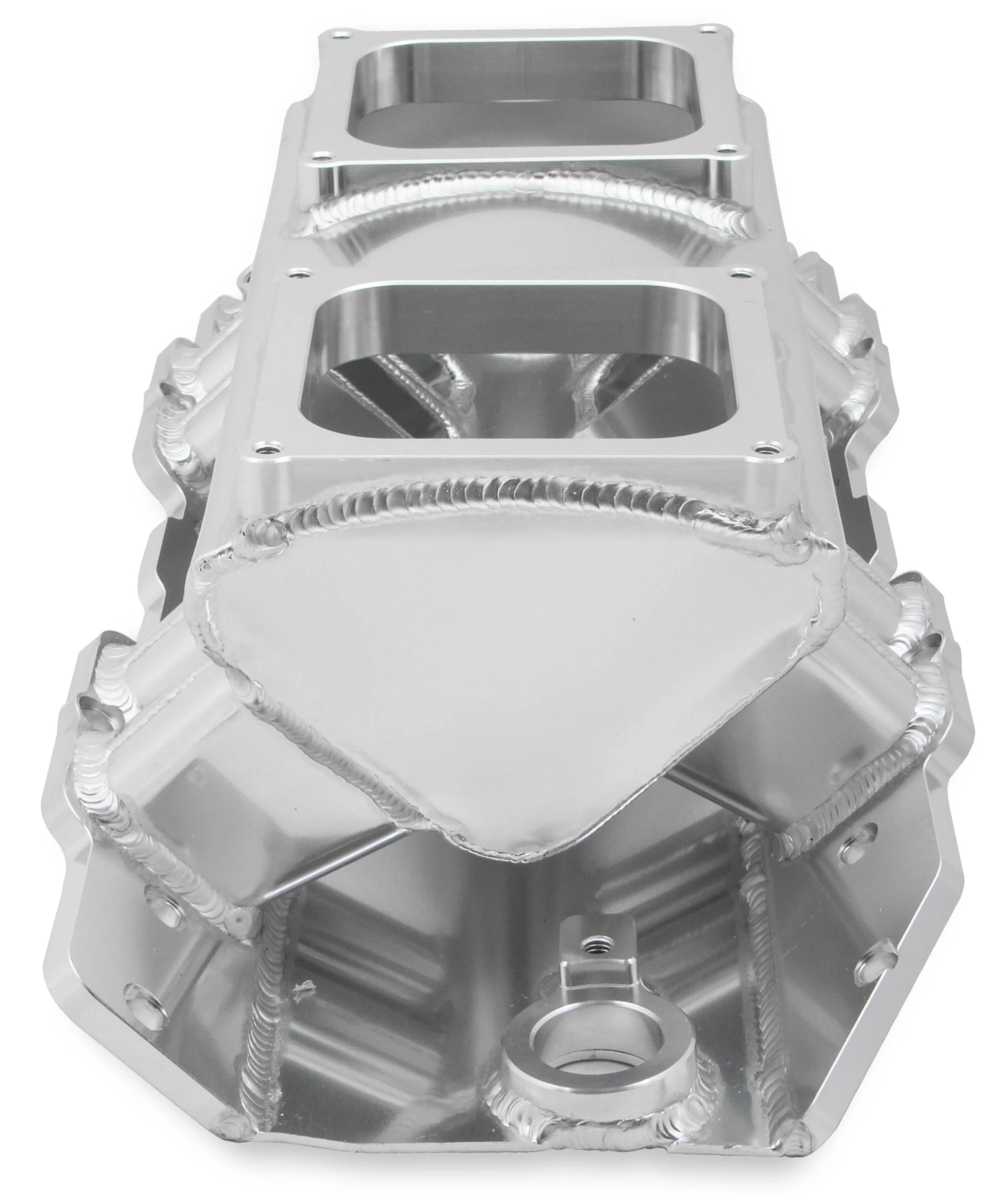

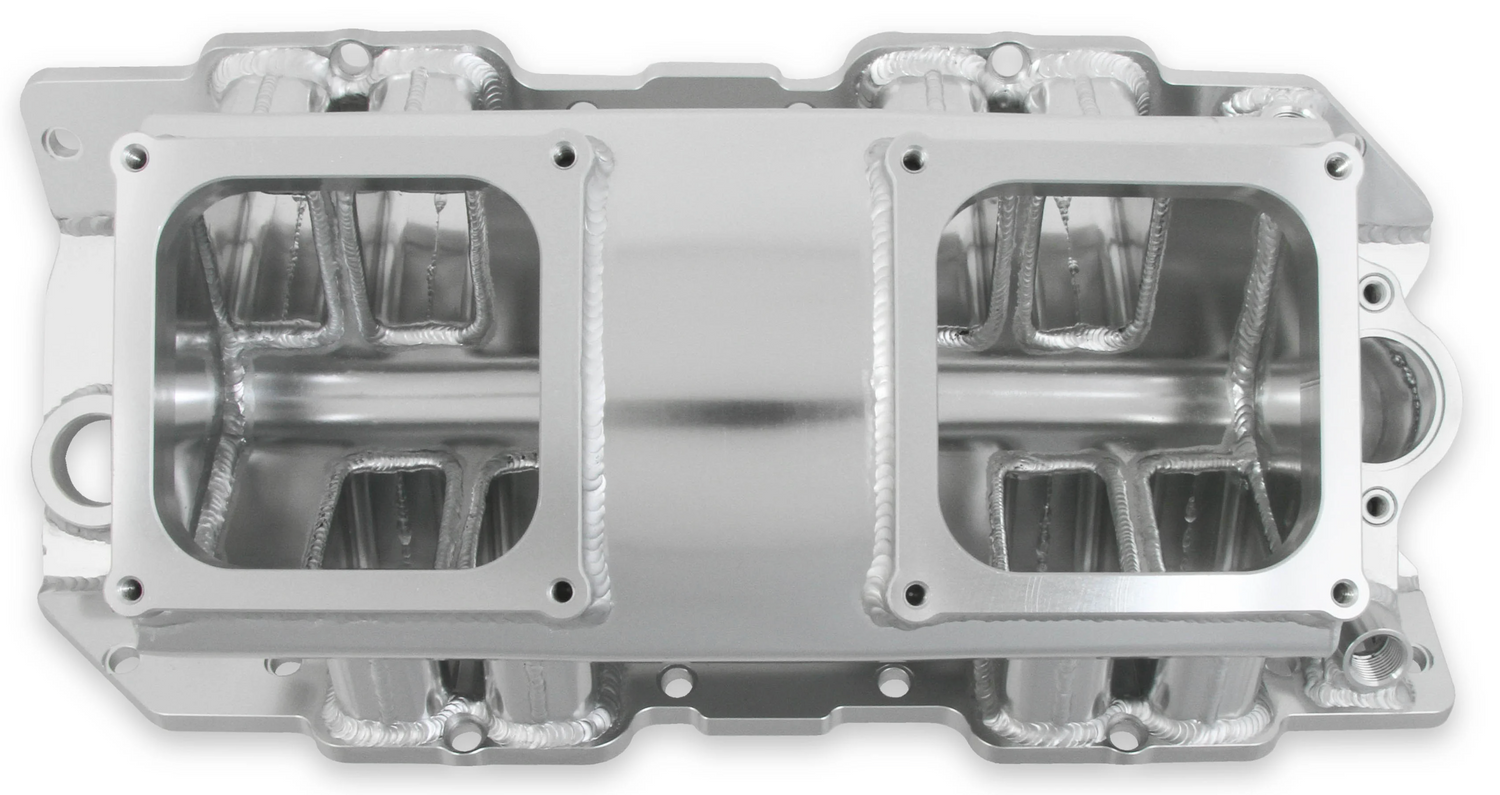

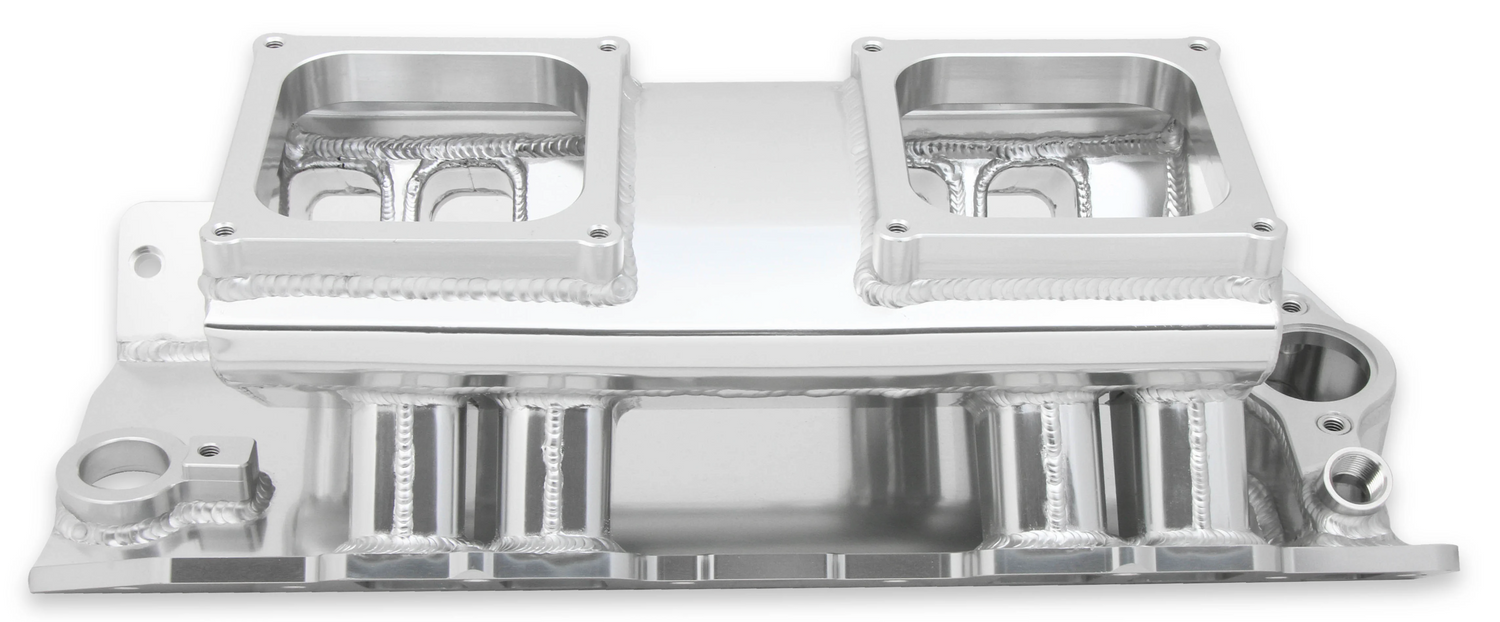

Holley® #835171 Big Block Chevy Sniper Sheet Metal Fabricated Intake Manifold

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

$899.95
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

Fabricated Intake Manifold BBC Single Plane 2 x 4500 Silver with Sniper Logo

Not Compatible with Large Cap HEI Distributors

Holley Sniper Fabricated Manifolds continue to push the aftermarket by introducing intakes for Big Block Chevy Engines. These Intakes are good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. They are ready to bolt on out of the box and offered in a single or dual 4150 or 4500 carb flange.

  • 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions

  • Expanded Designs to accommodate (1 or 2 x 4150) & (1 or 2 x 4500) carbureted applications.

  • Fits standard deck height blocks

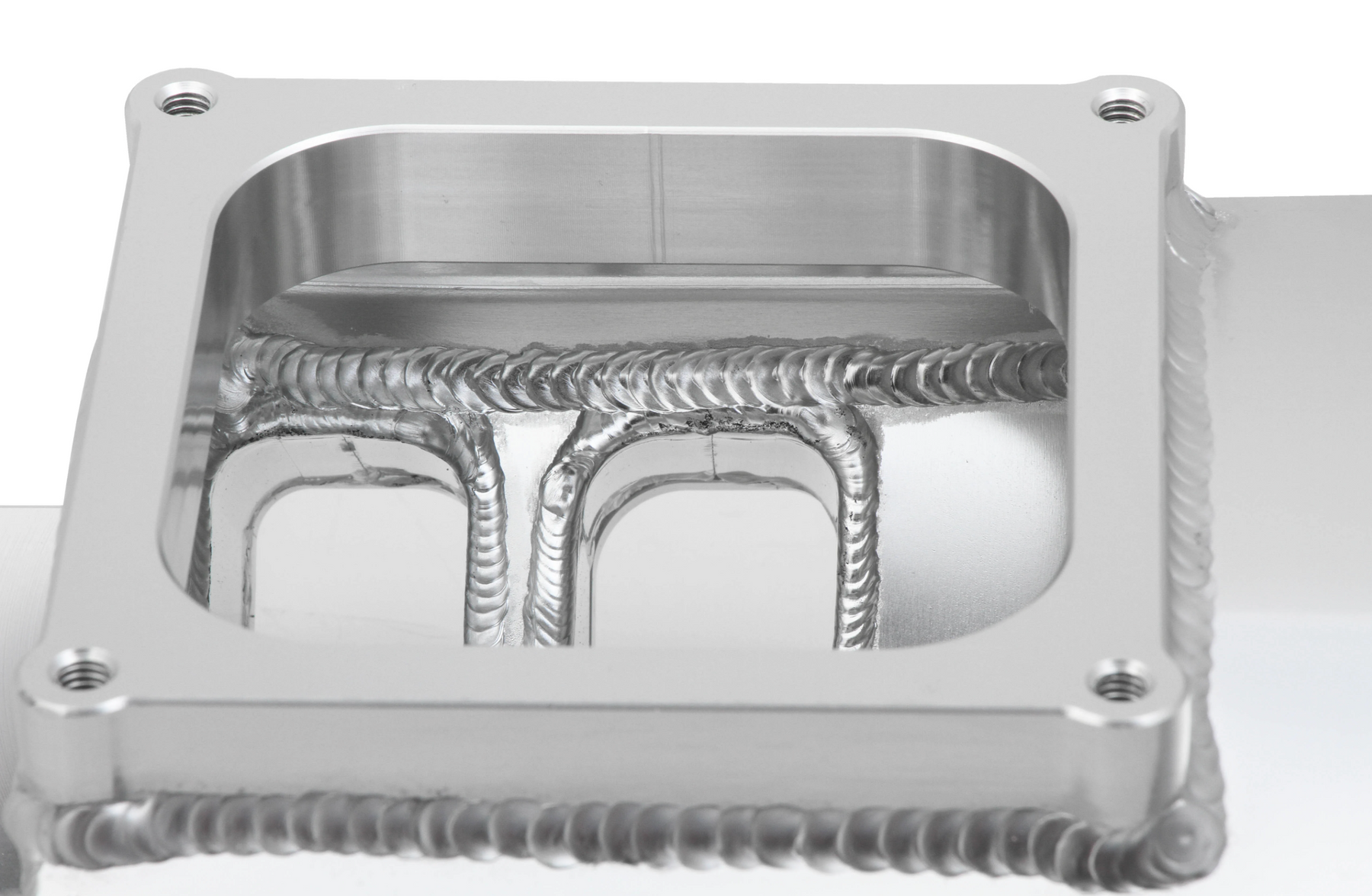

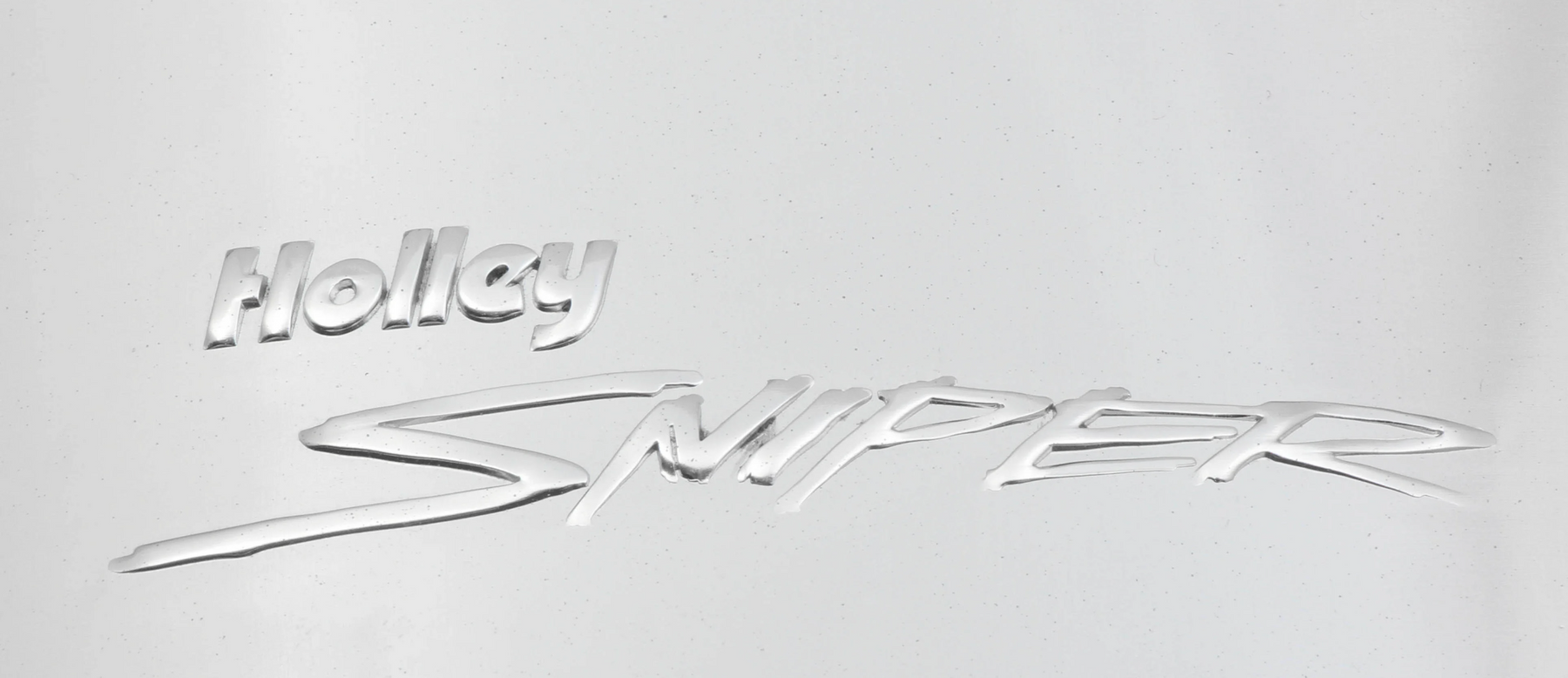

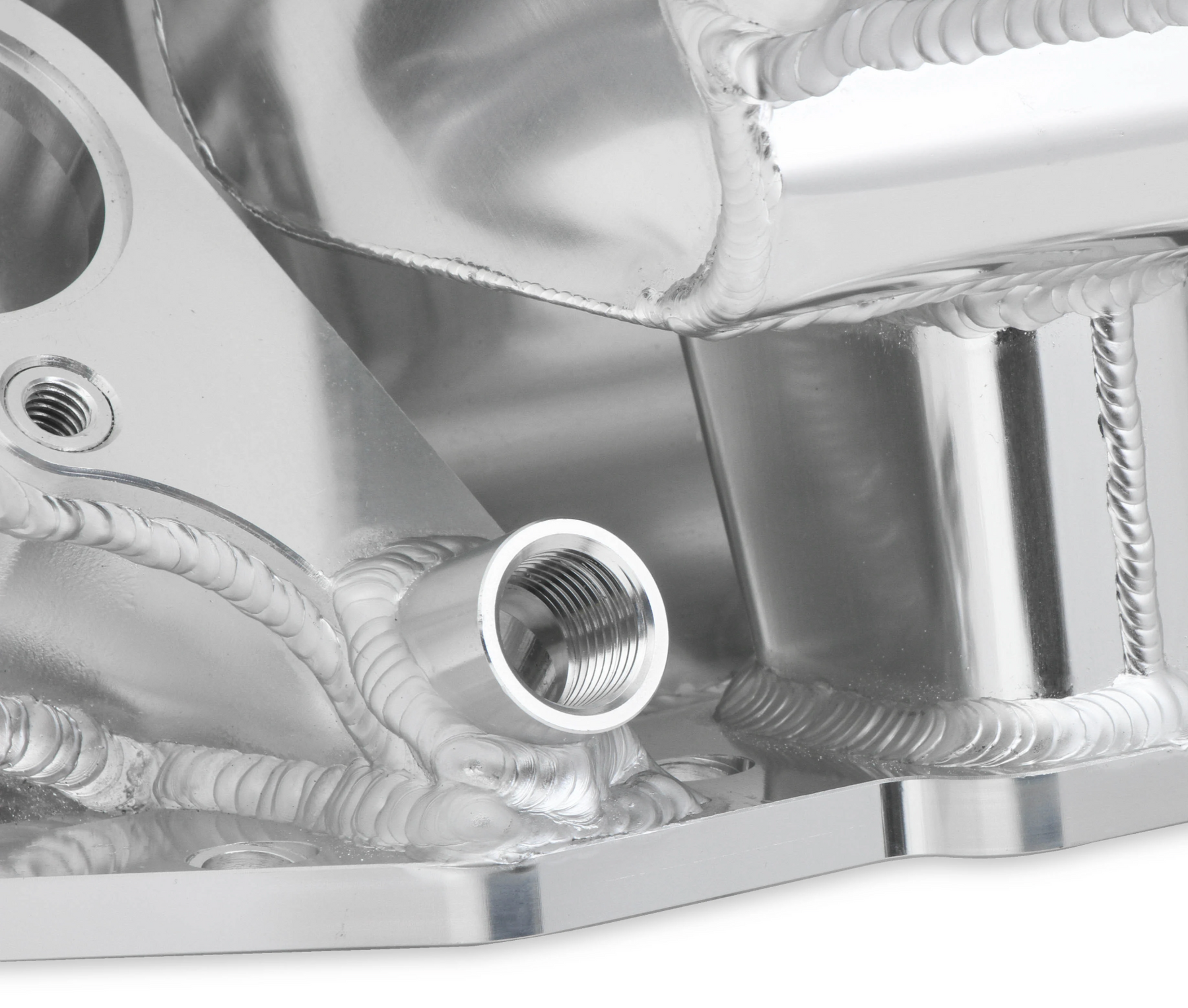

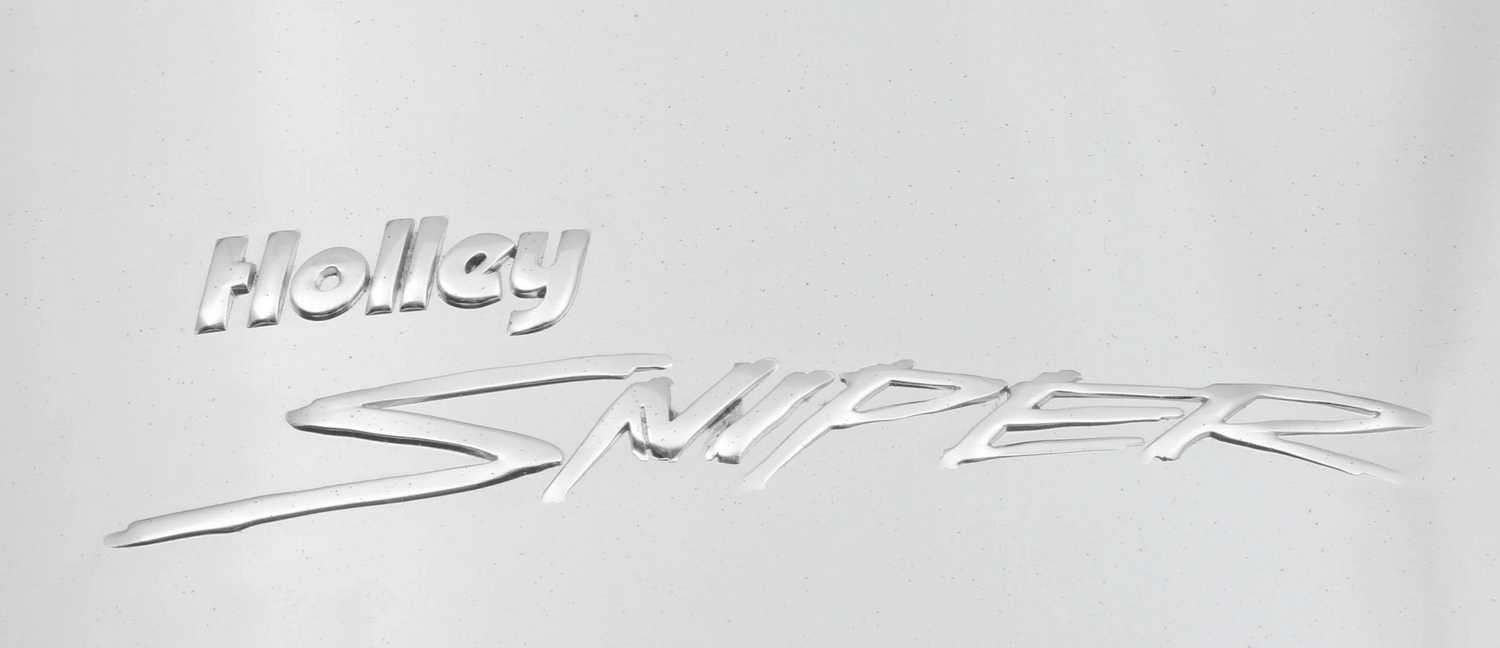

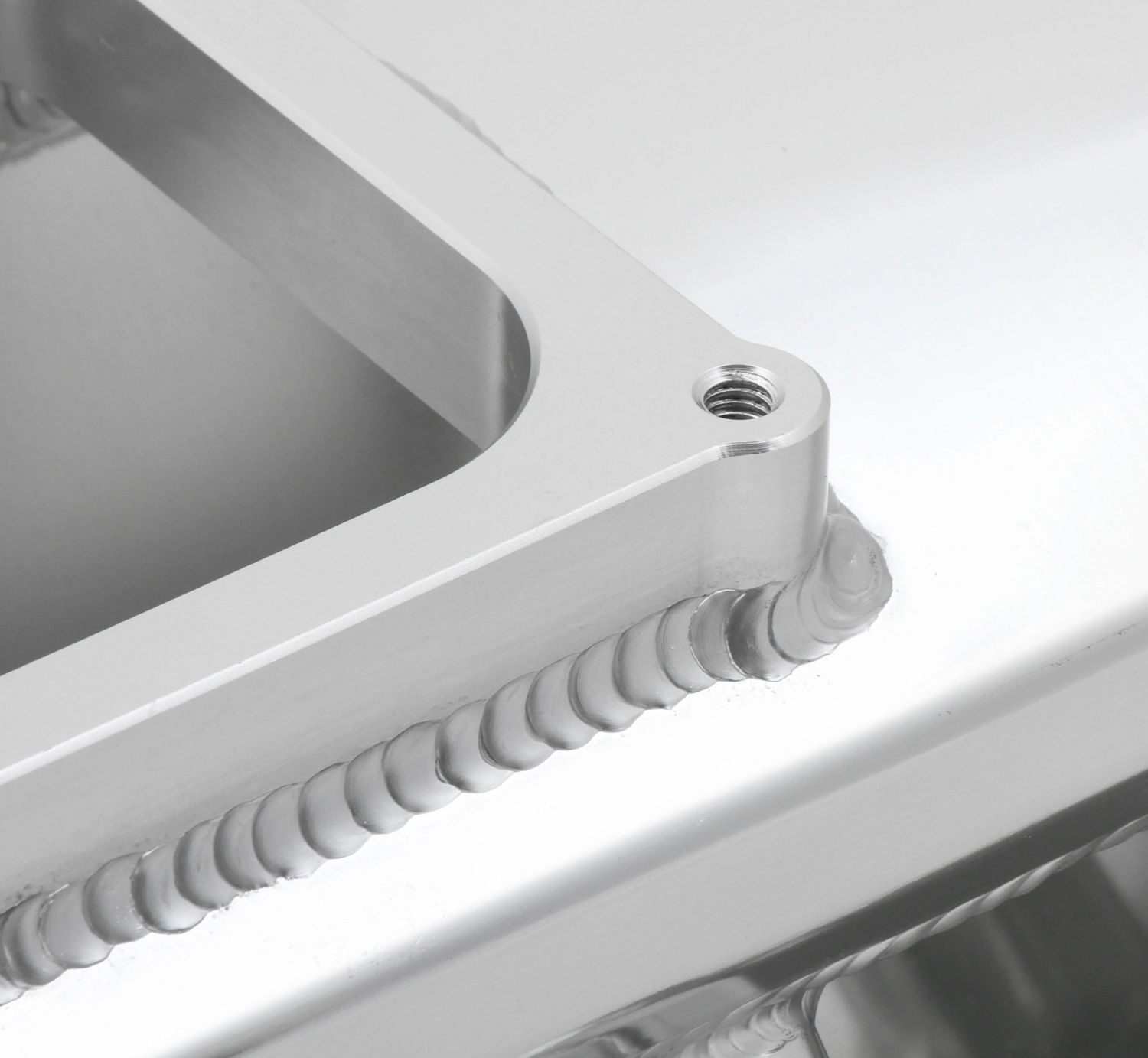

  • 100% TIG welded (laser engraved Sniper logo)

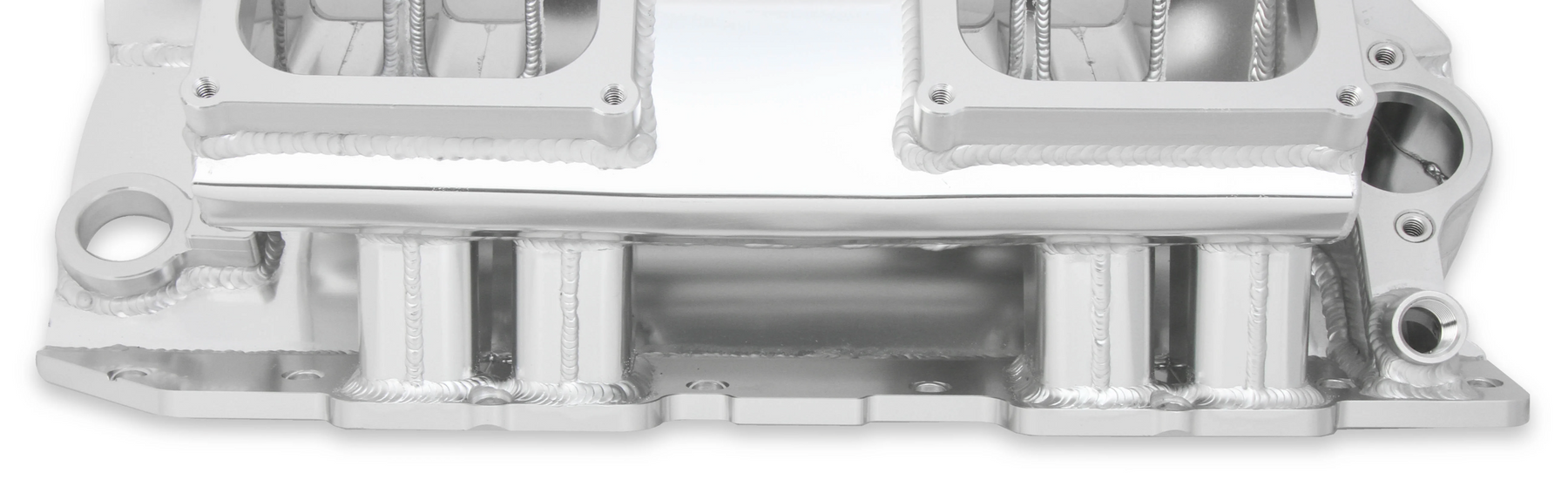

  • Equal runner lengths designed to increase velocity and more evenly distribute airflow to all 8 cylinders

  • Choice of bright silver or black anodized finish

Basic Operating RPM Range

1800-7000 RPM

Brand

Holley Sniper

Carburetor Flange

Dominator/4500

Color

Polished

Construction

Fabricated

EGR Port

No

Emission Code

4

Engine

GM Big Block

Finish

Silver

Flange Size

4500

Front Height

6.5 inch IN

Front Maximum Height

6.5 IN

Fuel Injectors Included

No

Fuel Rail(s) Included

No

Material

Aluminum

Nitrous Bung(s) Included

No

Plenum Finish

Polished

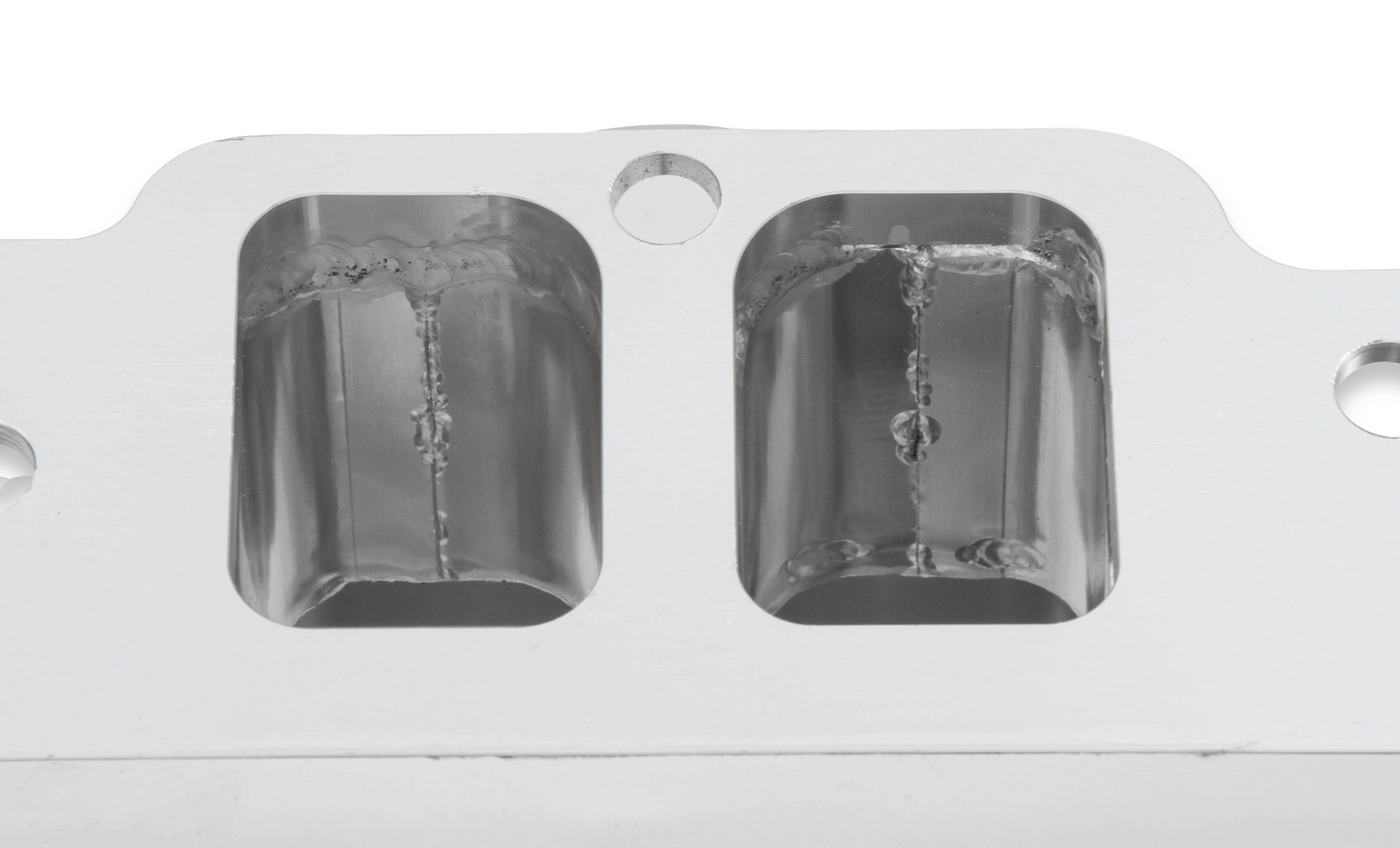

Port Shape

Rectangular

Port Size

1.55" x 2.21"

Product Type

Intake Manifold

Rear Height

6.5 inch IN

Rear Maximum Height

6.5 IN

Removable Runners

No

Removable Top/Lid

No

RPM Power Band

1800-7000 RPM RPM

Single Or Dual Plane Type

Single Plane

Style

Carbureted

Throttle Body Included

No

Warranty

Limited 90 Day

UPC

090127001417

Part Number

835171
