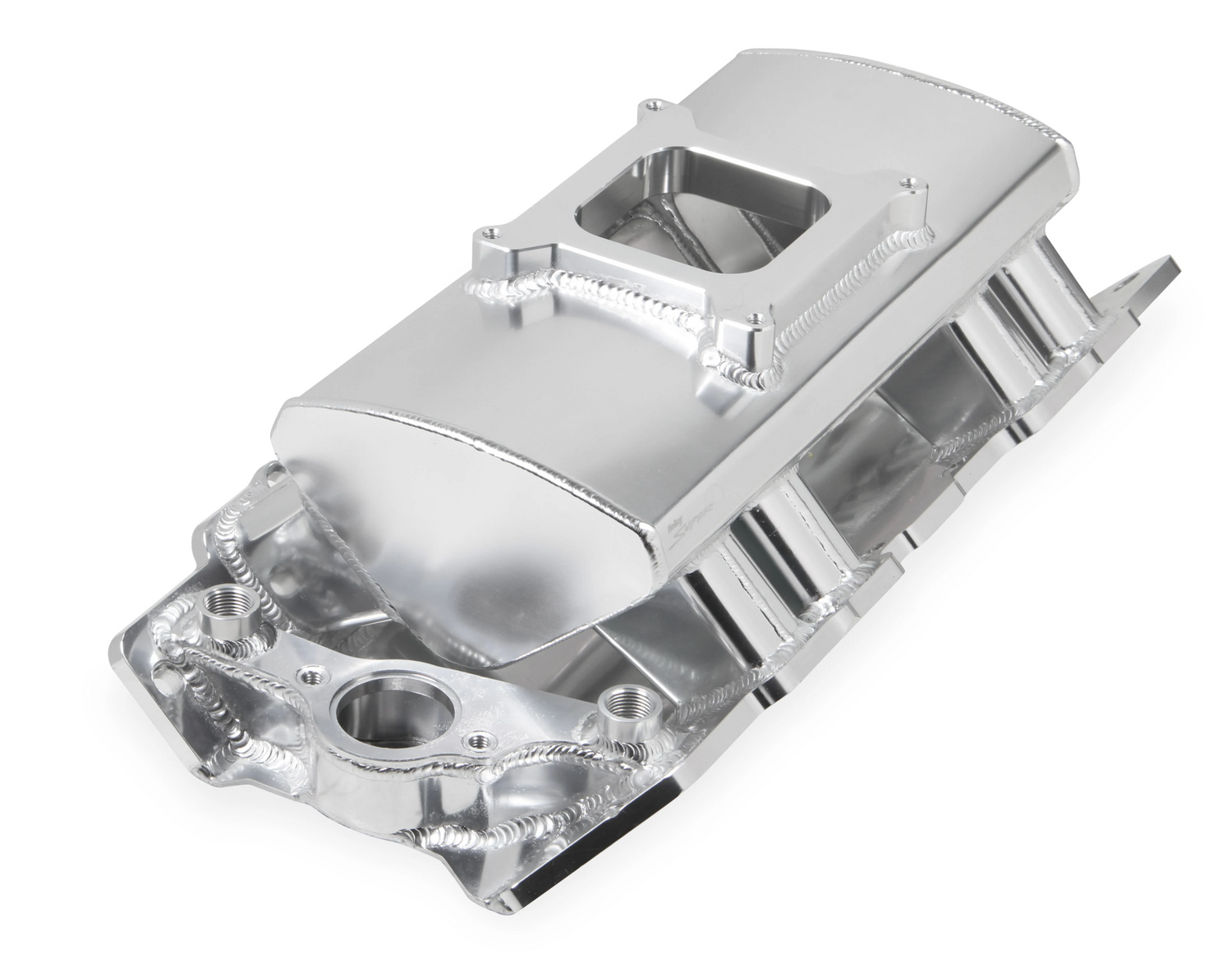

Fabricated Intake Manifold BBC Single Plane 1 x 4150 Silver with Sniper Logo
Not Compatible with Large Cap HEI Distributors
Holley Sniper Fabricated Manifolds continue to push the aftermarket by introducing intakes for Big Block Chevy Engines. These Intakes are good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. They are ready to bolt on out of the box and offered in a single or dual 4150 or 4500 carb flange.
-
3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions
-
Expanded Designs to accommodate (1 or 2 x 4150) & (1 or 2 x 4500) carbureted applications.
-
Fits standard deck height blocks
-

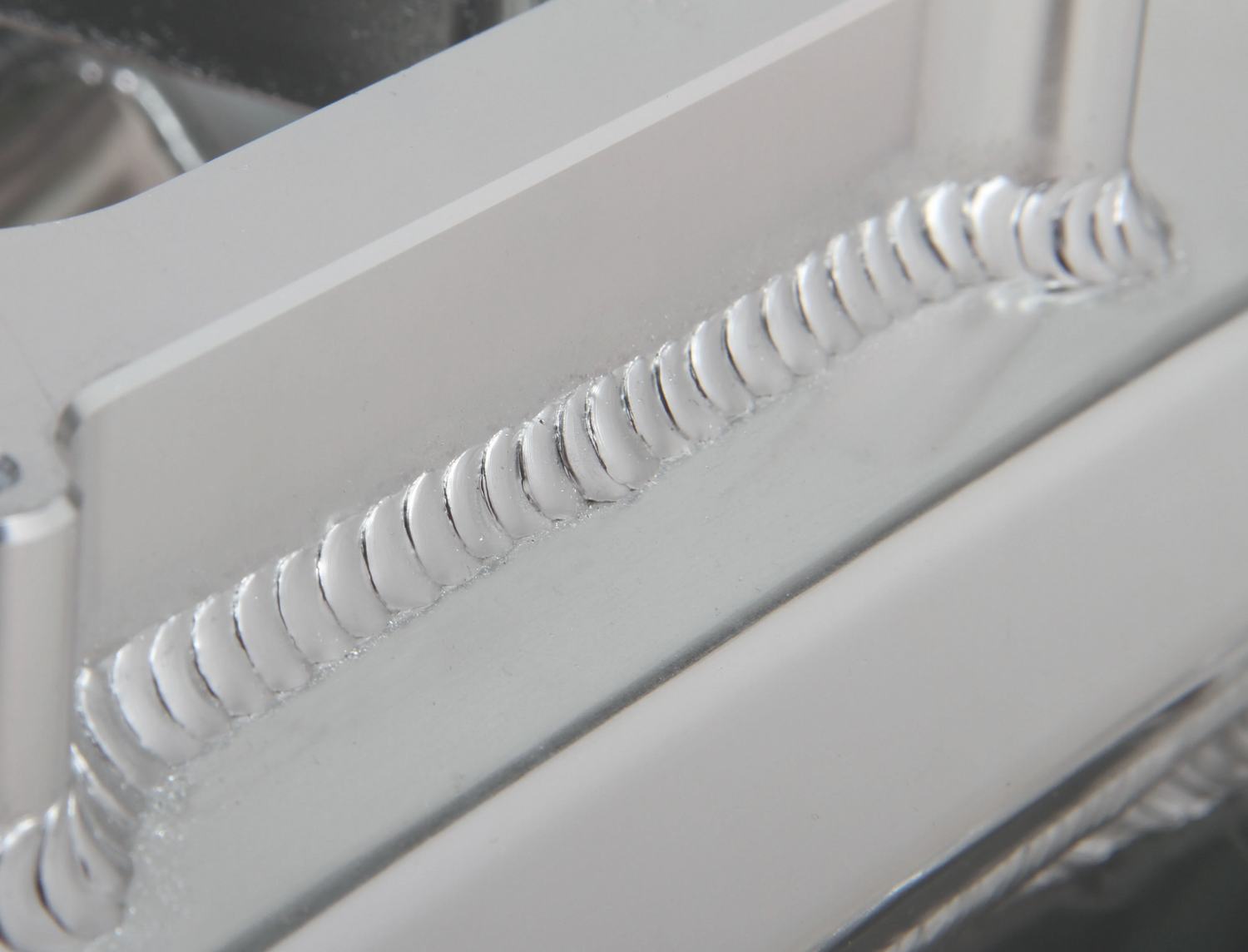

100% TIG welded (laser engraved Sniper logo)
-
Equal runner lengths designed to increase velocity and more evenly distribute airflow to all 8 cylinders
-
Choice of bright silver or black anodized finish
Basic Operating RPM Range |
1800-7000 RPM |
|---|---|
Brand |
Holley Sniper |
Carburetor Flange |
Square/4150 |
Color |
Polished |
Construction |
Fabricated |
EGR Port |
No |
Emission Code |
4 |
Engine |
GM Big Block |
Finish |
Silver |
Flange Size |
4150 |
Front Height |
6.5 inch IN |
Front Maximum Height |
6.5 IN |
Fuel Injectors Included |
No |
Fuel Rail(s) Included |
No |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Polished |

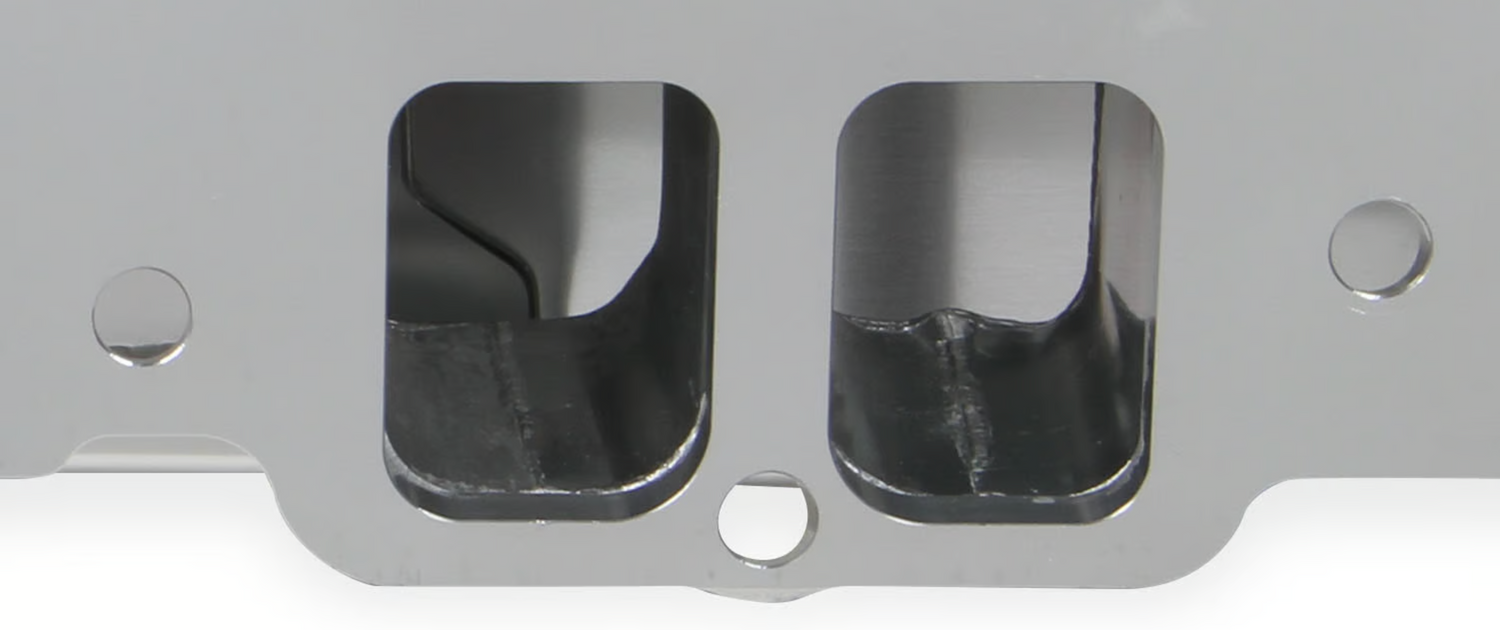

Port Shape |
Rectangular |
Port Size |
1.55" x 2.21" |
Product Type |
Intake Manifold |
Rear Height |
6.5 inch IN |
Rear Maximum Height |
6.5 IN |
Removable Runners |
No |
Removable Top/Lid |
No |
RPM Power Band |
1800-7000 RPM RPM |
Single Or Dual Plane Type |
Single Plane |
Style |
Carbureted |
Throttle Body Included |
No |
Vacuum Ports |
None |
Warranty |
Limited 90 Day |
UPC |
090127001356 |
Part Number |
835011 |
