Holley®  |  SKU: 19-447

Holley® #19-447 (63-67) Corvette Sniper EFI Fuel Tank System 400 LPH

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

Regular price $1,075.95
Shipping calculated at checkout.


Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

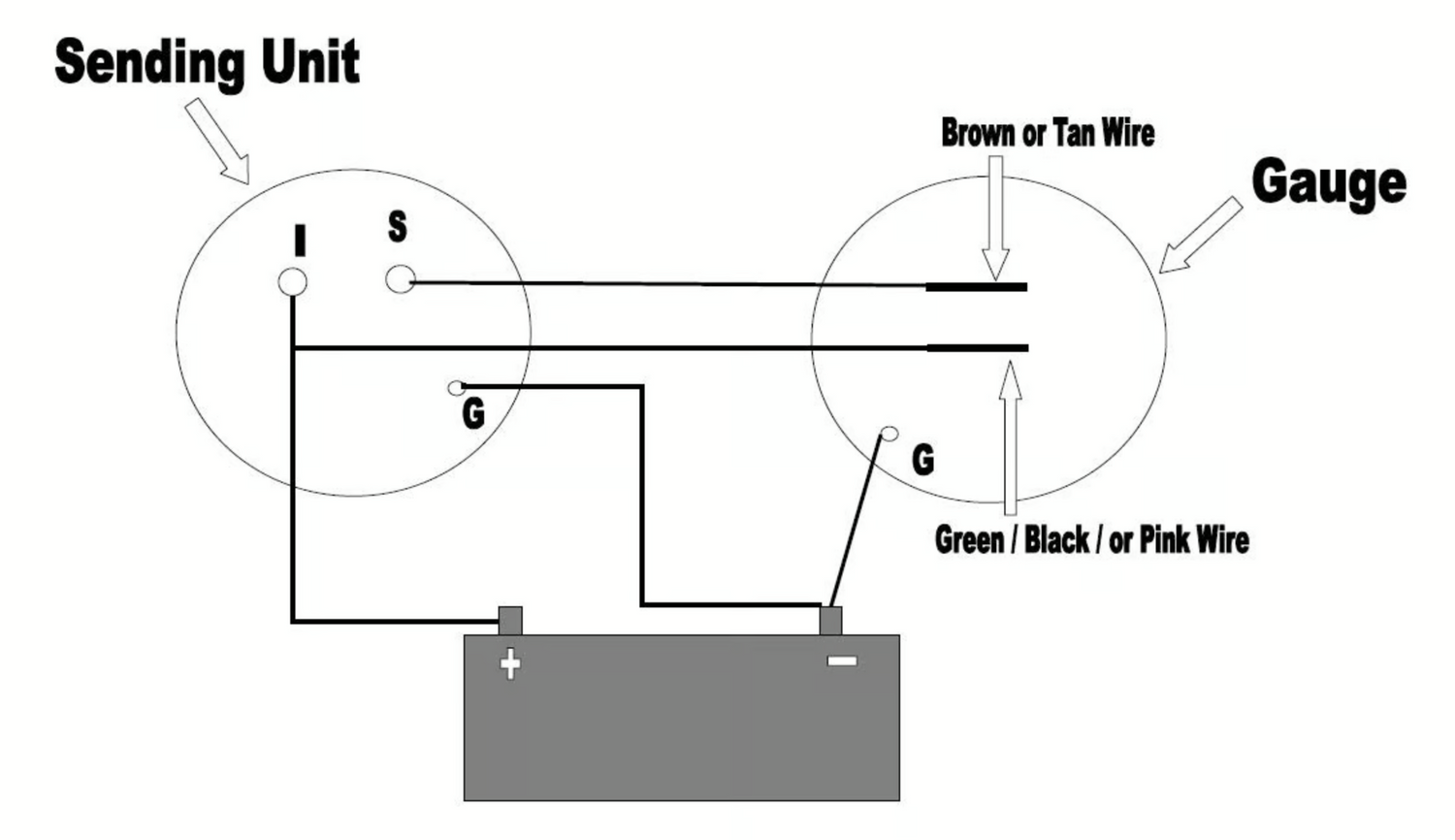

When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank. This kit includes a fuel gauge sender for use with FACTORY FUEL GAUGE and wiring. The sending unit using a three wire connection. A wiring schematic is shown in the product images. If you are using an aftermarket gauge, you will also need a sending unit for that gauge ohm range. When testing the ohm range of the sending unit with a stock Corvette gauge you should have the following results: Sender & Power (white & red wires)= 0-120 OHMS Sender & Ground (white & black wires)= 120-0 OHMS Power & Ground (red & black)= 120 Constant

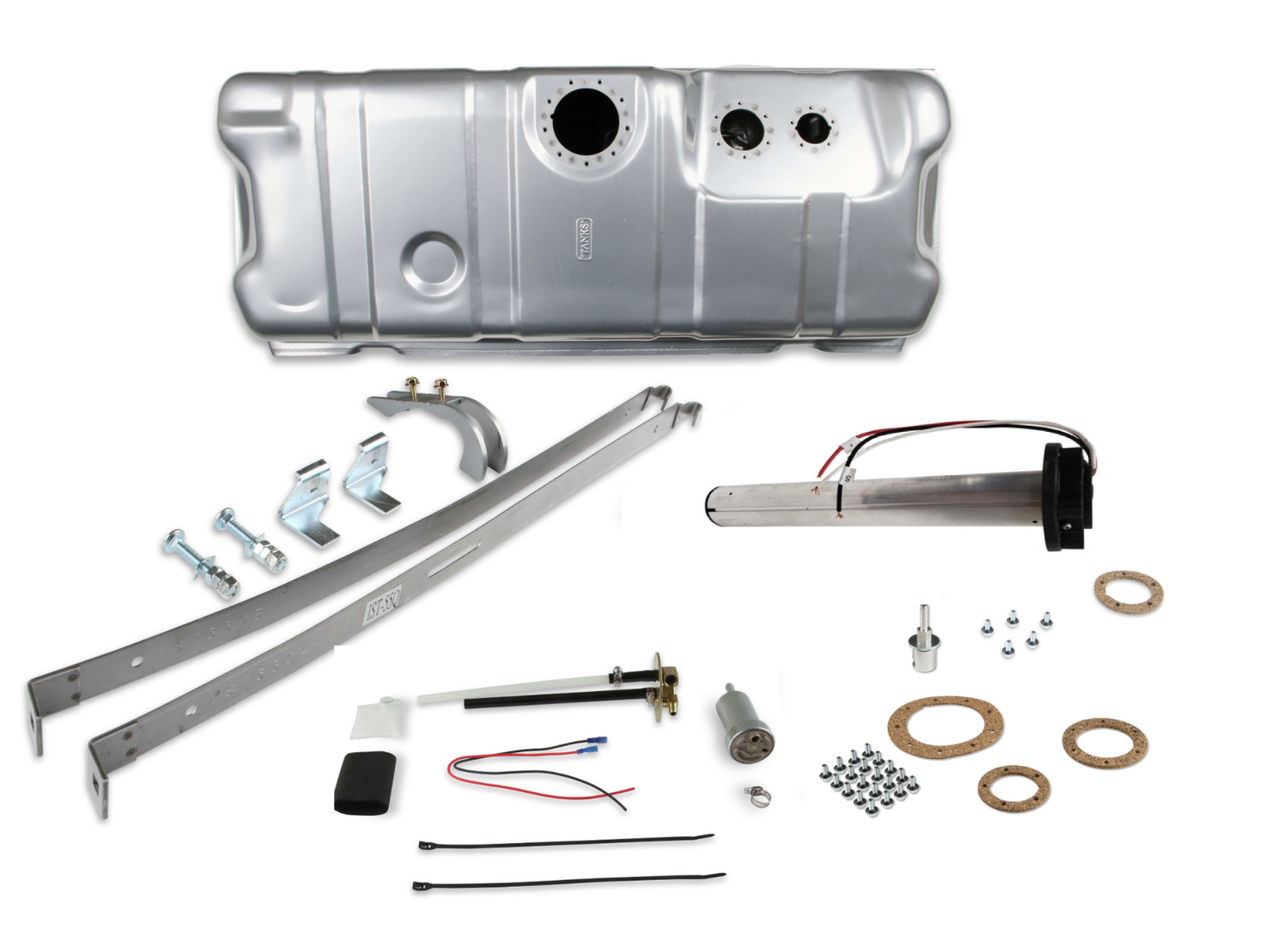

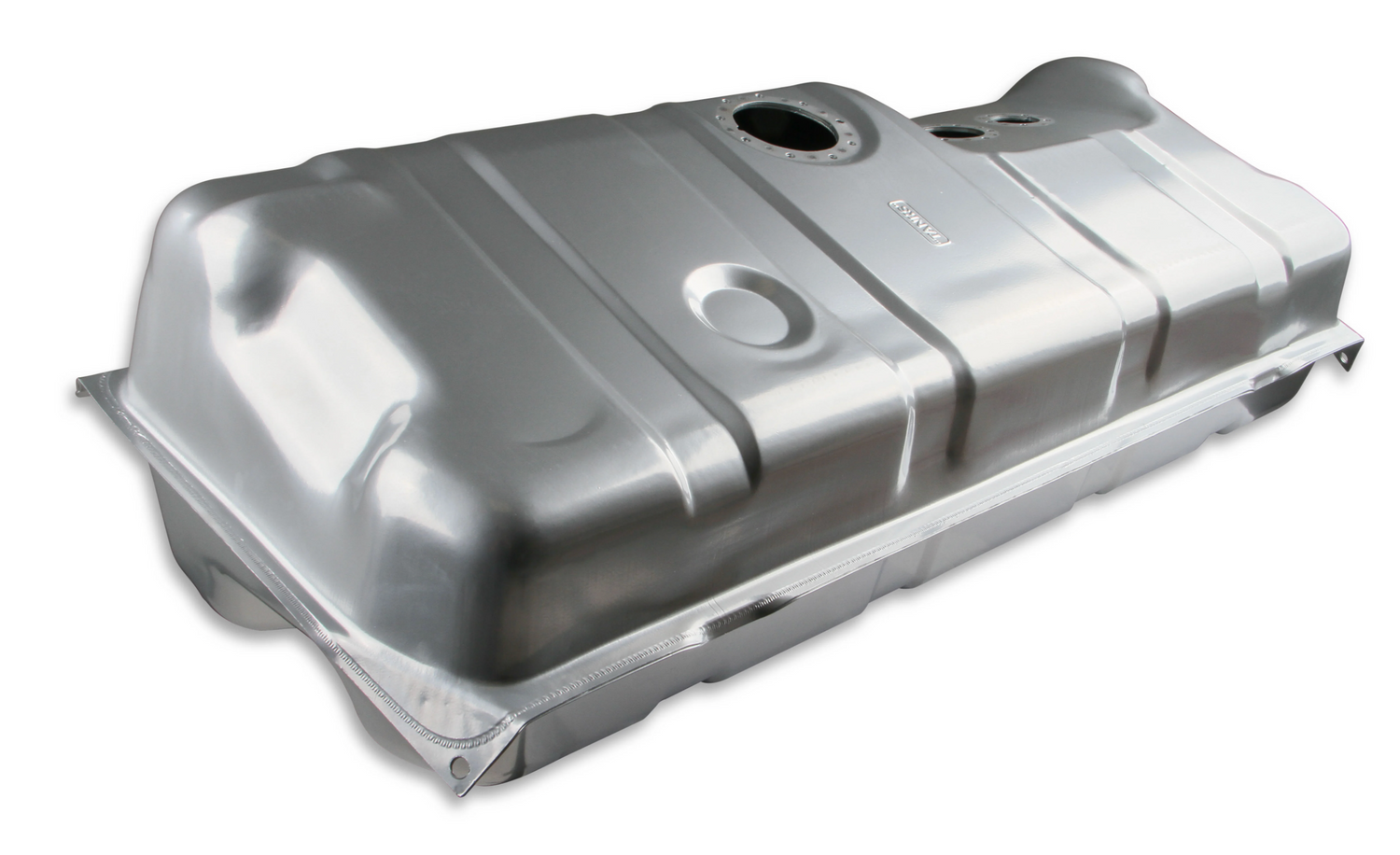

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 400 lph fuel pump, internal baffling and a fuel level sending unit. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! ***Steel filler neck is not included. You must use your existing stock filler neck or purchase one through restoration suppliers. ***This kit includes a fuel gauge sender for use with FACTORY FUEL GAUGE and wiring. If you are using an aftermarket gauge, you will also need a sending unit for that gauge ohm range. Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is: 38" x 15-3/4" x 11-3/4"

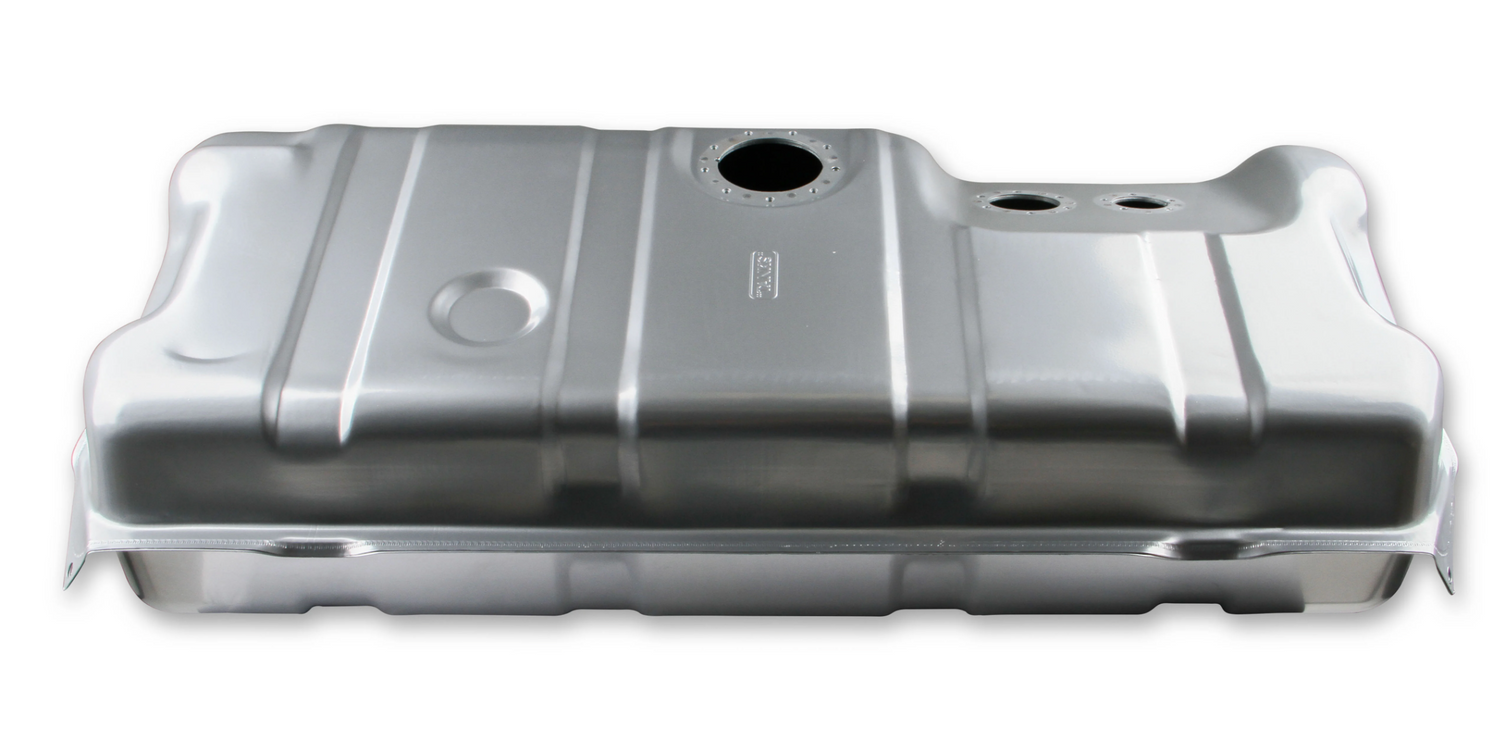

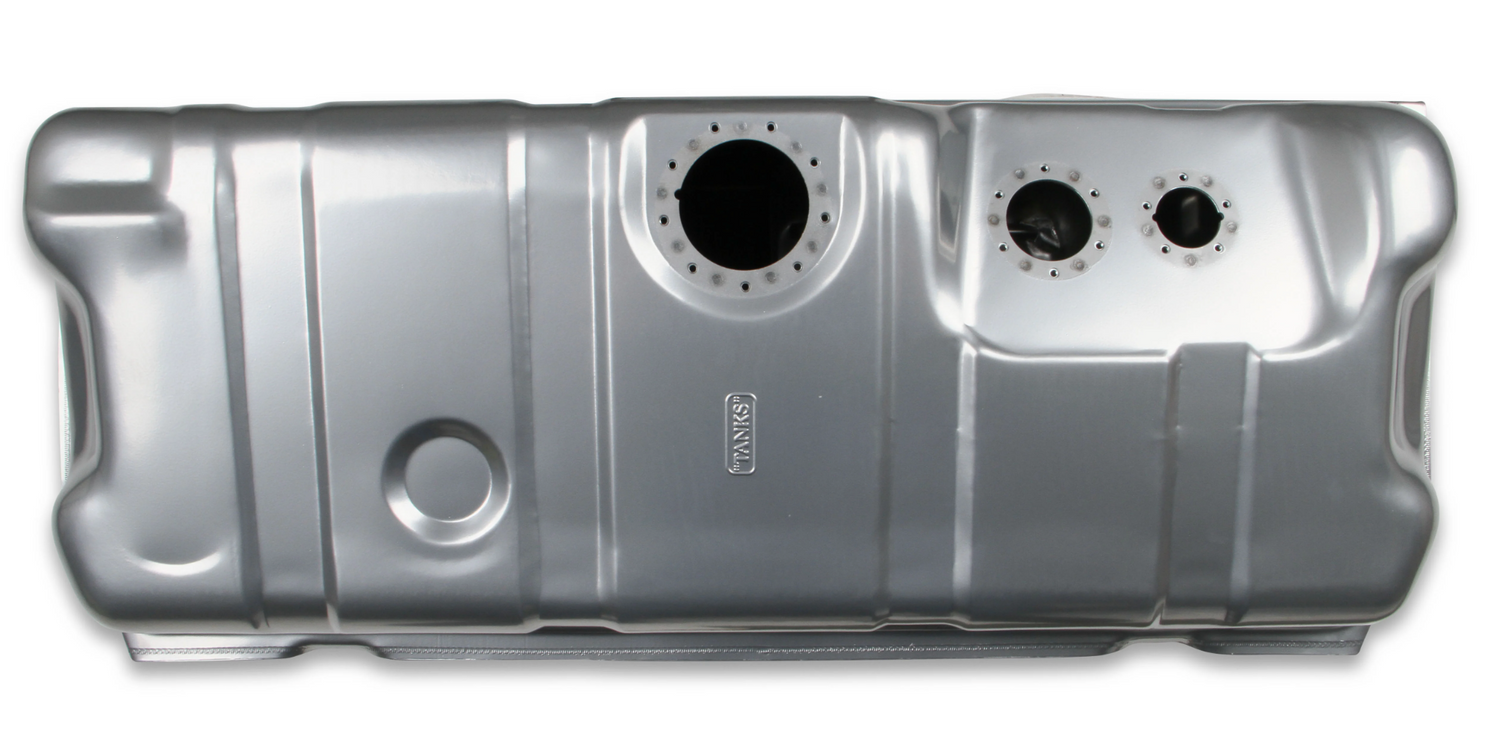

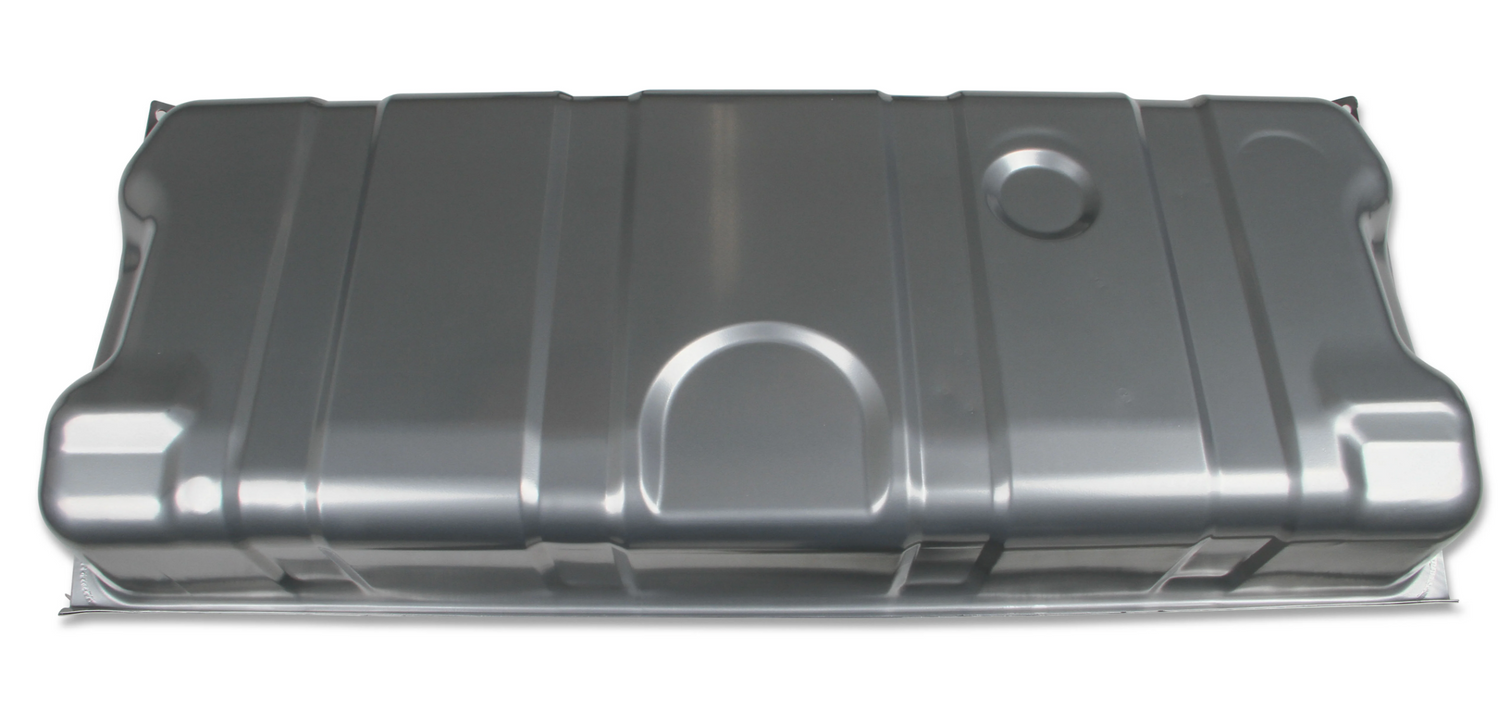

  • Tanks are coated galvanized steel then powder coated silver for total corrosion protection

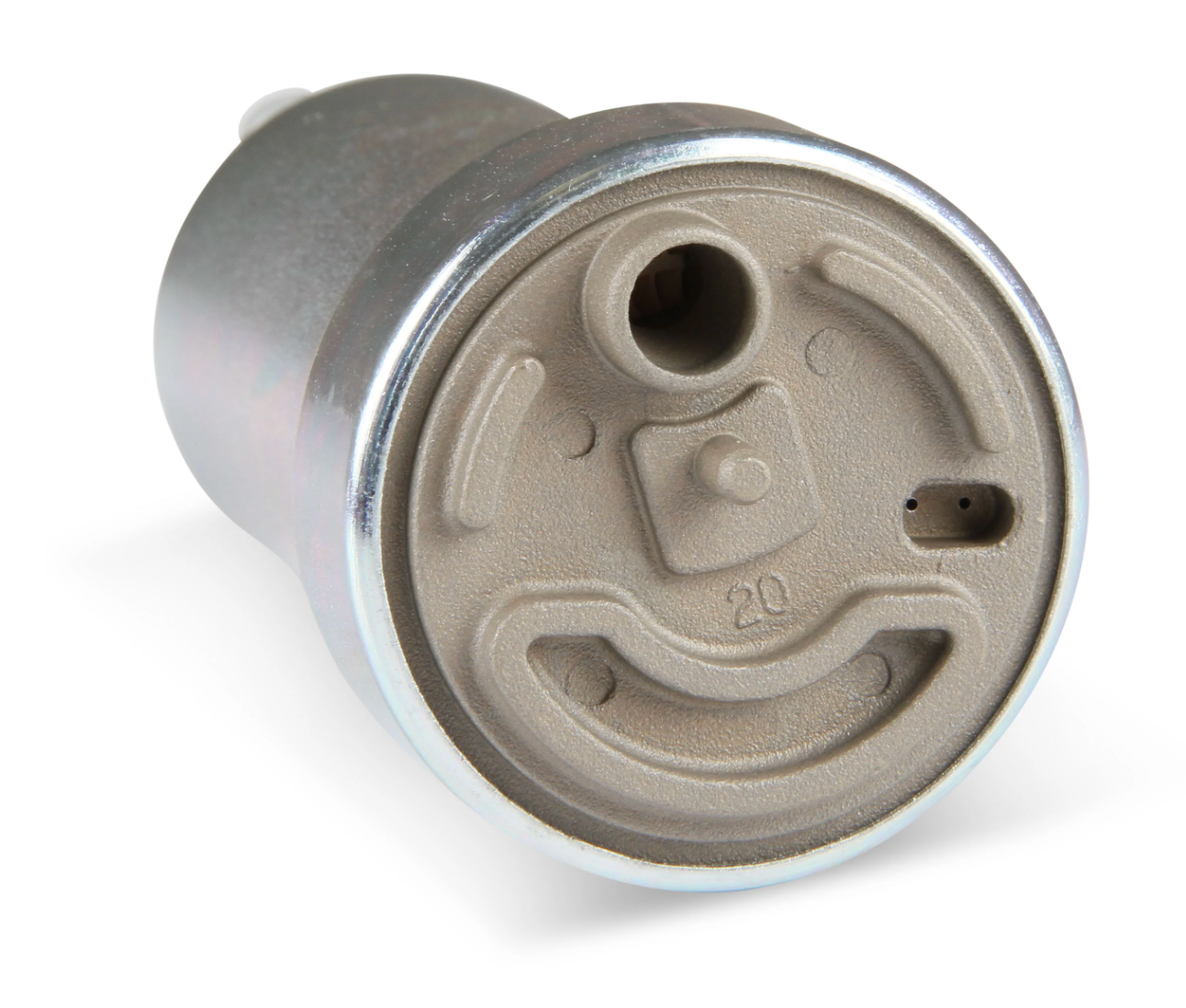

  • 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

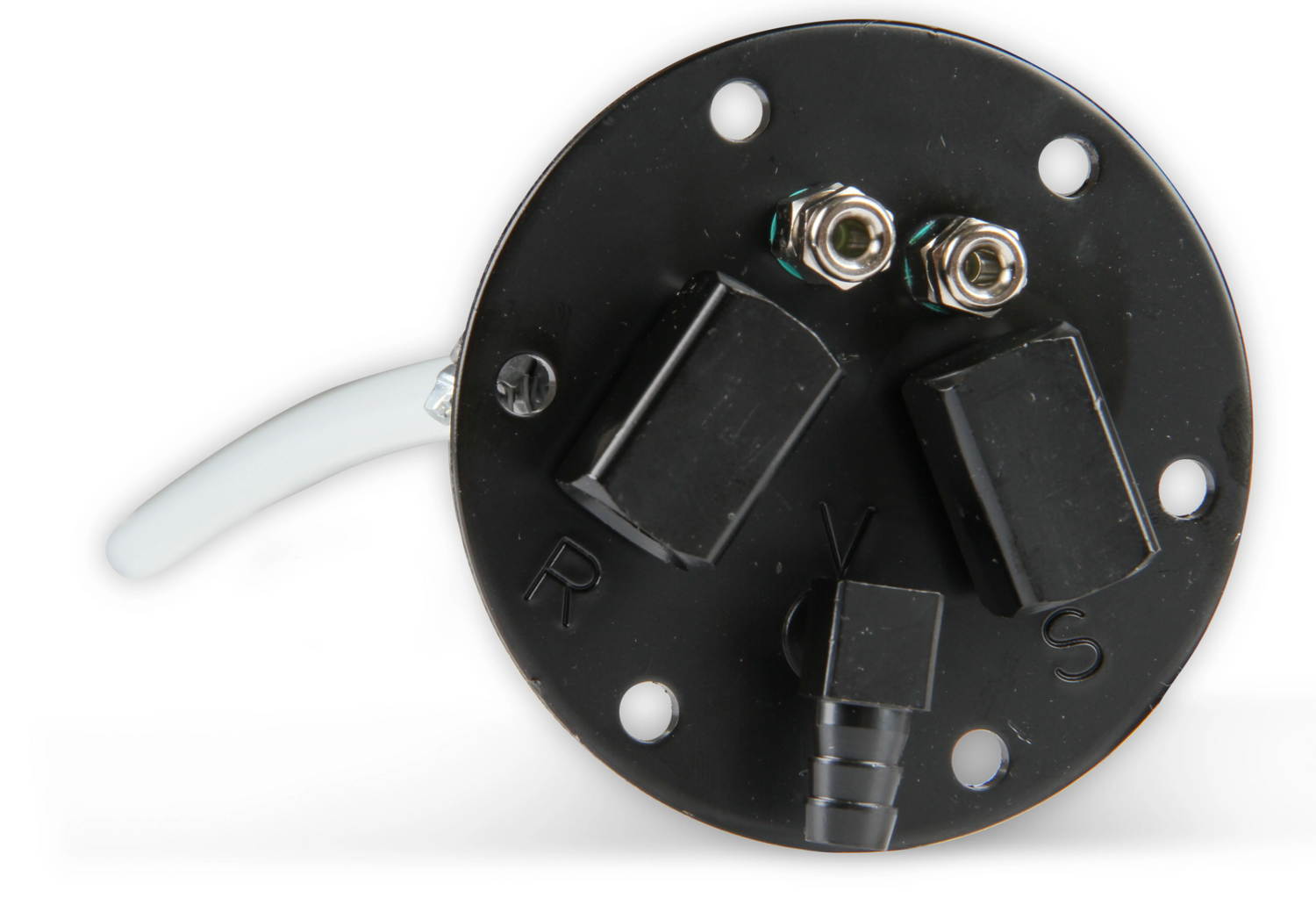

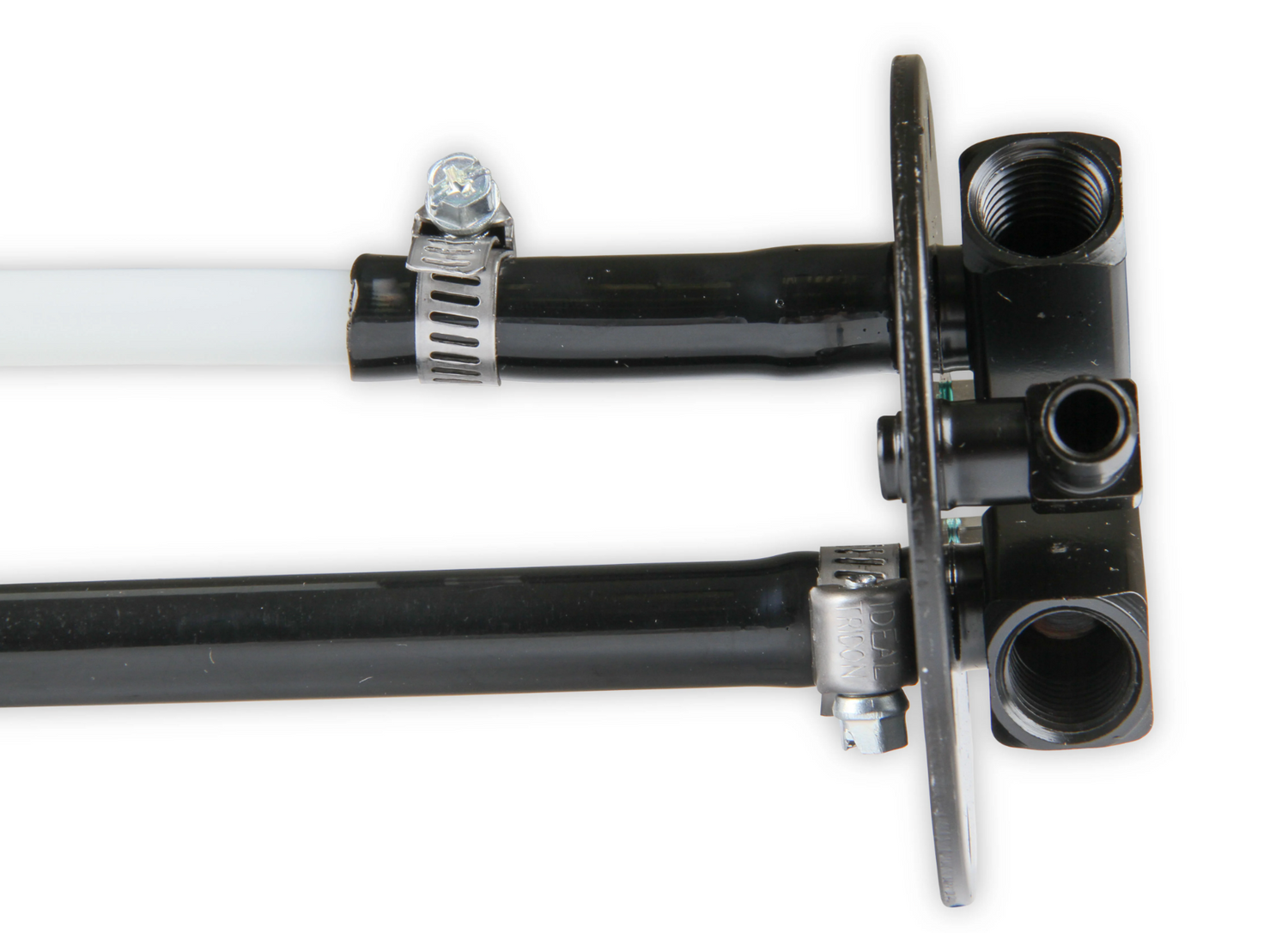

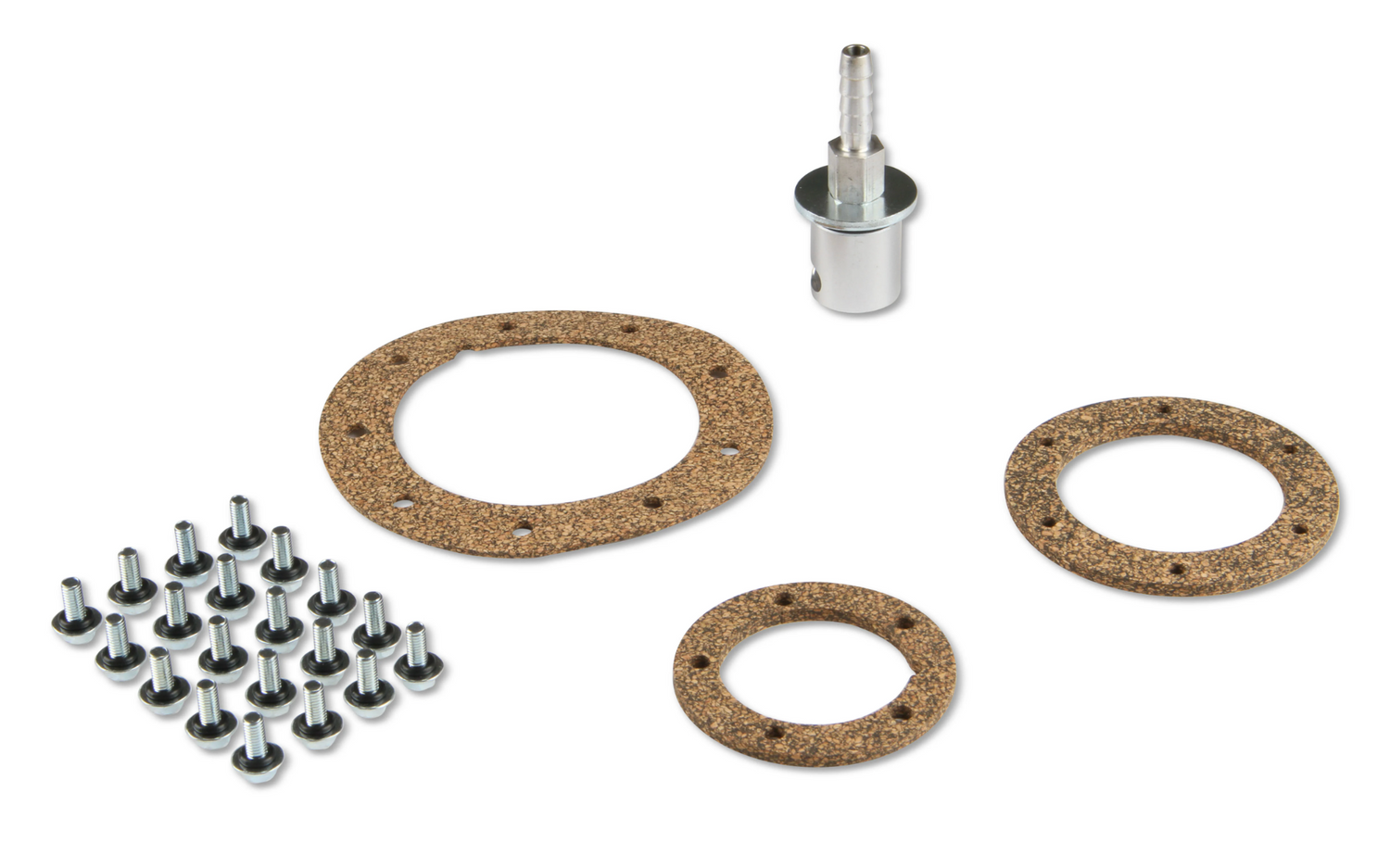

  • Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

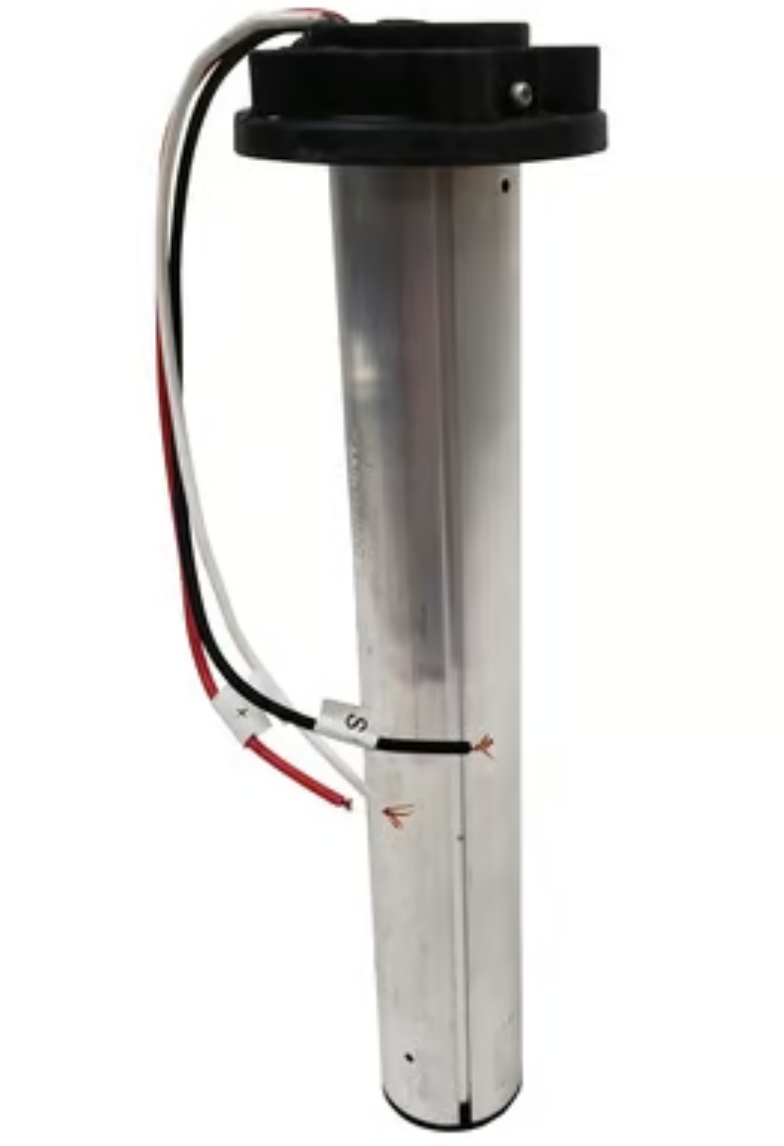

  • Fuel level sender included with the correct Ohm range for your factory gauges

  • Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car

  • EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation

  • Fits and looks like an OE tank when installed

  • Complete bolt in solution for your EFI conversion

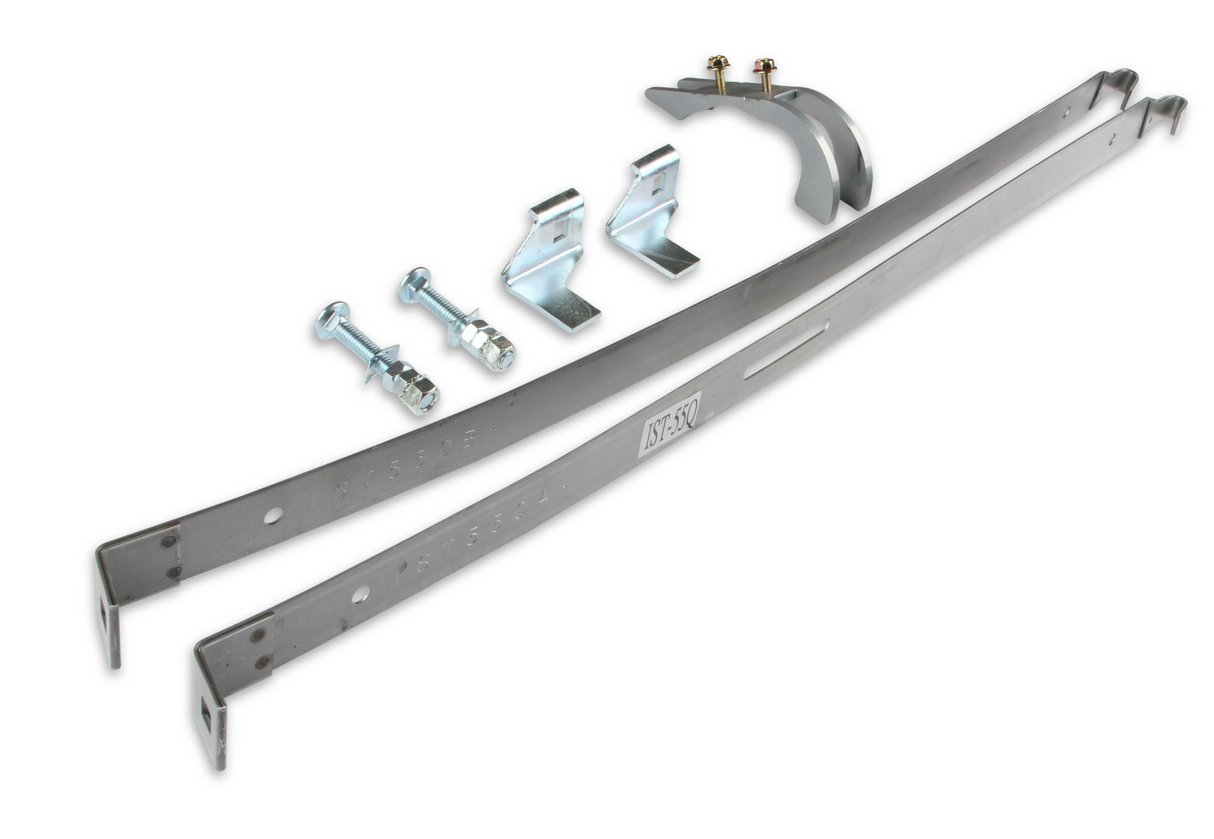

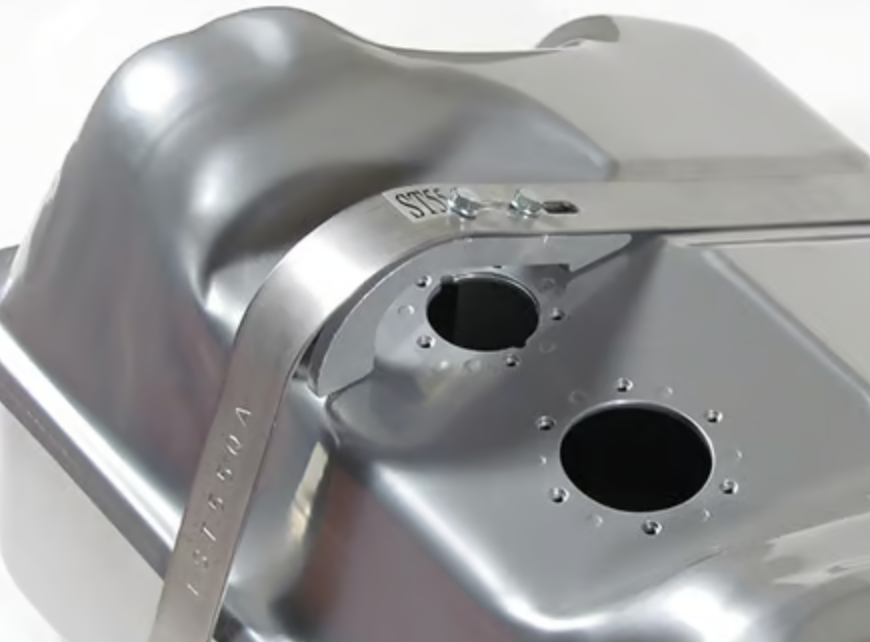

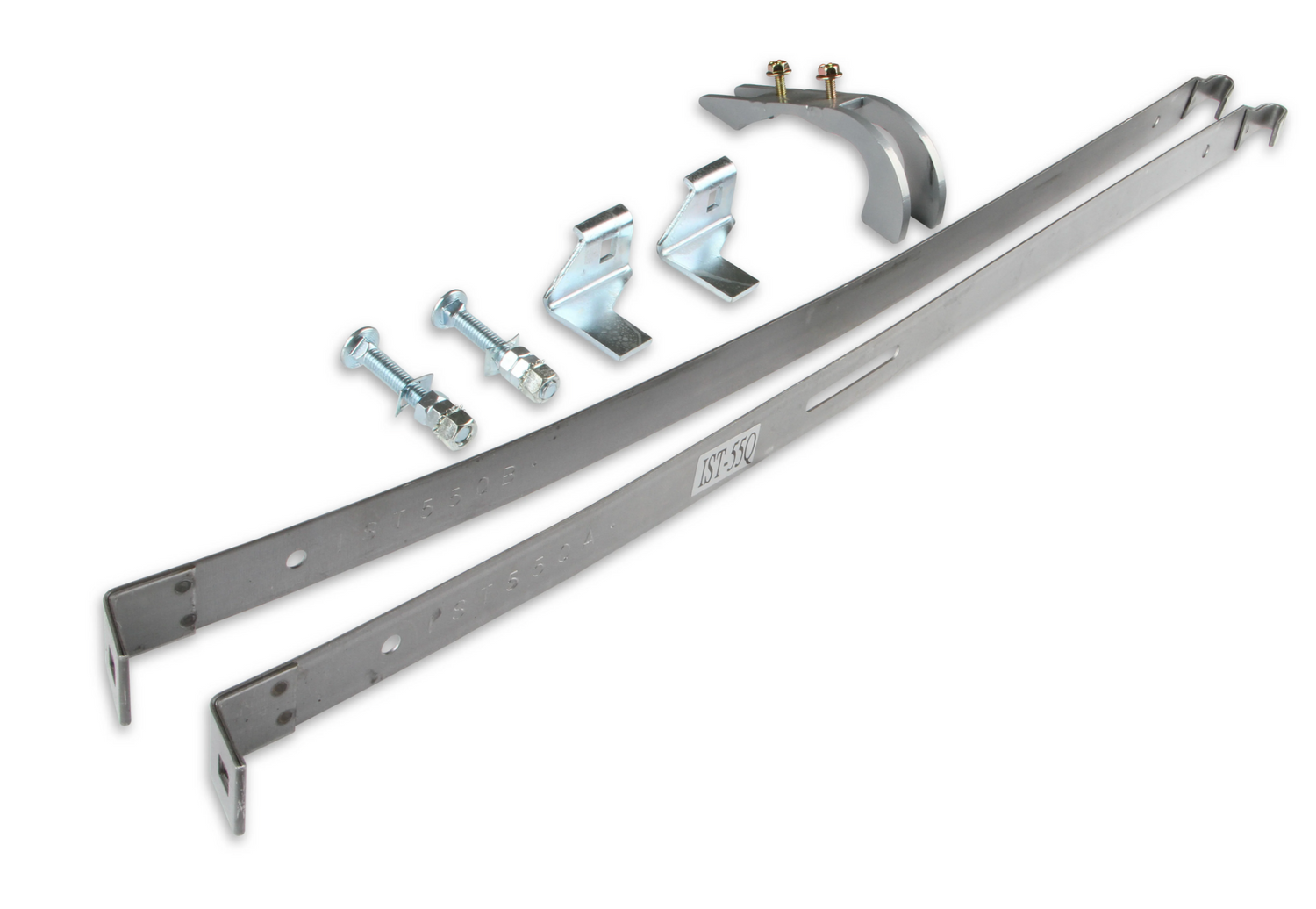

  • Includes new tank straps

Application

1963-67 Chevrolet Corvette

Attached Sump

Yes

Baffled Sump

Yes

Brand

Holley Sniper EFI

Color

Silver

Drain Plug

No

Emission Code

3

Finish

Powdercoated

Free Flow LPH

400

Fuel Sending Unit Ohms

0-90 Ohms

Fuel System Compatibility

Electronic Fuel Injection

Fuel System Type

Gasoline

Fuel Tank Coating

Powder Coated

Gallon Capacity

18

Grade Type

Performance

Lock Ring Included

Yes

Material

Steel

Maximum Flow Rating

400 LPH

Mounting Straps Included

Yes

New Straps Included

Yes

O-Ring Included

Yes

Product Type

Fuel Tank

Resistance Ohms Empty

0 82

Resistance Ohms Full

120 82

Sale Category

Air and Fuel Delivery

Tank Capacity

18 GA

Tank Color

Gray

Tank Material

Steel

Warranty

Limited 90 Day

UPC

090127051702

Part Number

19-447
