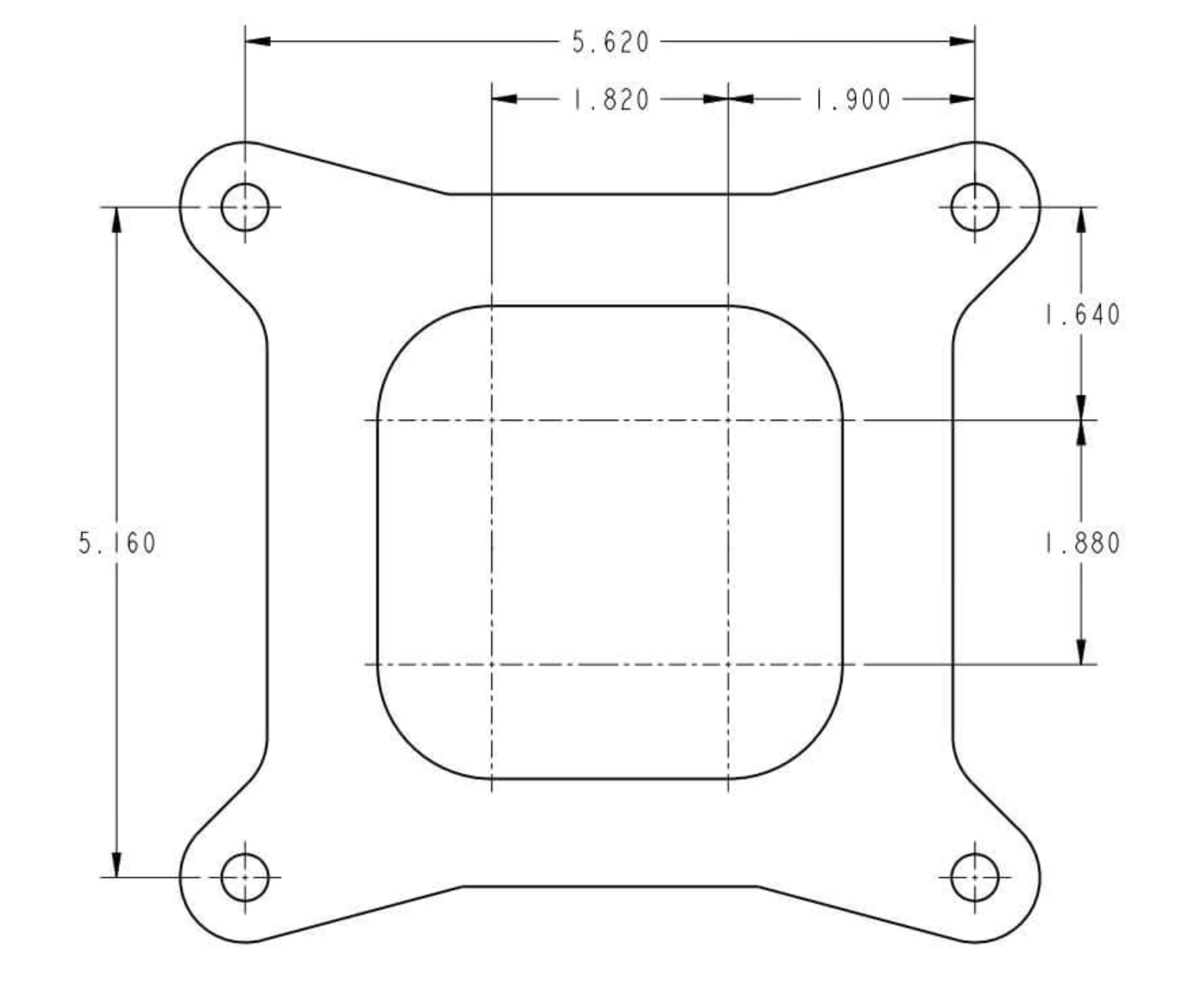

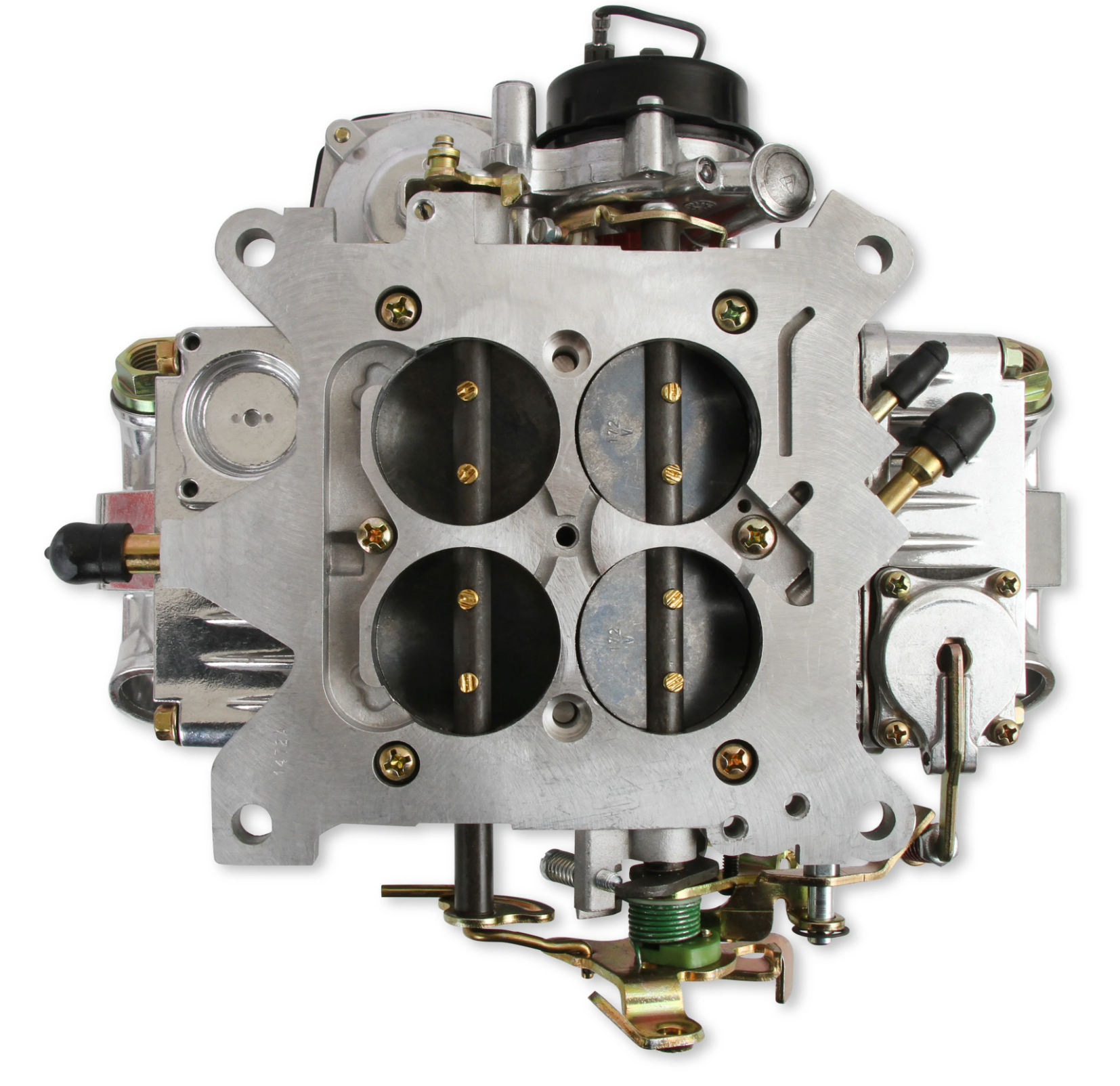

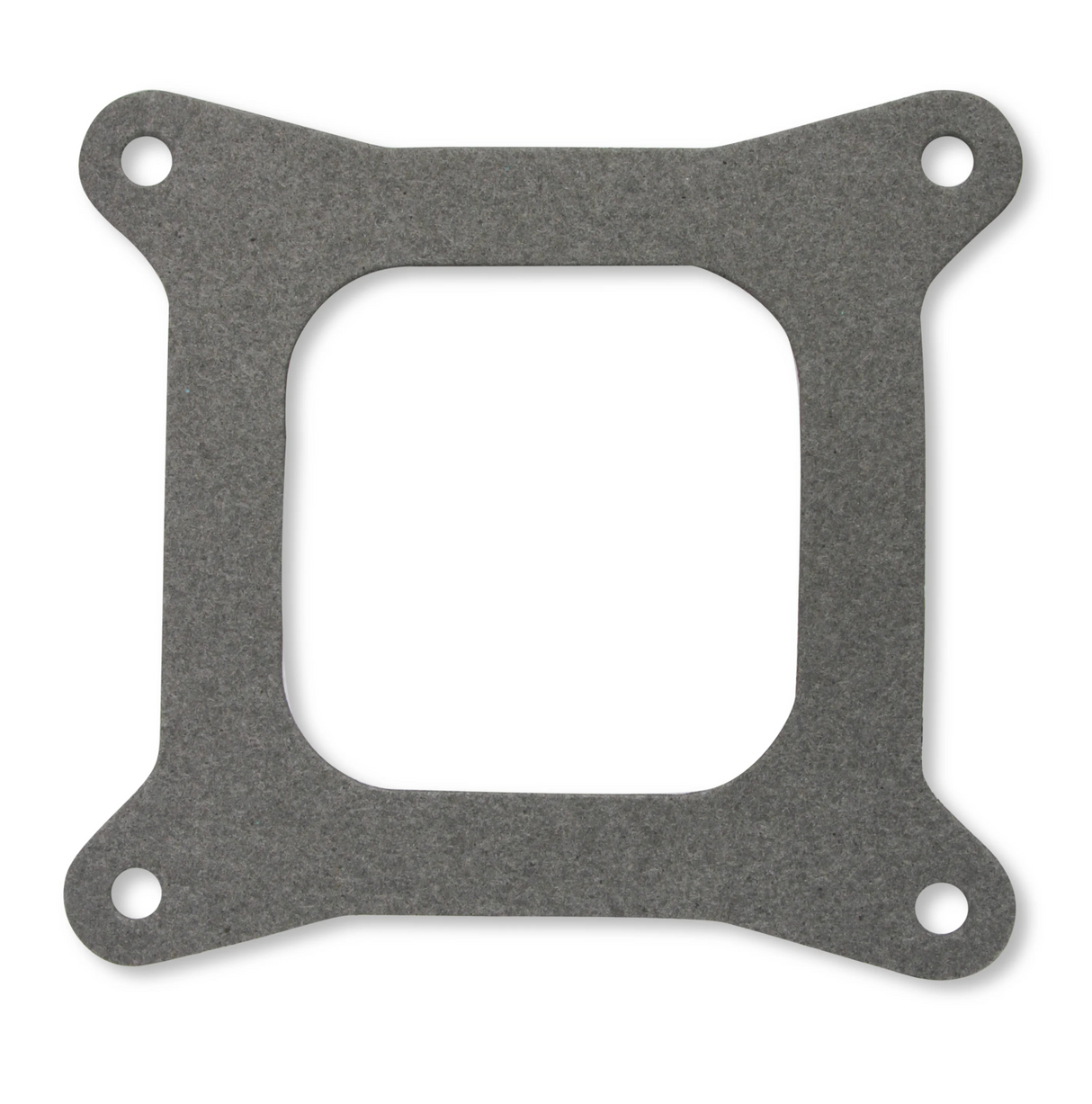

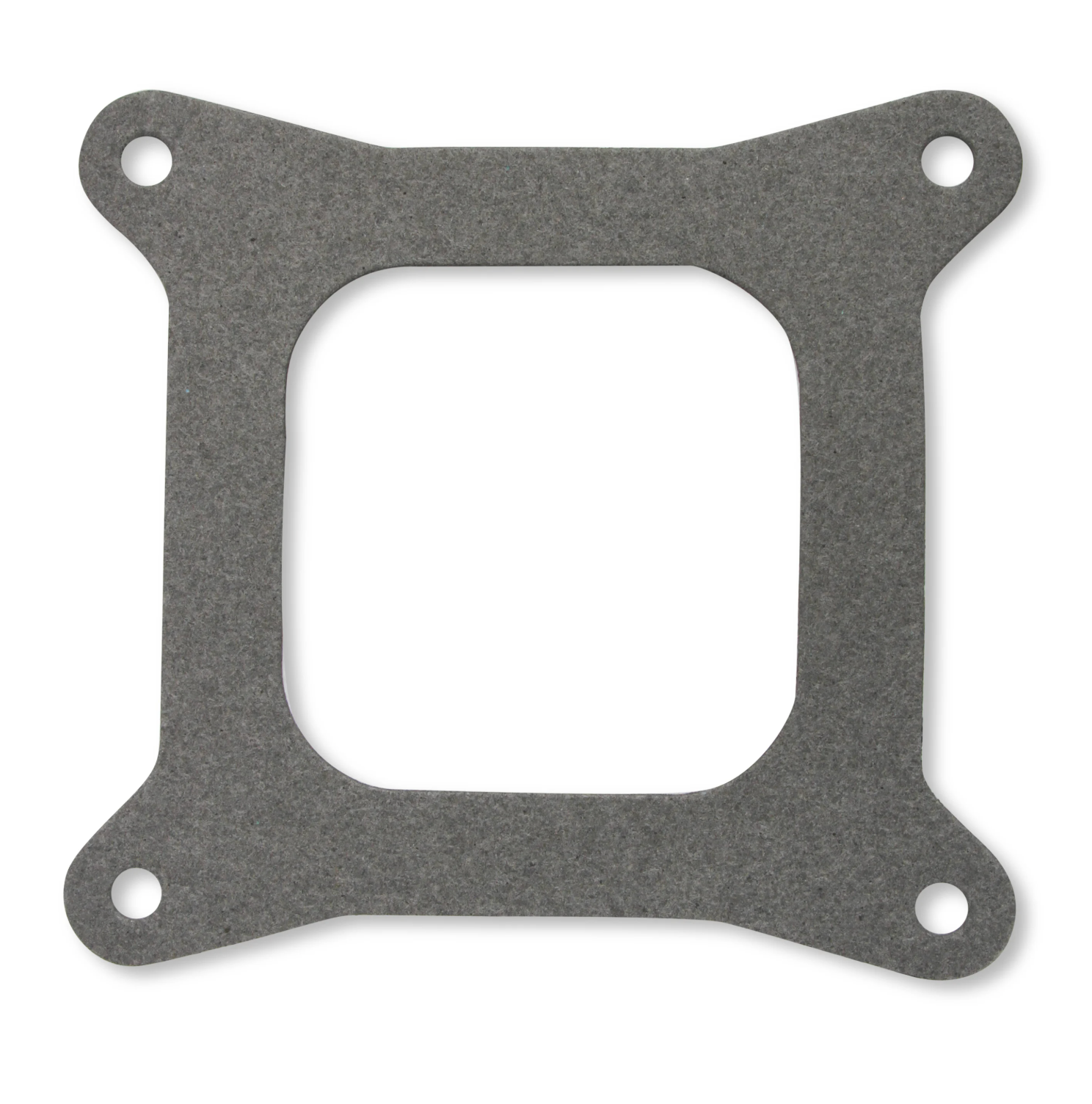

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

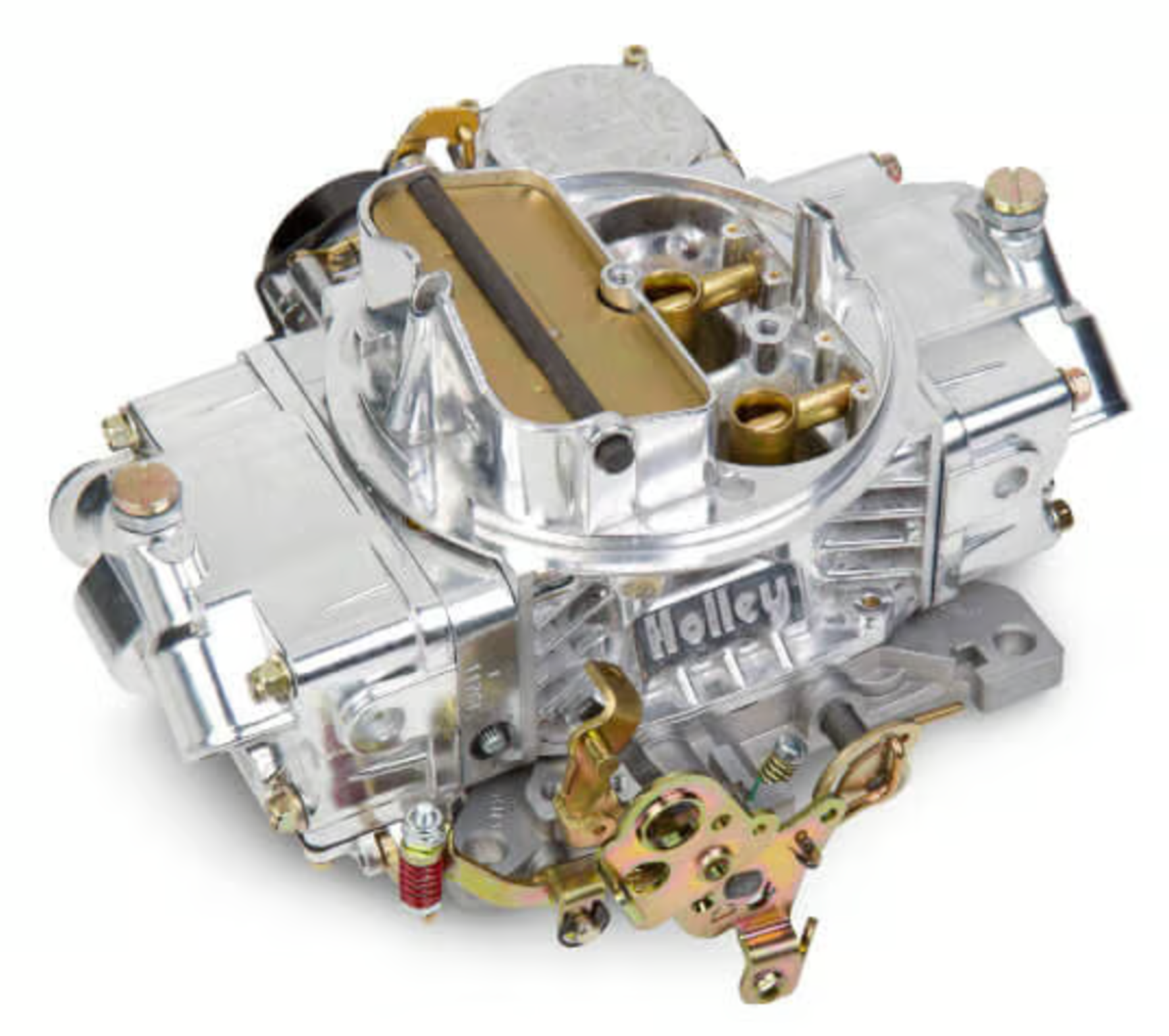

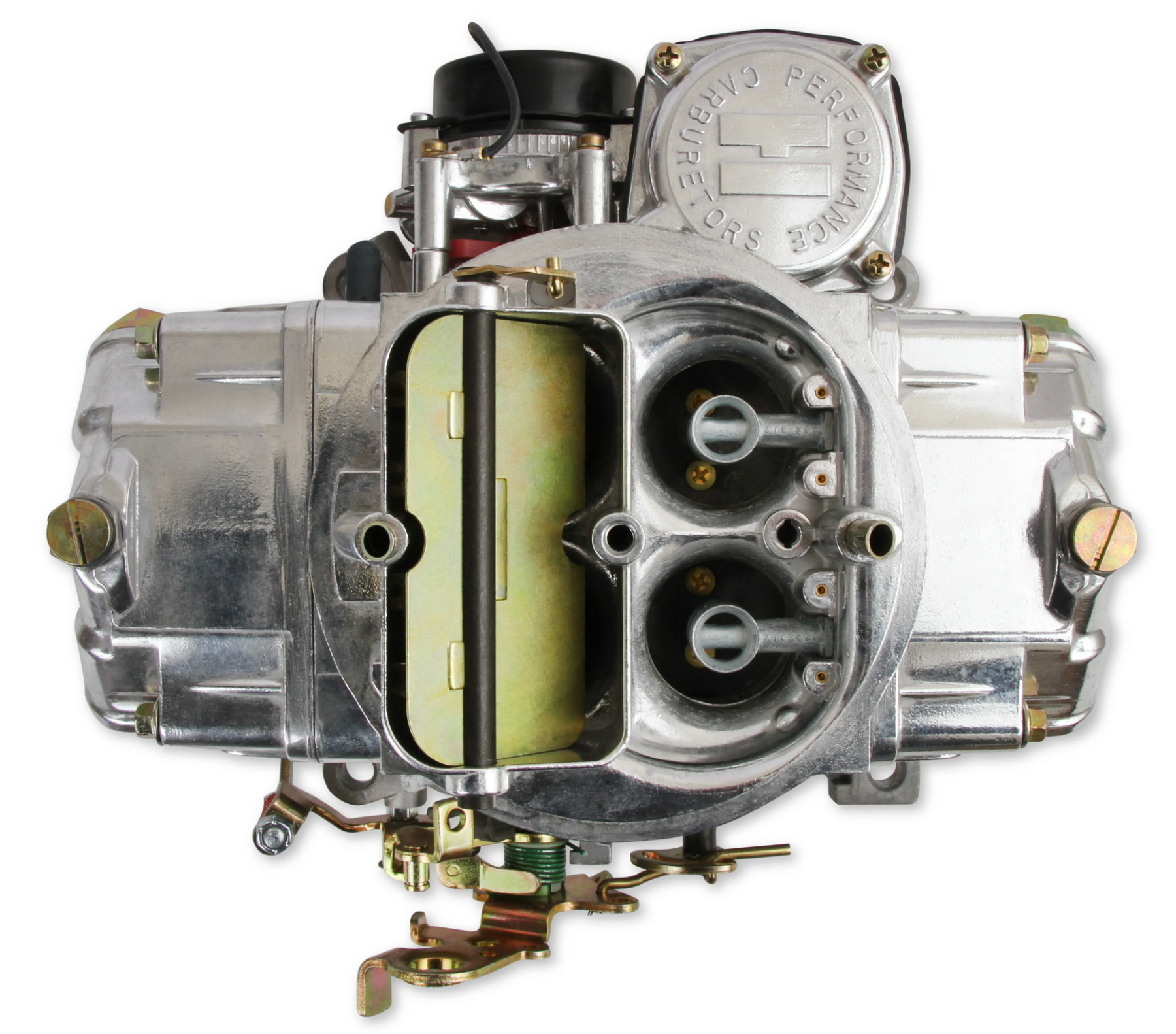

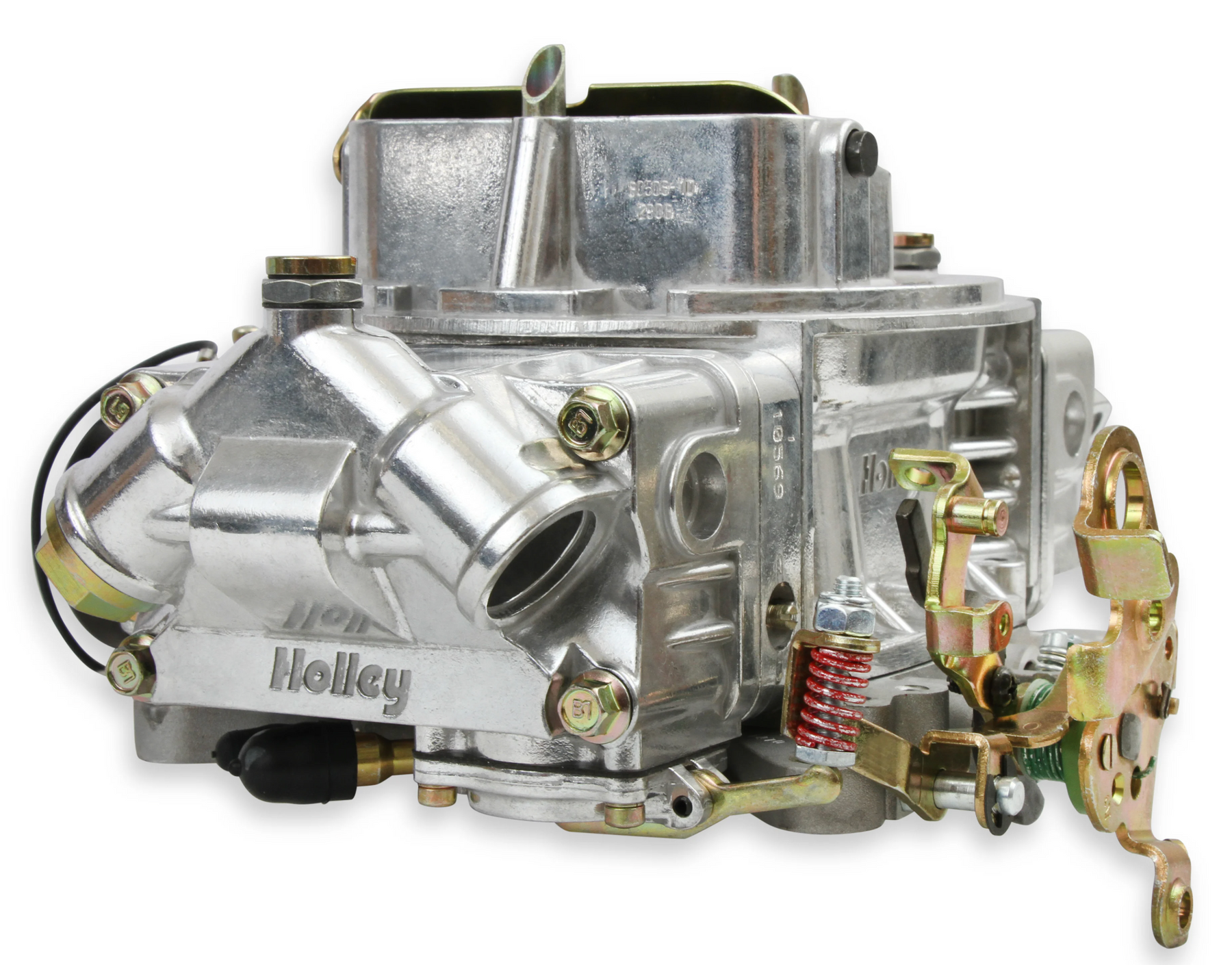

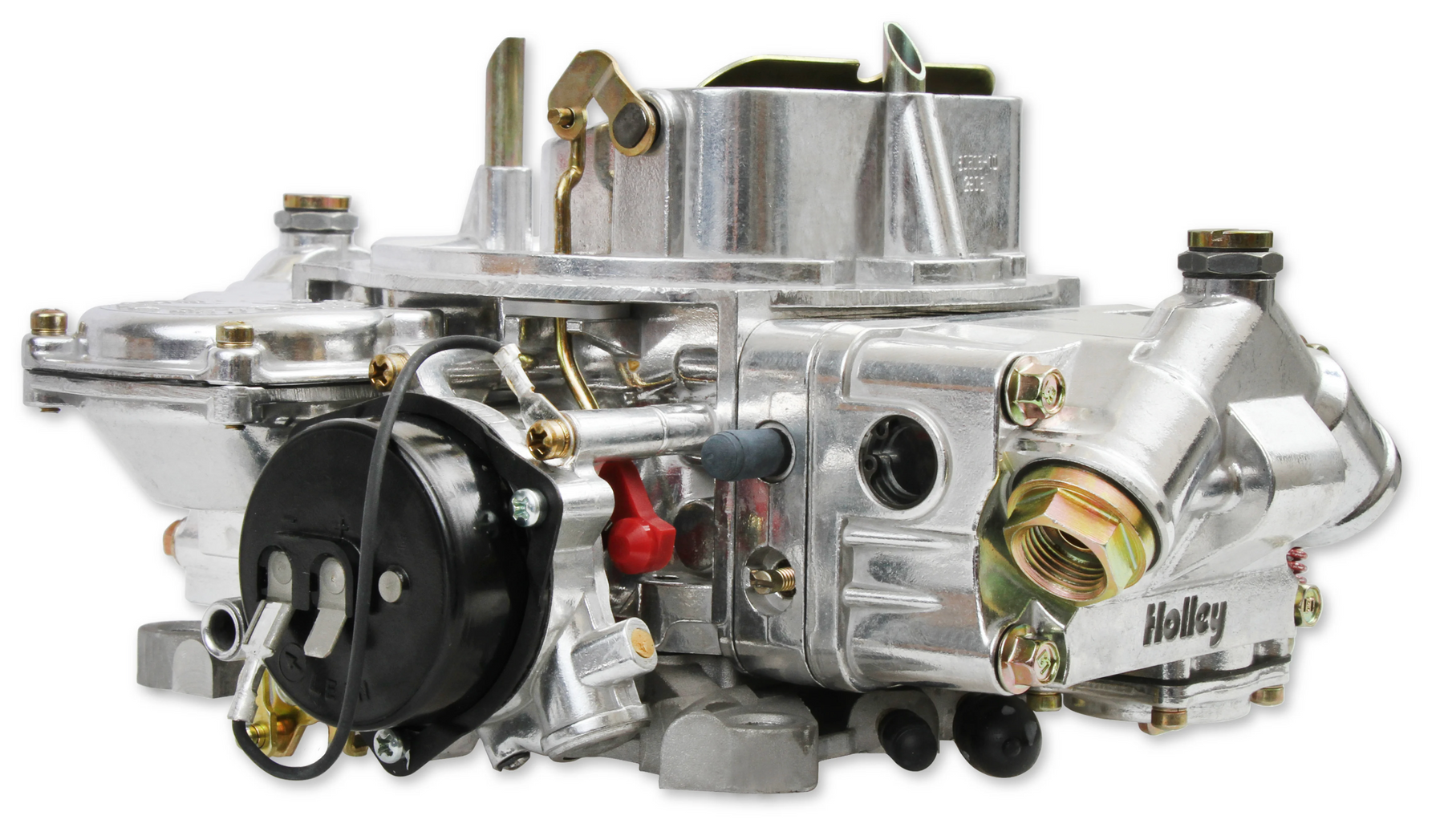

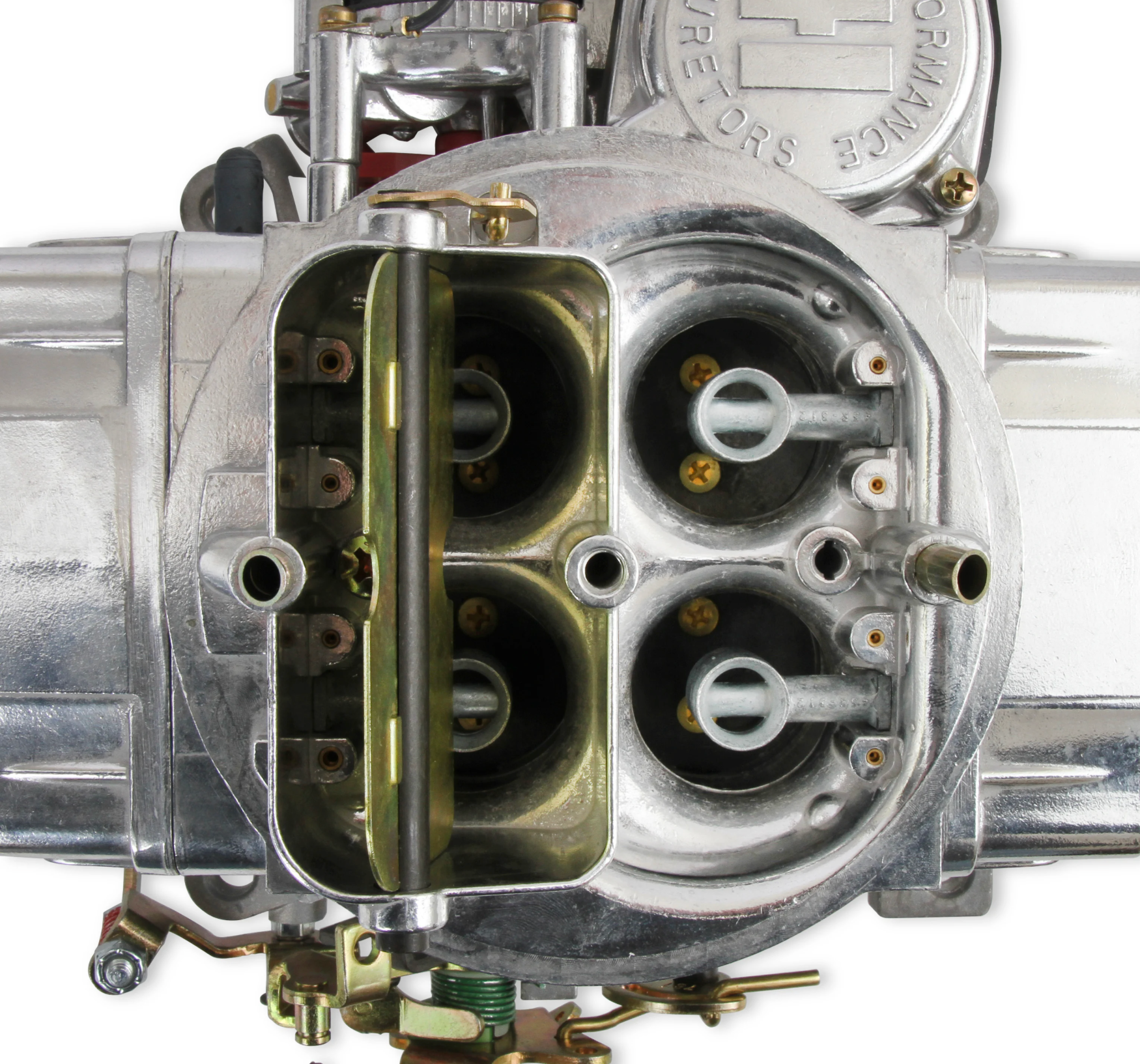

Holley's all-aluminum 0-80458SA carburetor was designed for the rodder with a mildly built engine and a desire for a racy dual inlet look, but who only needs a 600 CFM carburetor. Dual feed fuel inlets assure you get all the fuel you need while its vacuum secondaries and electric choke make it amazingly universal. Don't trust your performance to just anyone, Holley is the only modular carburetor company that has been in business for over 100 years and has powered every NASCAR champion since the '60s.
-
Vibratory polished aluminum for good looks, weight savings and long lasting shine
-
Performance upgrade for stock to mildly modified vehicles
-
Universal calibration for easy bolt-on performance
-

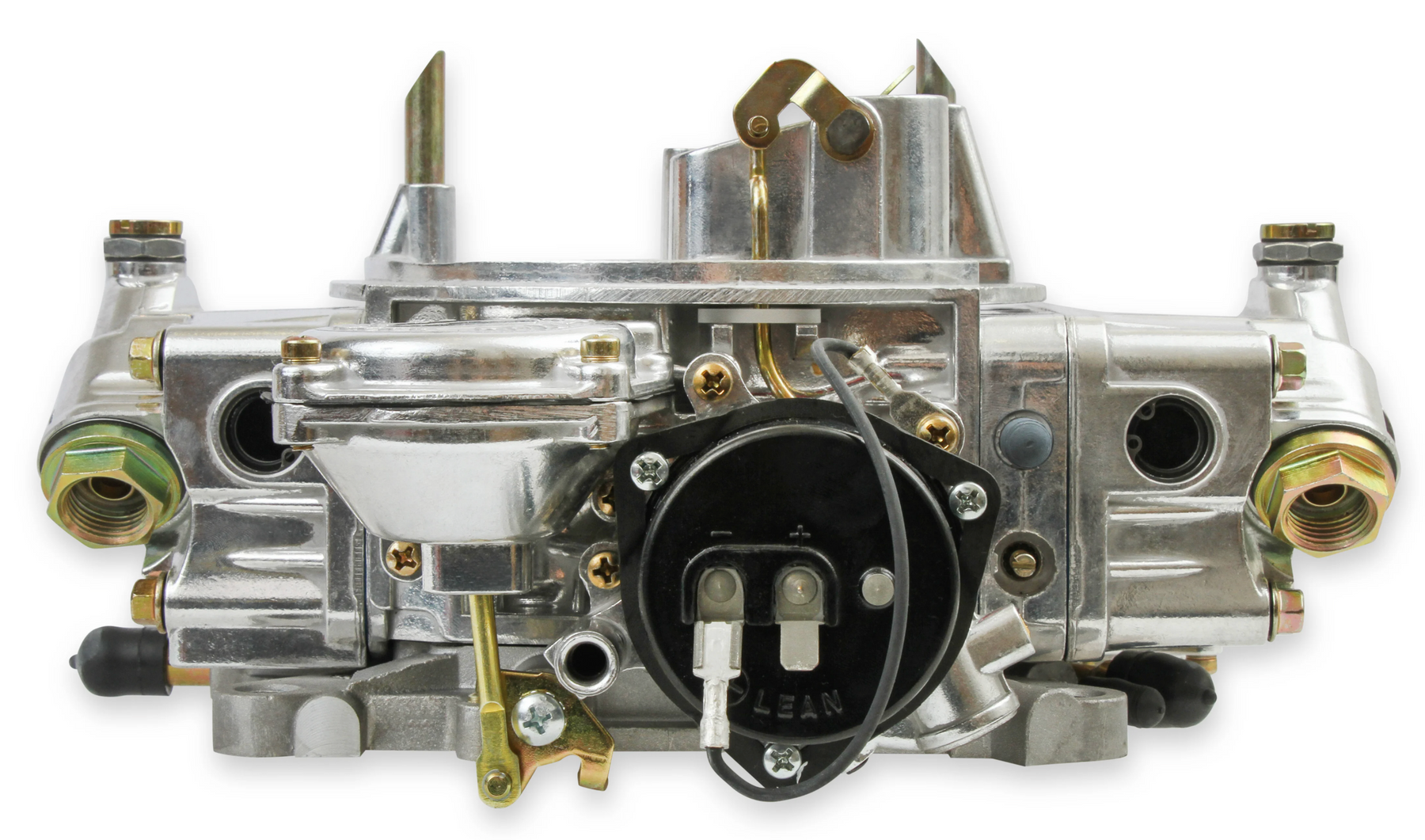

Factory preset electric choke for easy startups
-
Vacuum secondaries for use on wide variety of vehicles. Compensate for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries.
-

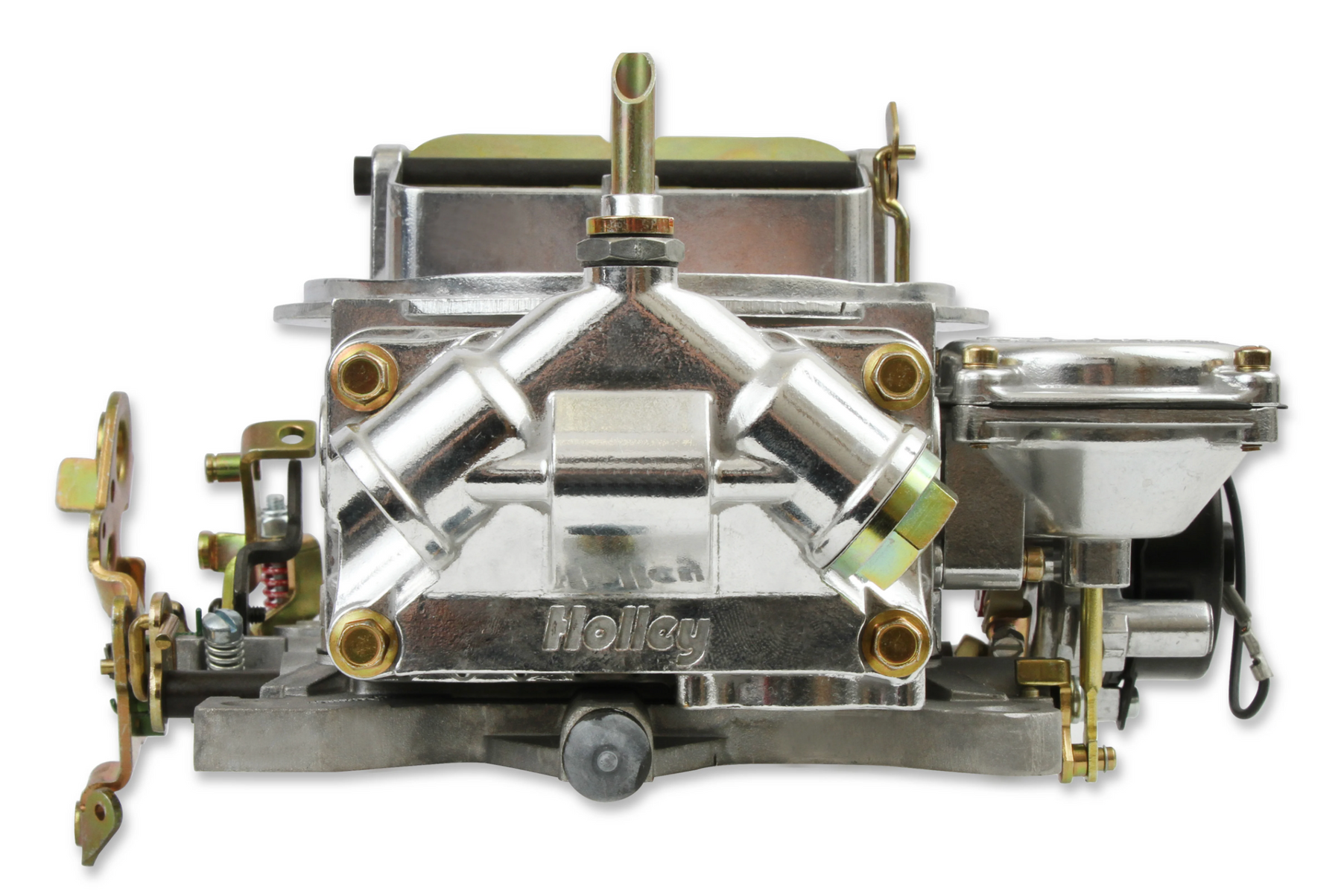

Dual feed fuel inlets for constant high volume fuel delivery
-
Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
-
Power valve blow-out protection
-
Clear fuel level sight glasses
-
100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Barrel Quantity |
4 |
|---|---|
Barrels |
4 |
Billet Color |
None |
Body Color |
Polished |
Body Finish |
Polished |
Booster |
Straight |
Booster Design |
Straight |
Brand |
Holley |
Carburetor Material |
Aluminum |
Carburetor Use |
Street |
CFM |
600 |
Choke |
Electric |
Choke Type |
Electric |
Circuit |
2 |
Condition |
New |
Cubic Feet Per Minute Rating |
600 |
Emission Code |
3 |
Finish |
Shiny |
Flange Type |
Square/4150 |
Fuel |
Gasoline |
Fuel Inlet |
Dual |
Grade Type |
Performance |
Linkage Attached |
Yes |
Marine Approved |
No |
Marine Use |
No |
Material |
Aluminum |
Model |
4160 |
Mounting Hole Quantity |
4 |
Primary Jet Diameter |
65 |
Primary Main Jet |
65 |
Primary Power Valve |
6.5 |
Primary Pump Nozzle Size |
31 |
Product Type |
Carburetor |
Sale Category |
Carburetors and Components |
Secondaries |
Vacuum |
Spacer Included |
No |
Supercharged Application |
No |
Throttle Bore |
1.563 inch |
Warranty |
Limited 90 Day |
UPC |
090127682210 |
Part Number |
0-80458SA |
