COMPATIBLE:
2004 - 2005 CADILLAC CTS-V (5.7L-LS6)
1998 - 2002 CHEVROLET CAMARO (5.7L-LS1)
1997 - 2004 CHEVROLET CORVETTE (5.7L-LS1)
2001 - 2004 CHEVROLET CORVETTE Z06 (5.7L-LS6)
2005 - 2008 CHEVROLET CORVETTE (6.0L-LS2)
1998 - 2002 PONTIAC FIREBIRD (5.7L-LS1)

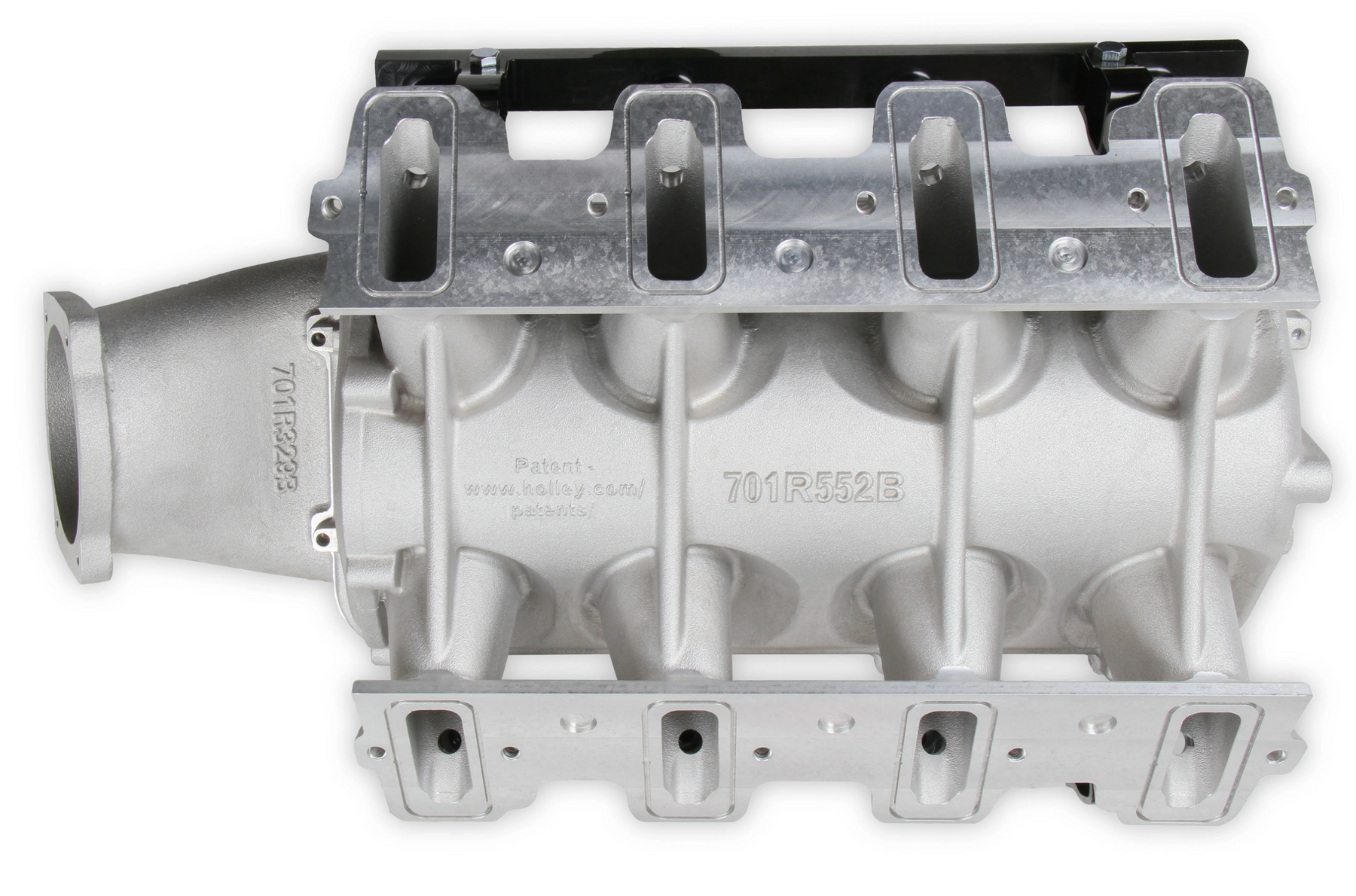

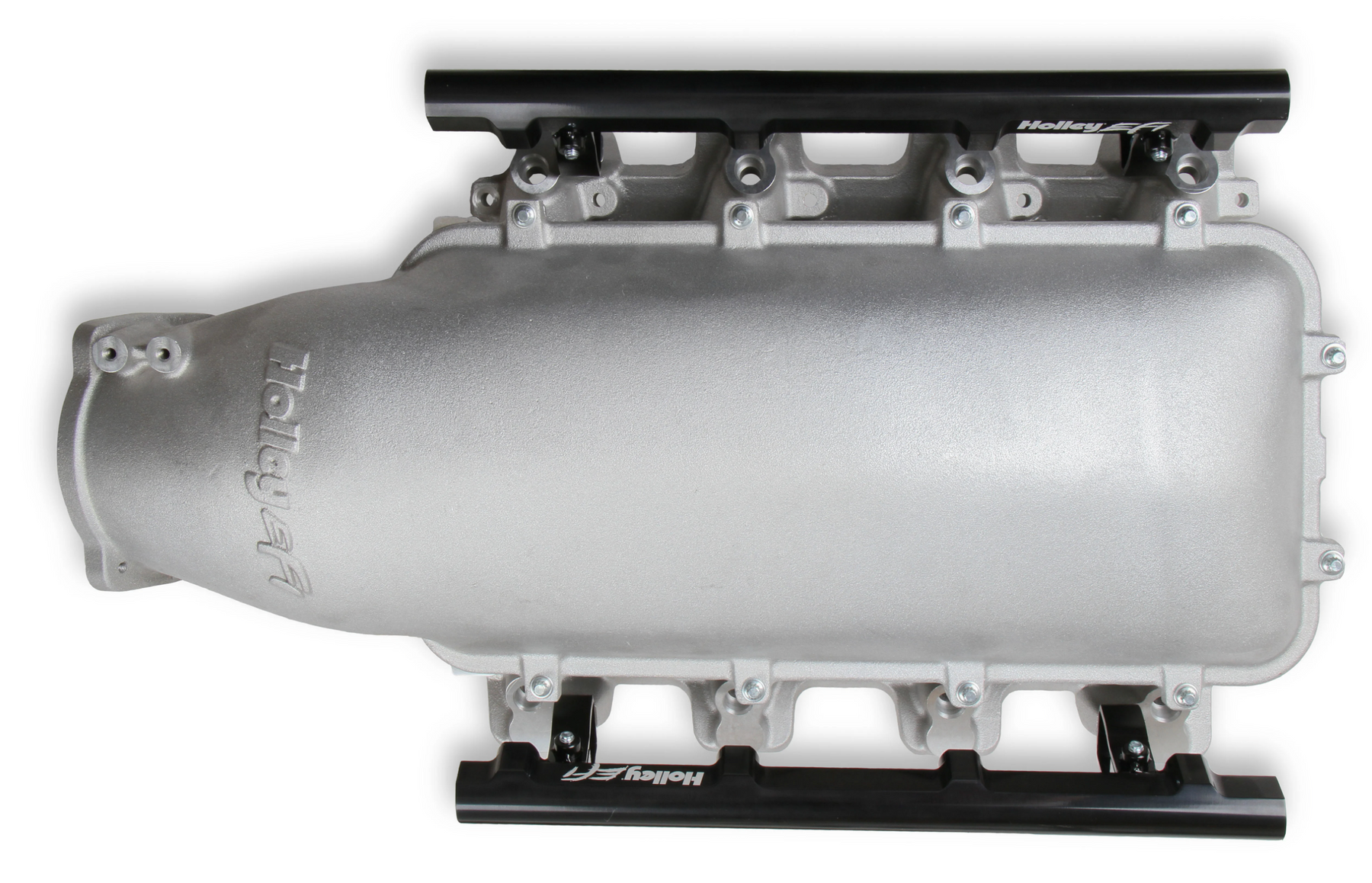

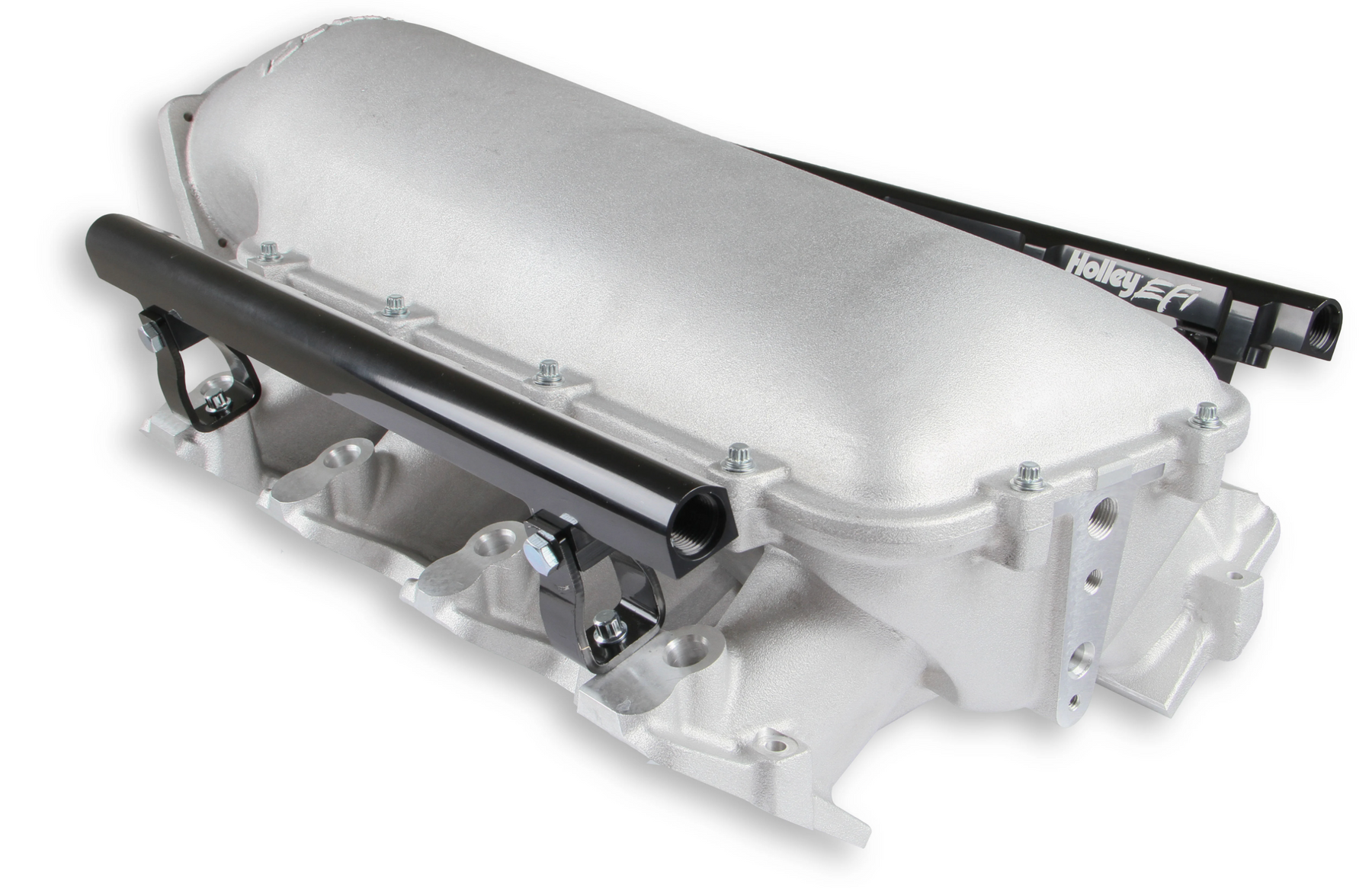

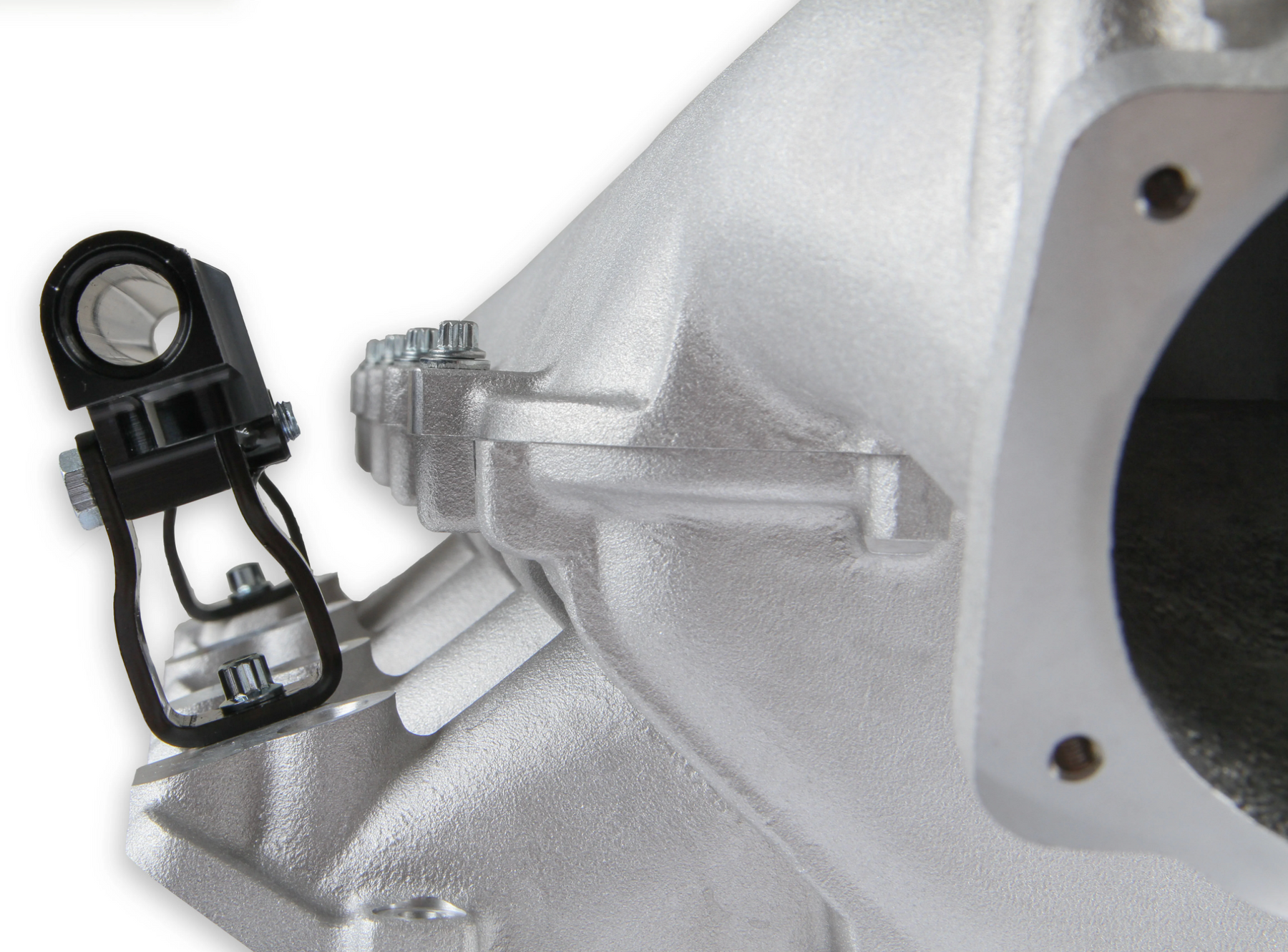

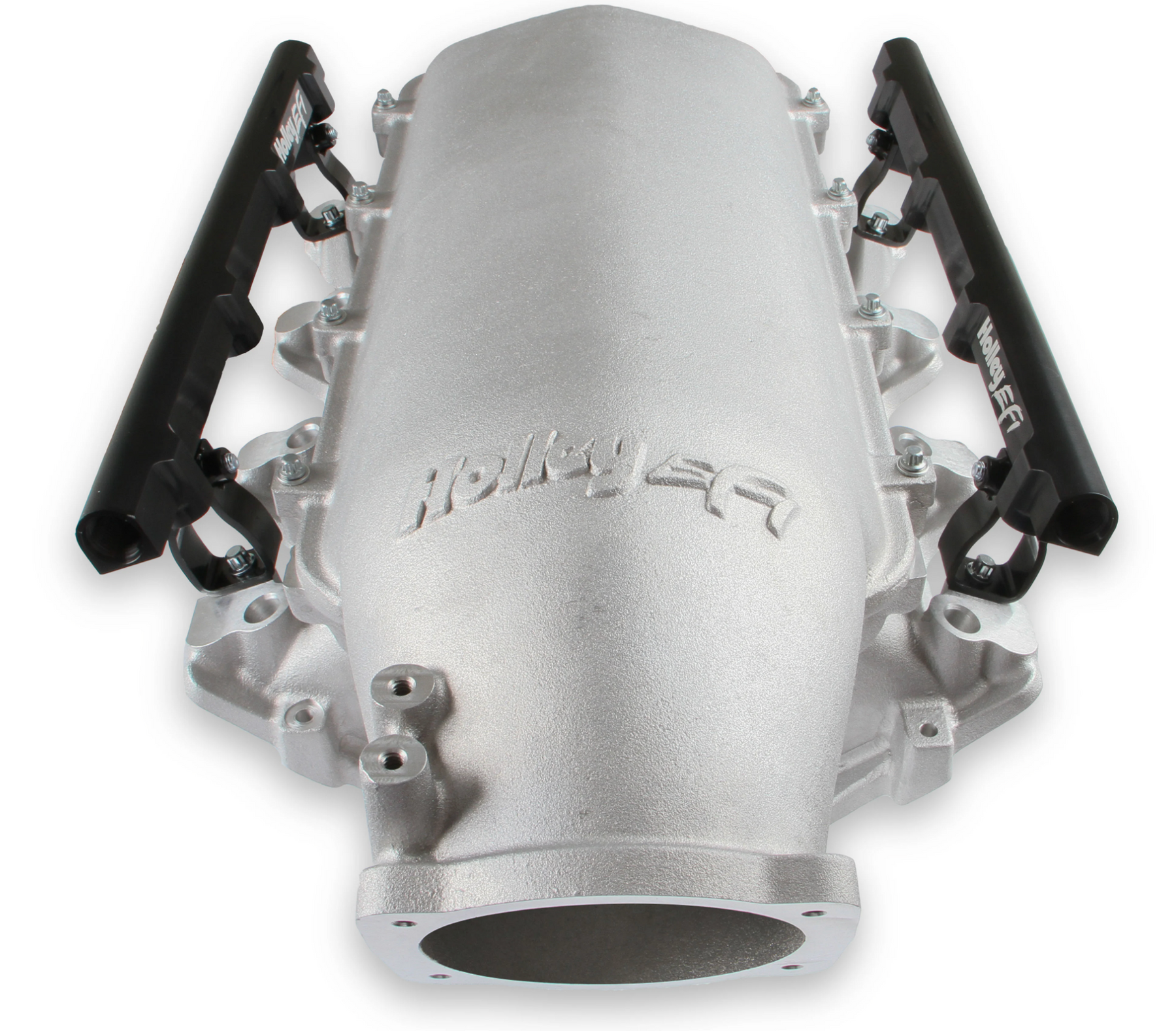

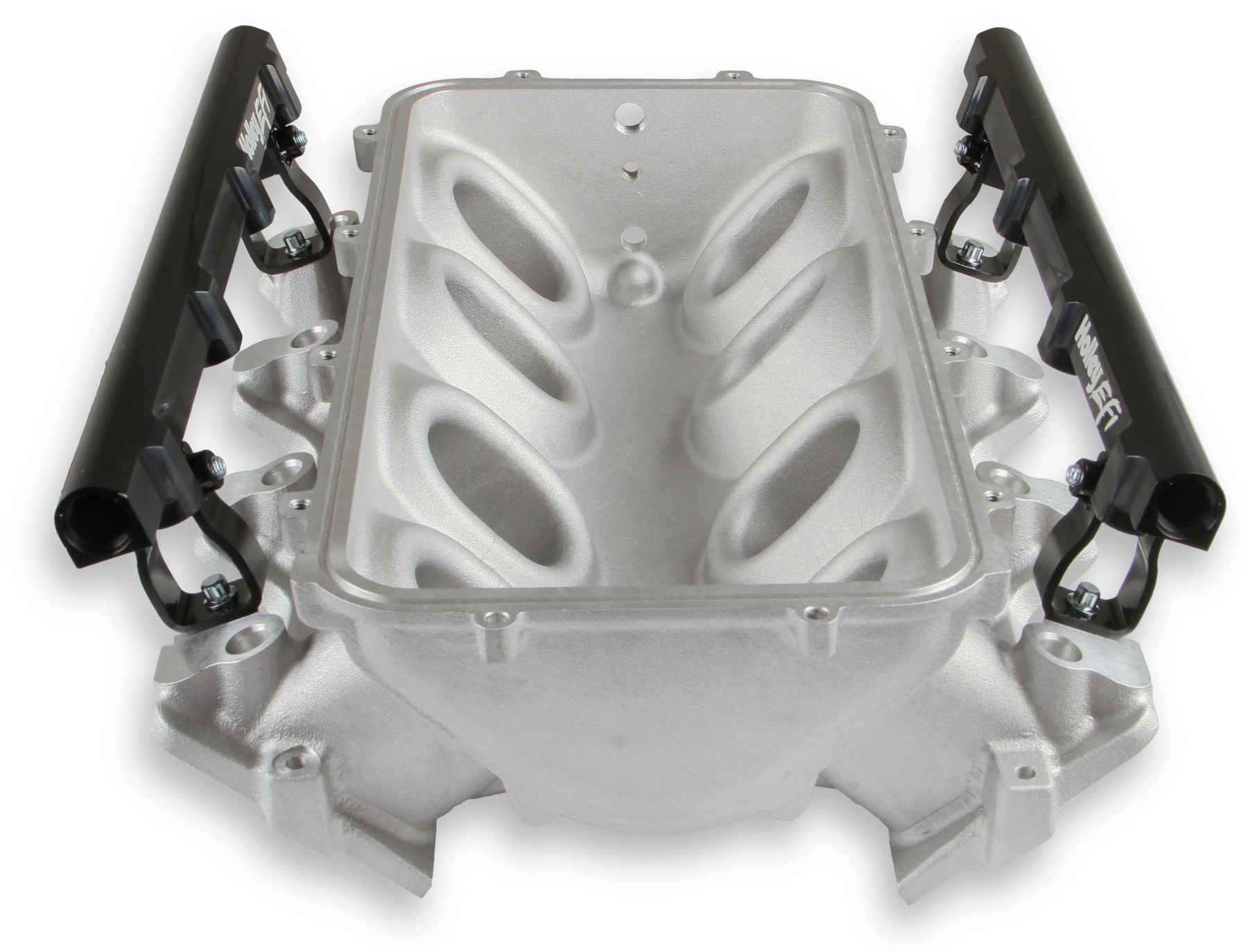

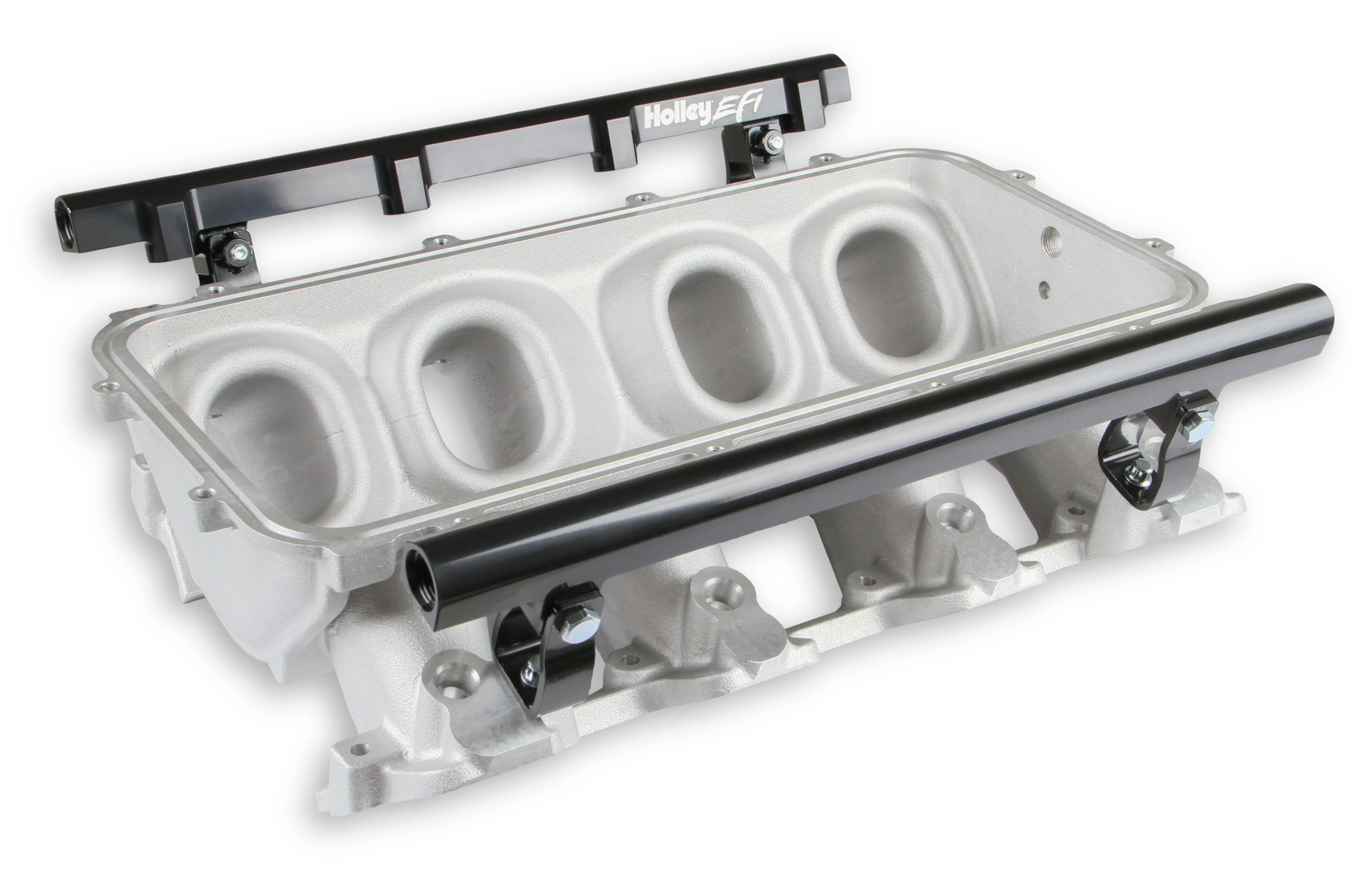

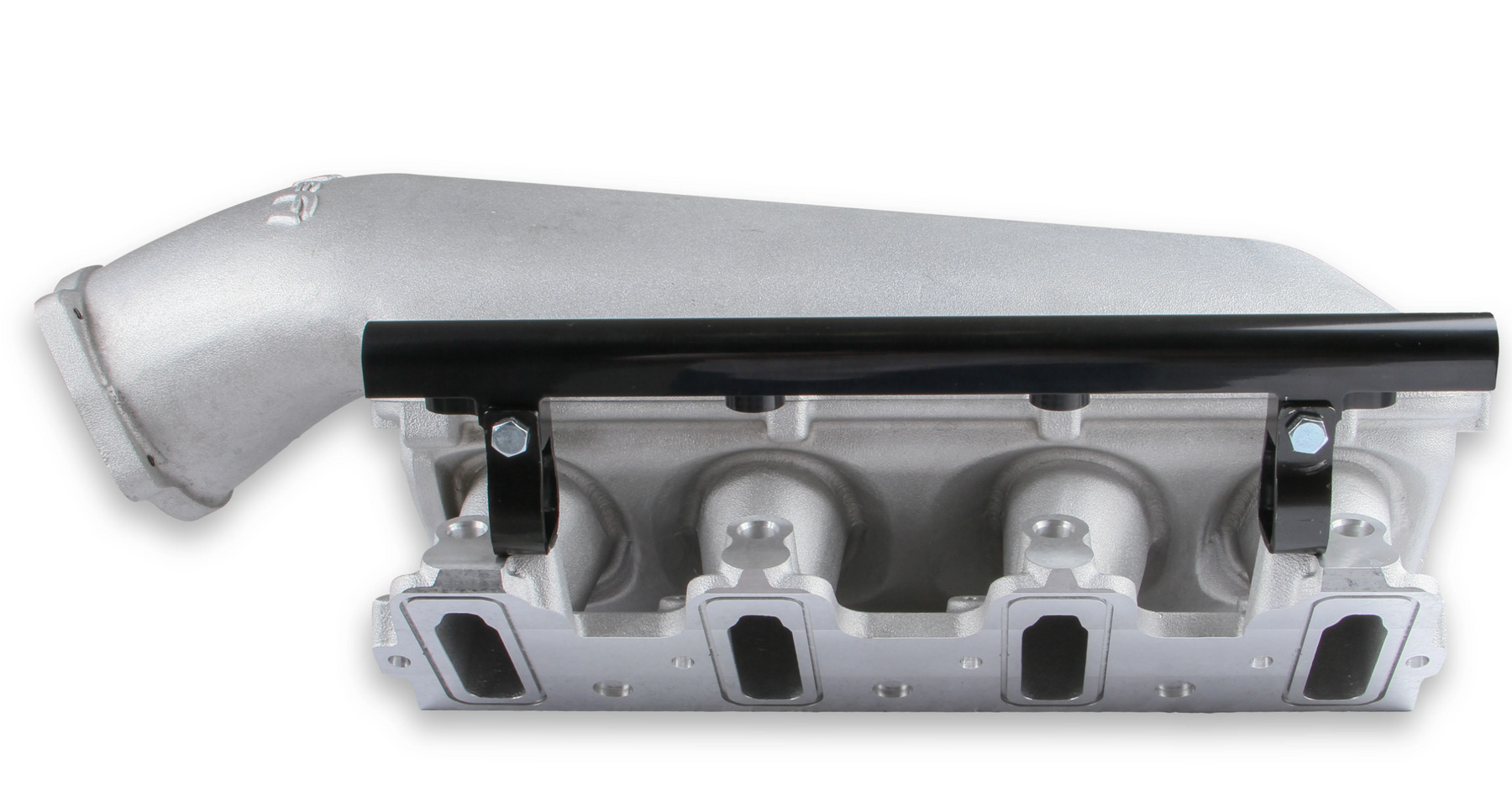

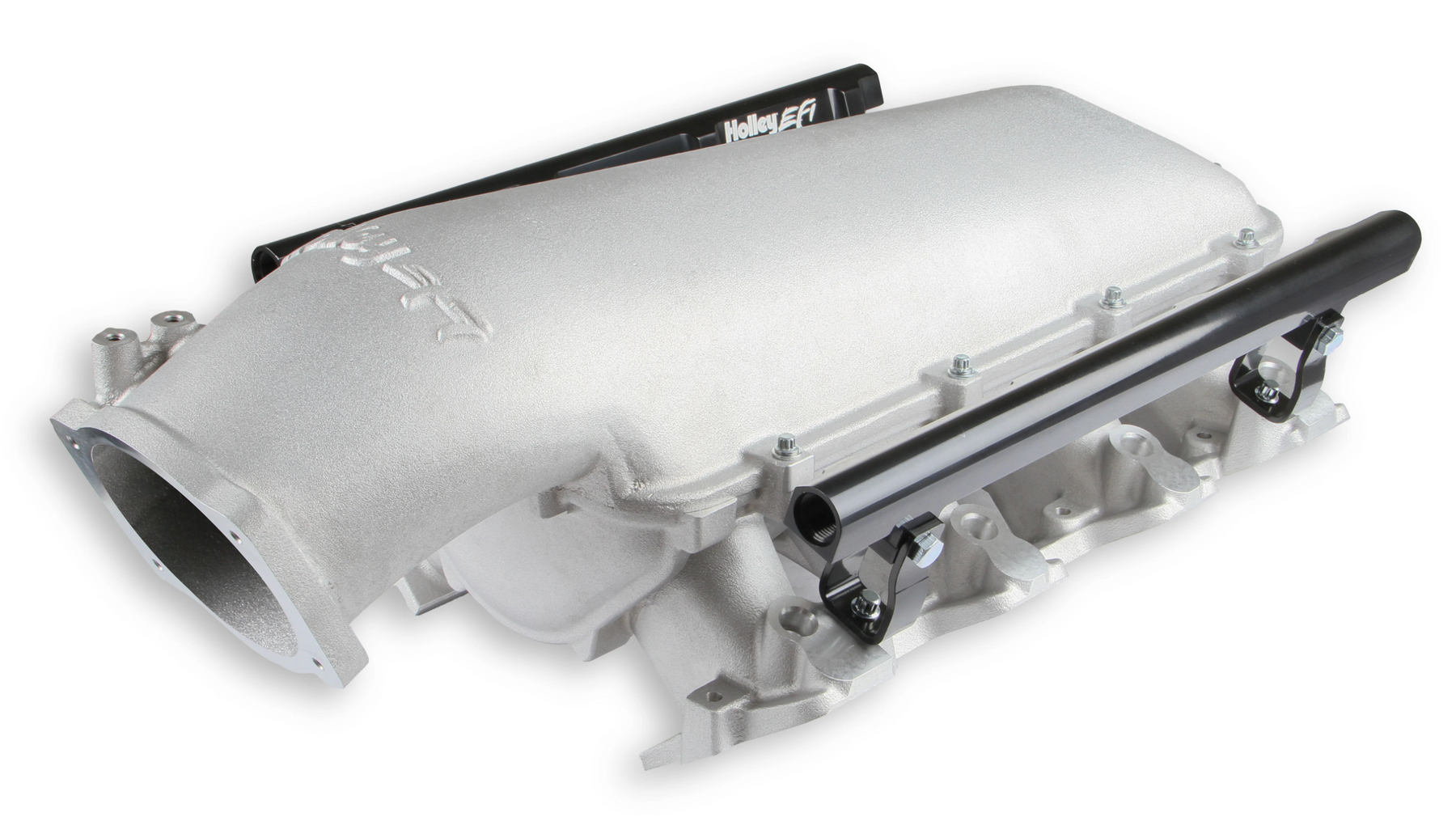

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration. The 300-620 plenum entry configuration is designed to allow the included Hi-Ram 105 mm plenum top to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
-
Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
-
Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
-

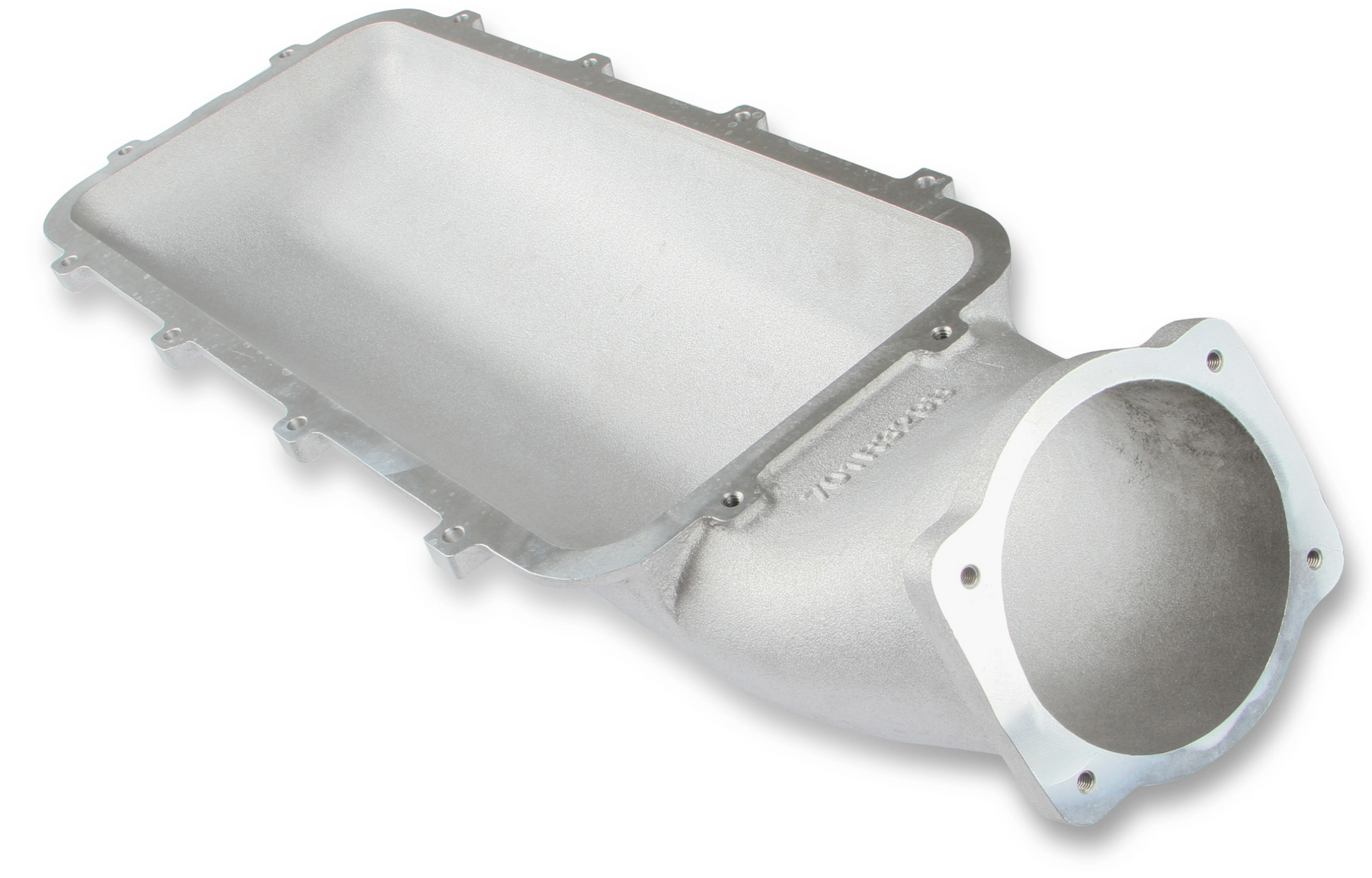

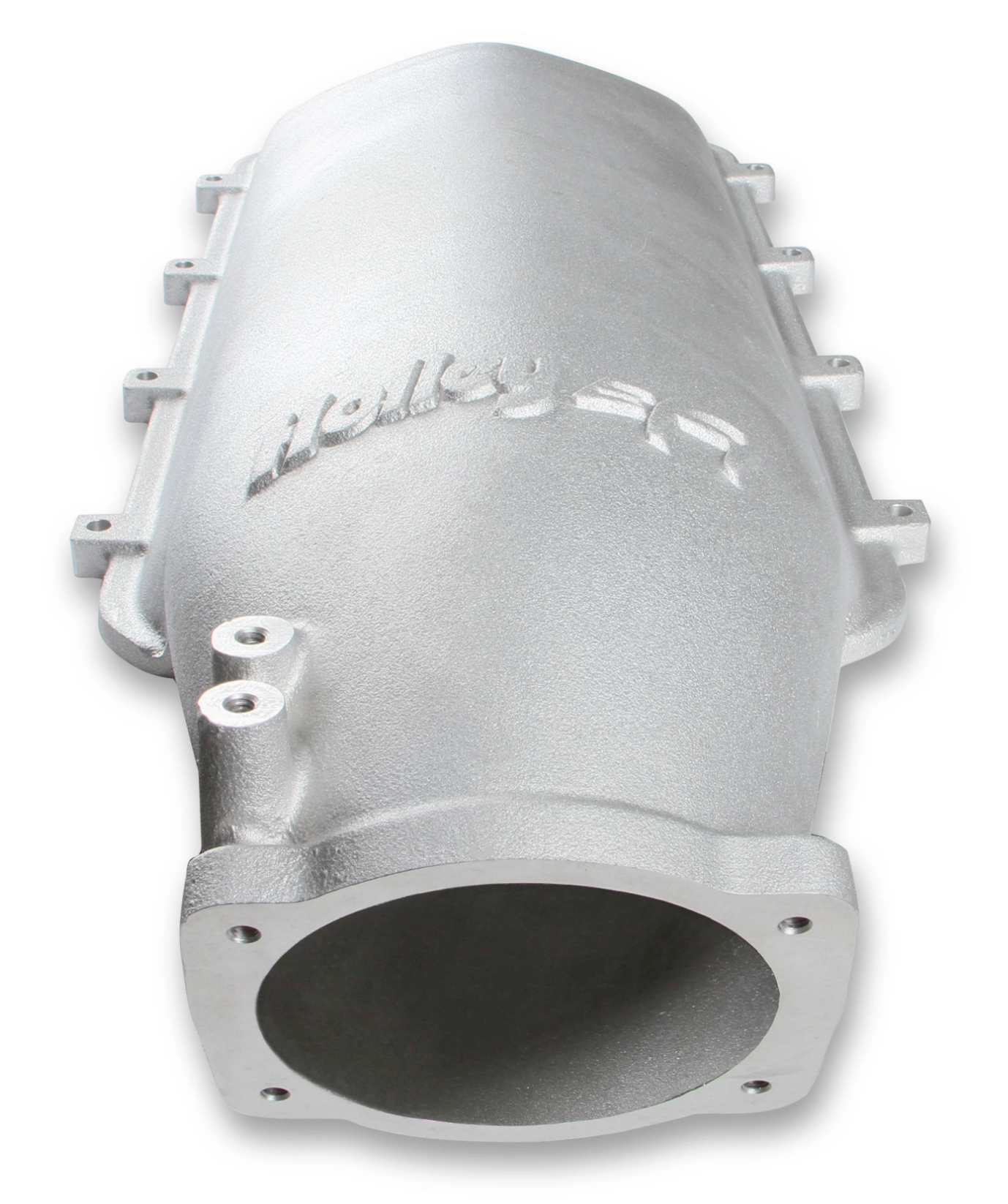

Modular design allowing the use of the included plenum entry
-
Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
-

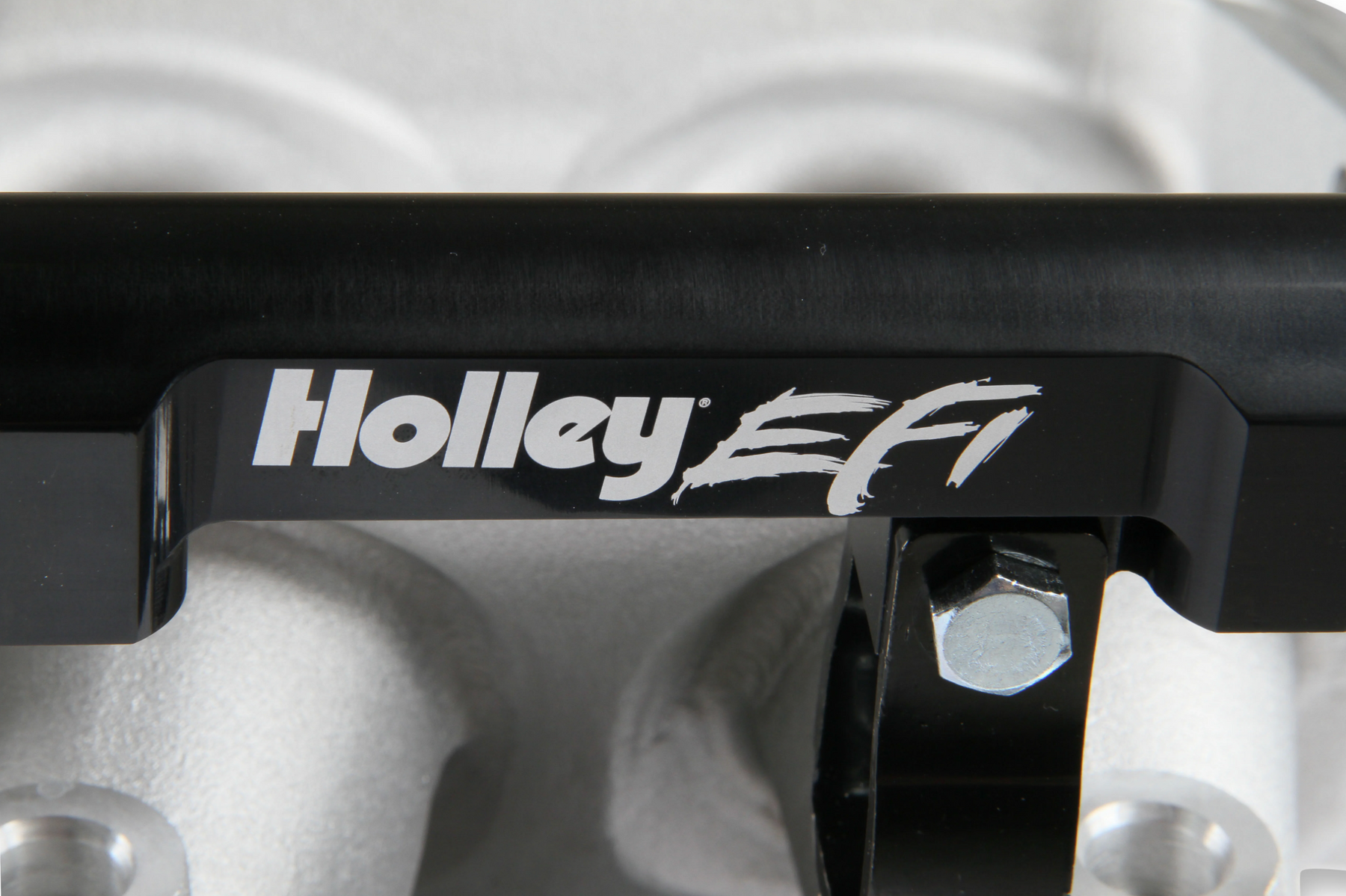

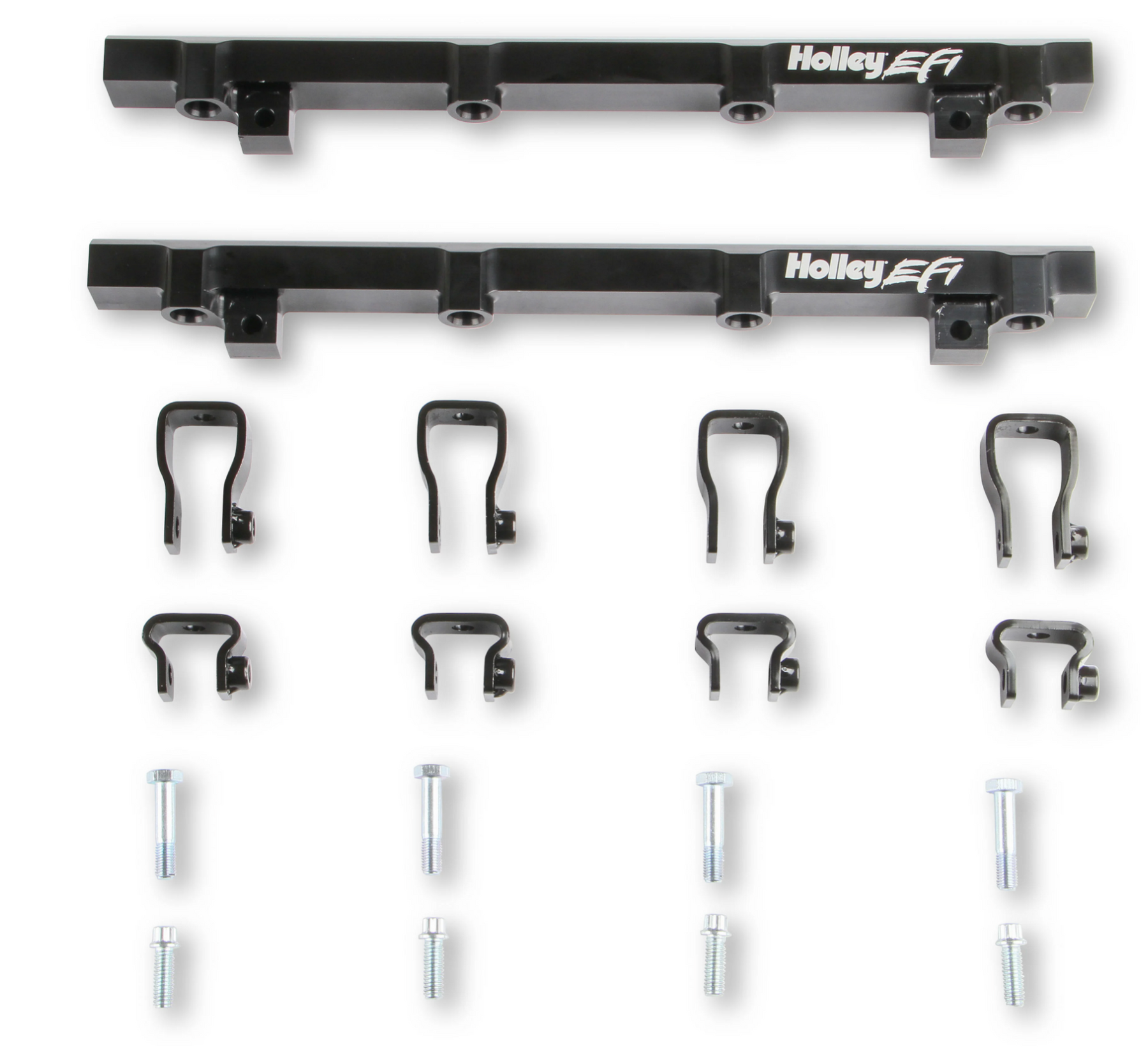

High volume fuel rails and mounting hardware included with ¾”-16 o-ring ports (8 AN)
Basic Operating RPM Range |
3500-8000 RPM |
|---|---|
Brand |
Holley EFI |
Burst Panel Compatible |
Yes |
Category Filter |
Intake Manifolds |
Clearance Category |
Intake Manifolds |
Color |
Silver |
Construction |
Cast |
EGR Port |
No |
Emission Code |
3 |
Engine |
GM LS1/LS2/LS6 |
Finish |
Silver |
Flange Style |
EFI |

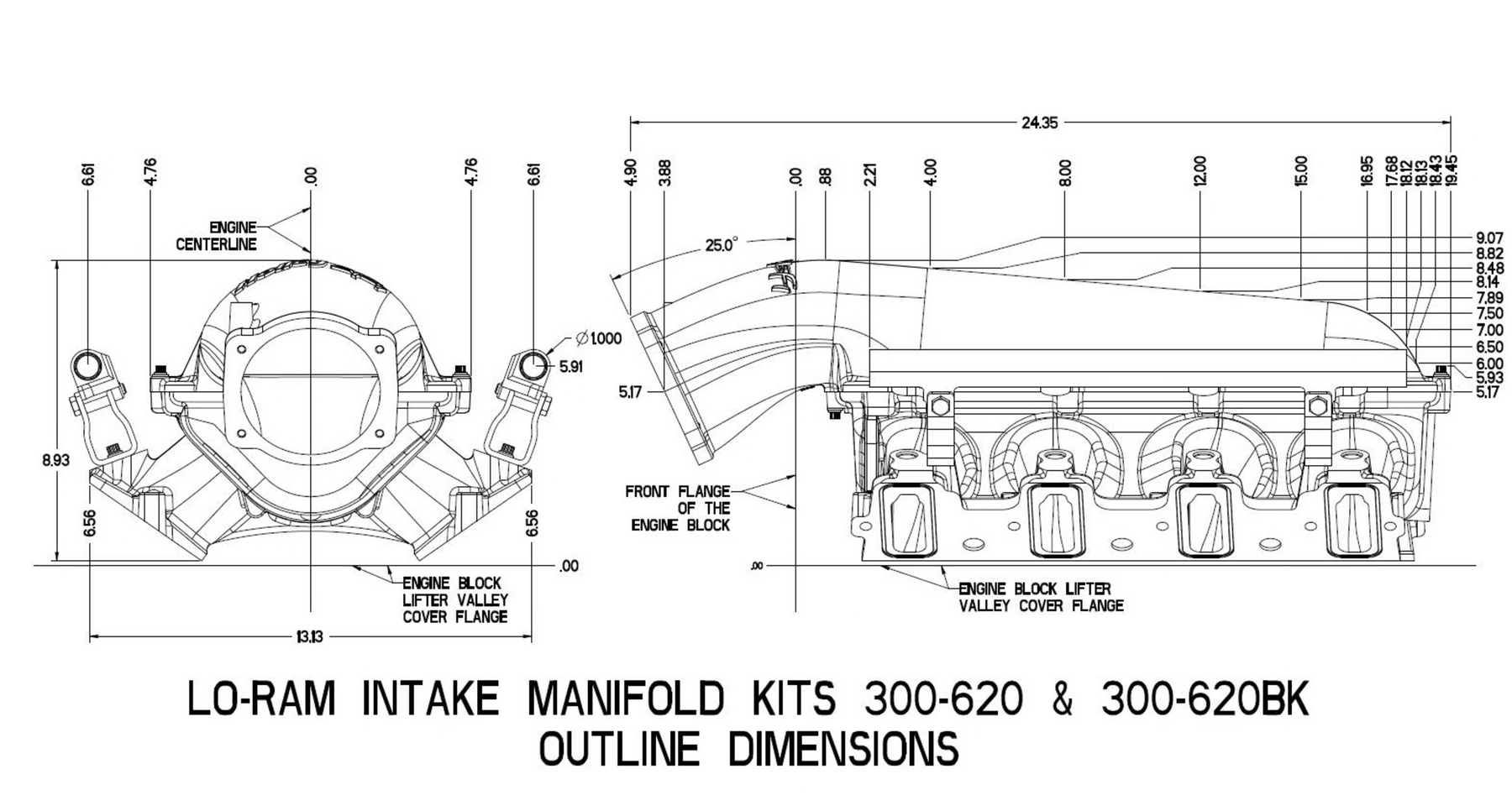

Front Height |
9.07" without Intercooler |
Front Maximum Height |
9.07 IN |
Fuel System Type |
EFI |
Grade Type |
Performance |
Injector Quantity |
Single |
Inlet Location |
Top |
Intake Port Gasket(s) Included |
No |
Manifold Type |
Lo-Ram |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Natural |
Product Type |
Intake Manifold |
Recommended Use |
Forced Induction |
Removable Runners |
No |
RPM Power Band |
3500-8000 RPM |
Sale Category |
Air and Fuel Delivery |
Single Or Dual Plane Type |
Single Plane |
Throttle Body Bore Diameter |
105 MM |
Throttle Body Included |
No |
Warranty |
Limited 90 Day |
UPC |
090127077542 |
Part Number |
300-620 |
