Requires small cap distributor (up to 5-1/8" Diameter), or MSD 8361. HEI style distributor is too large and will not fit. ***There is currently no kick down linkage adaptation for automatic transmission application. Replacement filter Height- 2.5"; Length- 6.5"; Width- 4.3". Use Weiand 90633 or comparable filter.

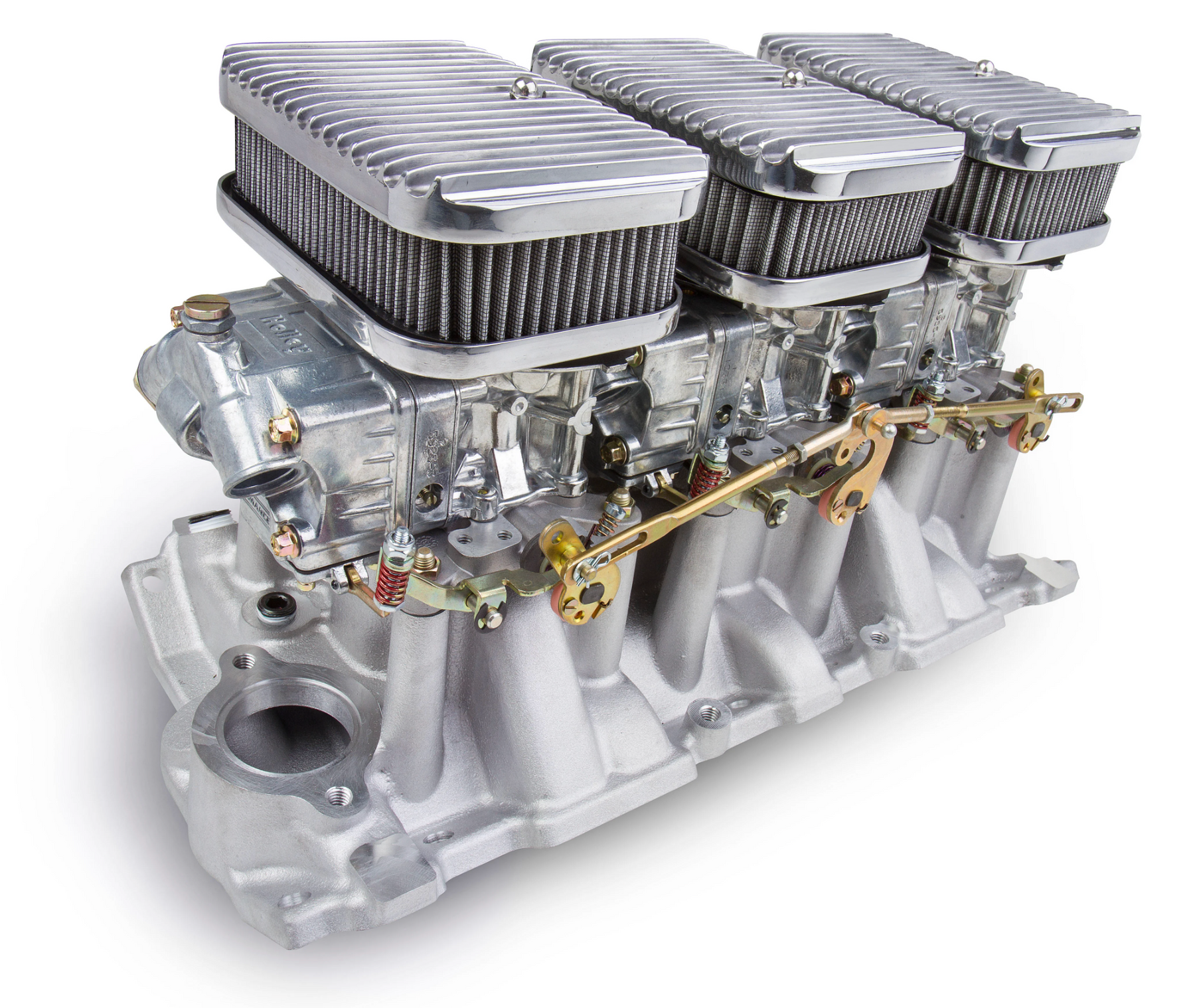

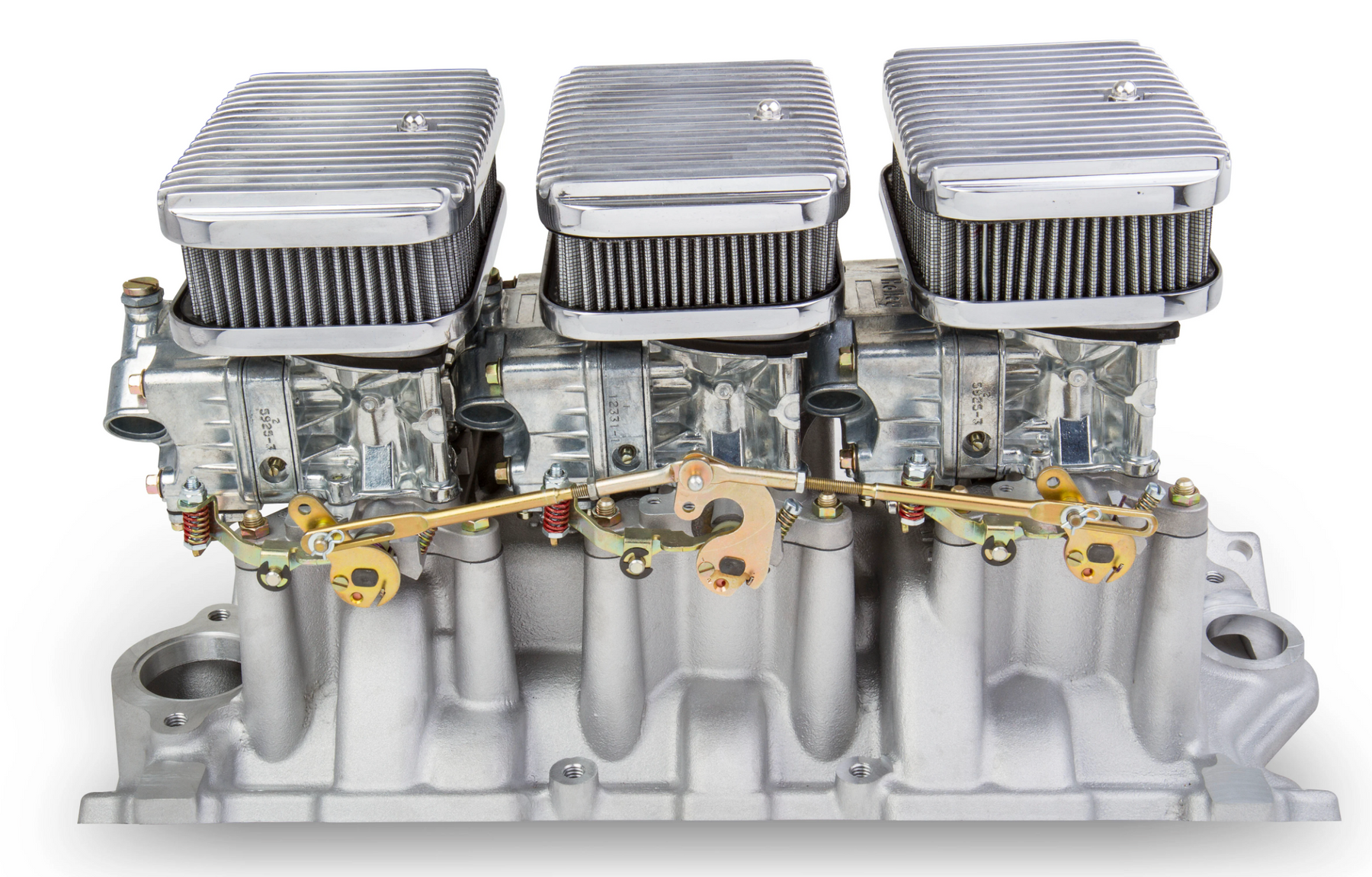

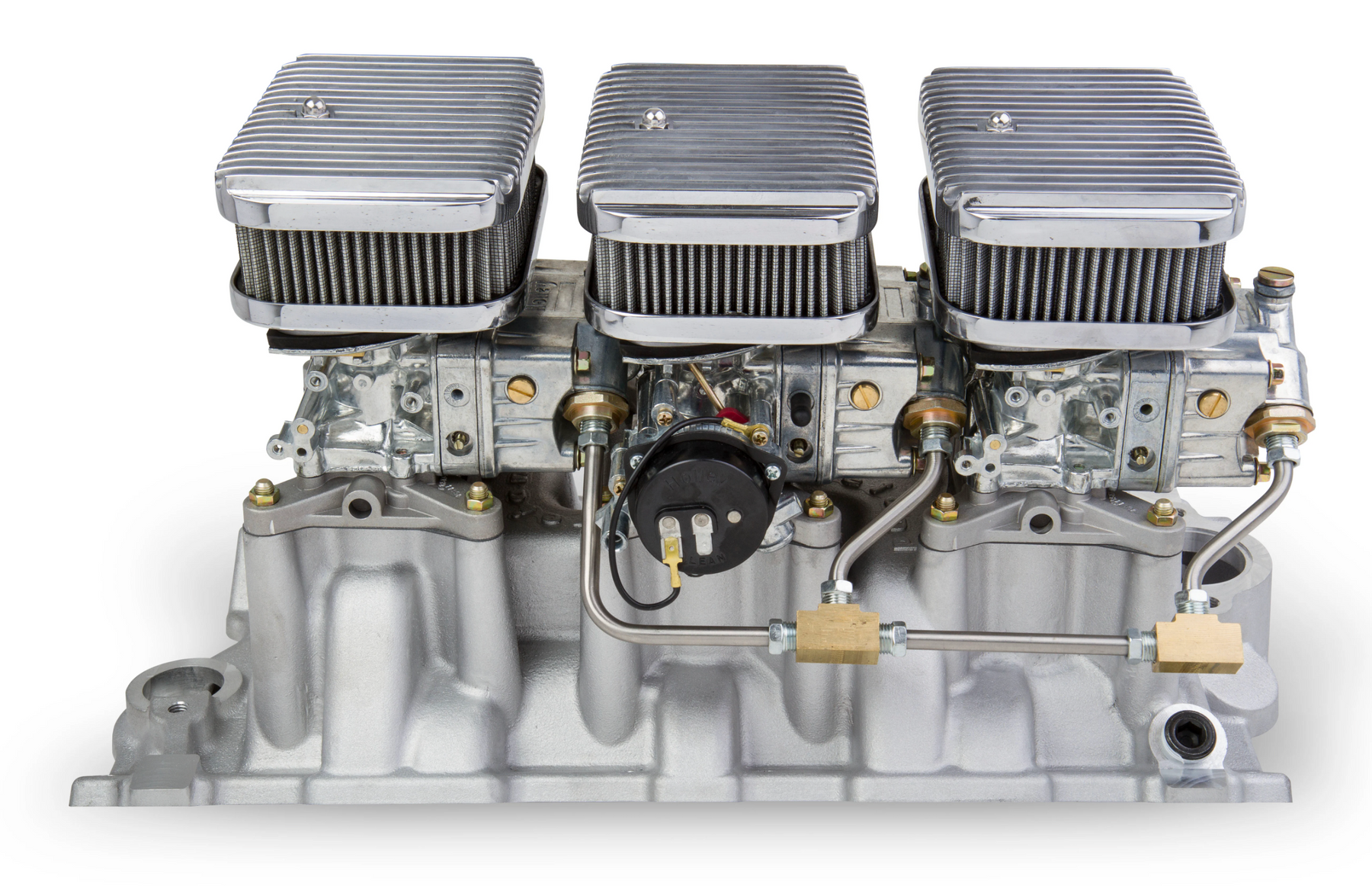

The world famous Holley Tri-Power Carburetor system is legendary in Chevrolet circles! They were the ultimate power statement when they came factory on cars like the 1967 427 Corvette. And, NOW you can have the same look on your SB Chevy! Perfect for muscle cars, street rods, classic hot rods, rat rods, trucks and more! ECONOMY AND BIG HORSEPOWER! Cruise around economically on the 325 CFM center carb, and when you decide to step on it, the two 350 CFM outboard carbs kick in for head-snapping performance! Systems Include: • Weiand Dual plane medium rise 3x2 intake manifold • (3) Holley 2-bbl carbs (two 350 CFM outboard carbs, one 325 CFM center carb w/ electric choke) • High-quality steel fuel lines • Progressive throttle linkage • Reusable air filters with polished housings • Carburetors available in Dichromate or Shiny Finish
-
Weiand dual plane medium rise 3x2 intake manifold
-
(3) Holley 2-bbl carbs
-
High quality steel fuel lines
-
Progressive throttle linkage
-
Reusable air filters with polished housings
-
Shiny Carburetor Finish
-
Height (Front) 11.5" from the front sealing surface to the top of the air cleaner nut
-
Height (Rear) 12.5" from the front sealing surface to the top of the air cleaner nut
Application |
Small Block Chevy |
|---|---|
Barrel Quantity |
2 |
Barrels |
2 |
Body Color |
Polished |
Body Finish |
Polished |
Brand |
Holley |
Carburetor Material |
Aluminum |
Carburetor Use |
Performance and Race |
CFM |
350 |
Cubic Feet Per Minute Rating |
350 |
Emission Code |
3 |
Finish |
Shiny |
Flange Type |
2300 2-BBL |
Fuel |
Gasoline |
Grade Type |
Performance |
Linkage Attached |
Yes |
Manifold Material |
Aluminum |
Manifold Type |
Weiand 3X2 Dual Plane |
Marine Approved |
No |
Marine Use |
No |
Material |
Aluminum |
Model |
2300 |
Mounting Hole Quantity |
4 |
Product Type |
Tri-Power Carburetor |
Sale Category |
Air and Fuel Delivery |
Spacer Included |
No |
Supercharged Application |
No |
Warranty |
Limited 90 Day |
UPC |
090127142424 |
Part Number |
300-522SA |
