General Motors®  |  SKU: 12565308

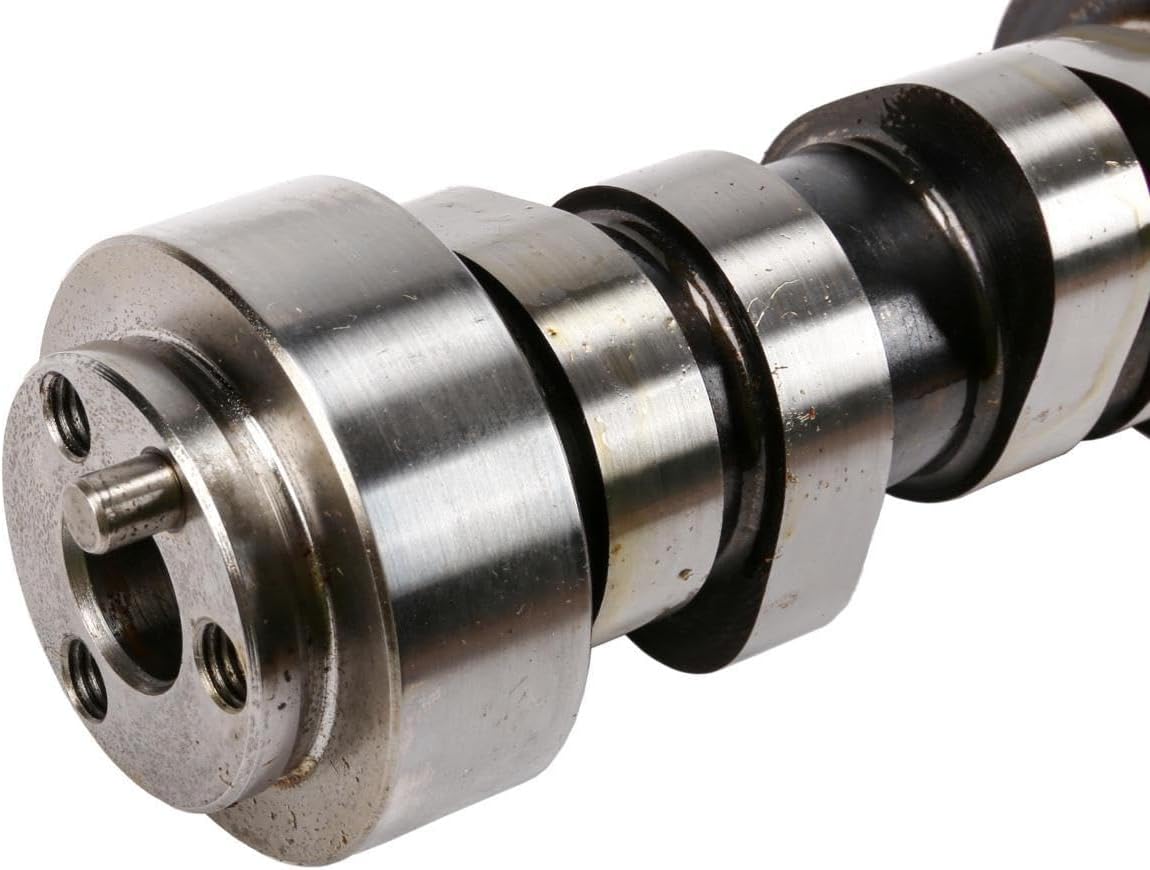

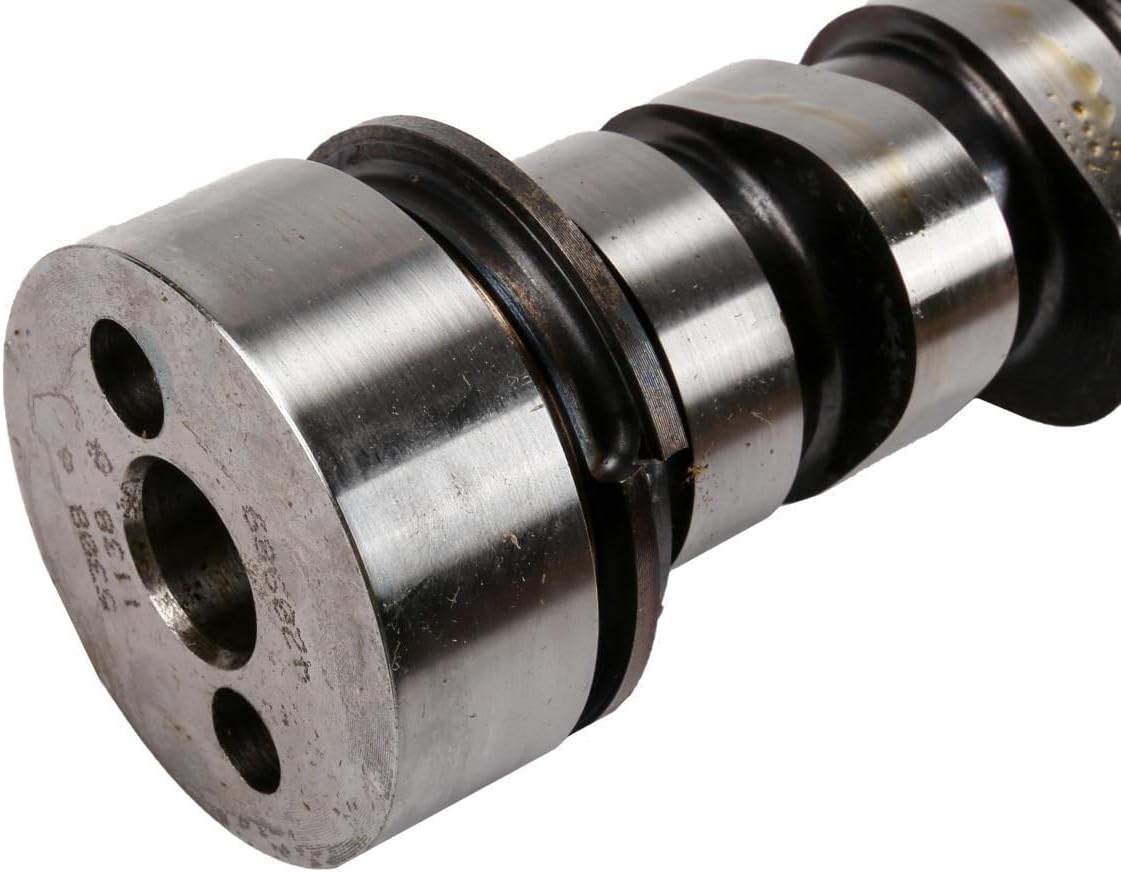

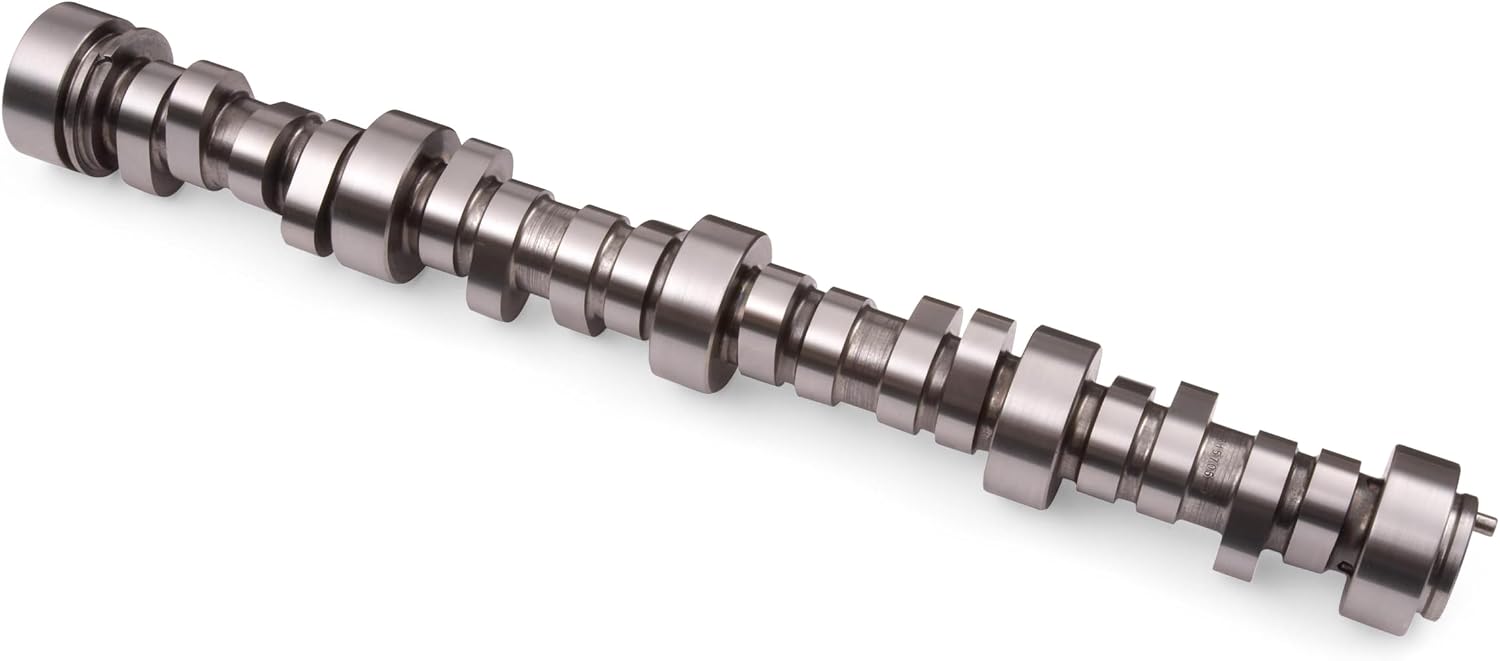

General Motors® (02-05) Z06/CTS-V LS6 OEM 3-Bolt Hydraulic Roller Camshaft

Regular price $499.99
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

GM part number 12565308 is an original equipment (OE) hydraulic roller camshaft originally designed for the 2002–2004 Corvette C5 Z06 and 2004–2005 Cadillac CTS-V, which featured the GM 5.7L LS6 engine.

Because of its broad powerband and drivability, it is also a popular "mild" upgrade for other GM LS-series engines (like the LS1, LS2, and LM7) in hot rod and truck applications.

Key Technical Specifications

Cam Type: Hydraulic Roller

Duration at 0.050" Lift: 204° Intake / 218° Exhaust

Valve Lift (with 1.7 ratio rocker arms): 0.550" Intake / 0.550" Exhaust

Lobe Separation Angle (LSA): 117.5°

VEHICLE FITMENT
