COMPATIBLE: (3.0L - S55B30T0)

2019 - 2021 BMW M2 COMPETITION

2014 - 2019 BMW M3 BASE

2014 - 2020 BMW M4 BASE

2018 - 2020 BMW M4 COMPETITION SERIES

2016 BMW M4 GTS

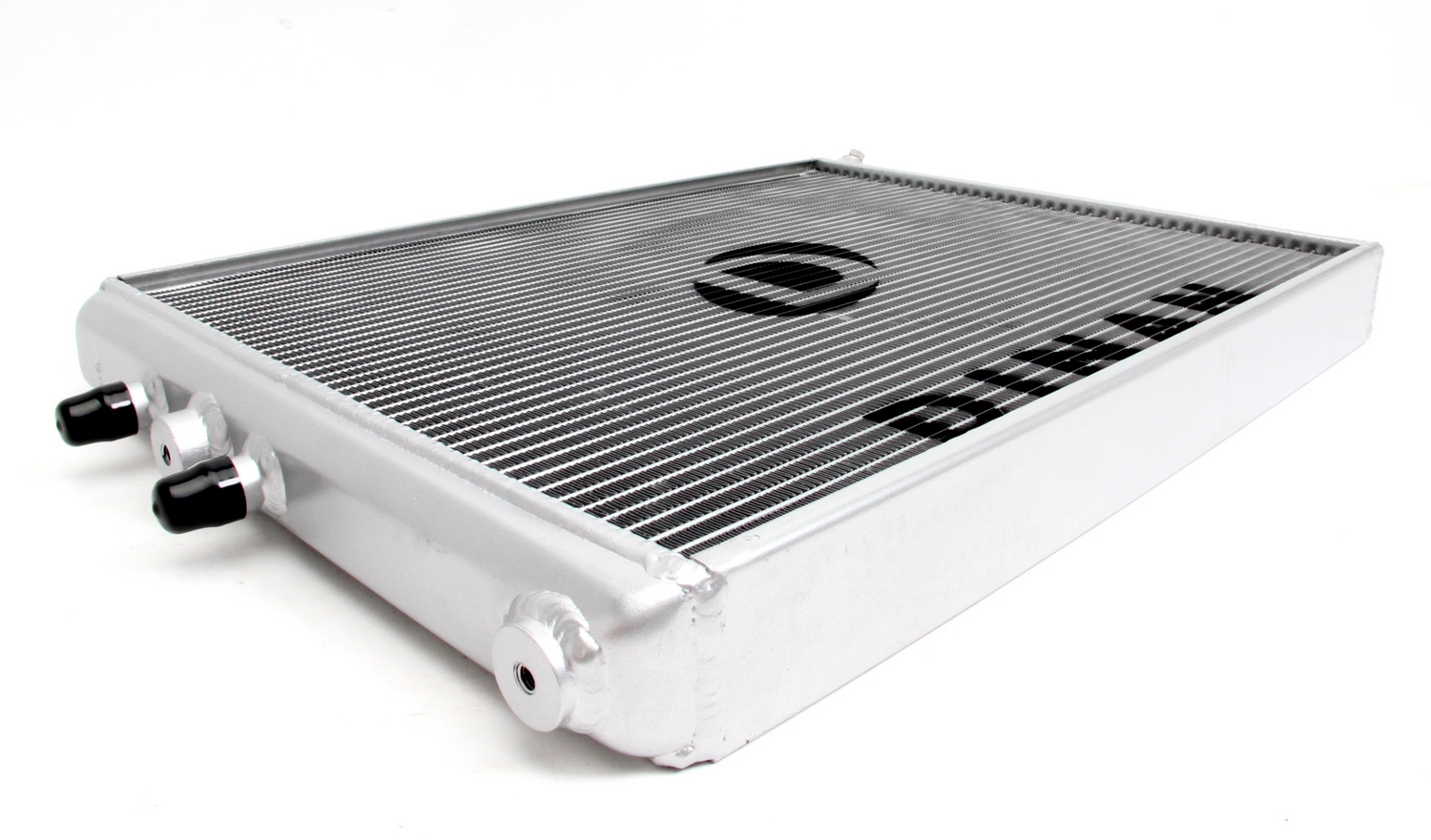

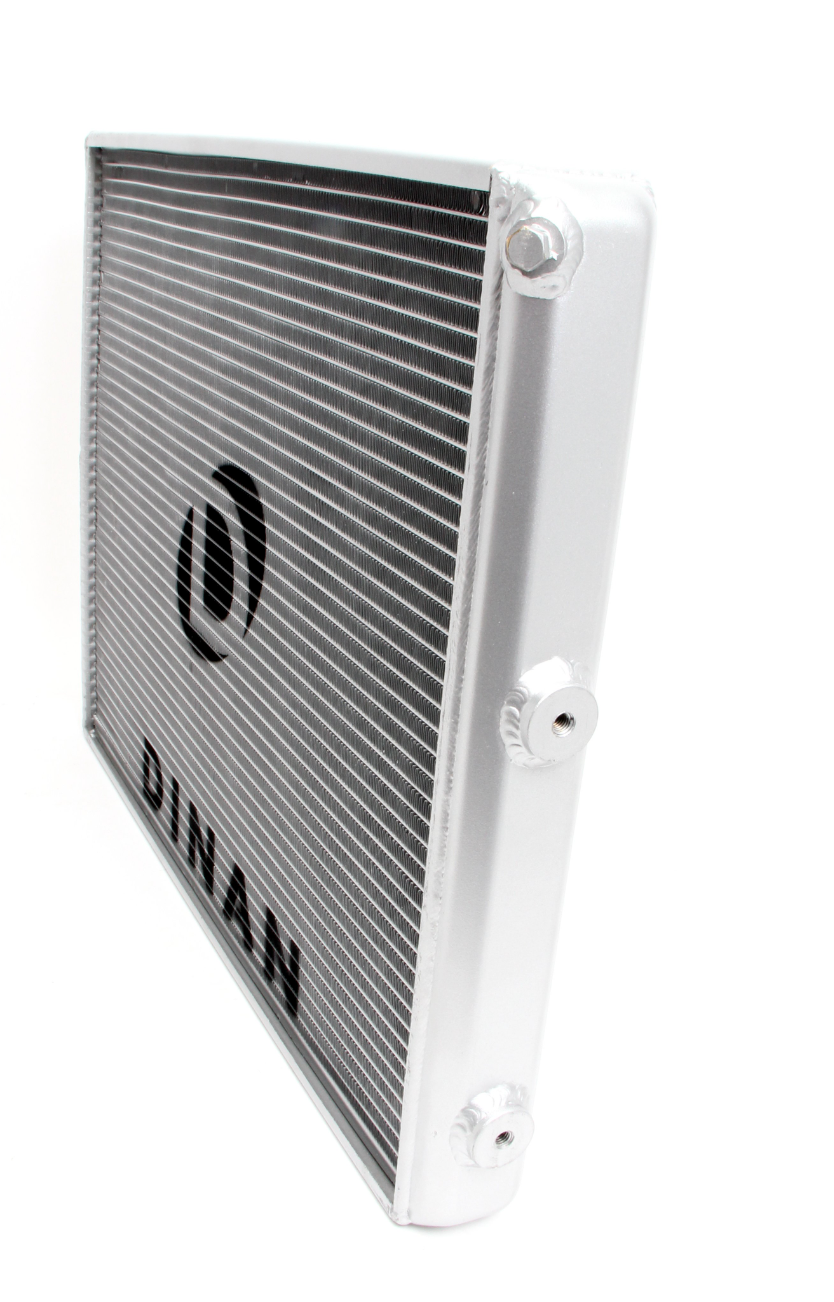

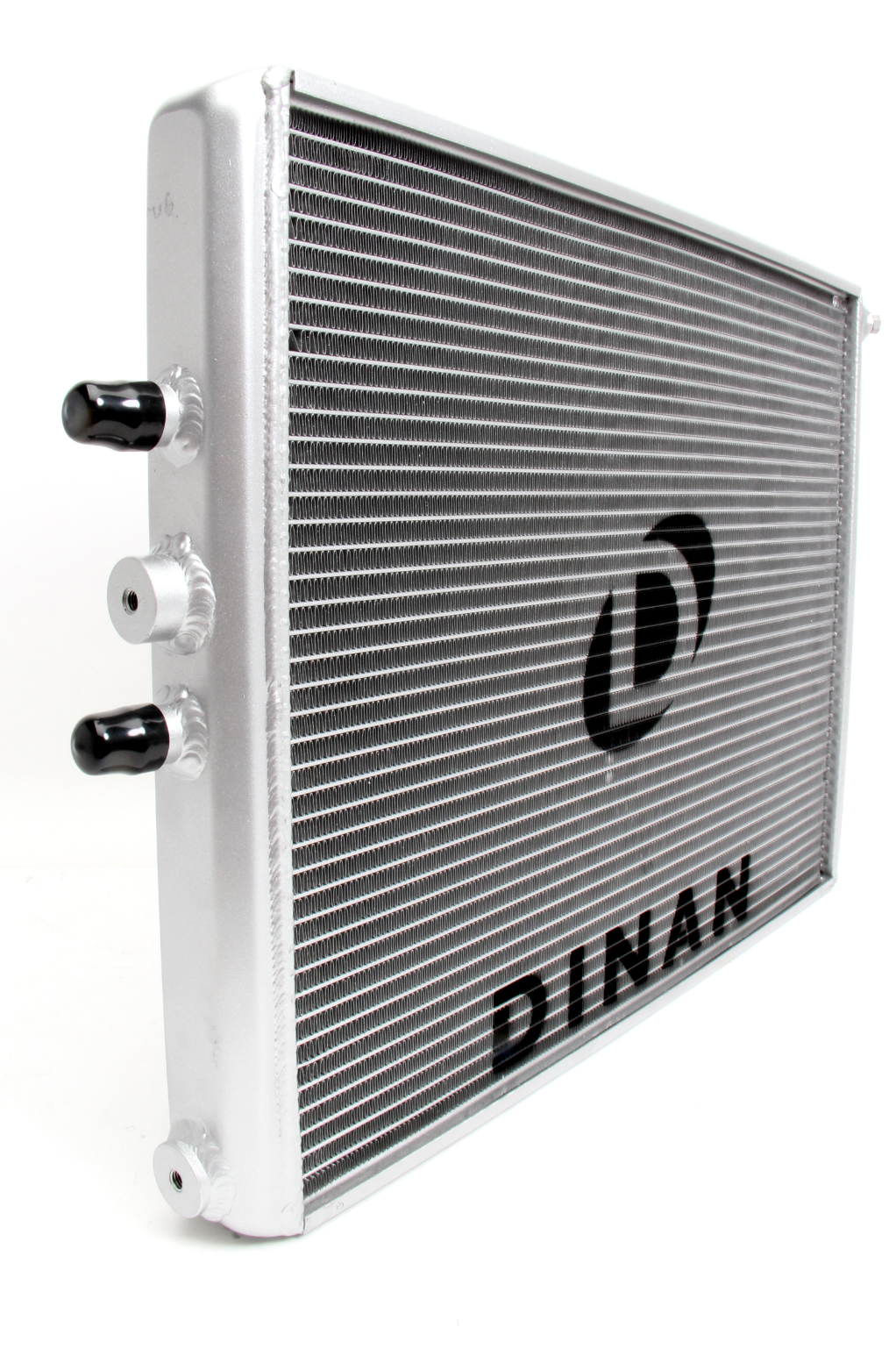

Heat is the enemy of performance. Keep temps down and performance will go up as a result of increased efficiency. It's really as simple as that. In stock trim, testing made it painfully obvious that cooling was going to hold an even more vital role on the F8x (S55) platform to achieve maximum results. The stock cooling system heat soaks after only 3 pulls and allows the engine air intake temperatures (IAT) to rise dangerously. The ECU must then reduce engine power to prevent detonation. With the Dinan high-performance heat exchanger the vehicle does not heat soak even after 7 pulls; more than twice the effectiveness of a stock setup! Some may ask why change the heat exchanger and not the intercooler itself? Wouldn't it be more beneficial to go directly to the source of the charge air? The simple answer is yes, but at a cost. The stock system cools the intake charge by using a water-to-air intercooler, an expensive piece to engineer. The cooling circuit for the water that feeds the intercooler uses a primary cooler (heat exchanger) and a smaller secondary cooler in front of the passenger side wheel. Through rigorous testing of all 3 of those components and multiple combinations therein, it was discovered that the most effective performance per dollar solution was replacing the heat exchanger with a larger unit. Further testing focused on the heat exchanger produced the optimized design you see before you. With 60% more volume and 19% more face area than stock along with being a whopping 40mm thick (stock is 24mm), it becomes quickly apparent how heat soak is averted with the improved setup. While the unit could be physically thicker the 40mm dimension was ultimately chosen with consideration of airflow requirements of the main radiator which is located directly behind the heat exchanger. A thicker core would diminish airflow and sacrifice normal engine cooling which would be potentially detrimental to the long term health of the engine. The increased physical stature of the heat exchanger allows a reduction in water temperatures to the intercooler an average of 9° across the RPM range. The colder water entering the intercooler then improves is efficiency and allows the intake air to be cooled by an additional 6° average across the RPM range compared to the stock unit. The reduction in intake air results in an impressive 10 HP and 20 ft-lb of torque gain without any changes in the engine tune.

• More Power: Consistent +10 HP / +20 LB-FT of torque on the stock engine tune

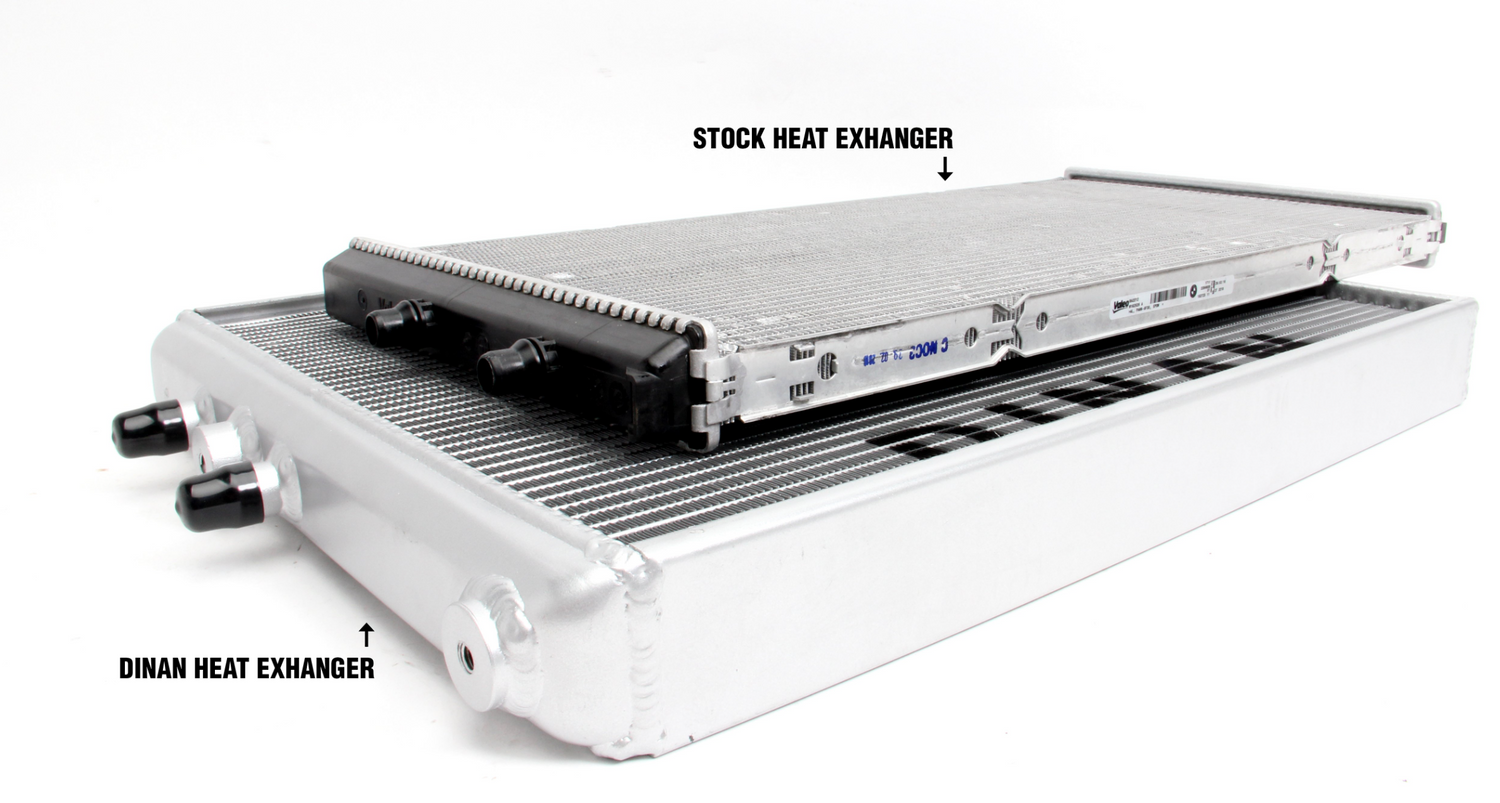

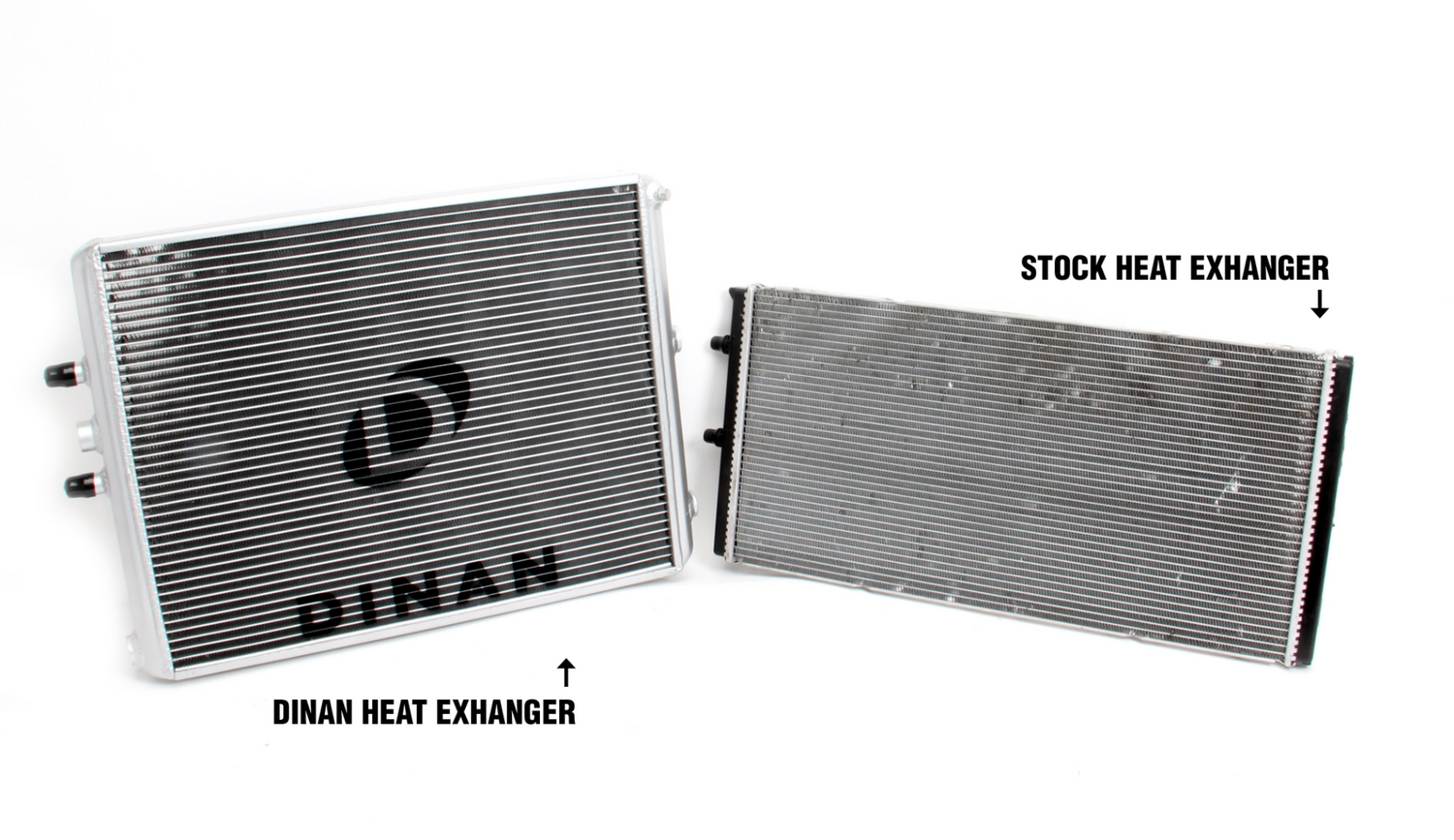

• 60% more core volume & 19% more face area than stock

• 40mm thick Dinan cooler vs. 24mm thick stock cooler

• 9° average water termperature reduction to the intercooler across the RPM range. Colder water improves intercooler efficiency and allows the intake air to be cooled by an additional 6° average across the RPM range compared to stock

• Significant reduction in tendency to heat soak

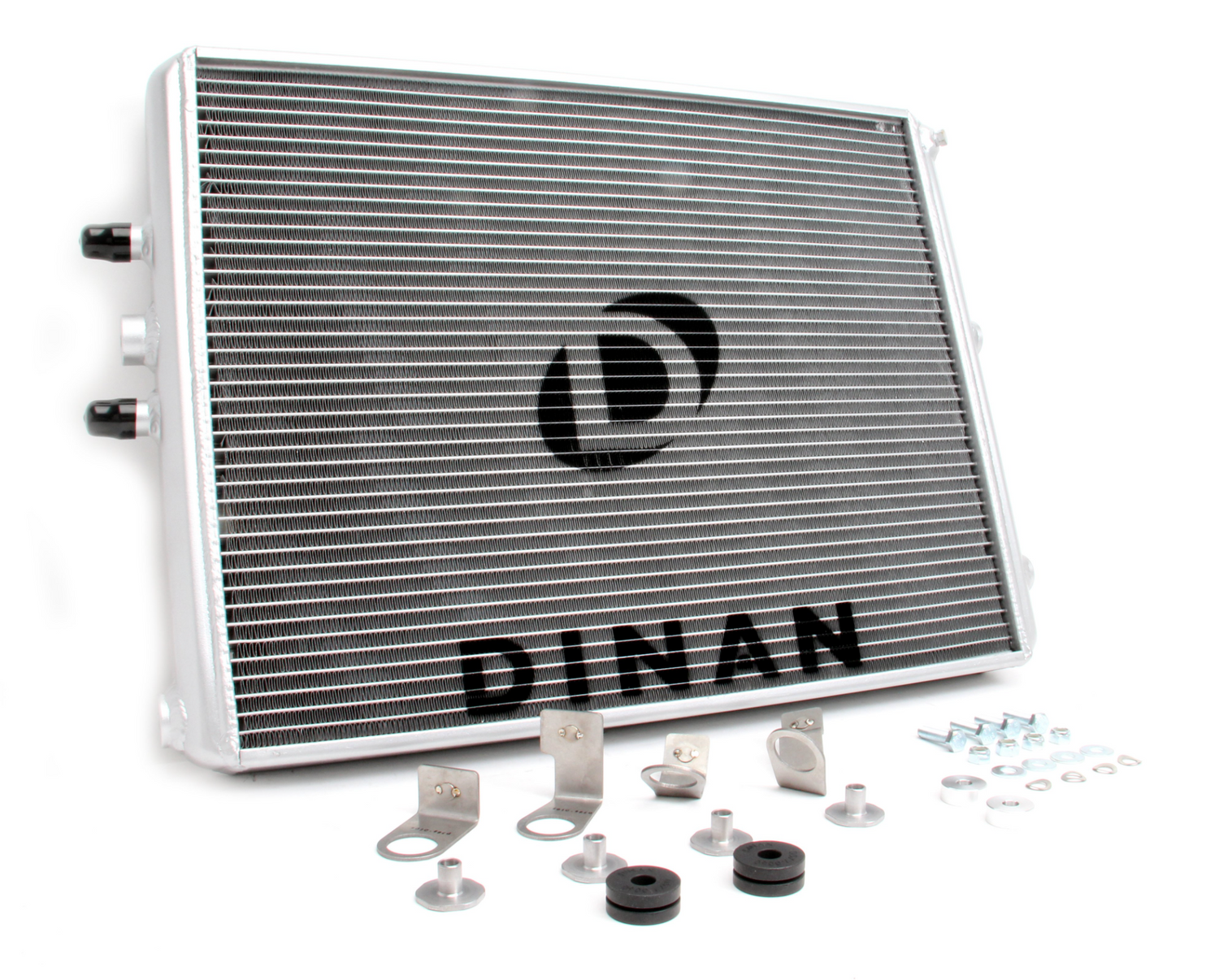

• Rubber mounted for vibration isolation

• Track tested to ensure consistent performance under extreme conditions
