COMPATIBLE: (5.0L - S85B50)
2005 - 2010 BMW M5
2005 - 2010 BMW M6

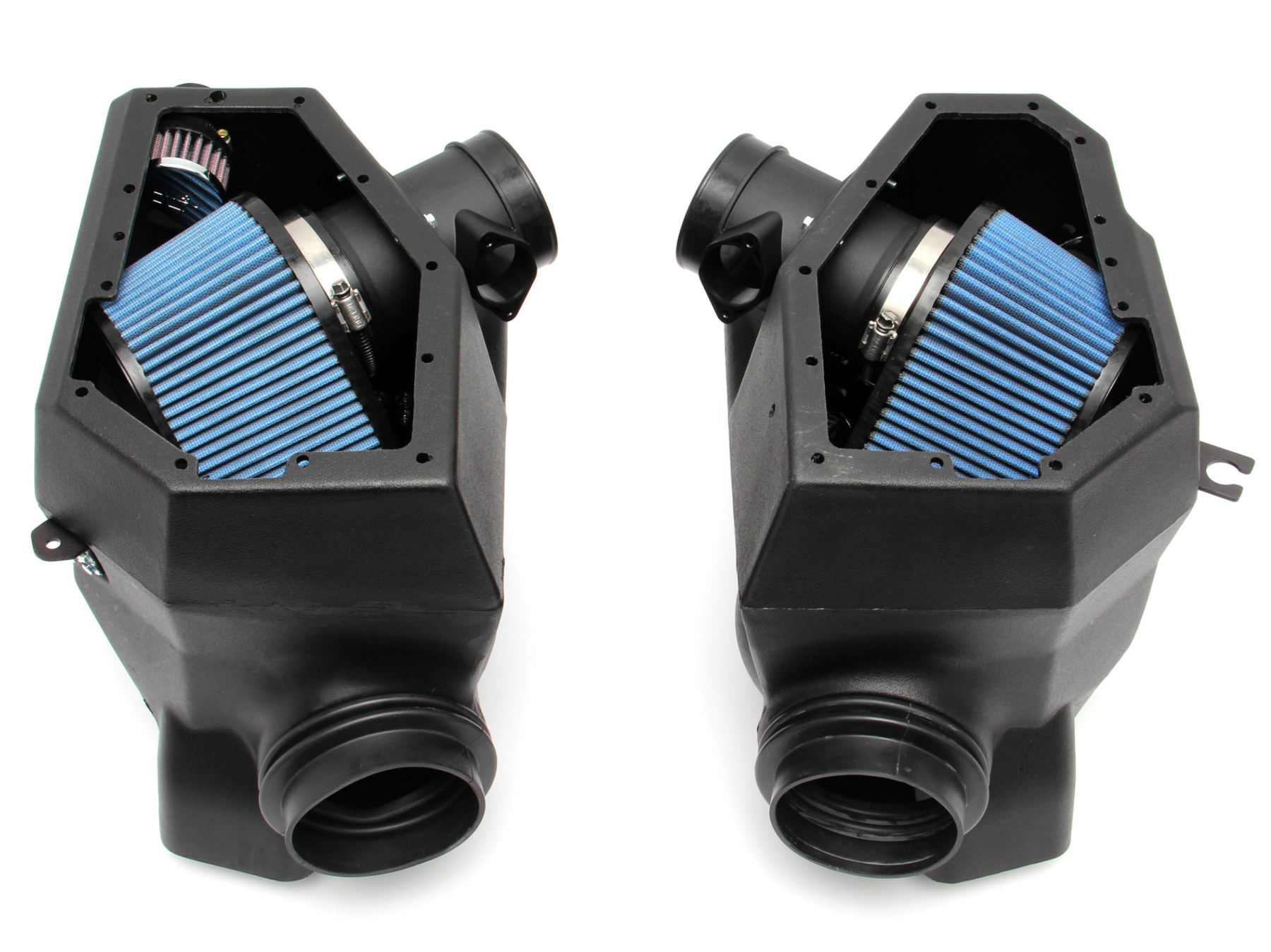

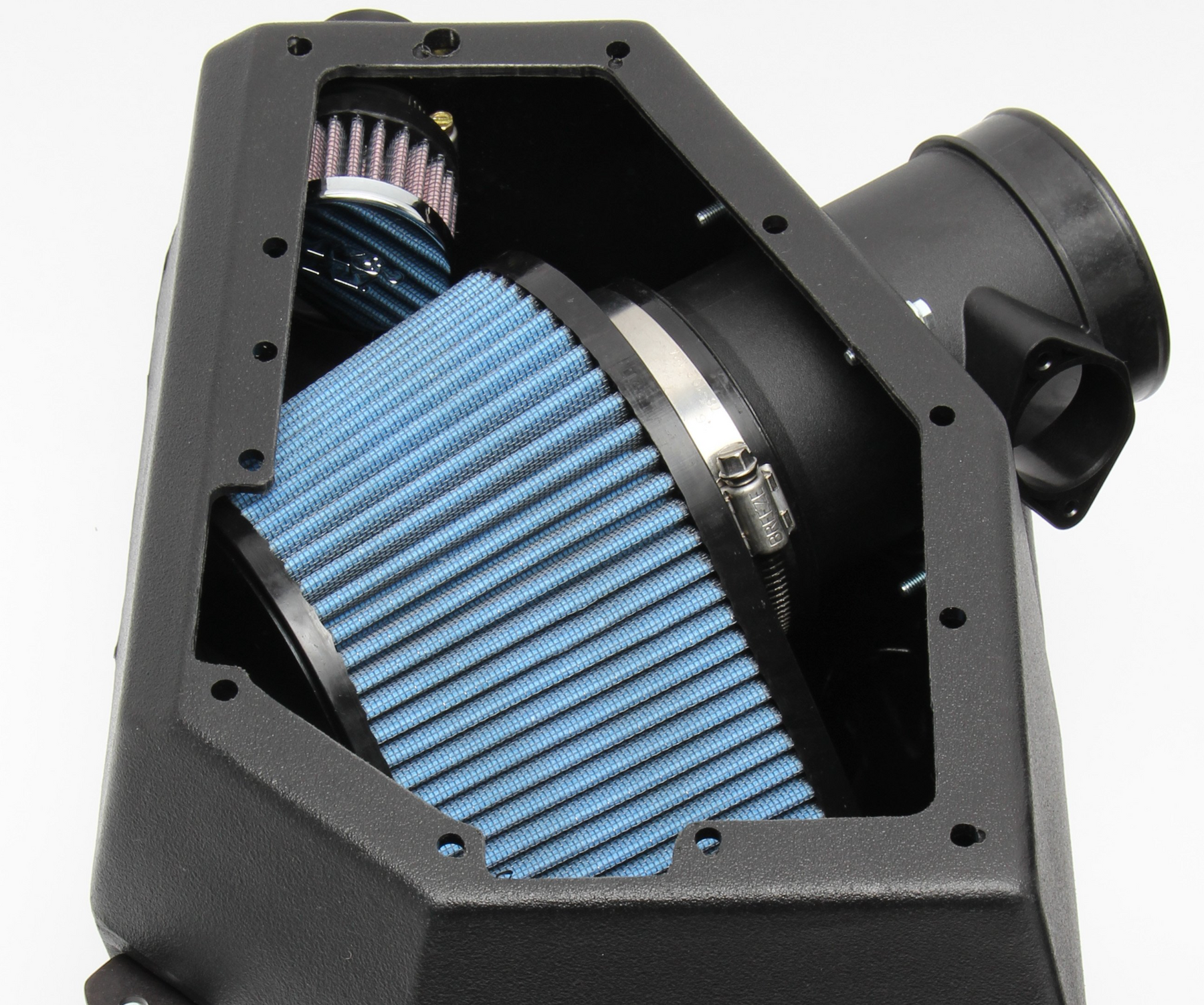

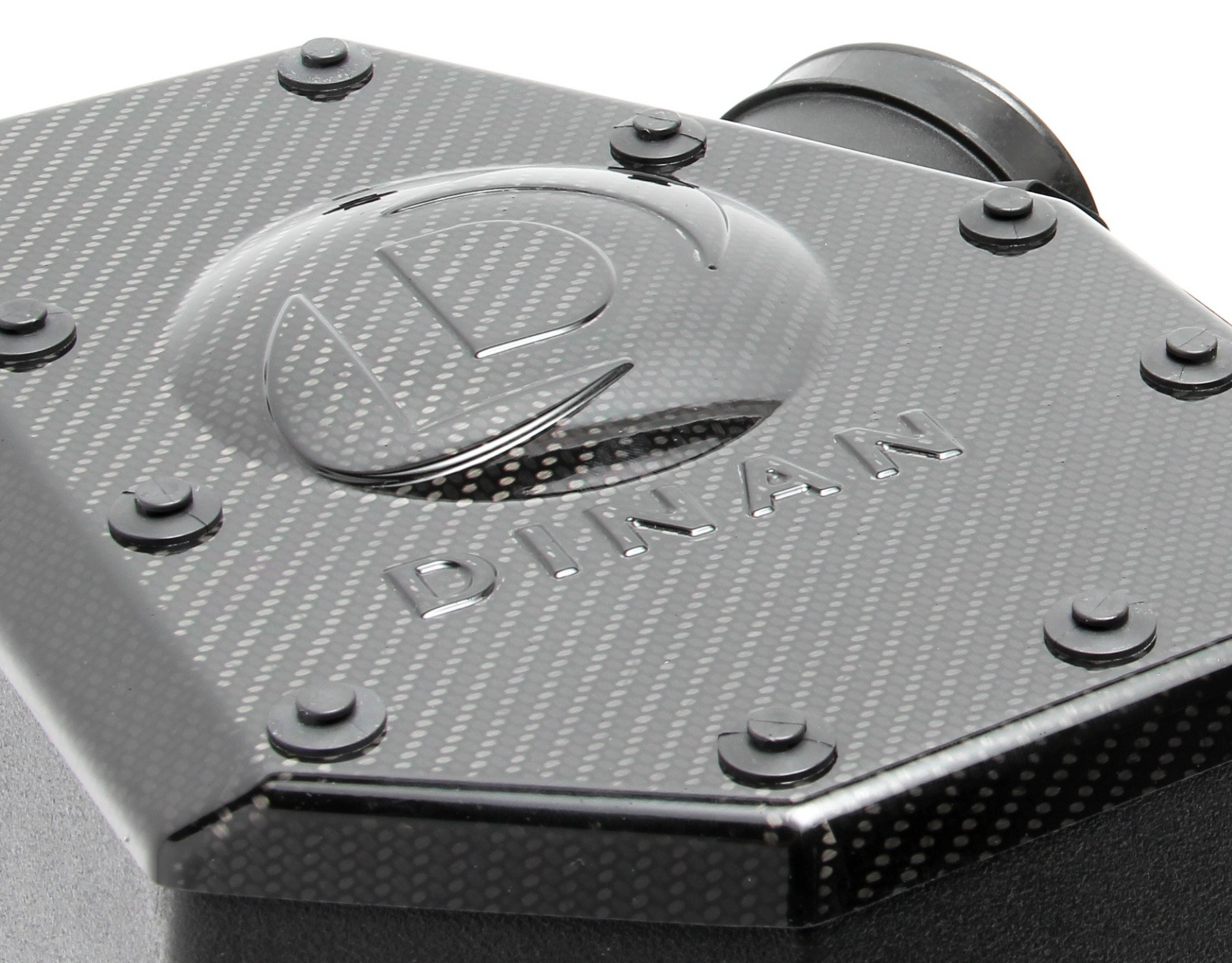

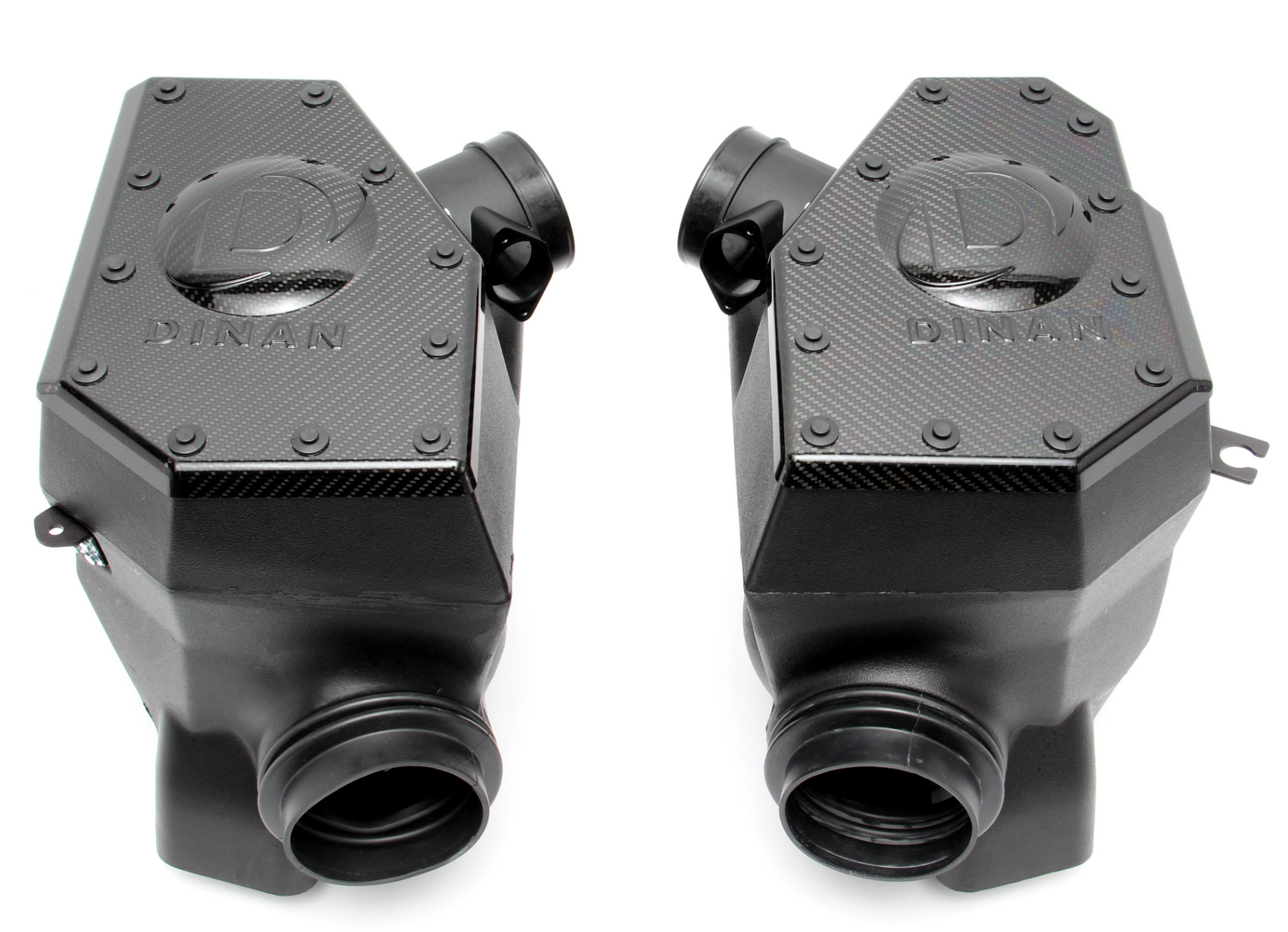

Dinan's High Flow Air Mass Meter and Intake Assemblies reduce the intake restriction presented by the stock configuration for a better breathing engine. Increasing the flow of cool, oxygen-rich air increases power output by 21 horsepower, as well as providing improved throttle response. The Dinan High Flow Air Mass Meters are also included, providing a full 22% increase in airflow. The stock air filter housings are replaced with Dinan's larger volume units that have been designed to accommodate oval-shaped filters, providing greater surface area for superior flow. The intake enclosures also include the activated carbon absorption material, providing the same function as the stock configuration without the significant restriction to airflow. The Dinan air boxes are completely sealed enclosures, virtually eliminating the pressure drop measured with the stock units. The sealed enclosures also insulate against power-robbing heated air under the hood for maximum power output. The carbon fiber airbox lids are both functional and handsome additions to the engine compartment. The weave perfectly matches the Dinan front strut tower brace for a very tasteful high-performance look.
-
More Power: + 21 HP @ 7500 RPM, + 14 LB-FT @ 7500 RPM (coupled w/ engine software)
-
Increased engine output across the power band
-
Improved throttle response
-
Carbon Fiber construction
-
Sealed system for maximum insulation from power robbing heat
-
Enlarged filter elements for optimum flow
Brand |
Dinan |
|---|---|
Dinan Point Value |
3 |
Emission Code |
4 |
7 |
|
Height |
16 |
Labor Time (Hours) |
4 |
Length |
22 |
Max HP Gain |
21 @ 7500 RPM |
Max Torque (lb-ft) Gain |
14 @ 7500 RPM |
Product Type |
Cold Air Intake |
Weight |
17.2 |
Width |
18 |
UPC |
813725022208 |
Part Number |
D763-0044 |
ABOUT DINAN CARS
Founded in 1979, Dinan is well established as North America's premiere BMW tuner. In recent years Dinan has further expanded its portfolio to include other European marques such as MINI and Mercedes Benz. For all makes, Dinan develops, manufactures and markets a comprehensive line of high performance products and systems, distributed through a worldwide network of Authorized Dinan Performance Centers that include New Car Dealerships as well as Independent Service/High Performance facilities. The expansive dealer network coupled with Dinan's industry leading warranty program, quality products and solid engineering have helped make Dinan a household word among driving enthusiasts that desire "performance without sacrifice."
Install Guide:
WARRANTY:
