BM®  |  SKU: 20485

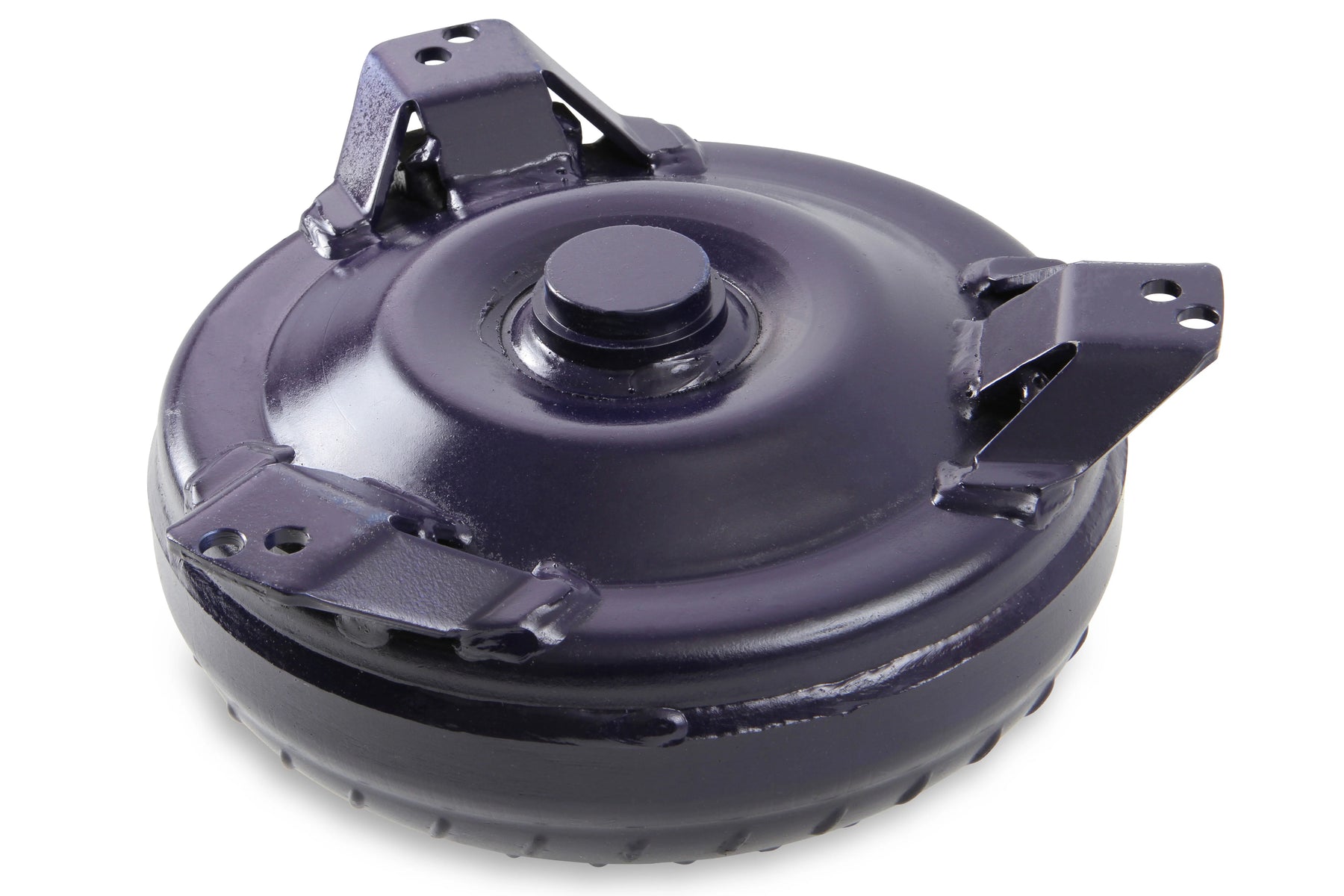

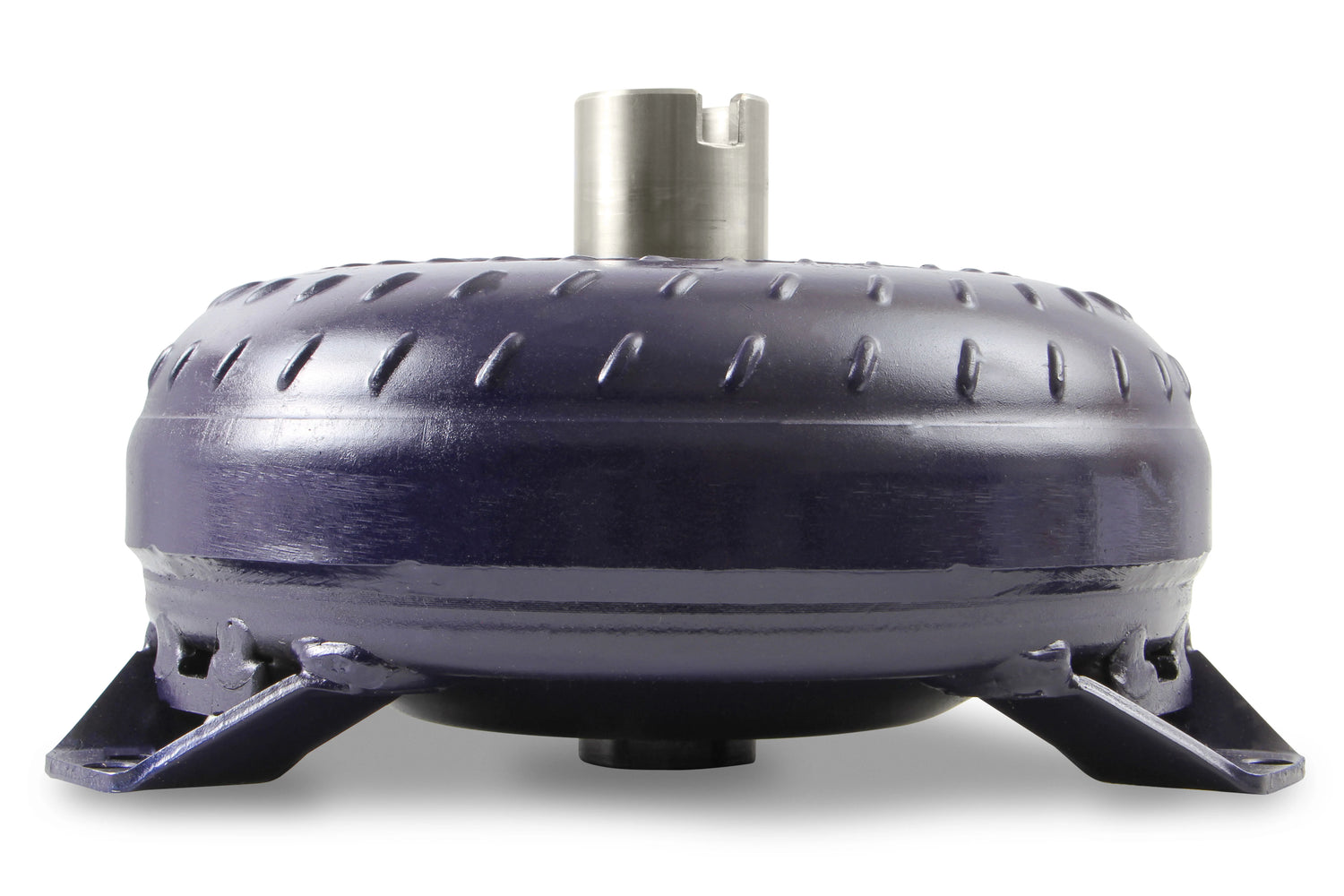

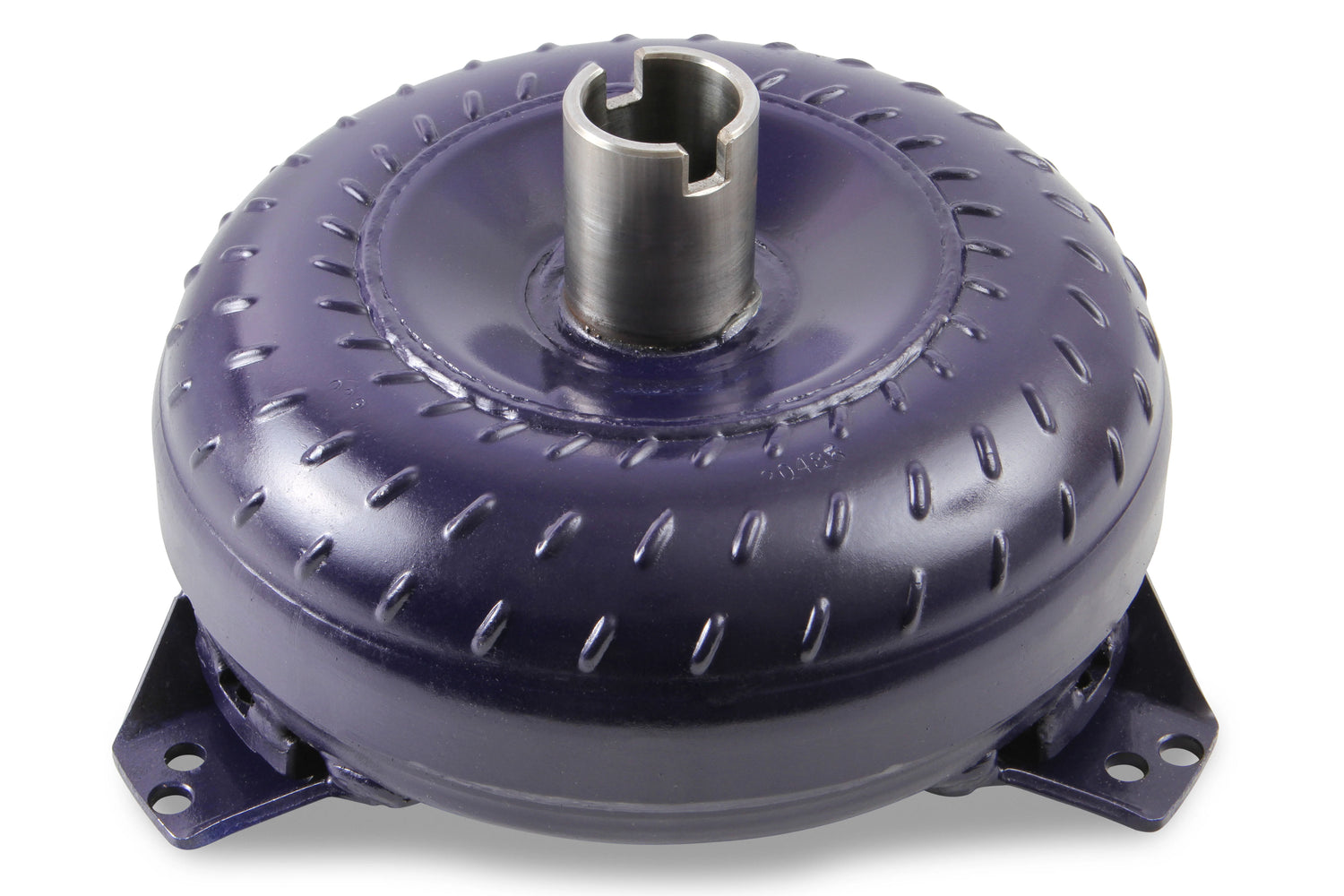

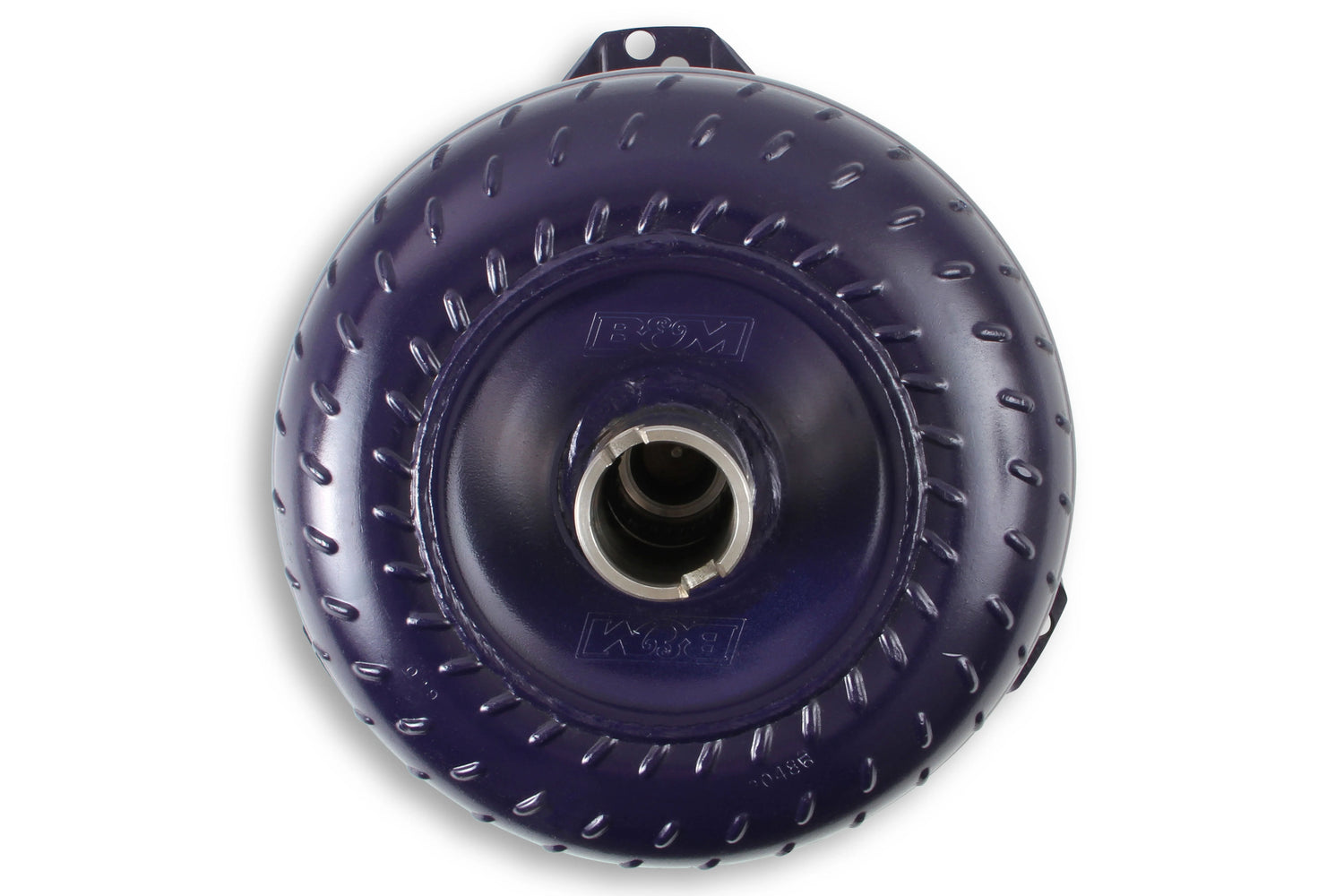

BM® #20485 (65-91) GM TH350/TH375B/TH400/TH425 Nitrous Holeshot 3800 Torque Converter

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

Regular price $649.95
Shipping calculated at checkout.


Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

Fits vehicles with GM TH400, TH425, TH375 & TH350, TH375B (Not TH350C) Automatic Transmissions

10-inch diameter, 10.75-inch bolt circle, 3500-3800 RPM stall

B&M Nitrous HoleShot 3800 stall for GM 1965-91 TH400, TH425, TH375 and 1968-81 TH350, TH375B (not TH350C.) The Nitrous Holeshot 3800 stall converter is an excellent choice for vehicles with engine modifications, particularly big cams that tend to reduce low end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Nitrous Holeshot converters feature furnace brazed impeller and turbine, new precision steel alloy pump drive tube, new heavy duty needle bearings between the stator and impeller (not a thrust washer) and needle bearings between the stator and turbine. Other features include a new turbine hub, new springs and rollers in the stator and anti-balloon plates. The anti-balloon plates will allow these converters to stand up to the instant horsepower that a Nitrous plate or fogger system delivers. These are serious converters for serious performance street cars. To prevent contamination left from worn parts being circulated in your new components causing premature wear, we strongly recommend protecting your investment by adding a B&M transmission cooler with all new transmission installations. Listed converters are NOT to be used in trans-brake applications. Not for use in trans-brake applications.

  • Fully Balanced and Pressure Tested

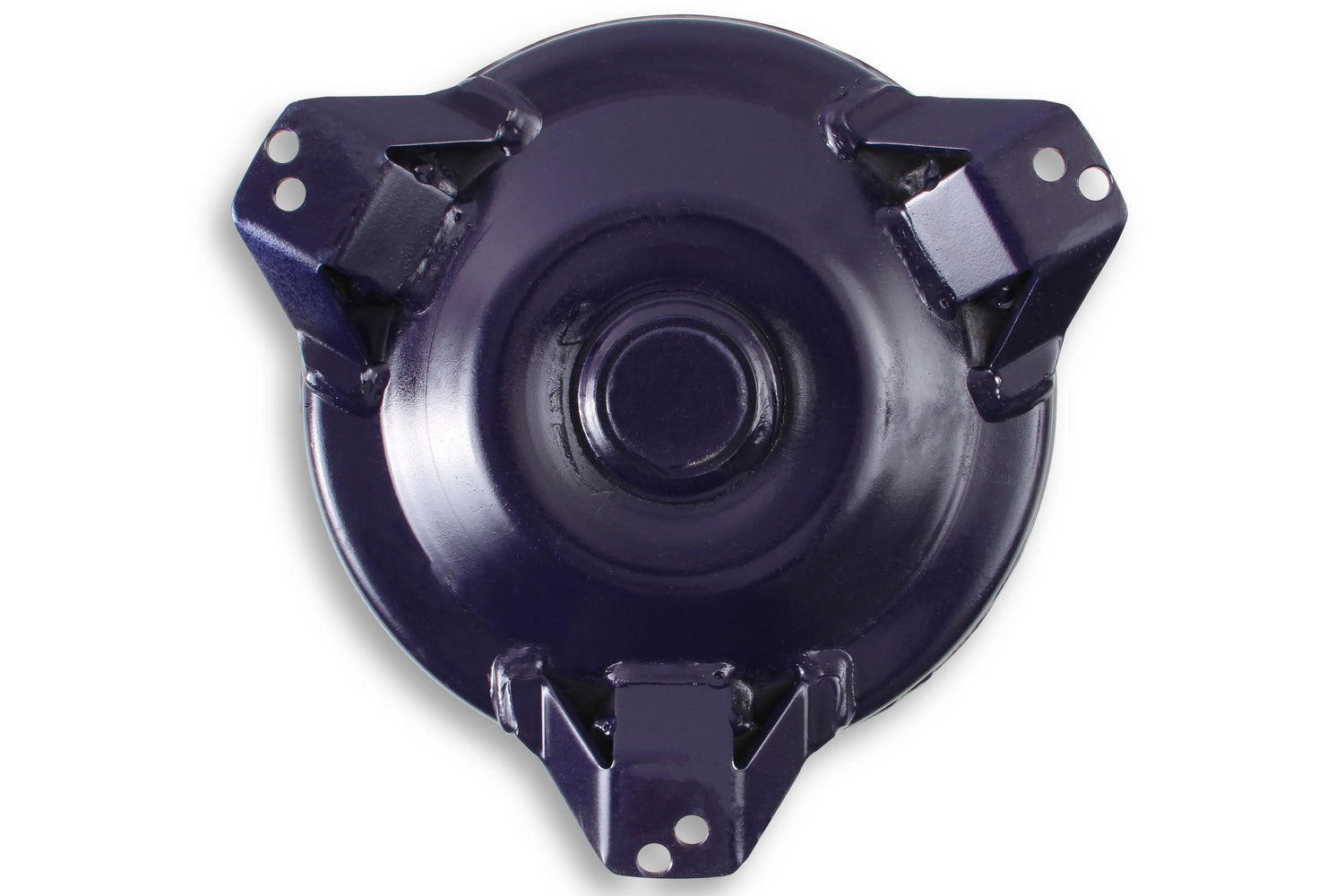

  • Dual pattern 10.75 and 11.50-inch bolt circle

  • Needle Bearing Between Stator and Turbine

  • Furnace Brazed Impeller and Turbine

  • Anti-balloon Plate for Added Strength

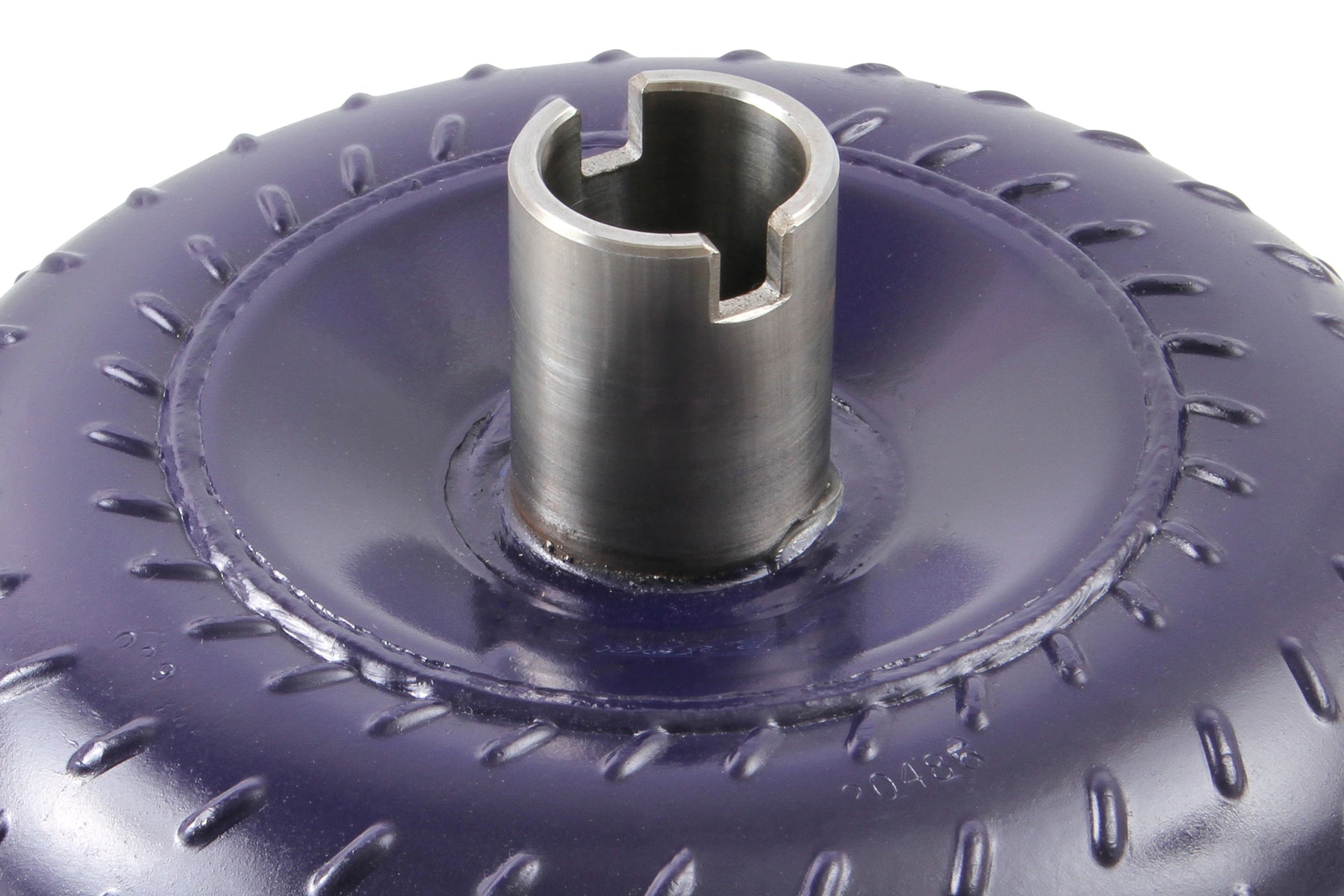

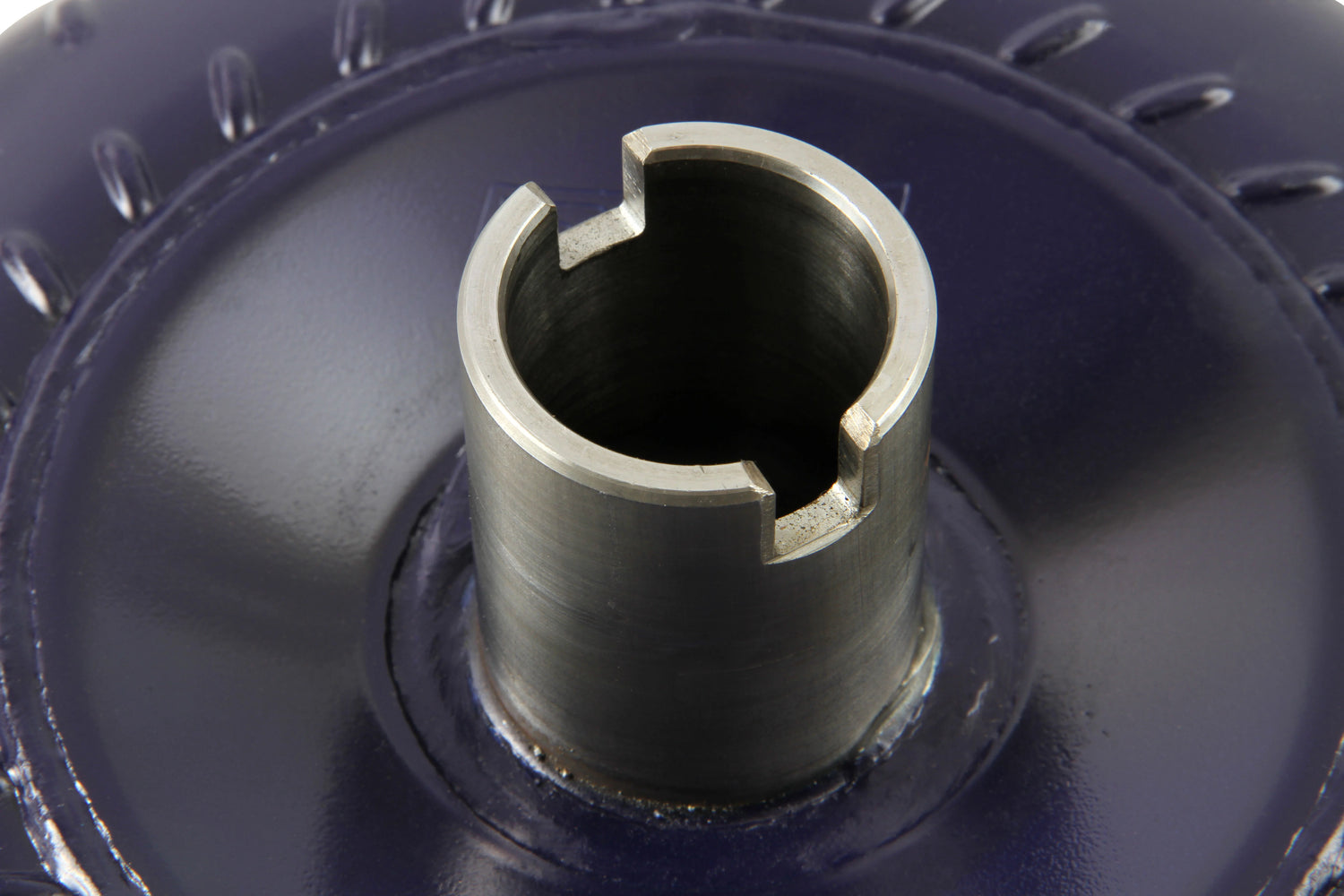

  • Steel Alloy Pump Drive Tube

  • Higher Stall Speed, Quicker Acceleration

  • B&M Quality & Durability

Additional Contents

New needle bearings

Anti-Balloon Plate

Yes

Automotive Item Grade

High Performance

Bolt Circle Diameter (in)

10.75

Brand

B&M

Crank Pilot Diameter (in)

1.71

Emission Code

5

FlexPlate Bolt Circle

10-3/4", 11-1/2"

Flexplate Change Needed

No

Furnace Brazed

Yes

Input Spline

30

Lockup

No

Lockup Type

No

Material

Steel

Mounting Studs

No

Product Type

Automatic Transmission Torque Converter

Stall

3500-3800

Stall Speed

3,500-3,800

Torque Converter Series

Nitrous Holeshot

Transmission

TH350

TH375

TH375B

TH400

TH425

Transmission Model

TH400, TH425, TH375, TH350

UPC

019695952952

California Proposition 65 Required

No

Part Number

20485



ABOUT B&M

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.
