1993-1996 GM Models - 2-Wheel Drive - Automatic Shift Valve Body
Transmission shipped without speedometer driven gear or housing

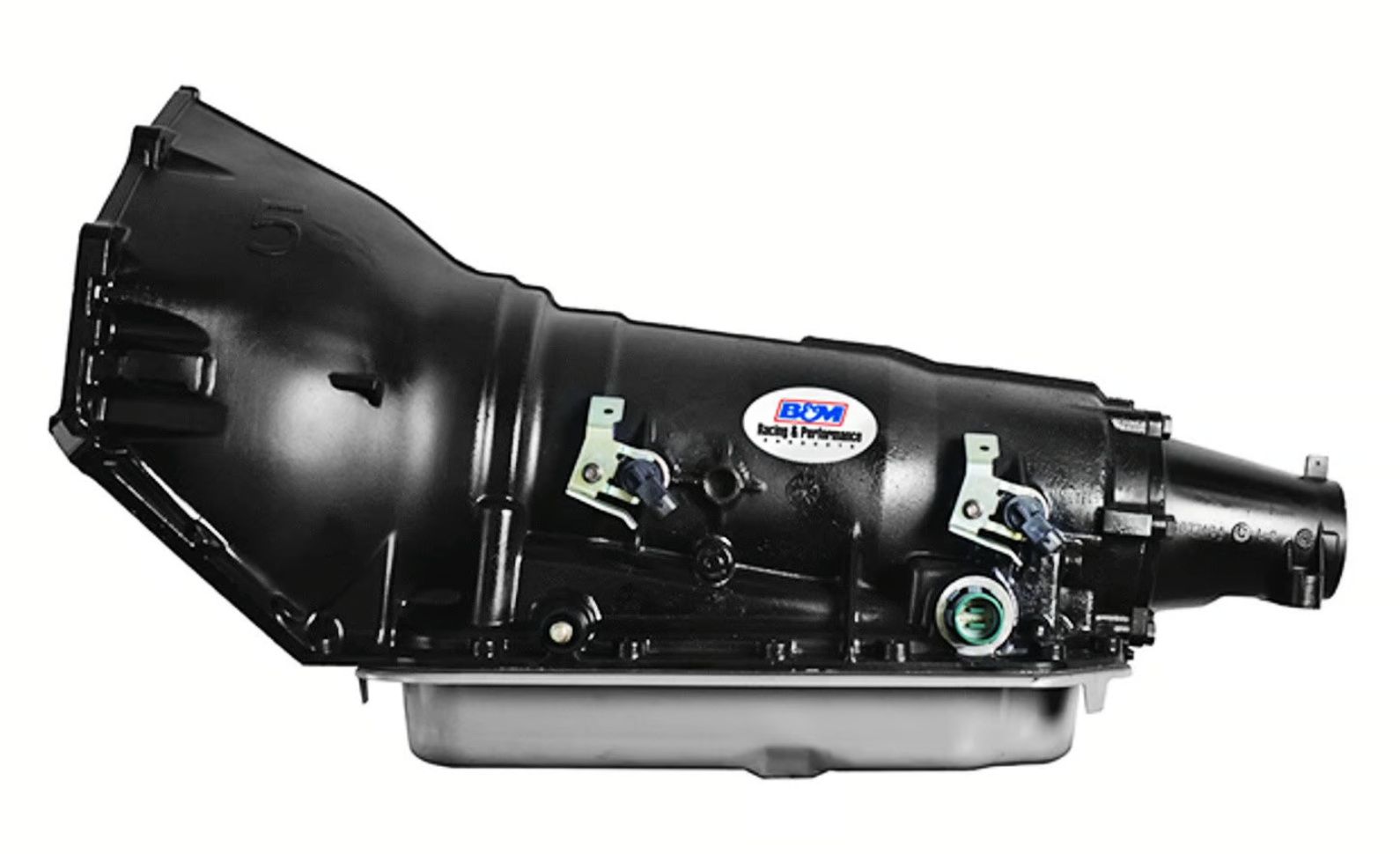

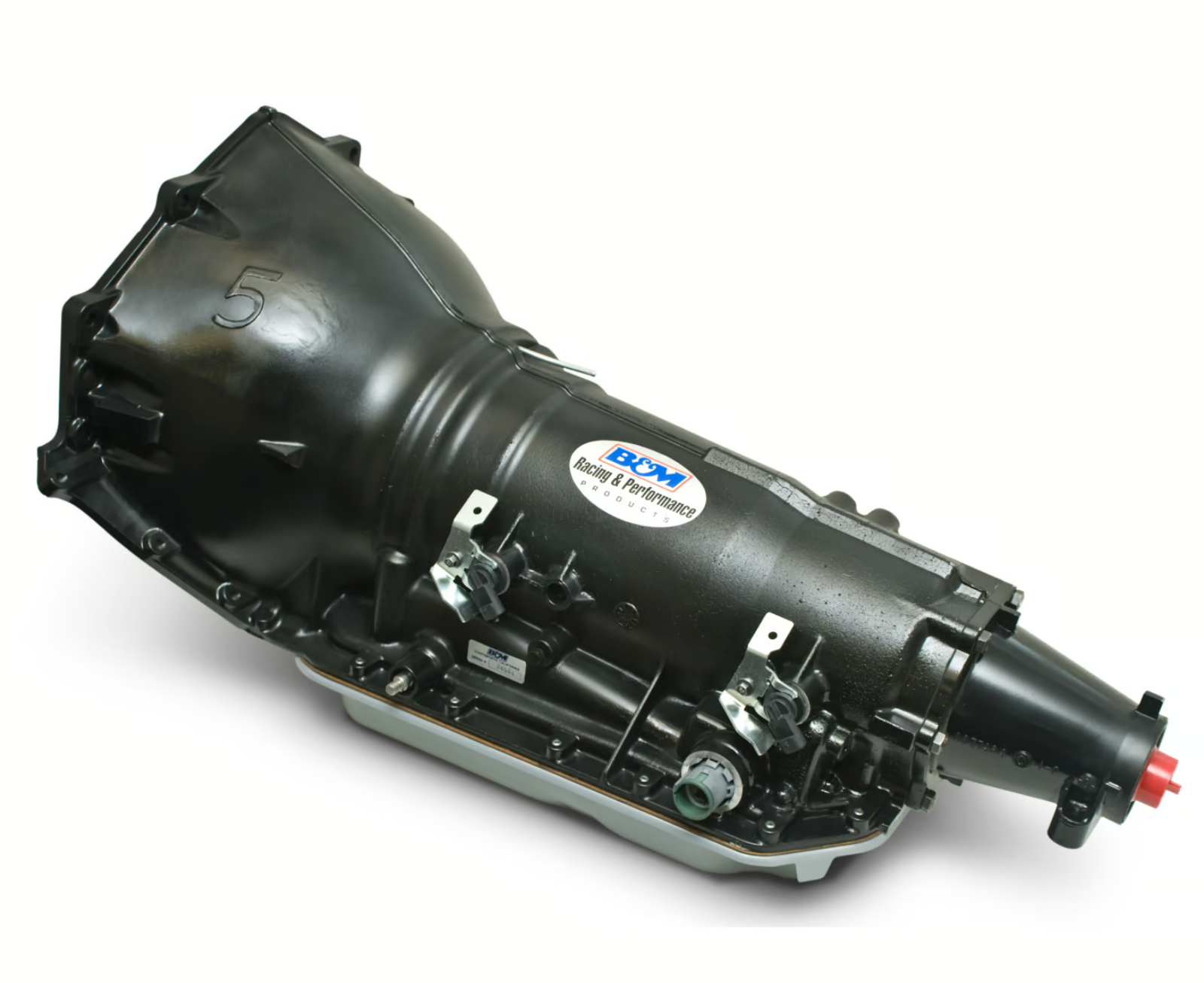

B&M Racing's GM 4L80E Street/Strip transmission is a complete ready to run unit (less converter) for high performance Street/Strip use for GM model years 1993 to 1996. The Street/Strip 4L80E transmission is packed with performance features such as providing firm shifts, a high energy intermediate band, new overdrive sprag assembly, new low roller assembly and all new performance friction materials. Other features include all new steel forward hub, solenoids, wiring harness, re-calibrated forward pattern automatic valve body and performance pump assembly. This transmission is built to handle up to 800 HP/650 lb-ft of torque. Notes: For transplant applications, this transmission requires an electronic controller such as B&M ShiftPlus2 transmission controller #120001. Carbureted applications will require a throttle position sensor (TPS) #120002. To prevent contamination of worn parts circulating through your new B&M transmission, we strongly suggest replacing or adding a new B&M SuperCooler transmission cooler.
-
B&M Racing Recalibrated Valve Body
-
34 Element Intermediate Sprag
-
B&M Rebuilt Performance Pump
-
Max 800 HP / 650 lb-ft
2WD/4WD |
2WD |
|---|---|
Automotive Item Grade |
High Performance |
Brand |
B&M |
Built-In Transmission Shield |
No |
Case Material |
Cast Aluminum |
Color |
Black |
Control Type |
Electronic |
Cooler included |
No |
Core Change Applicable |
No |
Dipstick included |
No |
Disclaimer |
Transmission shipped without speedometer driven gear or housing |
Drive Type |
RWD |
Emission Code |
5 |
Friction Plates |
New |
Gear Ratio-First |
2.48 |
Gear Ratio-Fourth |
0.75 |
Gear Ratio-Second |
1.48 |
Gear Ratio-Third |
1 |
Horsepower Rating (HP) |
800 |
Input Spline Count |
35 |
Output Spline Count |
32 |
Part Type |
High Performance |
Product Type |
Transmission |
Reverse Gear Ratio |
2.08 |
Sale Category |
Transmission and Drivetrain |
Torque Converter Included |
No |
Torque Rating (Ft/Lbs) |
650 |
Transbrake |
No |
Transmission Model |
4L80E |
Transmission Pan Finish |
Chrome |
Transmission Pan Material |
Steel |
Transmission Pan Type |
Stamped |
Transmission Series |
Street/Strip |
Transmission Speeds |
4 |
Transmission Type |
Automatic |
Valve Body Pattern |
Forward |
Valve Body Type |
Automatic |
UPC |
019695001643 |
California Proposition 65 Chemical Name |
Benzene |
Chromium (hexavalent compounds) |
|
Lead |
|
Part Number |
118001BM |
QUALITY SHIFTS EVERYTIME
Who would you trust with your car’s performance? The fly-by-night transmission business or the company with 65 years of experience in building and racing automatic transmissions? B&M may not be building the mighty Hydrostick anymore, but the experience and skills gained at the race track ensure B&M is still delivering the best performance automatic transmissions on the market. B&M offers two transmission choices based on your specific application.
STREET/STRIP TRANSMISSIONS
B&M’s Street/Strip Transmission is a complete ready to run unit (less converter) for high performance street and mild strip use. These transmissions provide firm shifts, upgraded components and rebuilding tricks that only comes with years of experience. They all retain a standard shift pattern and are the best transmissions available today for Street/Strip use.
TRAVELER TRANSMISSIONS
B&M’s Traveler Transmission is a rugged model and has a medium/firm shift compared to the hard shift of the Street/Strip model. The Traveler is recommended for light trucks and RV/towing applications. The Traveler transmissions also feature increased oil flow which provides for cooler operation under extreme conditions.
