DESIGN

Unfortunately, to the untrained eye, many intercooler designs appear the same. However, effectiveness of the system and overall performance are greatly determined by several key metrics. Alloy selection, end tank design, construction type, fin style, fin density and overall core dimensions must be analyzed and balanced accordingly to deliver class-leading performance. While the OEM’s goal is to create a lightweight, easy to manufacture and inexpensive to produce, cross-platform design capable of supporting factory power levels, APR’s intercooler must be capable of supporting more than double the factory output. Achieving this goal took a multi-step approach focused around intercooler core selection, end tank design and install location.

INTERCOOLER CORE DESIGN

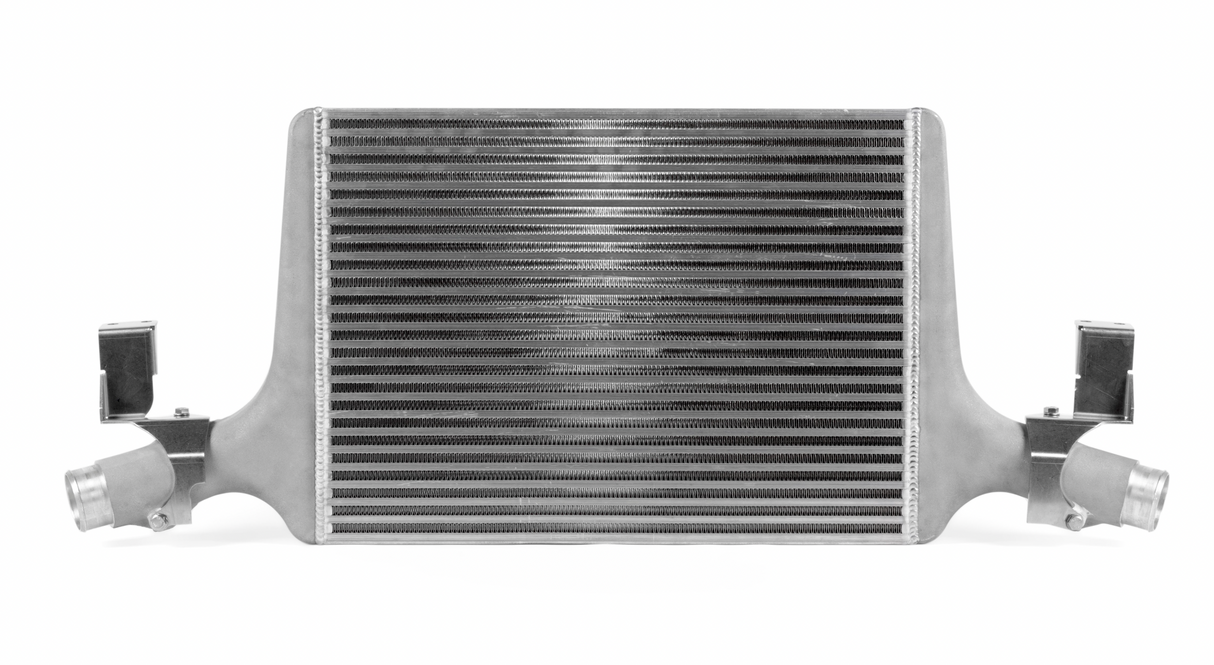

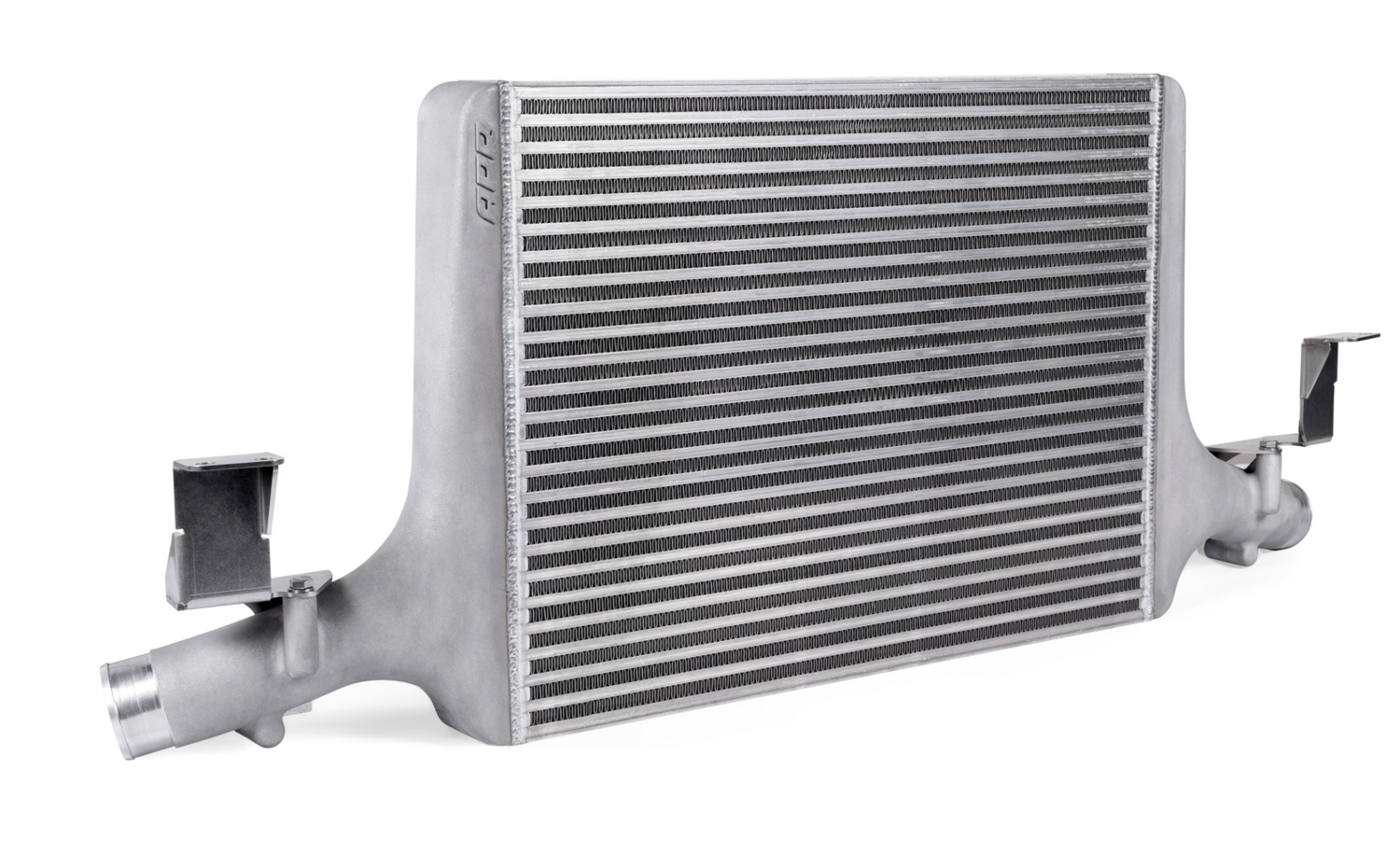

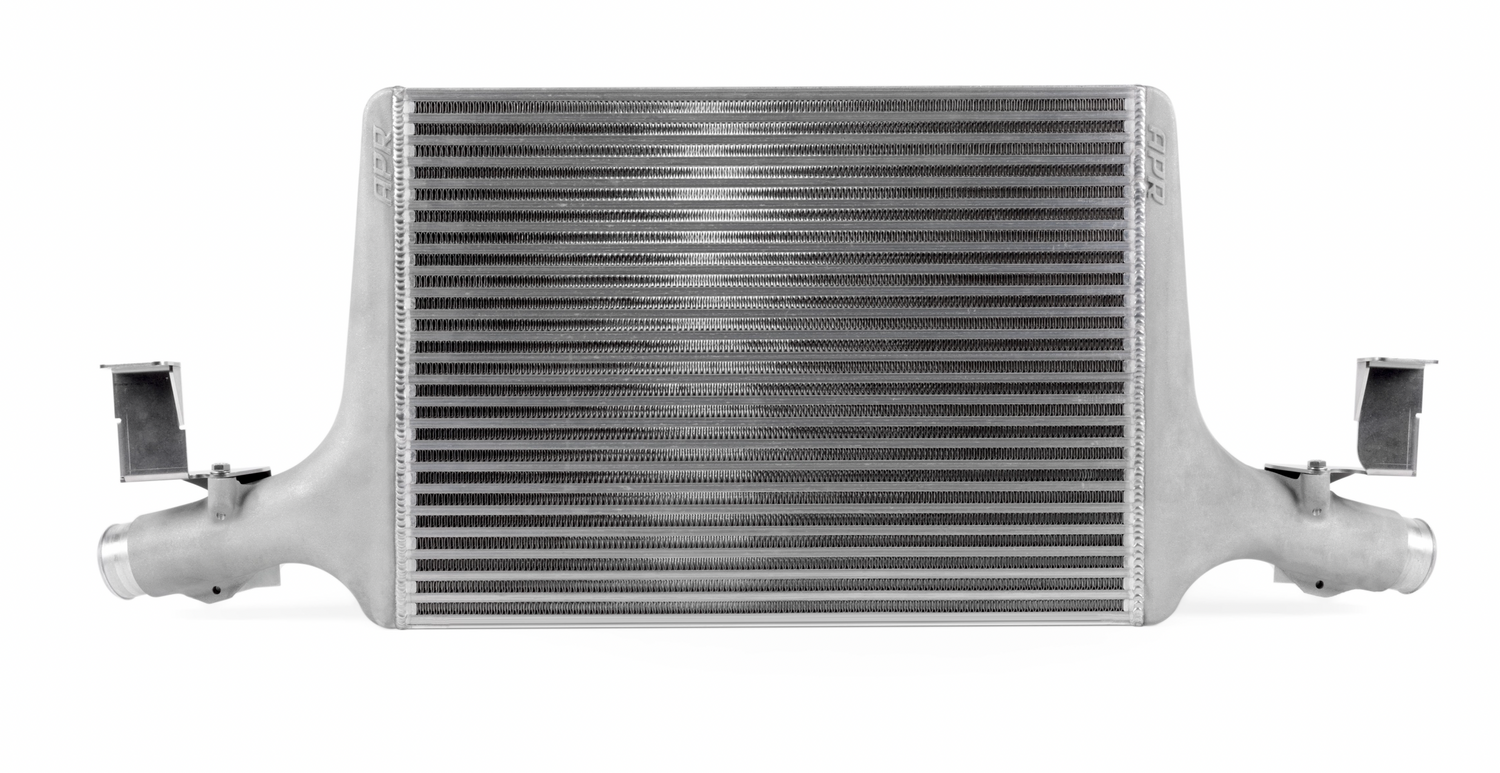

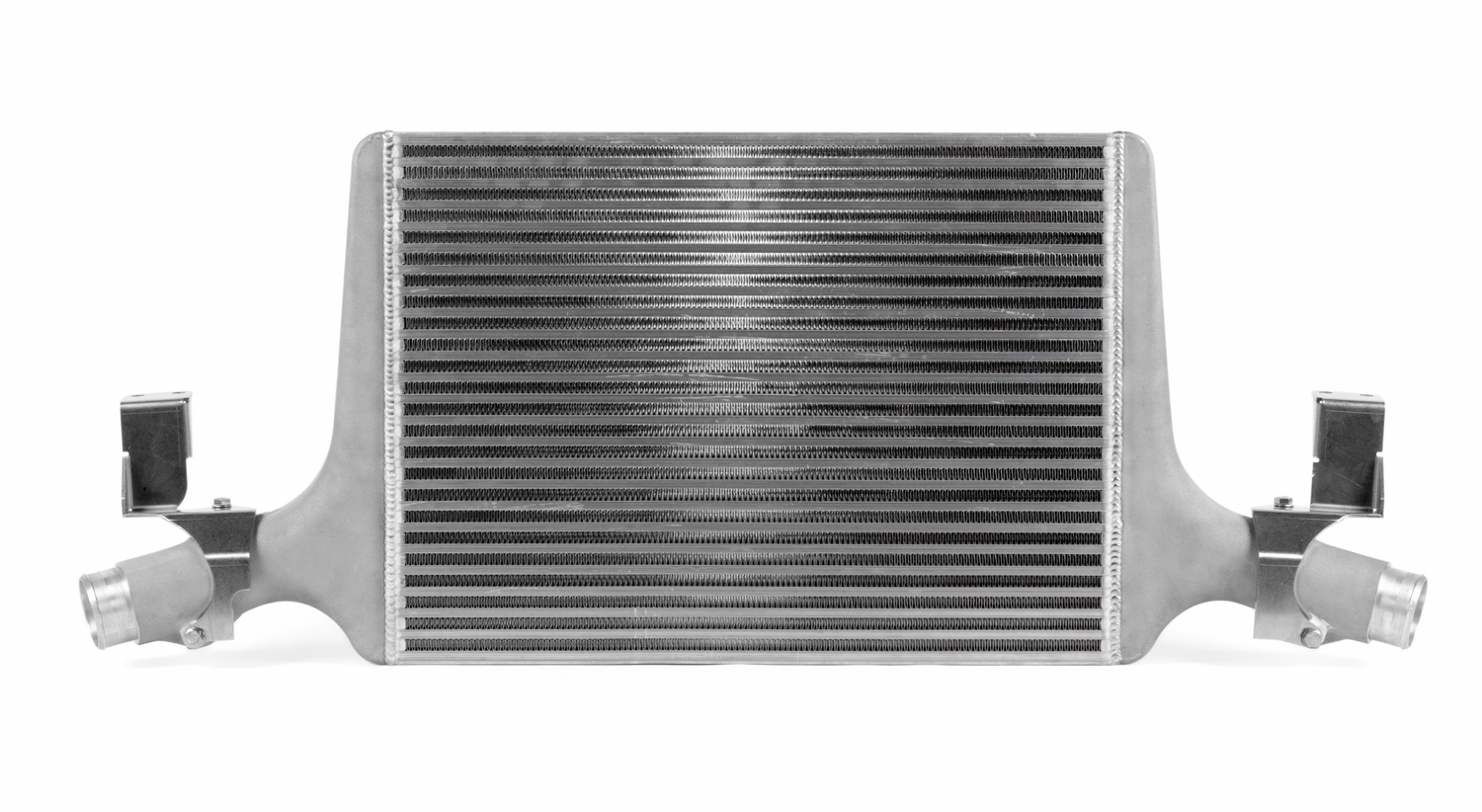

The APR Intercooler core is a large bar-and-plate design featuring densely packed staggered and louvered fins. This design offers exceptional cooling while balancing pressure loss across the core, and maintaining critical airflow to the components behind the intercooler system. The core size was appropriately matched to the platform, minimizing pressure drop while leaving adequate space for appropriately designed end tanks. To APR’s mechanical engineering experts, the design represented the ultimate in performance, far exceeding the capabilities of the factory intercooler. To the driver, the result is simple: Repeatable performance, even in the most demanding of situations!

INTERCOOLER END TANK DESIGN

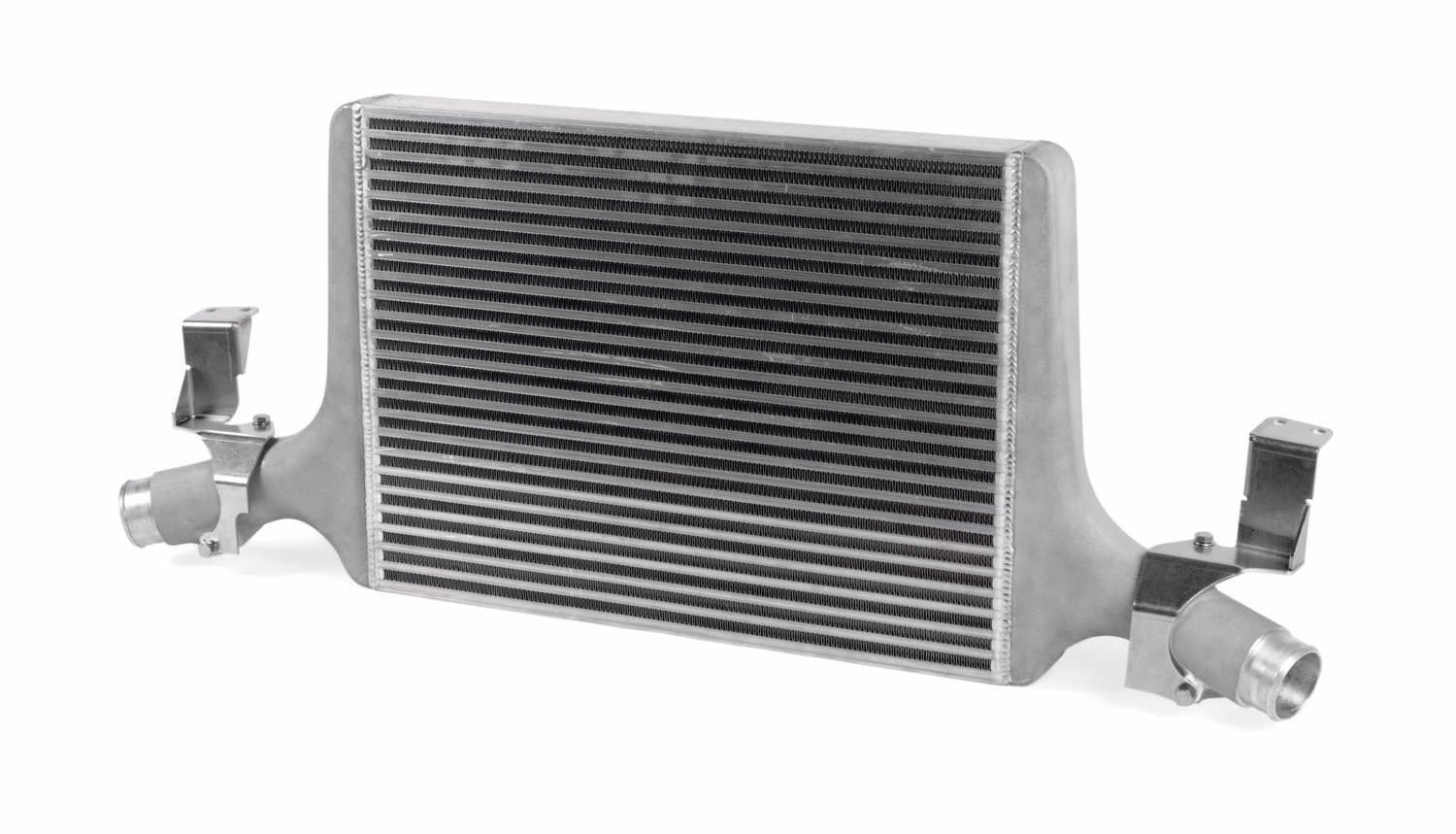

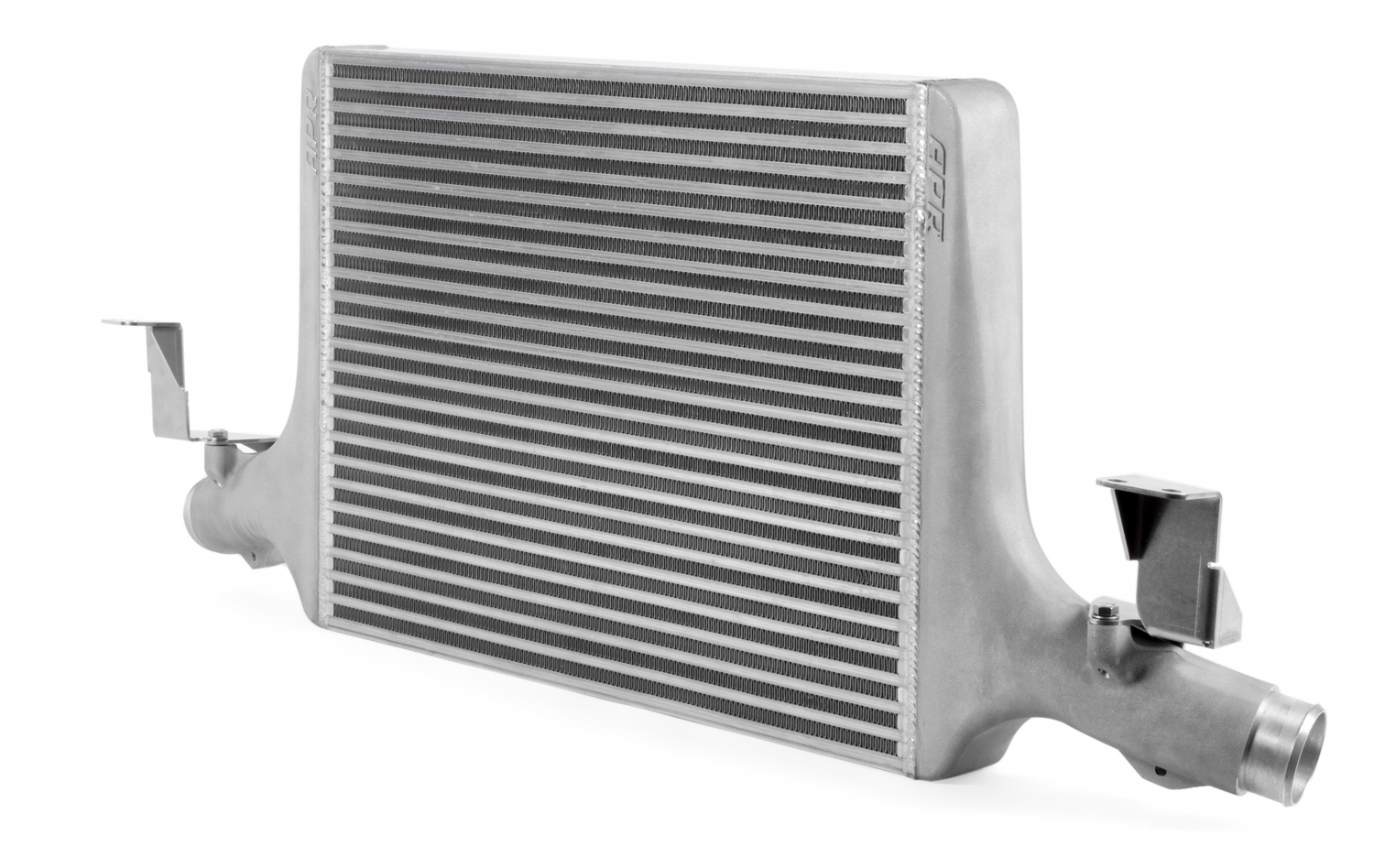

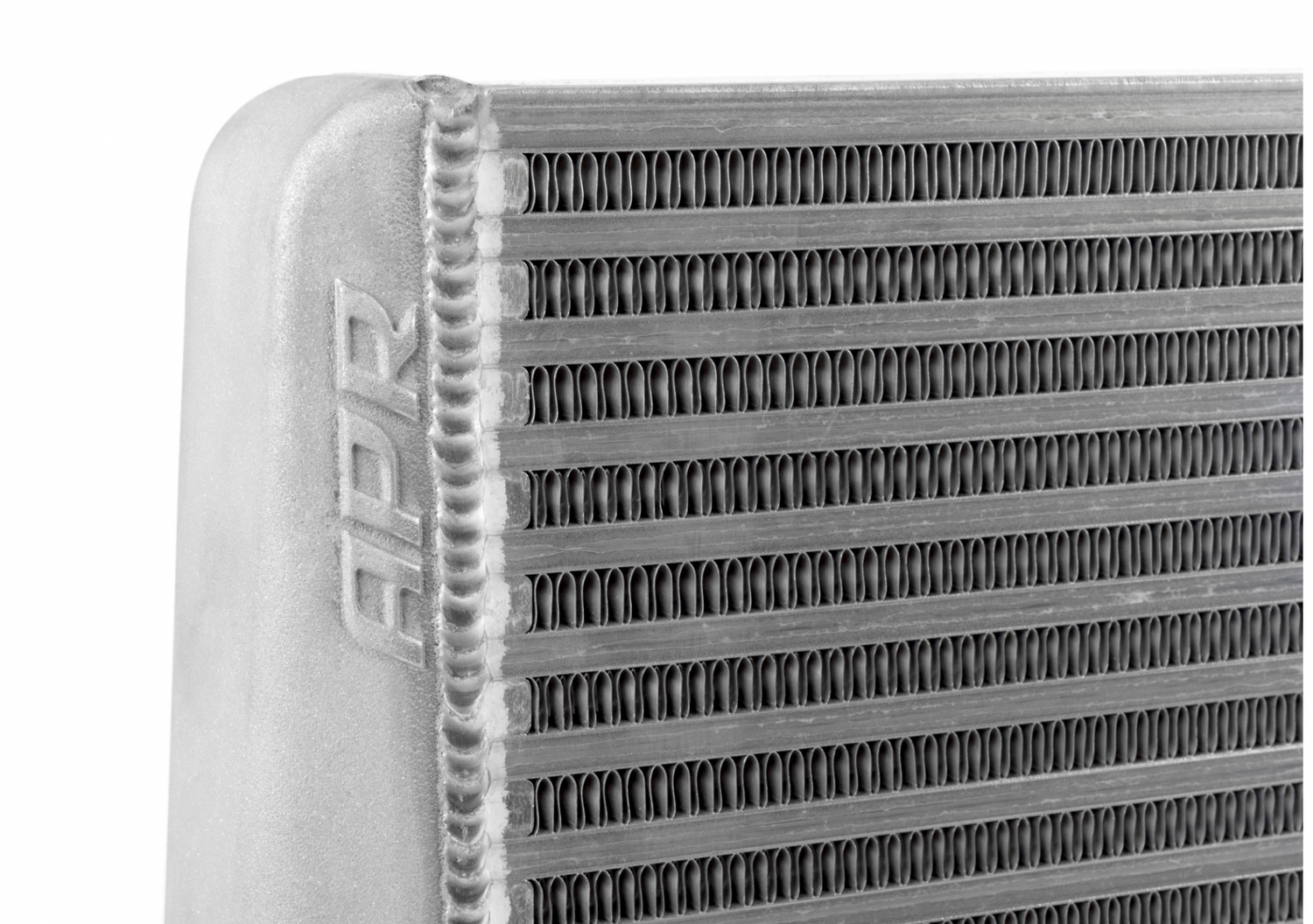

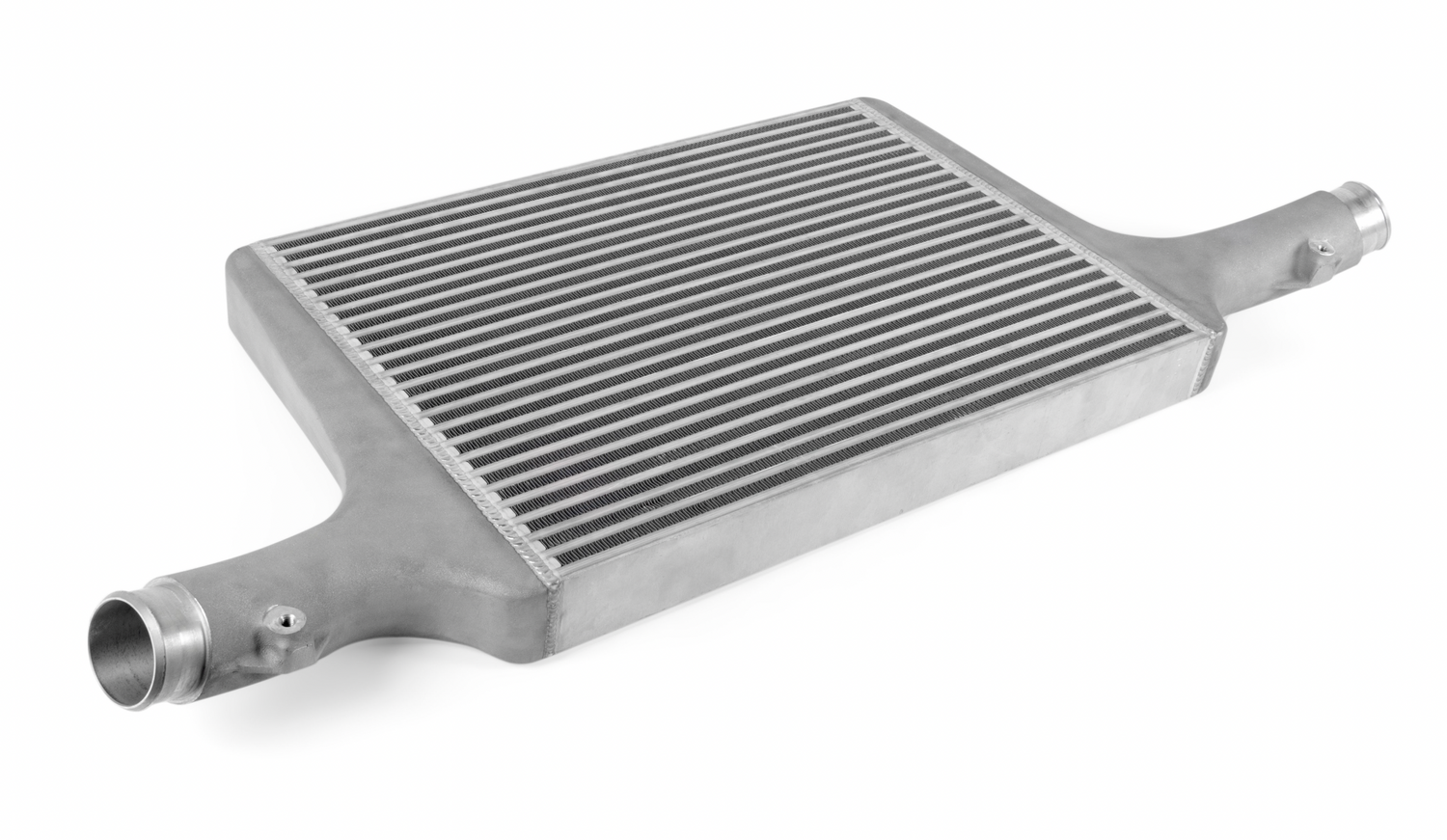

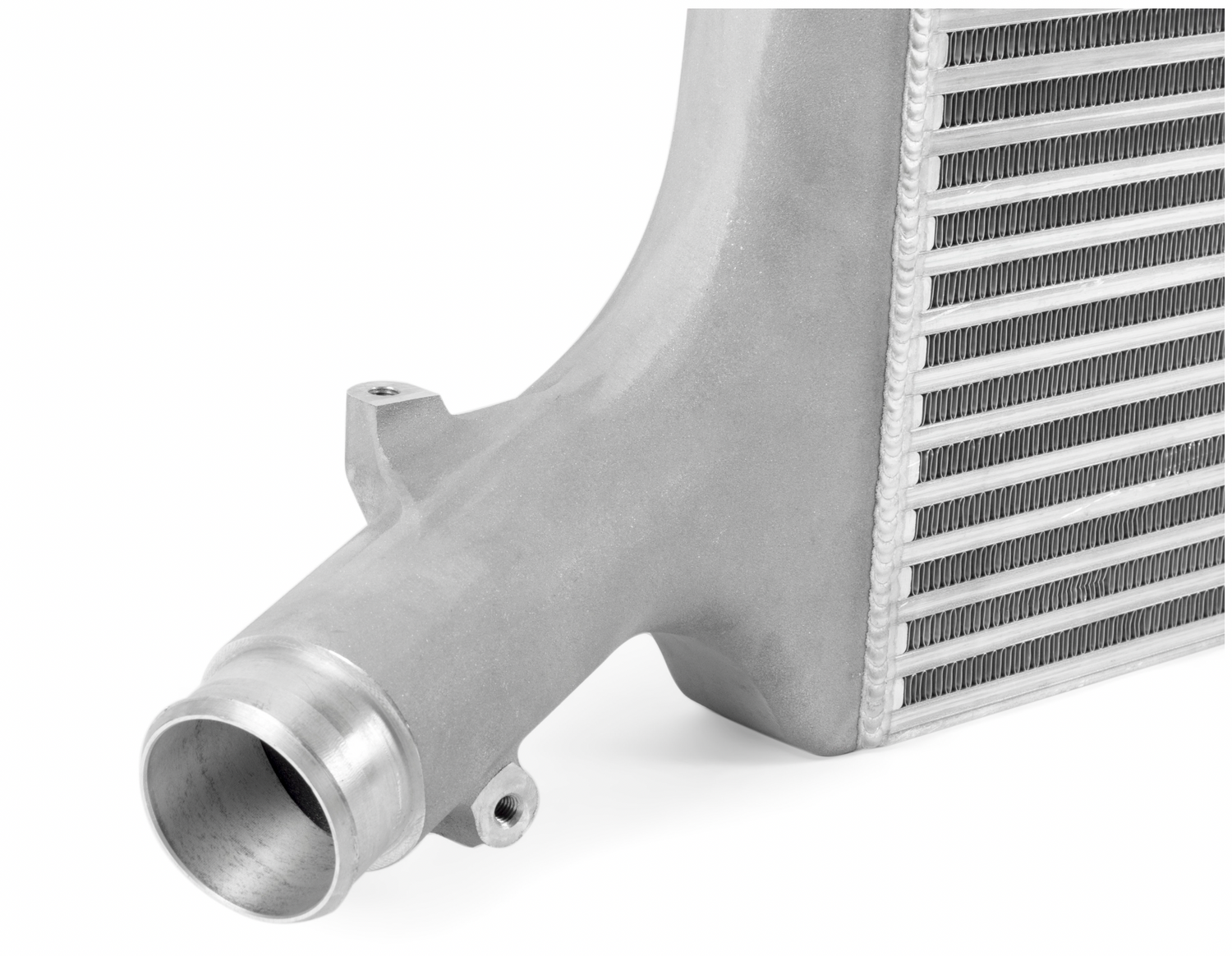

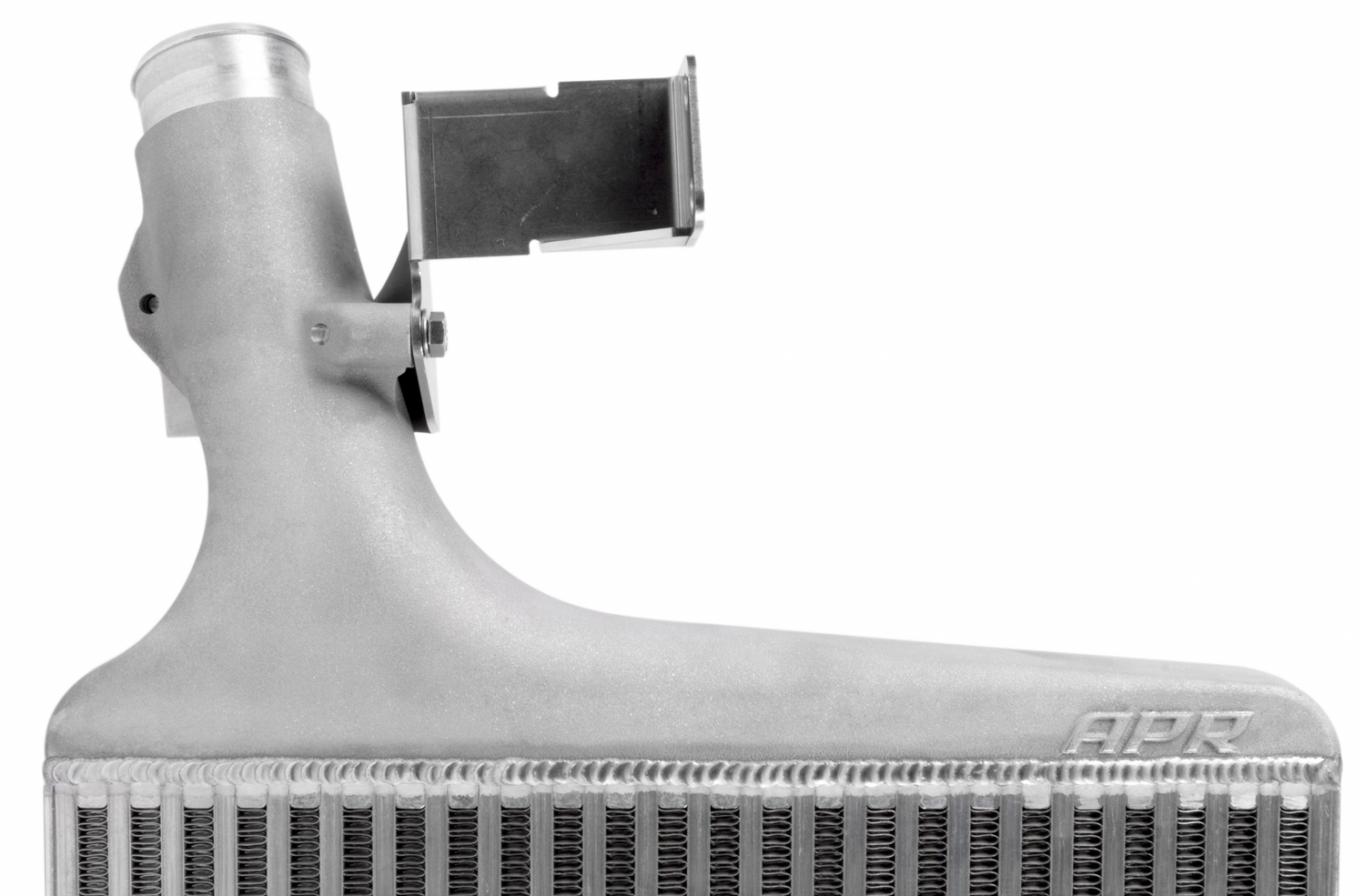

To fully utilize the massive core, APR’s mechanical engineers designed cast aluminum end tanks organically shaped for proper airflow distribution across the entire core. By correctly sizing the intercooler core, end tank design was not sacrificed. The one-piece end tanks are CNC machined to provide a slip resistant mounting surface for hoses, precise integrated mounting surfaces, and perfectly flat connecting surfaces used for TIG welding the tanks to the core. Through proper alignment in welding jigs, each unit is assembled to tight tolerances for a precise and accurate fit.

INTERCOOLER BRACKET DESIGN

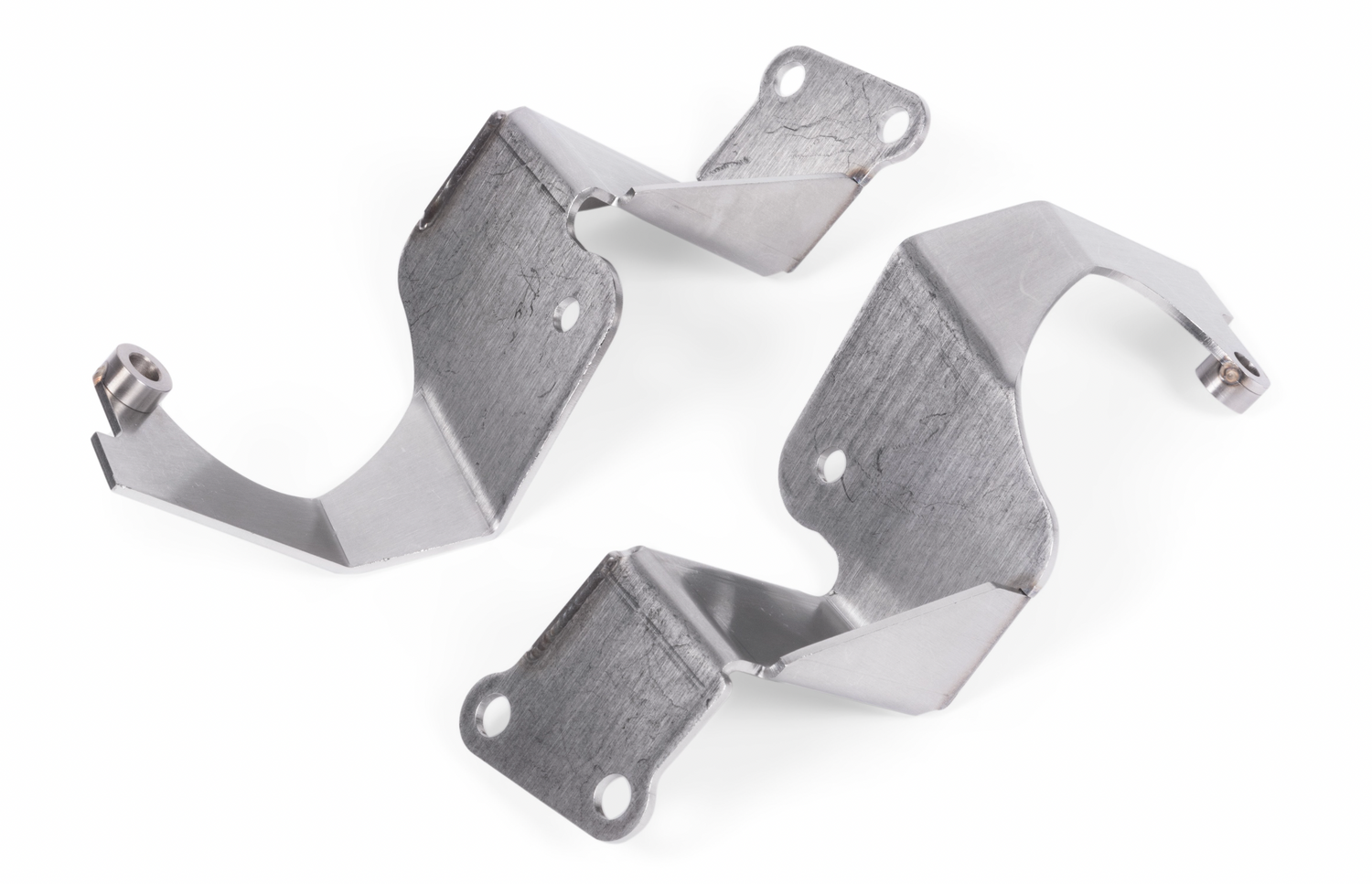

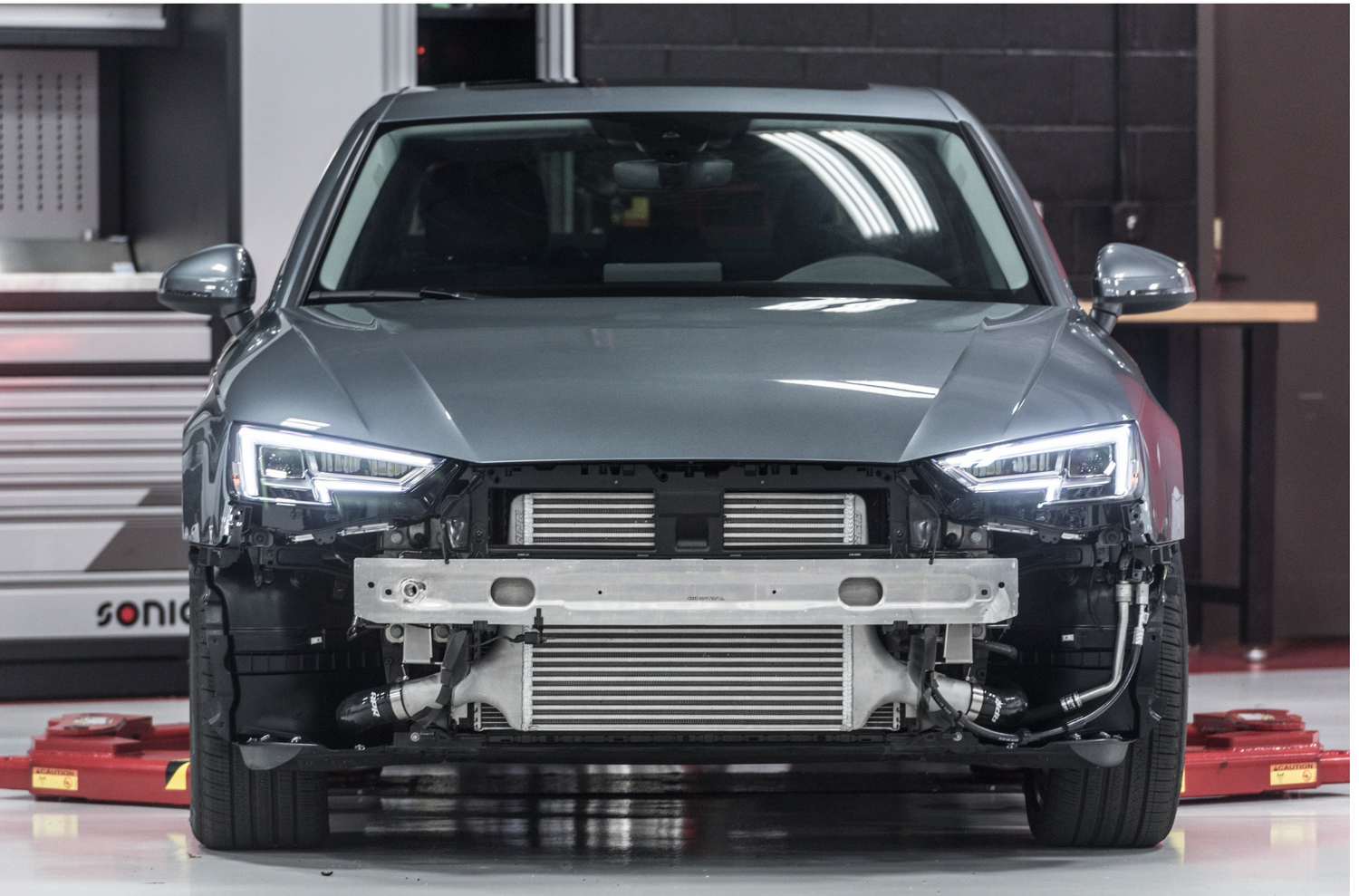

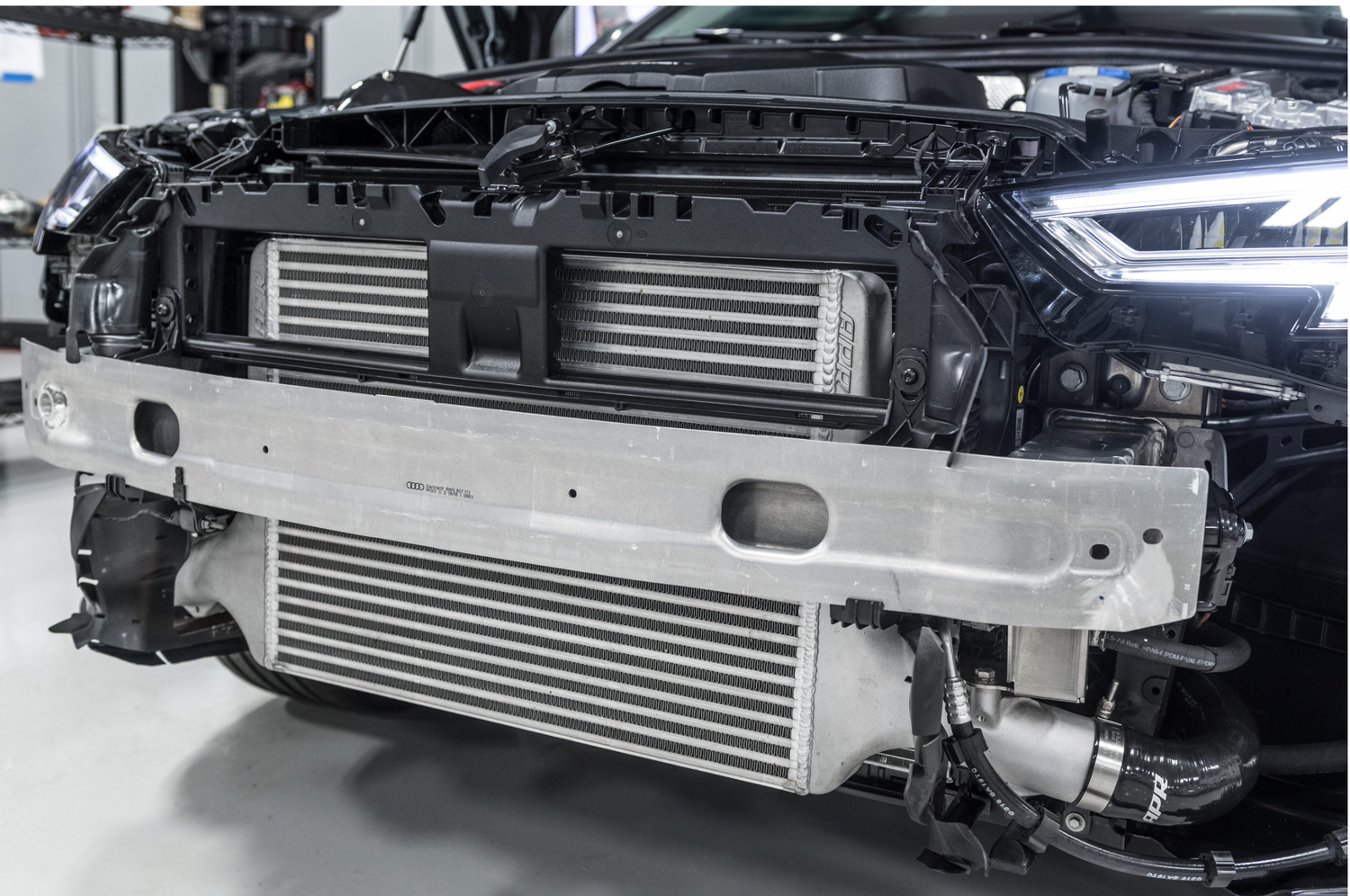

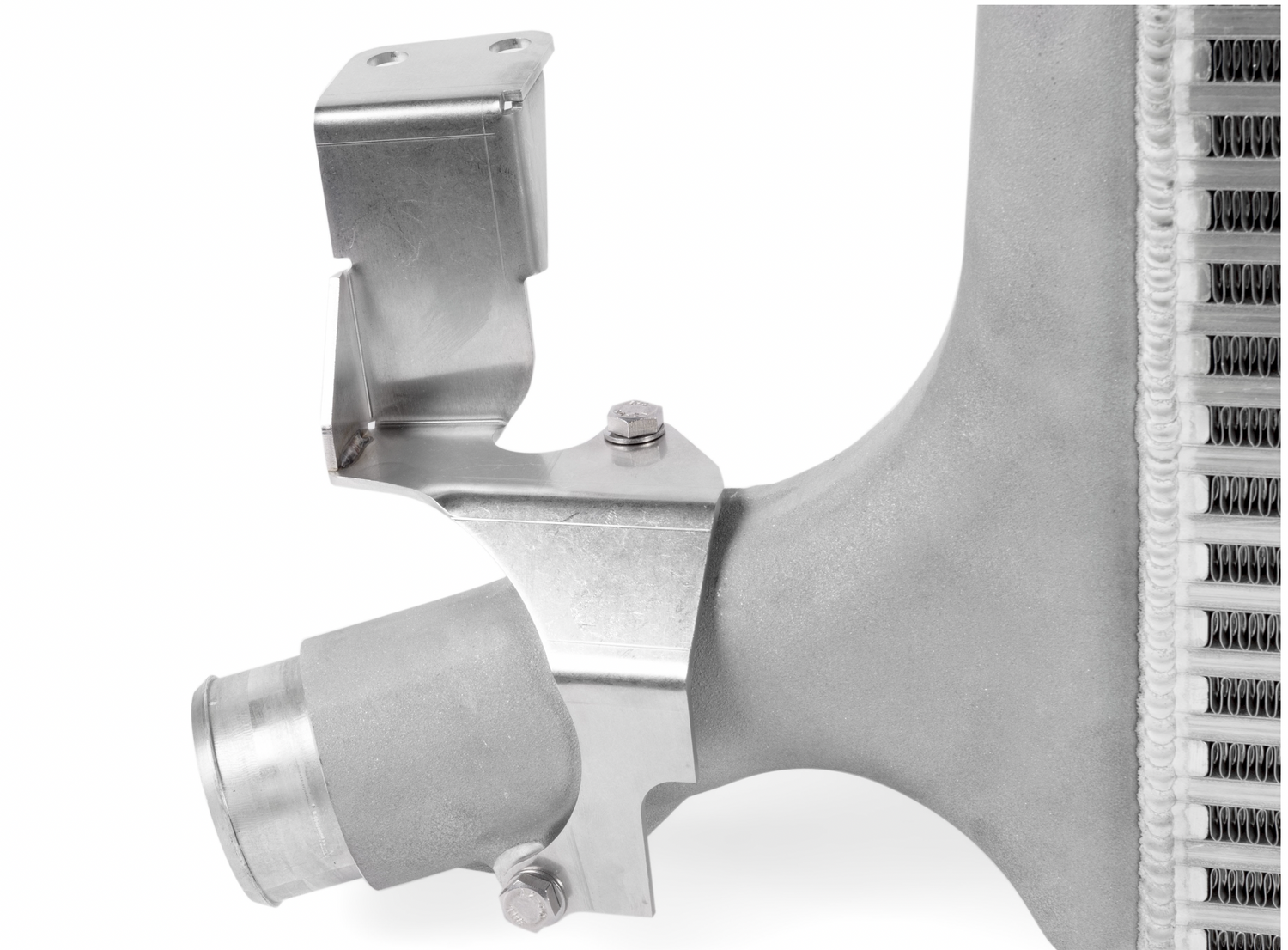

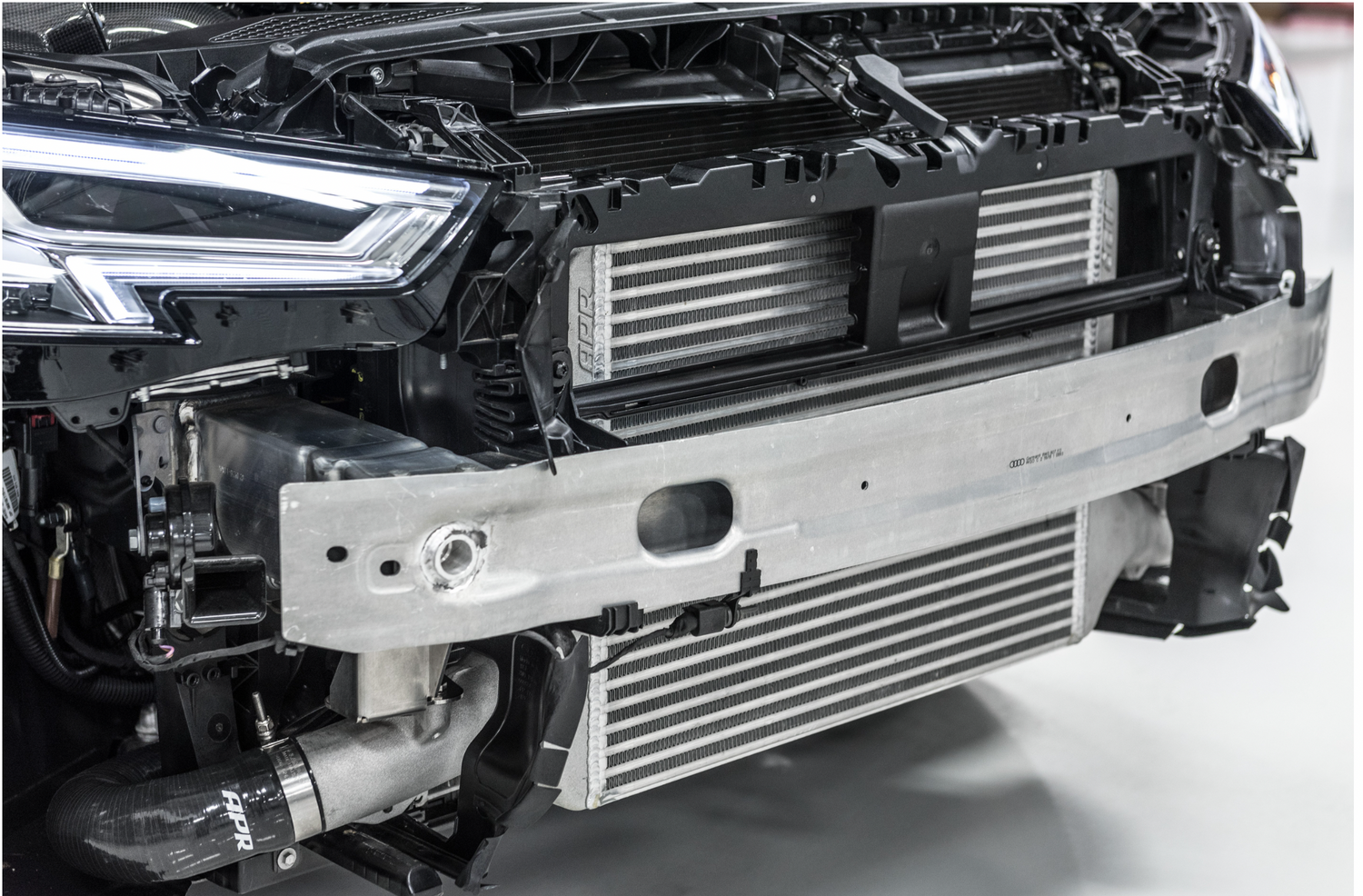

APR’s mechanical engineers designed CNC-bent and TIG-welded mounting brackets to securely hold the intercooler in place. The brackets make the install extremely easy. With the bumper and factory intercooler unit removed, the APR intercooler installs in minutes without any cutting, drilling or trimming. For the DIY customer, this makes a home install simple, and for everyone else it eliminates hidden costs that often come with a more labor intensive install.

INTERCOOLER HOSES AND CLAMPS

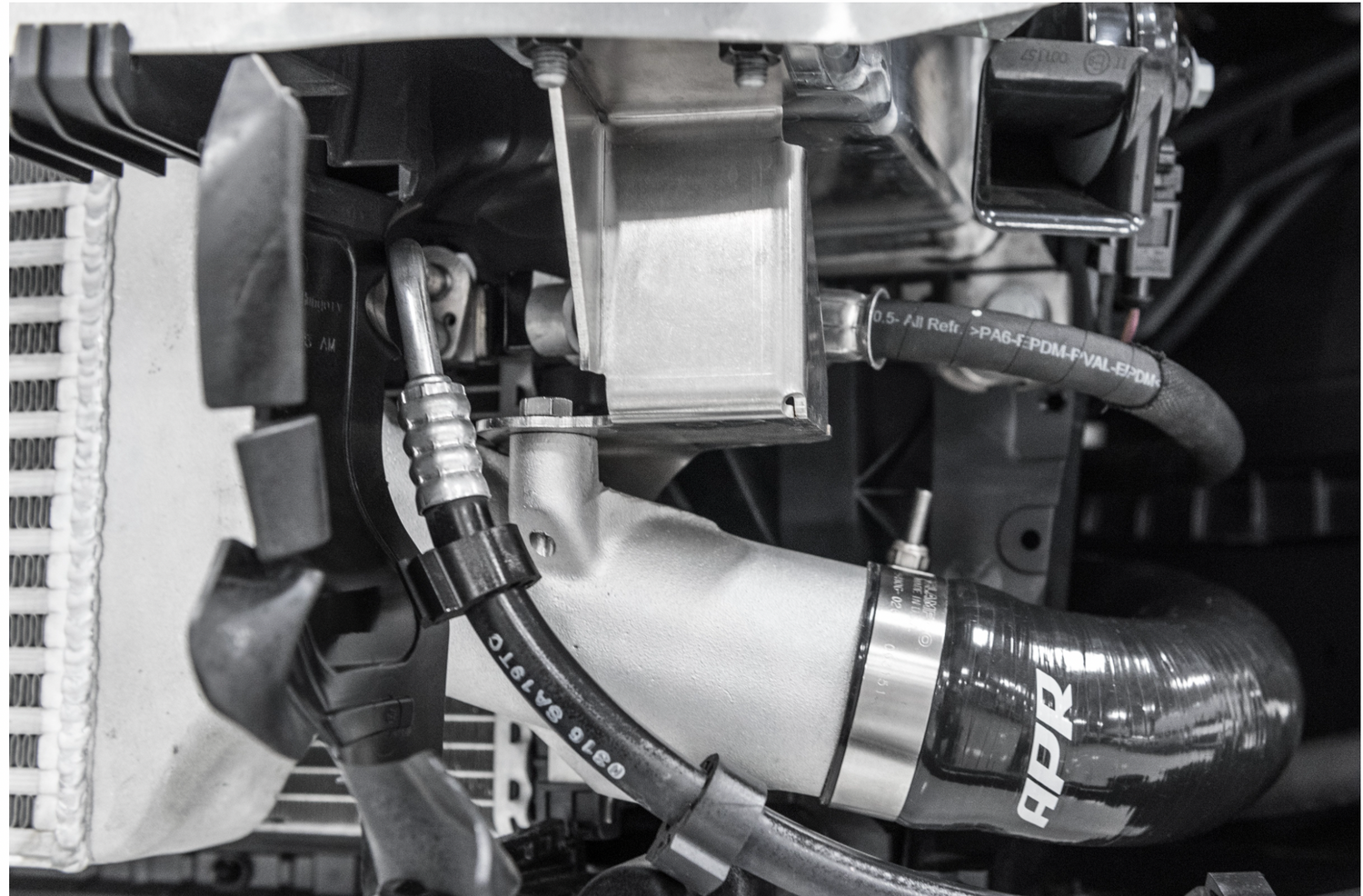

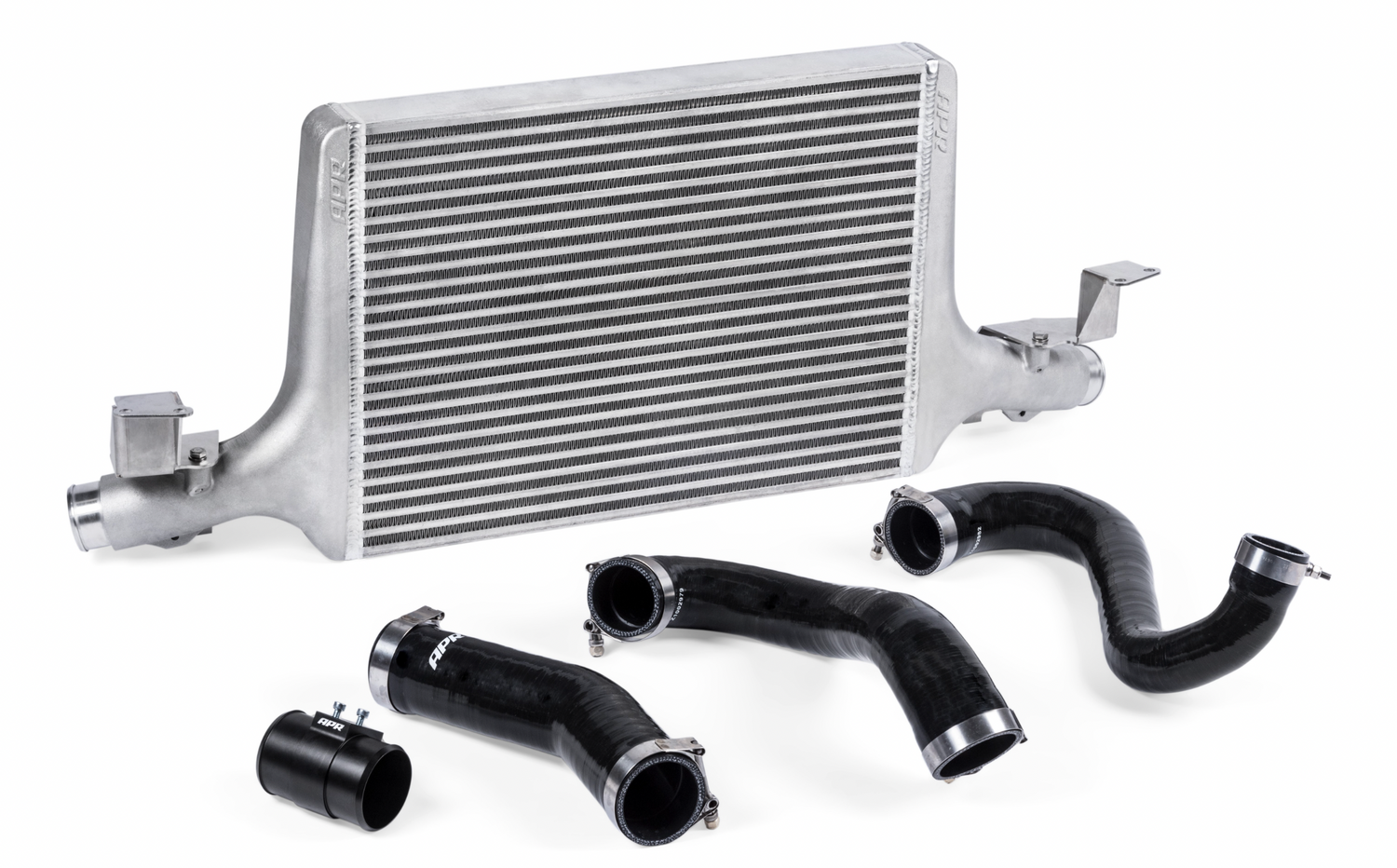

The APR Intercooler System includes the highest quality silicone inlet and outlet hoses, T-bolt clamps and billet MAP housing. Each component is designed to protect against boost leaks at extreme pressures, and stand the test of time.

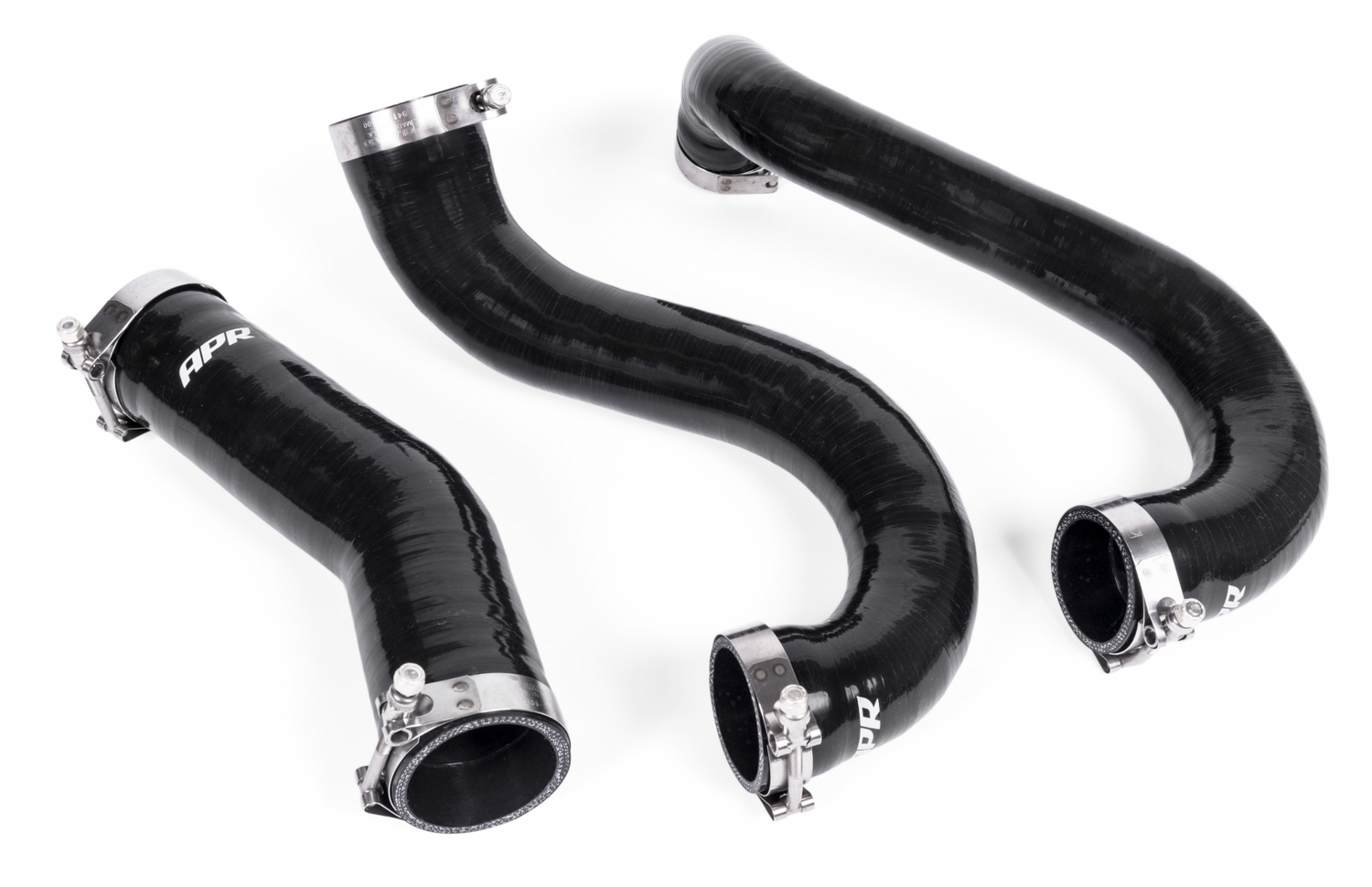

Hoses: The hoses are constructed from multi-ply silicone, and are wire-reinforced to prevent swelling and bursting at extreme boost pressures. Internally, the hoses are lined with fluorosilicone to protect the hoses from oil and gasoline deterioration. Finally, each hose feature’s APR’s EZ-Flow stepped design to provide a smooth airflow path at the hose transition points.

Clamps: Strong Clampco T-bolt clamps are used throughout, replacing the factory worm-gear clamps. The clamps are made from stainless steel, and are of a high-quality and high-strength design that diminishes the risk of boost leaks. Lastly, the clamp’s thick clamping style provides increased connection strength, and decreased hose slippage compared to other styles of clamps.

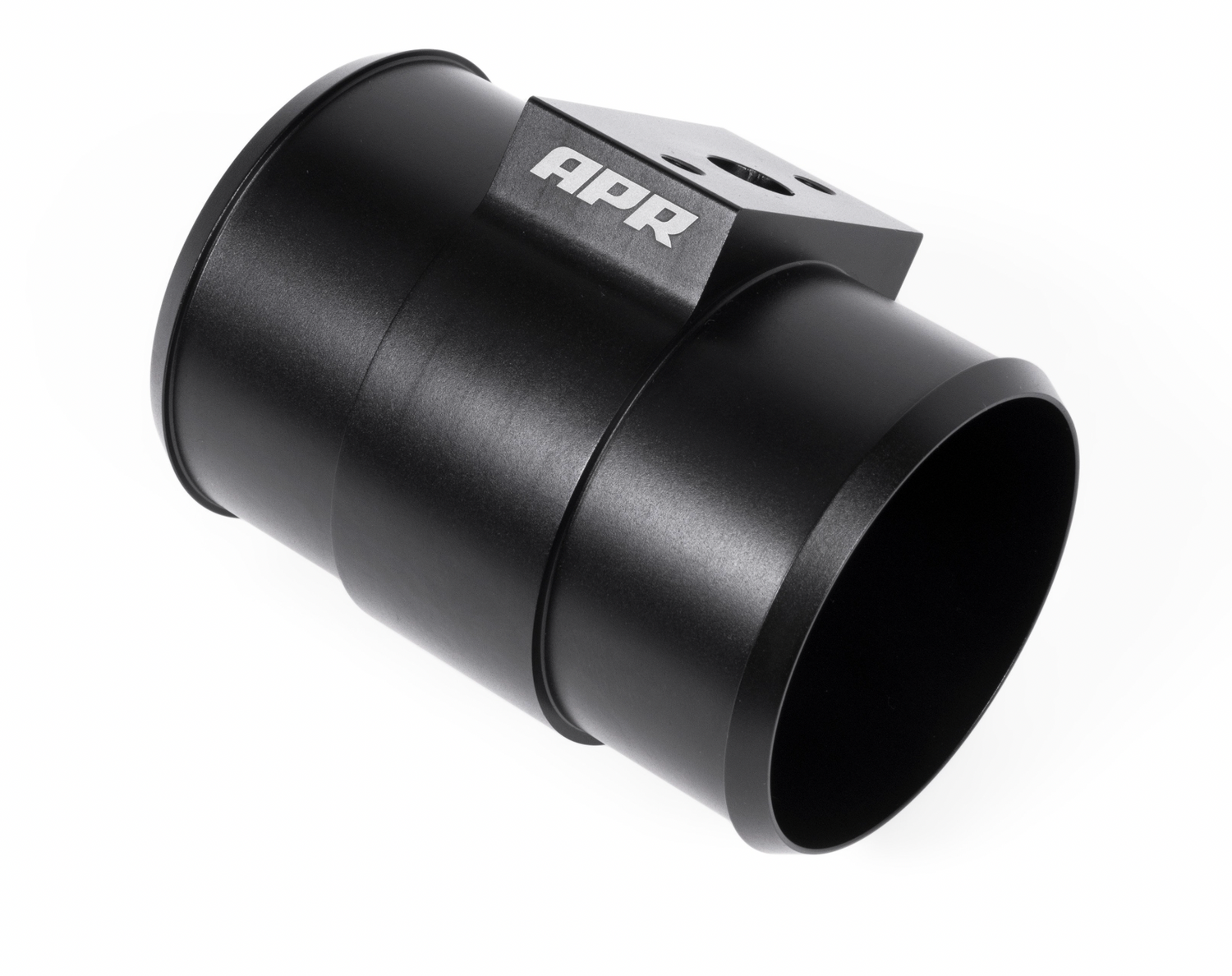

MAP Housing: A billet MAP sensor housing provides a secure mounting point for the factory pre-throttle MAP sensor. The precision cnc-machined housing helps to prevent leaks around the sensor, and the matte-black anodizing gives the housing a clean and attractive look within the engine bay.

TESTING

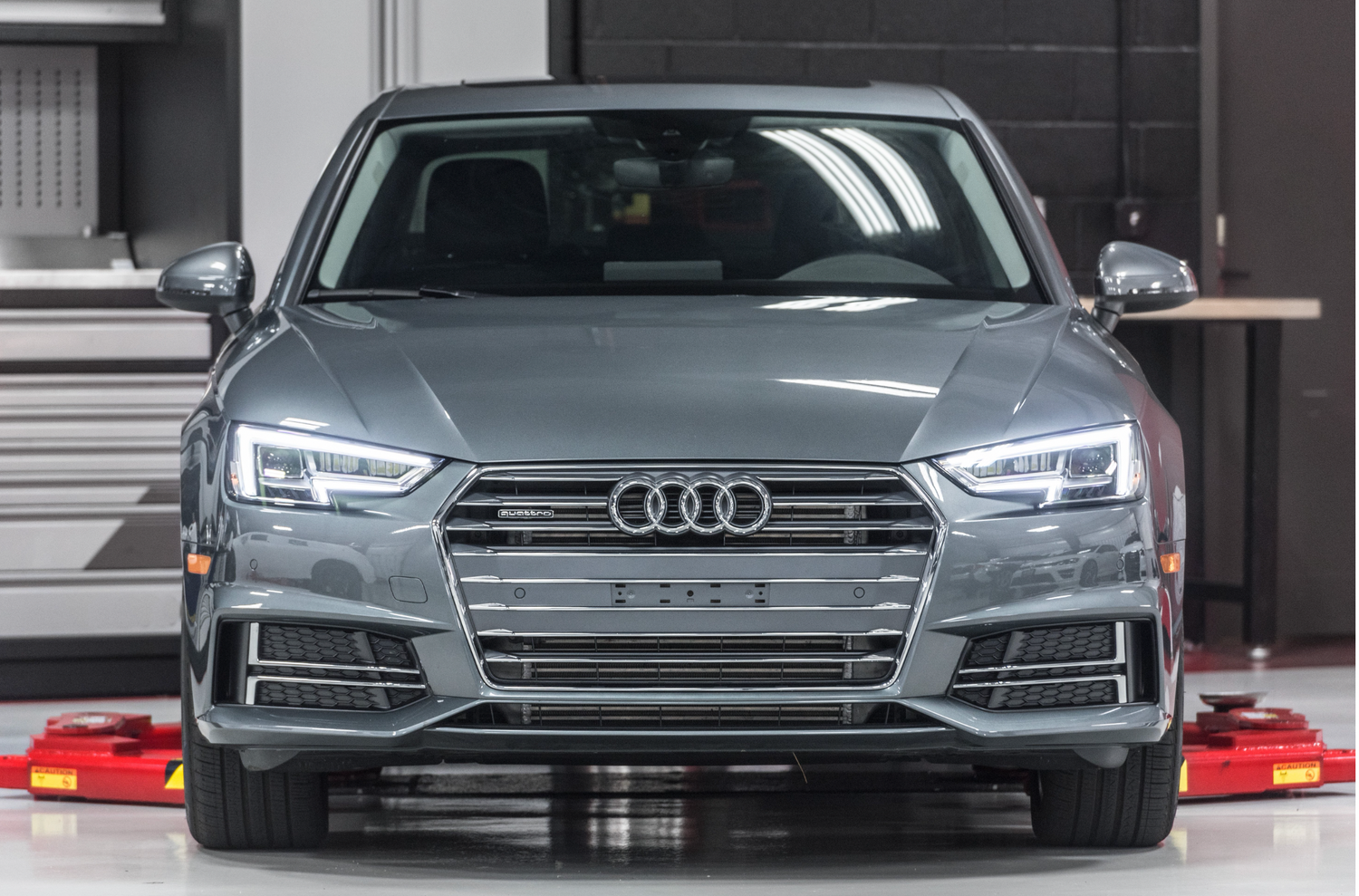

APR’s engineers conducted a multitude of tests both on the street and on the dyno with thermocouples and pressure transducers placed at the inlet and outlet of the intercooler during the design phase. Data from these tests were used to choose the intercooler core available today. With the intercooler in its final production form, tests were conducted against the factory intercooler to measure the effectiveness of each system. Testing conducted on the dyno provided a semi controlled environment for back-to-back stress testing the two systems. Utilizing a B9 A4 2.0T at APR Stage I power levels with 100 octanes in the tank to prevent timing pull associated with higher intake air temperature seen with the stock intercooler, six back-to-back dyno pulls were conducted with minimal cooldown time between runs. APR’s ECU Explorer high resolution data logging system was used for raw sensor data collection. The APR intercooler saw a beginning IAT of 33.90°C that rose slightly to 38.20°C by the end of the first dyno pull. IAT remained consistent during the six back-to-back pulls, resulting in a final IAT of only 44.00°C! The system effectively rejected heat soak and produced consistent horsepower results stacking evenly on top of each previous run. The OEM intercooler did not fare so well. With a starting IAT of 33.40°C, IAT skyrocketed during the first pull, settling at a blazing 72.45°C, or 34.25°C higher than the APR Intercooler. IAT continued to climb during the six back-to-back pulls, resulting in a final IAT of 77.8°C. With each new pull, horsepower dropped considerably, ultimately resulting in horsepower figures as low as 45 AWHP less than those captured with the APR intercooler!
