AEM30-2130-15

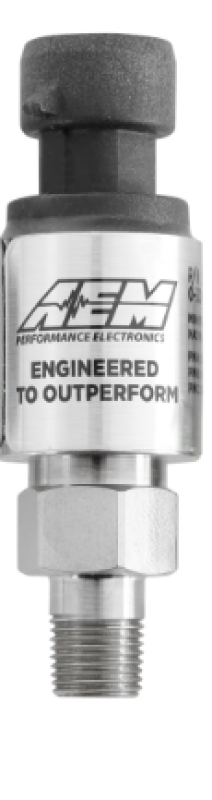

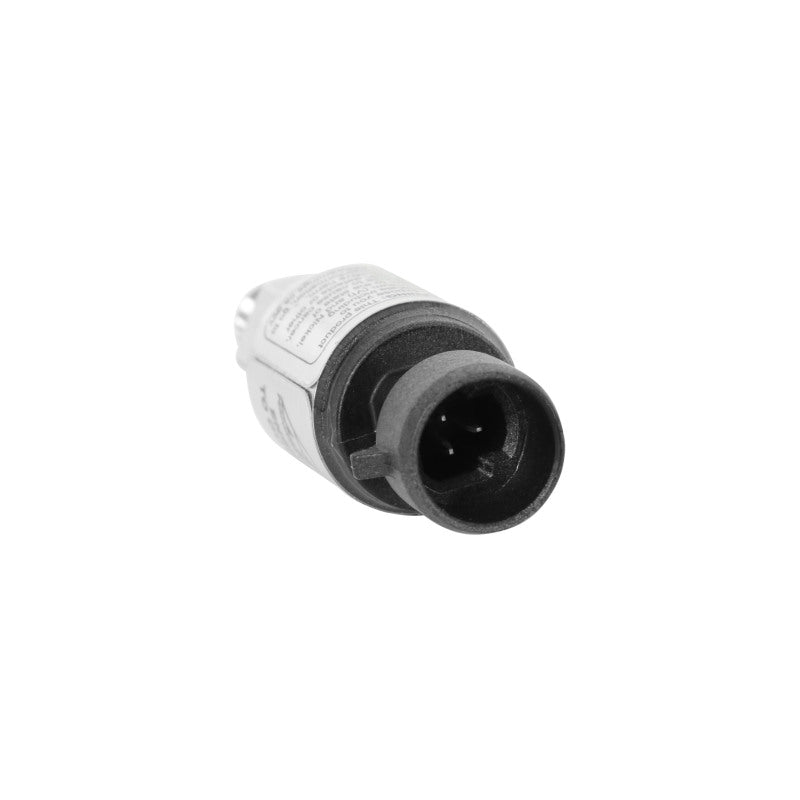

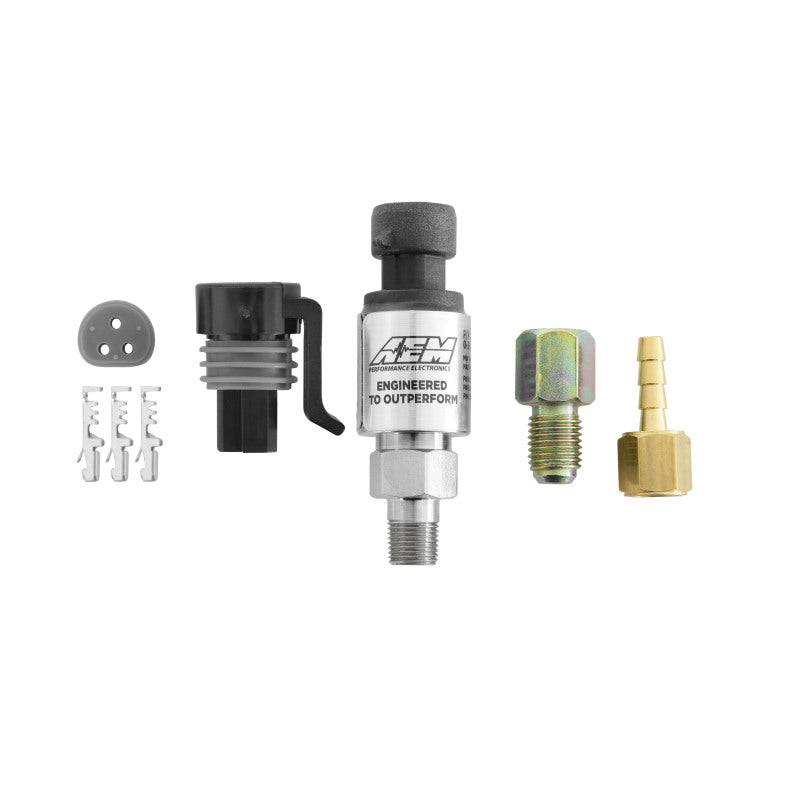

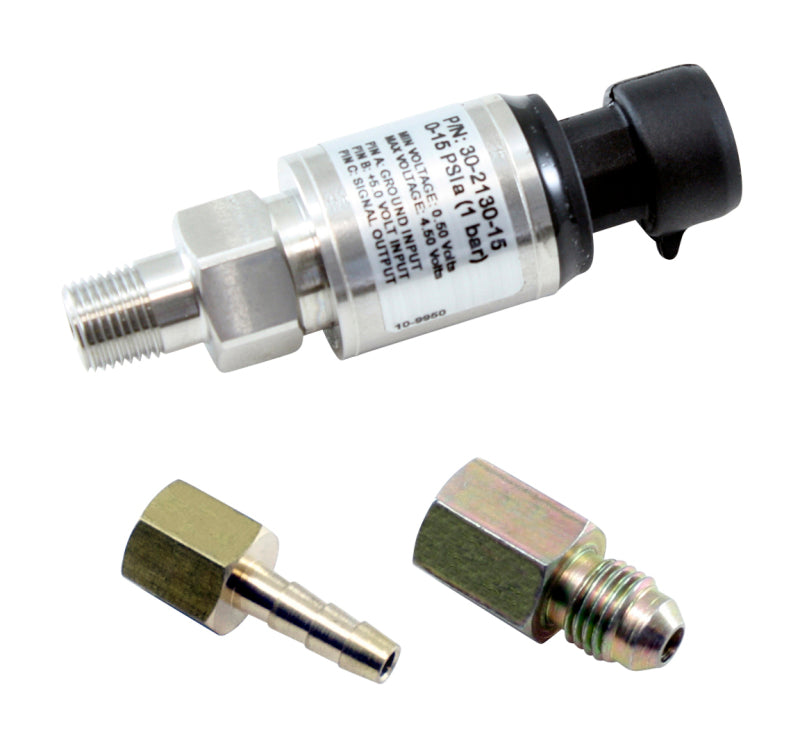

AEM 1 BAR MAP or 15 PSIA Stainless Steel Sensor Kit

  • In stock, ready to ship
  • Inventory on the way
$193.95 $171.95
/
Shipping calculated at checkout.
  • Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)
  • info@10SecondRacing.com (24/7)
  • Free Shipping to Lower 48 US States ($100+)
  • Worldwide Shipping via UPS (Check Rates at Checkout)

    • This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

    AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa pressure sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

    Warranty
    Installation Instructions
    • High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
    • Stainless-steel sensors accurate to within 1% of full scale (pressure sensors)

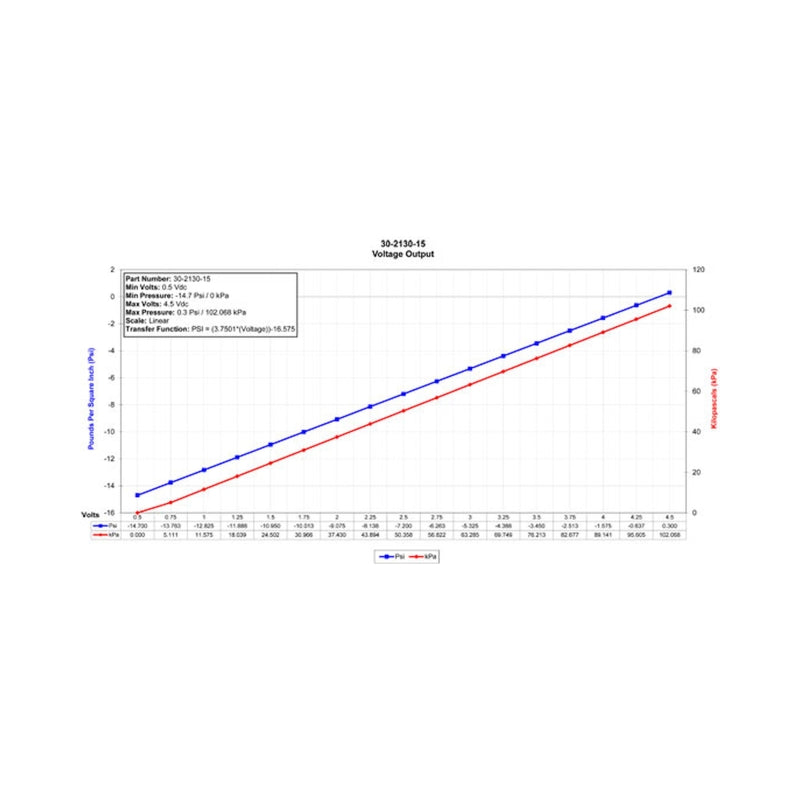

    • Analog Data Scaled in Charts

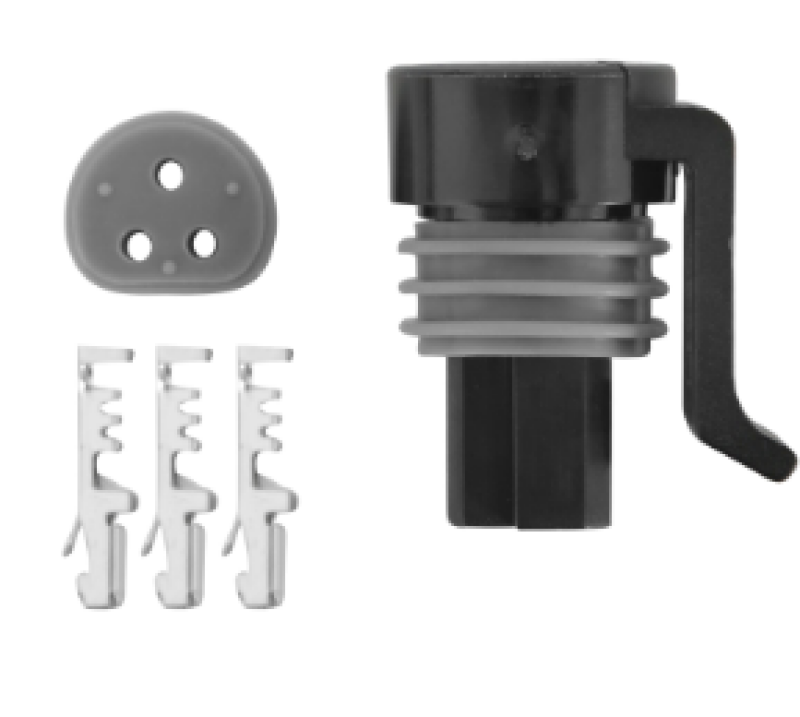

    • Connector and pins included
